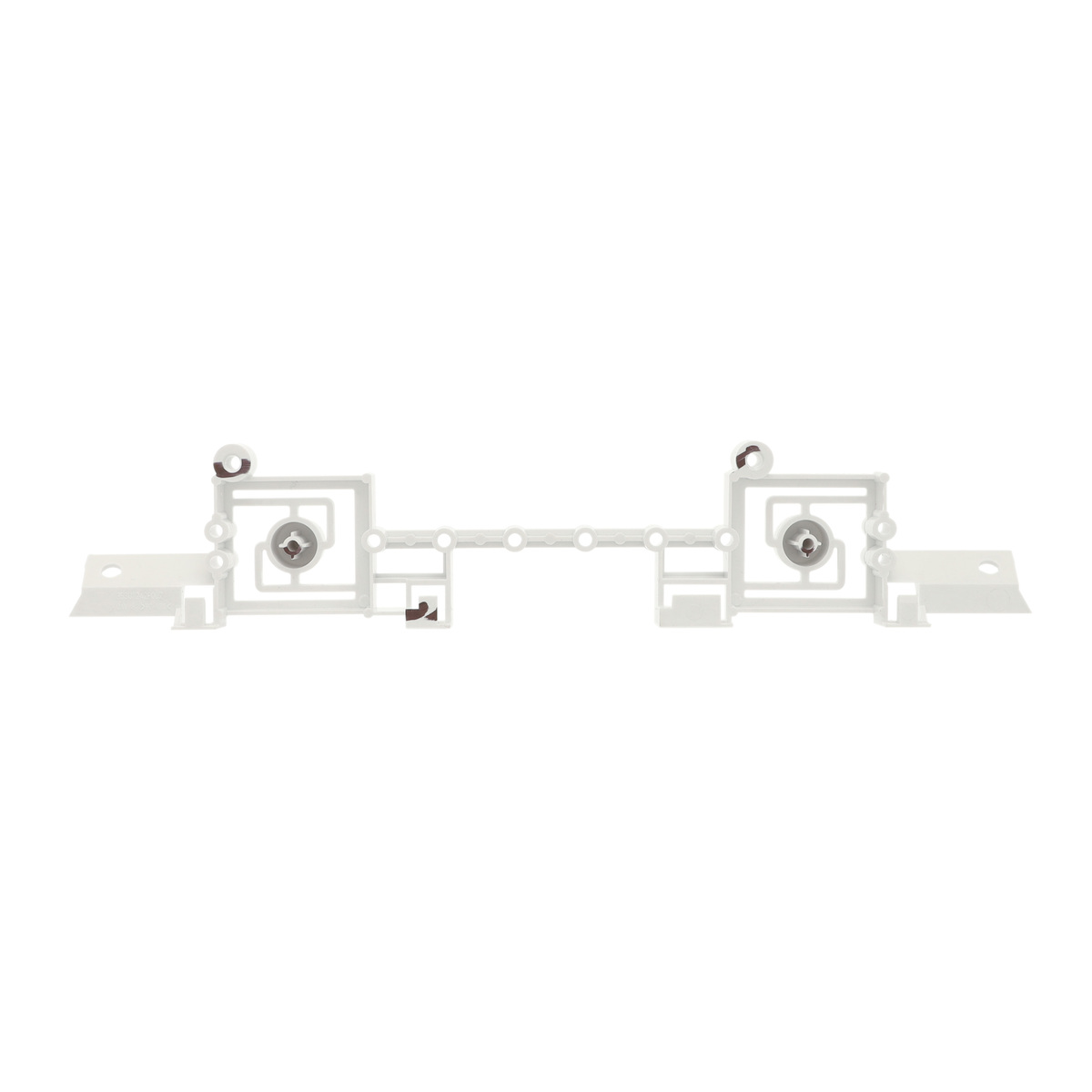

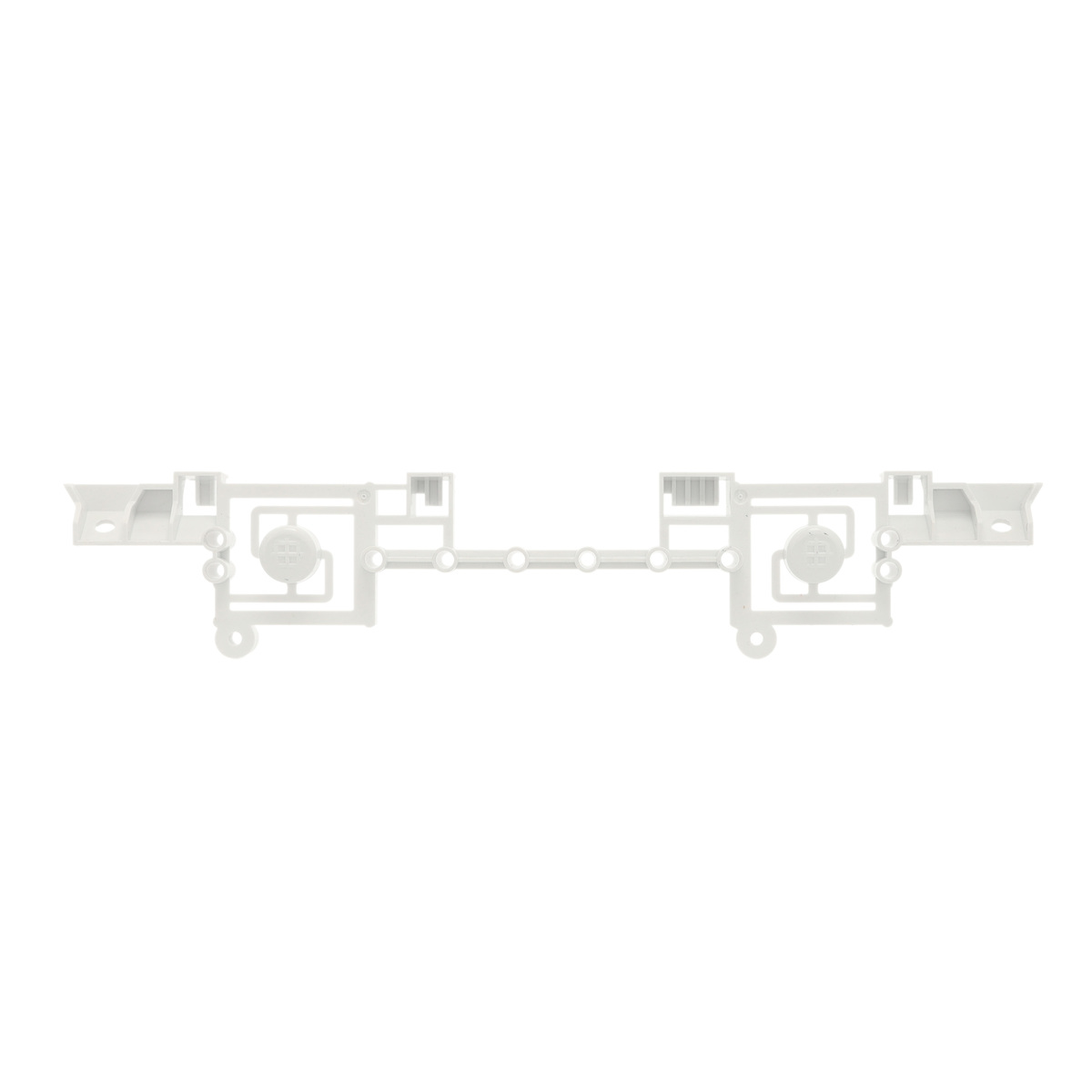

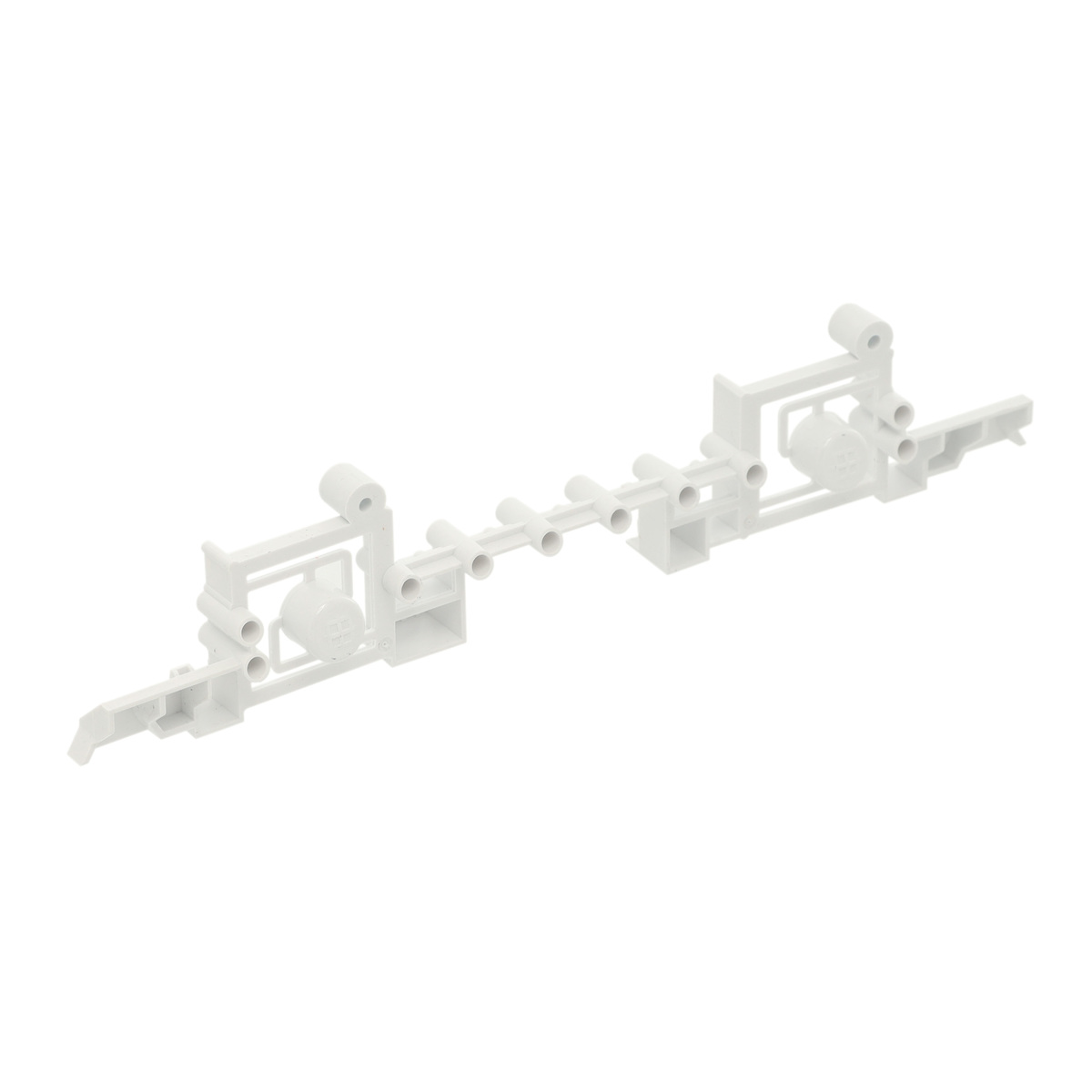

WW01L01703 - Genuine OEM GE Washer IML Assembly and Backsplash

WW01L01703 – Genuine OEM GE Washer IML Assembly and Backsplash

The WW01L01703 Genuine OEM GE Washer IML Assembly and Backsplash is an original manufacturer control panel interface component designed for GE top-load washing machines. This factory-engineered part integrates the washer’s start/pause button interface and backsplash panel assembly, allowing users to control wash cycles safely and reliably. Available from Appliance Kingdom, this genuine GE replacement part ships quickly across Canada and is trusted by homeowners, landlords, and appliance repair technicians.

This Genuine OEM GE part is designed to restore proper washer control functionality and resolve issues such as washers that won’t start, won’t pause, or have unresponsive control buttons.

Appliance Category

Washer (Control Panel Interface / Backsplash Assembly)

Function & Importance of the IML Assembly and Backsplash

The IML (In-Mould Label) Assembly and Backsplash forms part of the washer’s control panel system. It houses the interface components and connects user inputs—such as start, pause, and cycle selection—to the washer’s electronic control system.

This component is essential because it:

• Enables the washer to receive and process user commands

• Supports reliable start, pause, and cycle operation

• Protects internal control electronics from moisture and damage

• Maintains proper structural alignment of the washer control panel

If this assembly becomes worn, cracked, or electronically faulty, the washer may not respond to button inputs or may fail to operate correctly.

Common Symptoms Indicating Replacement

Replacing the WW01L01703 control panel IML assembly and backsplash may resolve the following washer issues:

• Washer will not start

• Start or pause buttons do not respond

• Washer cannot pause or resume cycles

• Control panel lights do not function properly

• Control interface feels loose, damaged, or non-functional

This part is commonly recommended when washer control interface problems prevent normal operation.

Compatibility Guidance

This part is designed for use with GE washers and compatible brands, including:

• GE

• GE Profile

• Café

• Monogram

• Hotpoint

• Moffat

• Certain Kenmore models manufactured by GE

Always verify your washer’s model number before ordering to ensure compatibility, as similar-looking panels may differ in fit or function.

Key Features & Benefits

• Genuine OEM GE part for guaranteed fit and reliability

• Restores proper washer control panel functionality

• Factory-tested to meet GE performance and safety standards

• Durable construction for long-term operation

• Ideal for homeowners, property managers, and appliance technicians

• Ensures consistent and dependable washer control response

Installation Overview

• Installation Difficulty: Moderate

• Requires access to the washer control panel and backsplash assembly

• May involve disconnecting wiring harnesses and removing mounting screws

While experienced DIY users can install this part, professional installation is recommended to ensure proper electronic connection and avoid damage to sensitive control components.

Canada-Wide Availability & Trusted Canadian Supplier

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, offering:

• Fast shipping throughout Canada

• Genuine OEM GE parts

• Reliable support for homeowners and repair professionals

• Parts designed to meet Canadian appliance standards

Buyer Confidence & Assurance

• 100% Genuine OEM GE replacement part

• Ensures exact fit and proper control functionality

• Helps restore normal washer operation

• Expert support available to confirm compatibility before purchase
