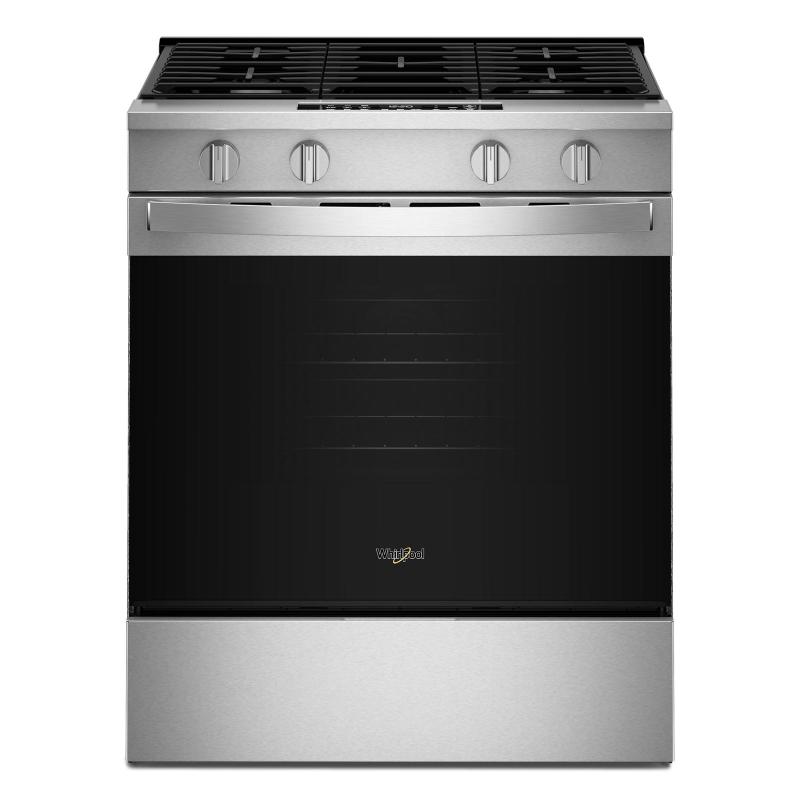

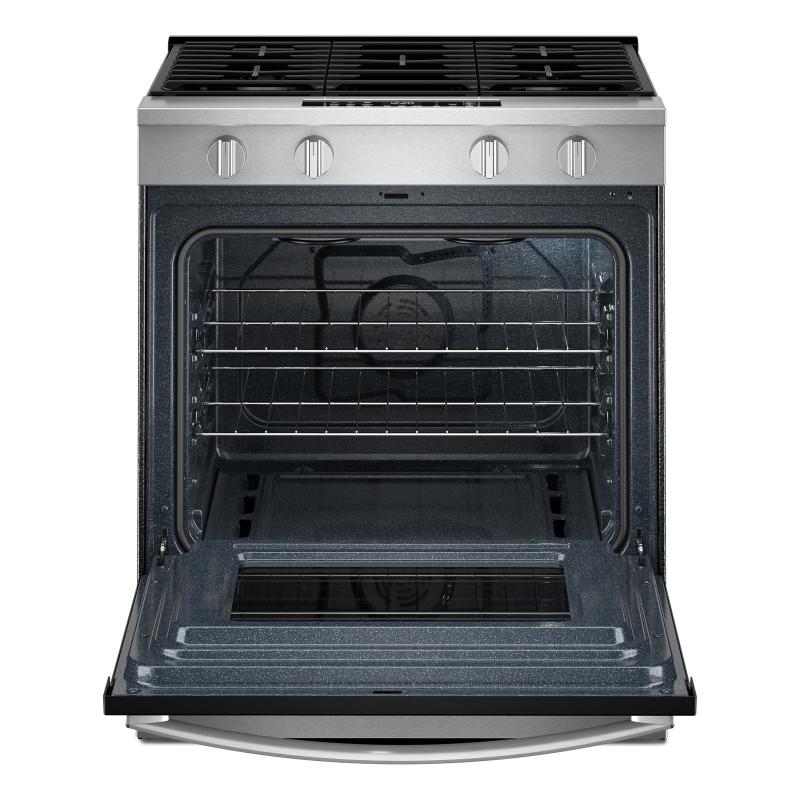

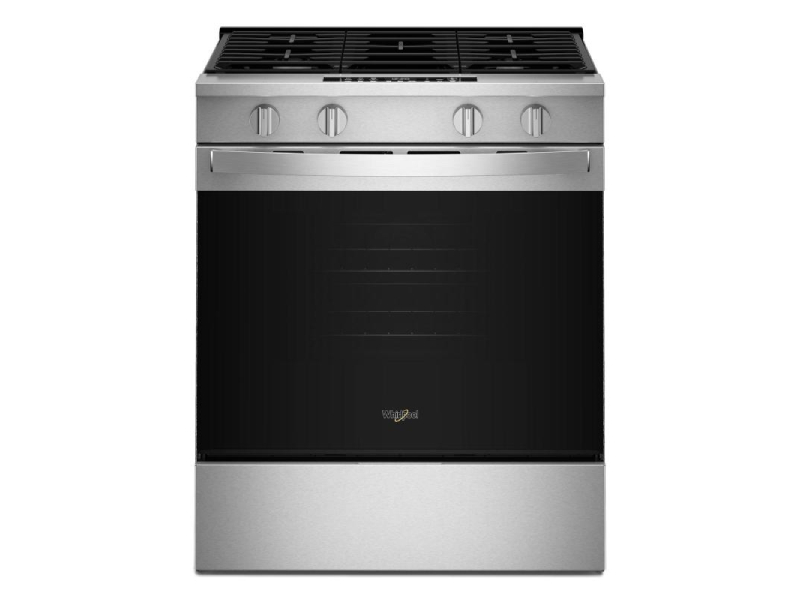

30" Whirlpool Gas Smart Range with Air Cooking Technology and Steam Clean - WSGS4530TZ
Top Features

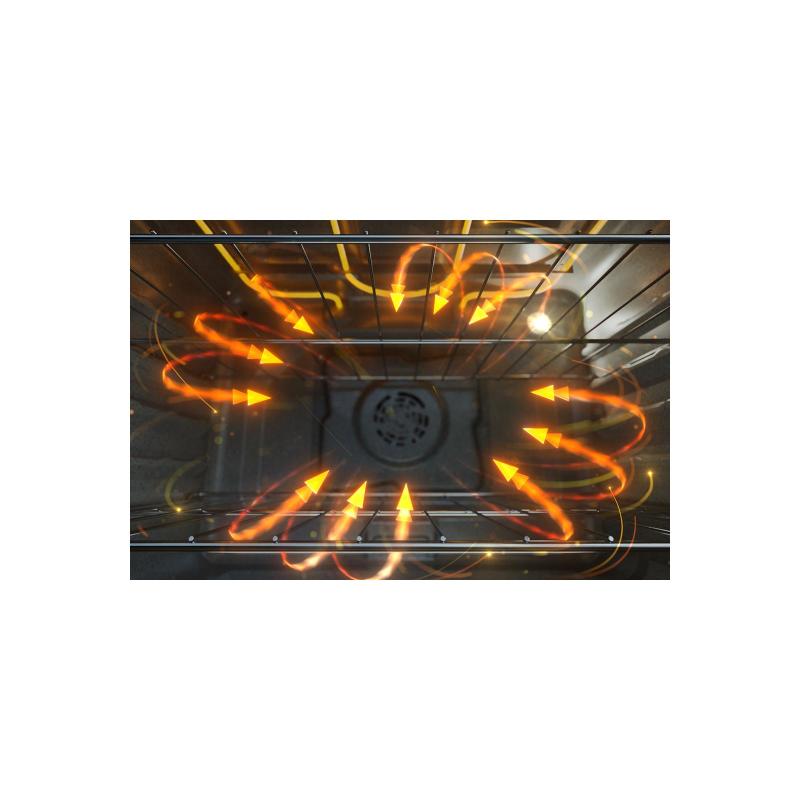

Air Cooking technology
Experience the difference with the dynamic air flow and intense heat of Air Fry and Air Baking
Cooking Modes
Take your favorite meals from fresh, fridge or freezer to fabulous with the Air Cooking Technology of No Preheat Air Fry, Air Baking, Air Roast, Air Broil and Air Reheat, or use traditional heating modes like No Preheat Mode, Bake, Slow Cook, Broil, and Keep Warm.

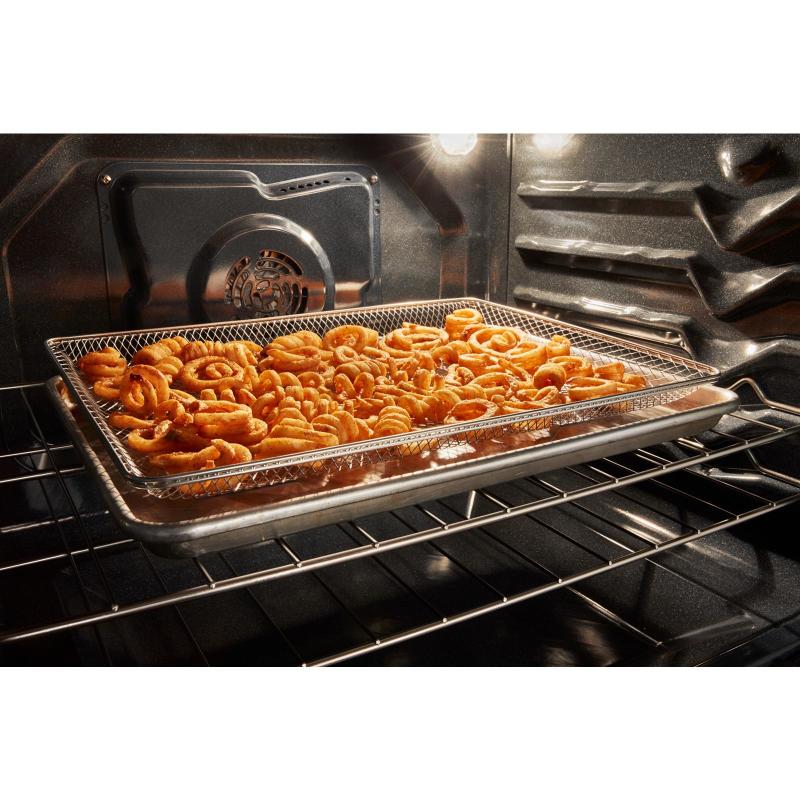

No Preheat Air Fry
Save time* with No Preheat Air Fry. Get the right heat at the right time with our most advanced Air Fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt. *Compared to YWFE550S0LZ
Additional Features
Griddle Zone
Maximize your cooking space for a variety of mealtime options with Griddle Zone. Two individual heating elements combine to form one larger one, making it easy to cook up all that delights, all at once.
Steam Clean
Use the Steam Clean setting to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.
SpeedHeat™ Burner
Use the SpeedHeat™ Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly.
*Compared to 10K burner on the same model

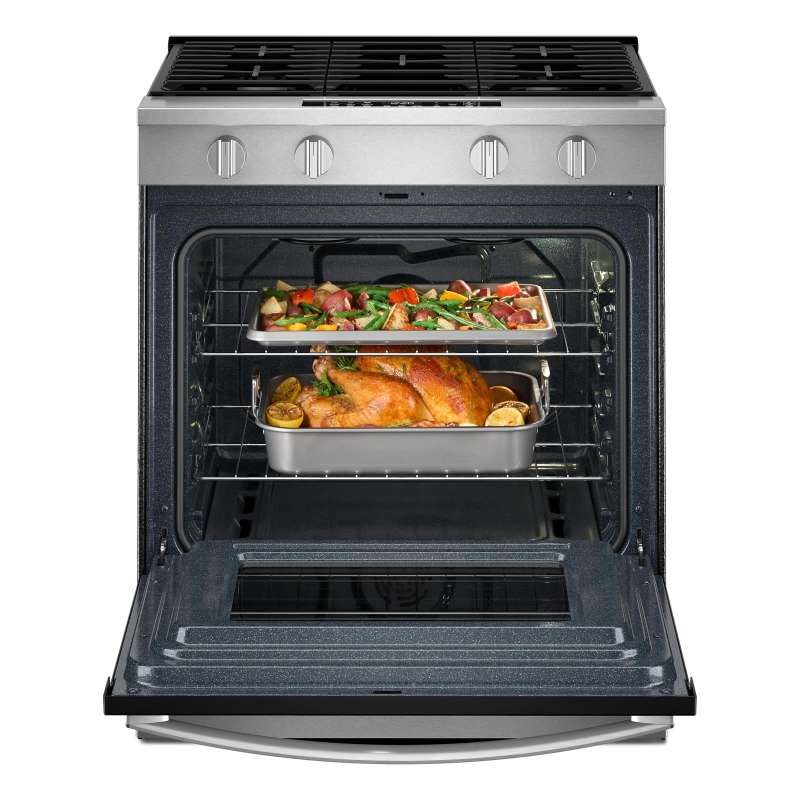

Air Baking
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.
Air Roast
Seal in flavours and juices for meat and poultry with Air Roast. Our high-speed fan drives air flow to optimize heat through longer cook times. Enjoy the full flavour of hearty dishes like pot roast and whole chicken.
Slow Cook
Heat up all day dishes with Slow Cook. Our high speed fan optimizes air flow to maintain a low, even temperature for longer cook times to thoroughly heat up your food. Tackle your to-do list while soups, pastas and roasts come to temp without the worry.
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
No Preheat Mode
Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.
Keep Warm Setting
Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.
Edge-to-Edge Grates
Enjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates and the flexibility of a cooktop with a range of burner sizes and power levels.
Warm Zone
Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.
Smart Range
When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.* *Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Smart Feature Updates
Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with updates through the Whirlpool app. *Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Front Control Design
Easily upgrade your kitchen with the features you want and a premium look that brings controls to the front of the range for easy reach with Front Control Design.
Storage Drawer
A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
Fingerprint Resistant Stainless Steel
Available in a stainless finish that’s easy to clean and resists fingerprints and smudges.
| Dimensions | |
|---|---|
| Depth | 25.4 " |
| Width | 29.9 " |
| Height | 36.6 " |
| Carton Depth | 31.0 " |
| Carton Height | 43.0 " |
| Carton Width | 32.0 " |
| Depth Closed Excluding Handles | 27.4 " |
| Depth Closed Including Handles | 29.1 " |
| Depth With Door Open 90 Degree | 47.7 " |
| Gross Weight | 205.0 lbs |
| Maximum Height | 38.1 " |
| Minimum Height | 36.6 " |
| Capacity FT3 (cubic feet) | 5.0 |
| Cutout Depth | 24.0 " |
| Cutout Height | 36.0 " |
| Cutout Width | 30.0 " |
| Net Weight | 189 lbs |
| Details | |
| Broiler Location | Top Center |
| Oven Control Knob Type | N/A |
| Cleaning Type | Steam Clean |
| Number Of Rack Guides | 5 |
| Number Of Oven Racks | 2 |
| Number Of Oven Lights | 1 |
| Hidden Bake Element | Hidden |
| Cooktop Surface Material | Porcelain Coated Steel |
| Convection Functions | No |
| Convection Cooking Technology | Fan |
| Oven Control Location | Front Control |
| Broiler Element Power | 1300WElectricBroil |
| Bake Element Power | 16500BTU |
| Rack Guide Type | Embossed |
| Oven Rack Type | 2 Standard |
| Oven Light Type | Halogen |
| Oven Light Switch Location | Oven Control |
| Oven Interior Width In Inches | 24.2 |
| Oven Interior Depth In Inches | 19.0 |
| Oven Cooking System | Convection |
| Oven Control Type | Tap Touch |
| Description | |
| Range Type | Slide-in |
| Size In | 30 |
| Cooktop Details | |
| Right Rear Element Burner Type | Simmer |
| Right Rear Element Burner Size | N/A |
| Right Rear Element Burner Power | 5000BTU |
| Right Front Element Burner Type | Extra Large |
| Right Front Element Burner Size | N/A |
| Right Front Element Burner Power | 18000BTU |
| Auto Re Ignition | No |
| Ignition Type | Direct Spark Ignition |
| Number Of Grates | 3 |
| Number of Burner | 4 |
| Left Rear Element Burner Type | Standard |
| Left Rear Element Burner Size | N/A |
| Left Rear Element Burner Power | 10000BTU |
| Left Front Element Burner Type | Large |
| Left Front Element Burner Size | N/A |
| Left Front Element Burner Power | 15000BTU |
| Grate Details | Dishwasher Safe Matte Finish Porcelain Coated Steel Grates |
| Cooktop Element Style | Sealed Burners |
| Cooktop Control Type | Knobs |
| Cooktop Control Location | Front |
| Cooktop Configuration | All Burners |
| Exterior | |
| Door Removable | Yes |
| Drawer Type | Storage Drawer |
| Features | |
| Total Gas Btus Oven S | 16,500 |
| Total Gas Btus Cooktop | 48,000 |
| Power Outage Compatible | Yes |
| Natural Gas Convertible | No |
| LP Convertible | Yes |
| Heating Element On Indicator Light | No |
| Griddle | No |
| Automatic Convection Conversion Temperature Adjust | No |
| Specifications | |
| Optional Accessories | 4396096RB, W11692811 |
| Country Of Origin | USA |
| Cast Iron Vs Porecelain | Porcelain Coated Grates |
| Matte Finish Vs Satin Finish | Matte Finish |
| Dishwasher Safe | Yes |
| CONTROLS | |
| Knob Type | Plastic |
| Control Type | Knobs |
| Configuration | |
| Range Configuration | Slide-In |
| Oven Configuration | Single Oven |
| Configuration and Overview | |
| Fuel Type | Gas |
| Certifications | |
| Star K Certified | Star K Certified |
| CUL | Yes |
| UL | Yes |
| ADA Compliant | Yes |
| Electrical | |
| Watts | 1400 |
| Hz | 60 |
| Volts | 120 |
| Power Cord Included | Yes |
| Amps | 15 |
| Compatibility | |
| Works With | Amazon Alexa Android Google Assistant Nest iOS |
| Connectivity | App Bluetooth Remote Access Voice Controlled WiFi |
