WPW10614158 - Genuine OEM Whirlpool Refrigerator Evaporator Tray

WPW10614158 - Genuine OEM Whirlpool Refrigerator Evaporator Tray

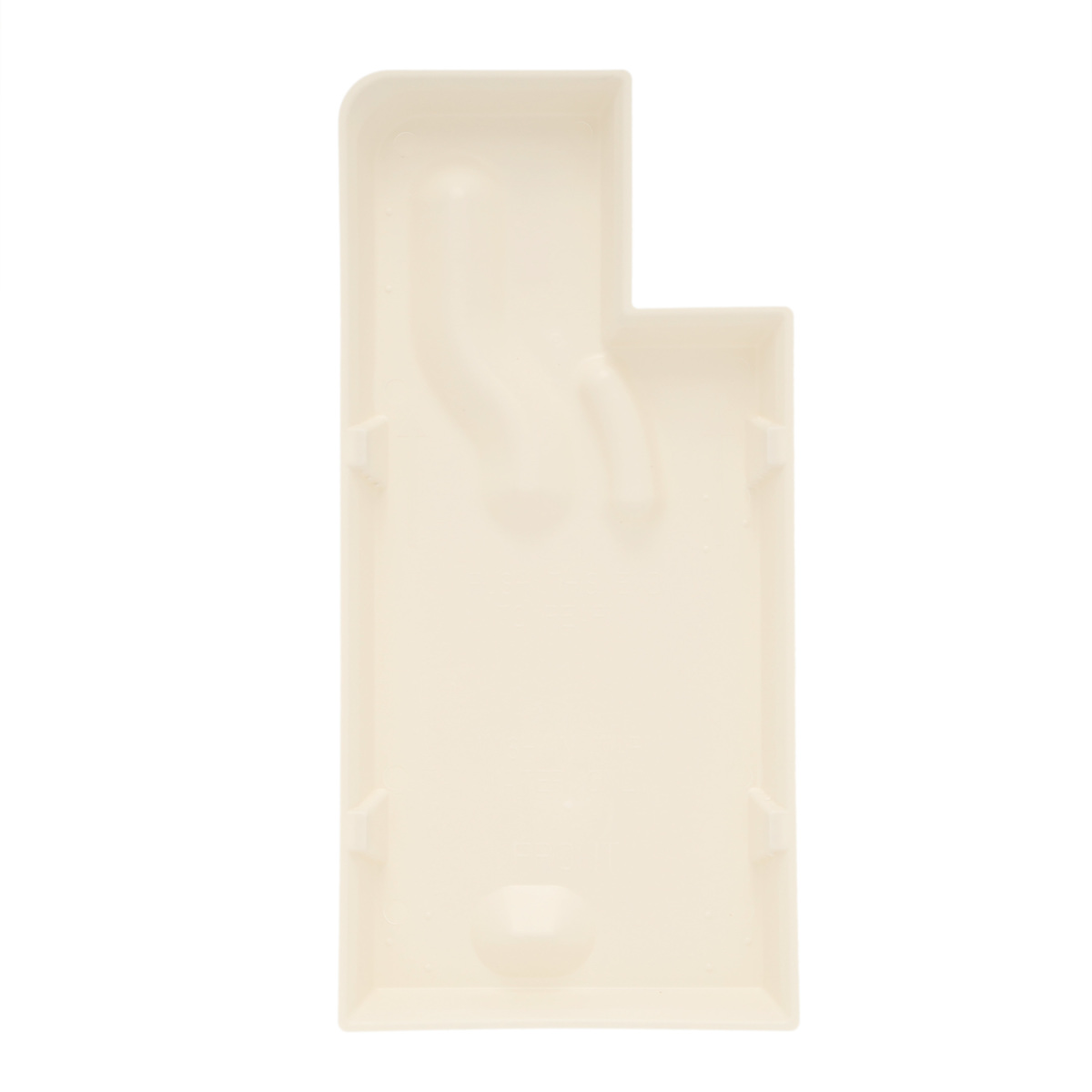

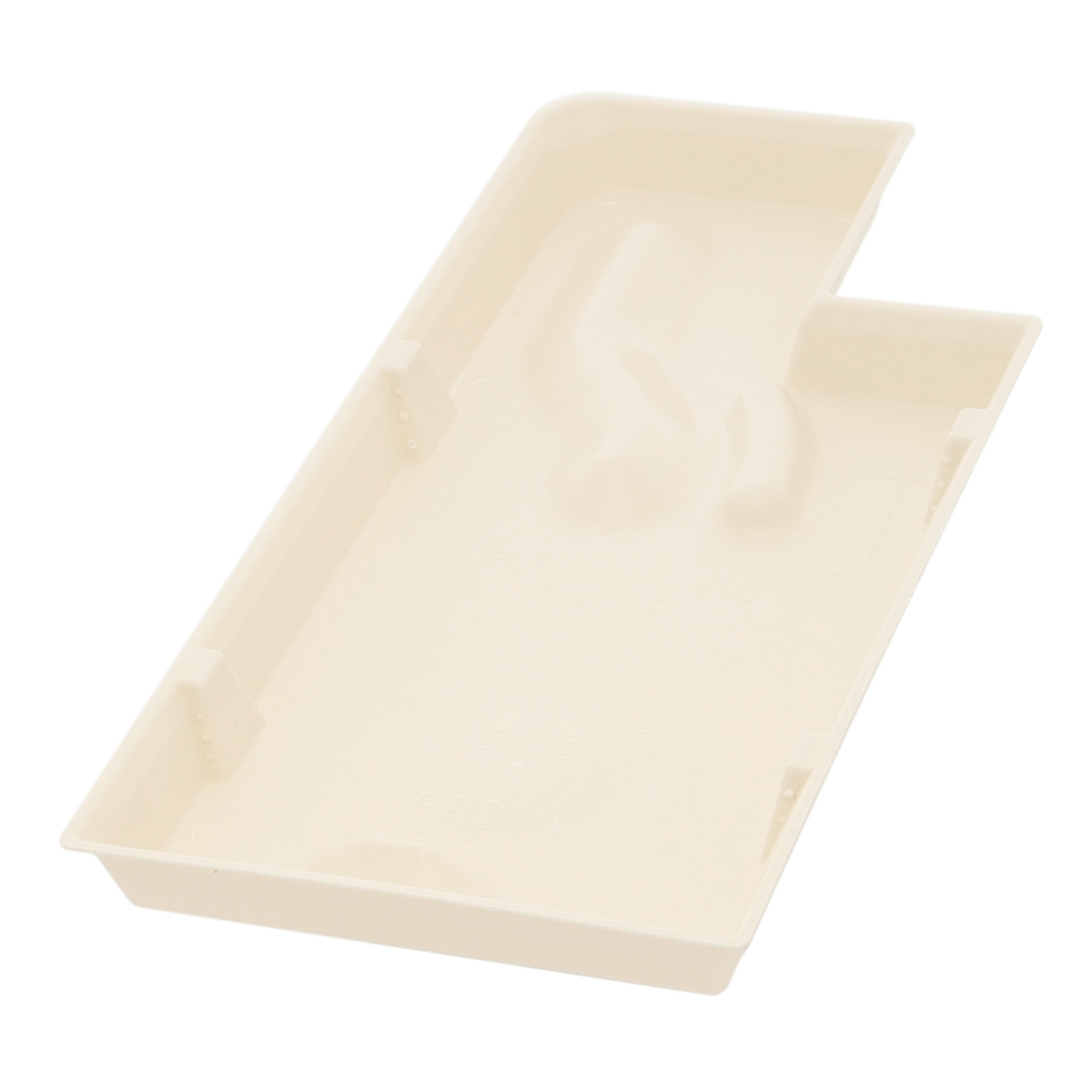

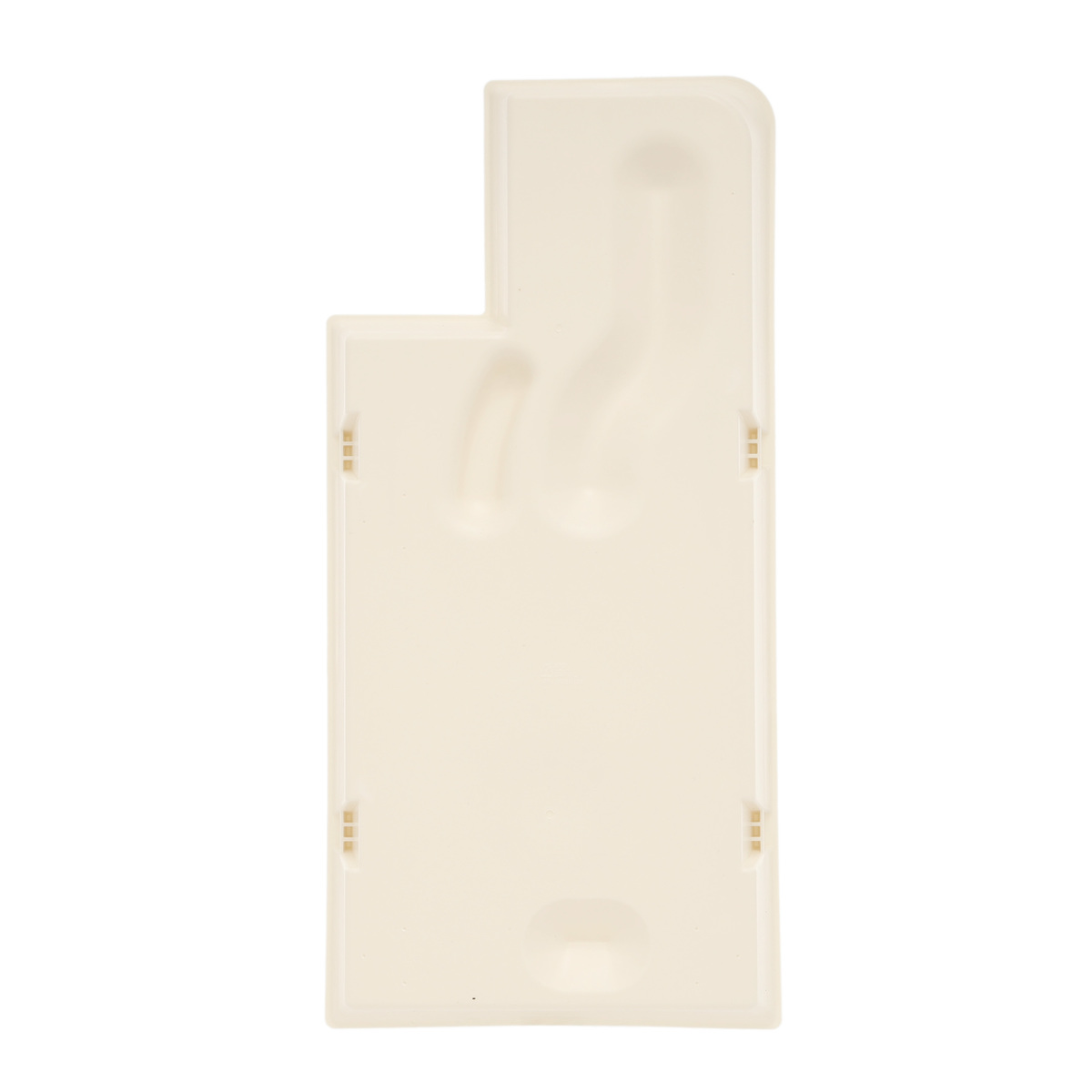

The WPW10614158 Genuine OEM Whirlpool Refrigerator Evaporator Tray is an original Whirlpool replacement part designed for compatible refrigerators. Also referred to as an evaporator drip tray or defrost drain pan, this white plastic tray sits beneath the evaporator and collects water produced during the refrigerator's defrost cycle. Whirlpool identifies WPW10614158 as a genuine OEM drain pan, while PartSelect identifies it as an OEM evaporator drip tray.

If your refrigerator is leaking water because the evaporator tray is cracked or damaged, replacing the tray can help restore proper water collection and prevent defrost water from reaching the floor. Appliance Kingdom ships appliance replacement parts across Canada and supports homeowners, landlords, and professional appliance technicians.

What Does the WPW10614158 Evaporator Tray Do?

The evaporator tray is positioned beneath the evaporator and collects water that drains away during the refrigerator's automatic defrost process. The collected water is then managed through the refrigerator's designed drainage and evaporation system.

Because the tray is made from plastic, it can eventually crack or become damaged. A damaged tray may allow defrost water to escape into the bottom of the refrigerator cabinet and eventually onto the floor.

Using the correct OEM tray is important because its dimensions, mounting arrangement, and position need to correspond with the refrigerator's original design.

Common Symptoms of a Damaged Evaporator Tray

A damaged or cracked evaporator tray can cause:

• Water leaking from the refrigerator

• Water collecting underneath or behind the refrigerator

• Defrost water reaching the floor

• Visible cracks or damage in the tray

• Repeated water leakage despite an otherwise functioning defrost drainage system

PartSelect specifically identifies leaking as a symptom that WPW10614158 can address when the evaporator drip tray is damaged.

Will Replacing WPW10614158 Fix My Refrigerator Leak?

It can, if the leak is caused by a cracked or damaged evaporator tray.

A refrigerator water leak can have several possible causes, including drainage problems or other components. If the tray itself is cracked or damaged and allowing defrost water to escape, replacing it with the correct WPW10614158 tray can restore proper collection of the water.

Before ordering, inspect the tray and verify your refrigerator's complete model number to make sure WPW10614158 is the correct part.

Compatibility & Ordering Guidance

WPW10614158 is a refrigerator evaporator drip tray / defrost drain pan for compatible Whirlpool-family refrigerator applications. Authoritative parts sources confirm its use in refrigerators and provide model-specific compatibility information.

Always verify your refrigerator's complete model number before ordering. Do not rely only on the refrigerator's appearance, dimensions, or brand name because different models can use different tray designs.

If you are unsure whether WPW10614158 fits your appliance, provide Appliance Kingdom with your complete refrigerator model number so compatibility can be checked before purchase.

Replaces Part Numbers

Authoritative parts sources confirm that WPW10614158 replaces the following part numbers:

• W10614158

• 1105523

PartSelect additionally lists AP6023392 as a replacement relationship for WPW10614158.

Key Features & Benefits

• Genuine OEM Whirlpool refrigerator evaporator tray

• Manufacturer part number: WPW10614158

• White plastic construction

• Designed to collect water produced during refrigerator defrosting

• Approximately 19 inches by 9 inches according to PartSelect's specifications

• Designed for proper fit in compatible refrigerator applications

• Helps contain defrost water and reduce leakage caused by a damaged tray

• Suitable for homeowners, landlords, and professional appliance technicians

• Factory-certified/genuine OEM quality supported by established appliance parts suppliers

Installation Overview

Replacing WPW10614158 is generally a moderate refrigerator repair that requires access to the evaporator tray and some refrigerator disassembly. PartSelect rates the repair as "A Bit Difficult" and estimates approximately 1–2 hours for its referenced application.

Installation may require moving the refrigerator away from the wall and removing access panels or other components to reach the tray. The exact procedure varies by refrigerator model.

Disconnect the refrigerator from electrical power before servicing. If your refrigerator has a water supply, follow the appropriate manufacturer safety procedure for shutting off the water supply before working around connected components.

Experienced DIYers may be able to complete the repair, but professional installation is recommended if you are not comfortable disassembling or servicing a refrigerator.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, serving homeowners, landlords, property managers, and appliance repair professionals across Canada.

WPW10614158 is available as a genuine OEM Whirlpool replacement part for compatible refrigerator applications. We provide Canada-wide shipping and support customers looking for reliable replacement parts for their appliances.

For the best fit confidence, provide your refrigerator's complete model number when contacting us about compatibility.

Buyer Confidence

WPW10614158 is identified as a genuine OEM Whirlpool part by Whirlpool's official parts network. PartSelect also identifies it as an OEM part sourced directly from the manufacturer, while Reliable Parts lists it as a factory-certified part.

If your compatible Whirlpool refrigerator has a cracked evaporator tray and is leaking defrost water, WPW10614158 provides a manufacturer-specified replacement for the damaged tray.
