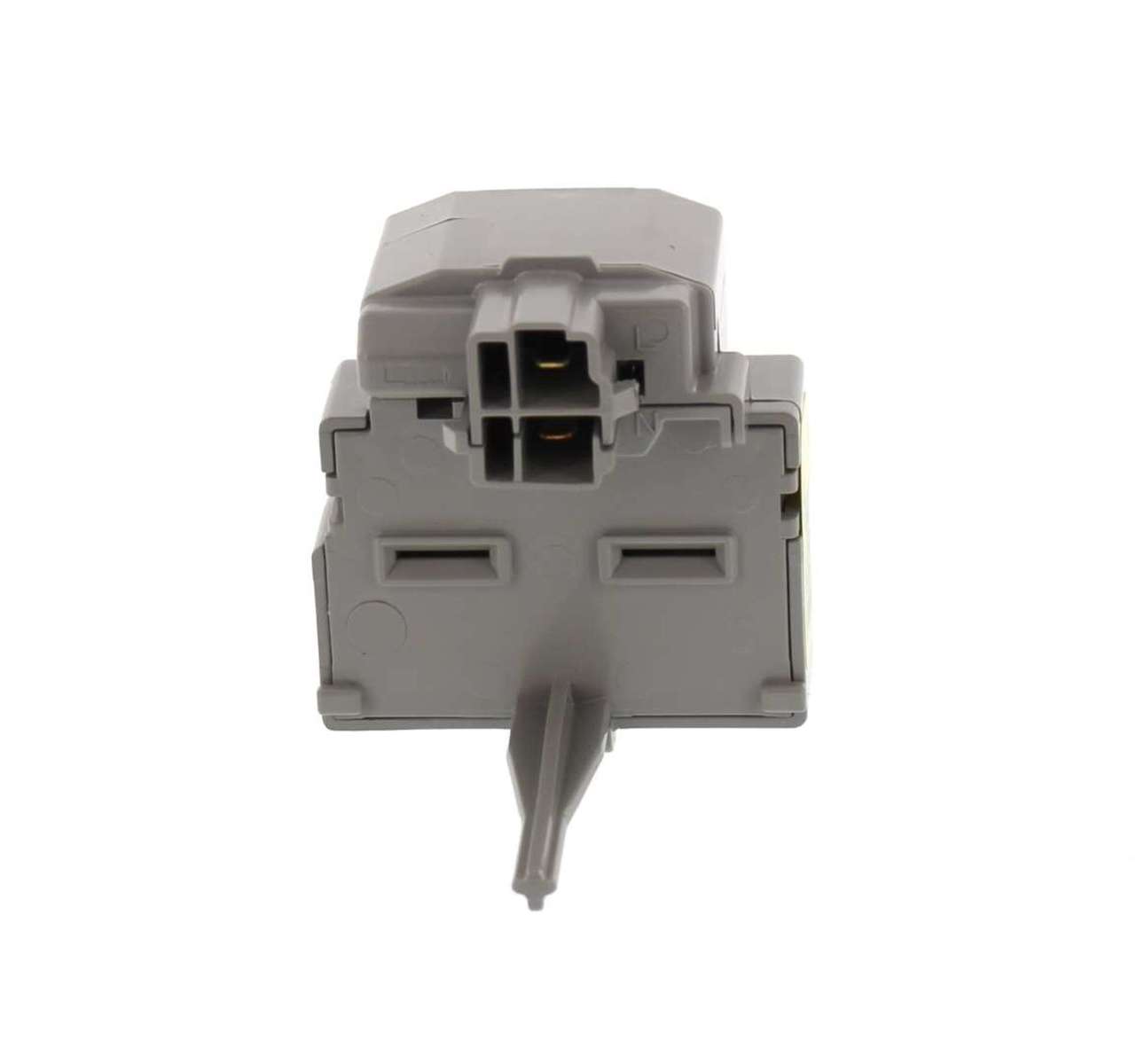

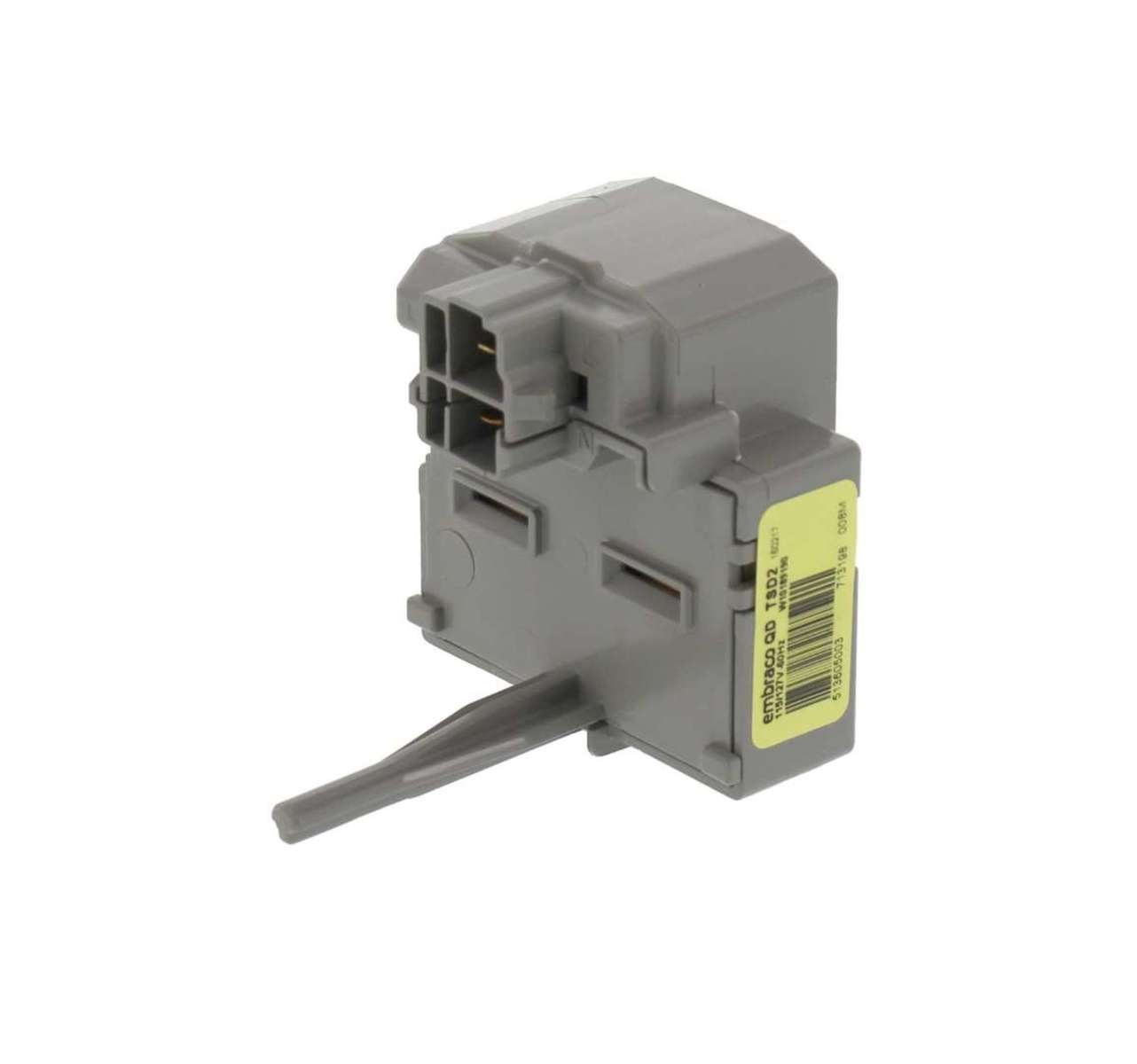

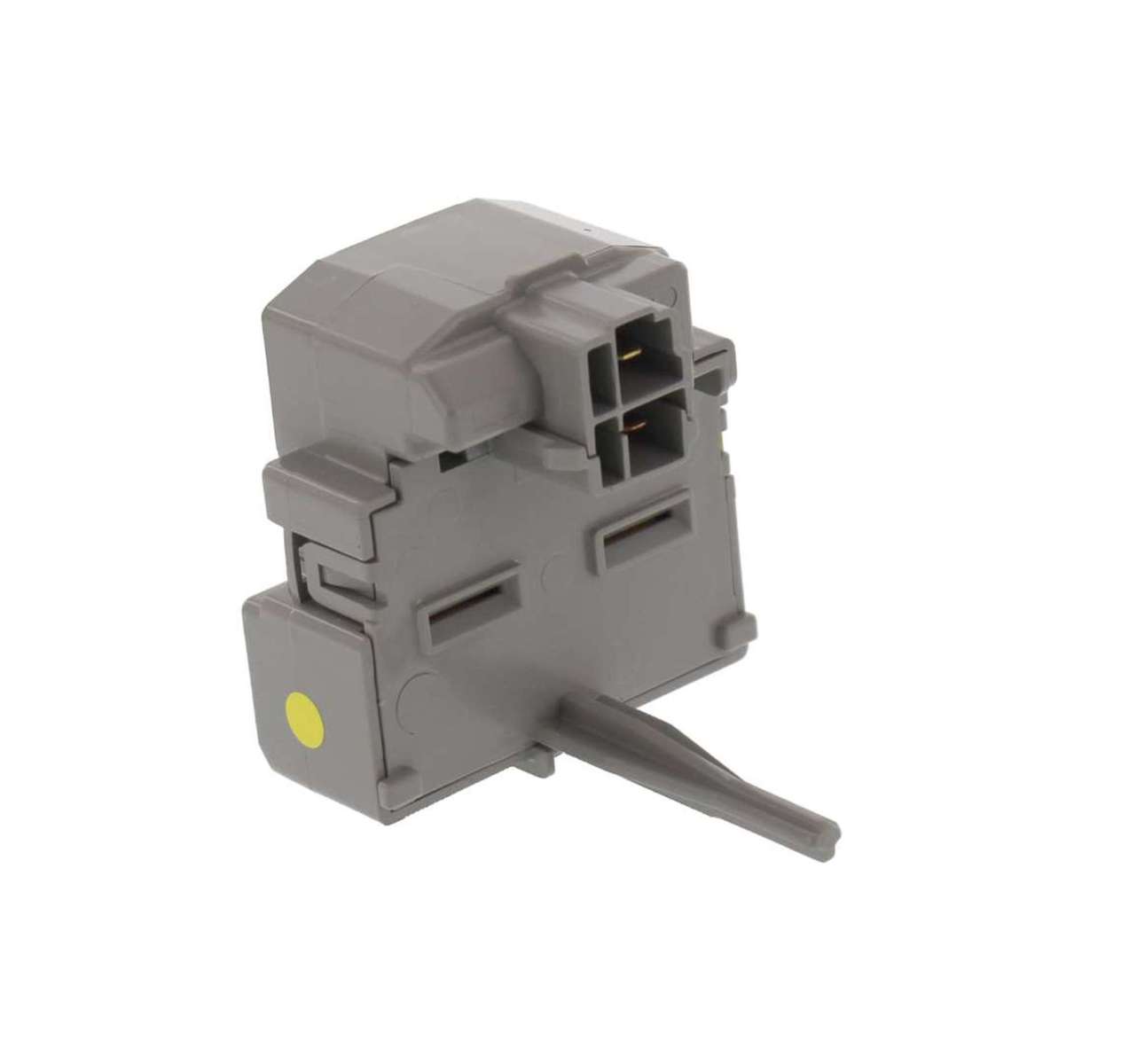

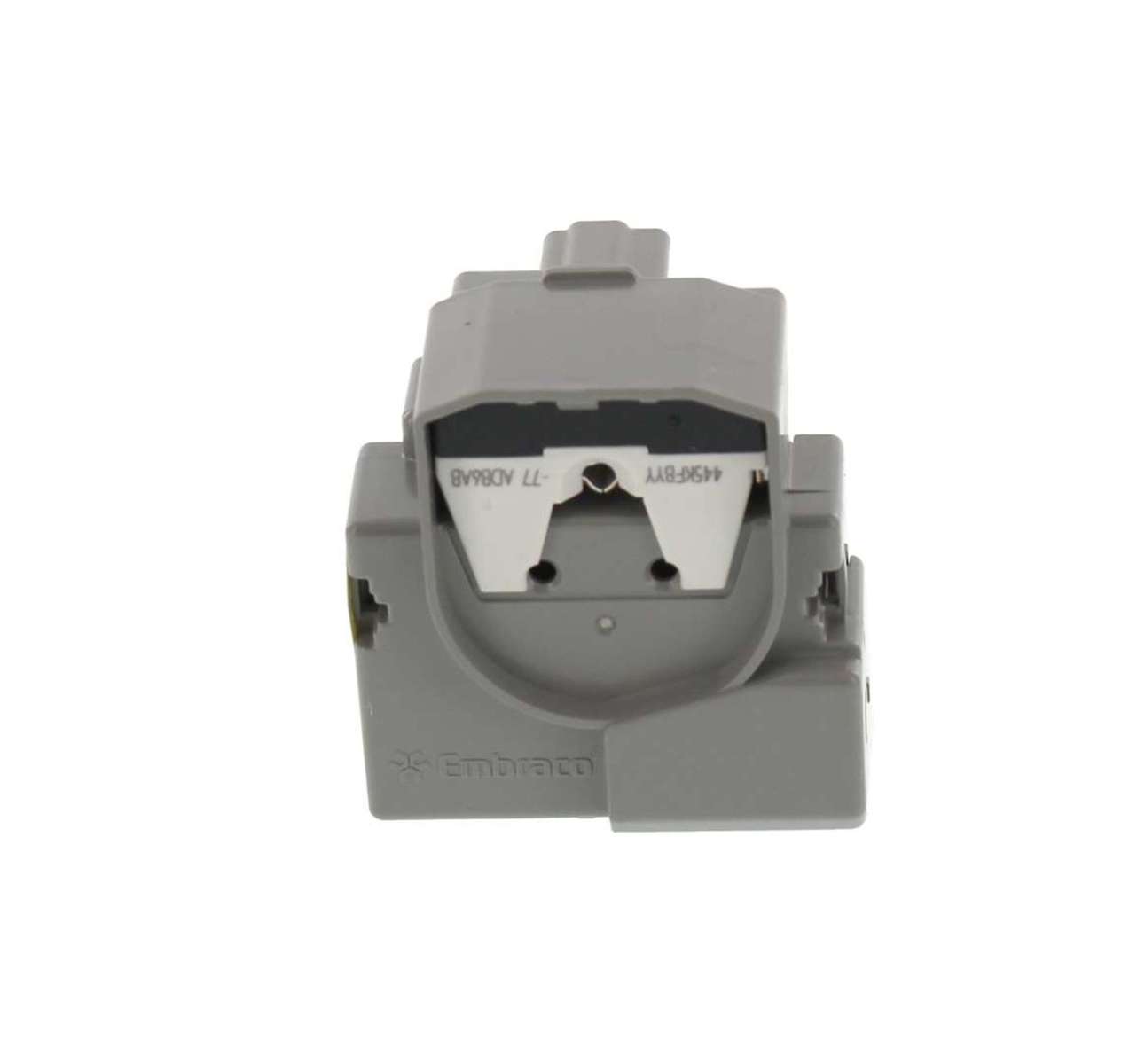

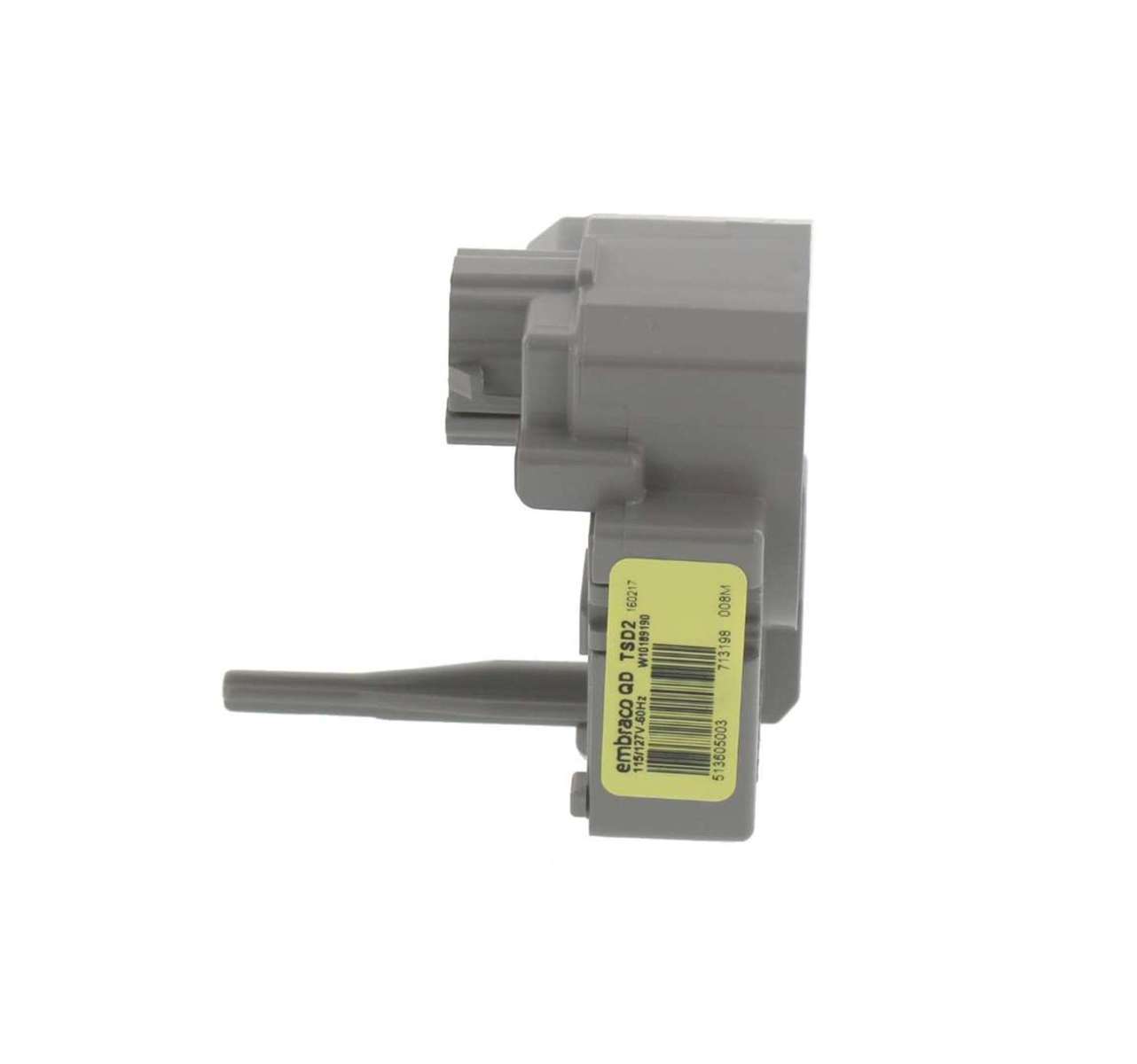

WPW10189190 - Genuine OEM Whirlpool Refrigerator Relay & Overload Kit

WPW10189190 – Genuine OEM Whirlpool Refrigerator Relay & Overload Kit

The WPW10189190 is a Genuine OEM compressor start device designed for Whirlpool refrigerators and compatible sealed-system appliances. It functions as a combined start relay and overload protector, helping the refrigerator compressor start correctly and protecting it from electrical overload or overheating conditions. Available from Appliance Kingdom with fast Canada-wide shipping, this part is a critical fix for refrigerators that fail to start or struggle to cool.

This OEM kit is engineered to Whirlpool factory specifications, ensuring safe compressor operation, proper voltage control, and long-term reliability for refrigerator cooling systems.

Function & Importance of WPW10189190

The relay & overload kit is mounted on the refrigerator compressor and serves two essential roles:

• The start relay provides the initial electrical boost needed to start the compressor motor

• The overload protector shuts down the compressor if it overheats or draws excessive current

Together, they ensure the compressor starts smoothly and operates safely under normal load conditions.

When this component fails, the compressor may not receive the correct startup signal or may shut down prematurely, causing cooling failure.

Using a Genuine OEM Whirlpool relay kit ensures:

• Proper compressor startup timing

• Protection against electrical burnout

• Stable refrigerator cooling performance

• Reduced risk of compressor damage

Common Symptoms of a Faulty Relay & Overload Kit

A failing WPW10189190 relay & overload typically leads to compressor-related cooling issues such as:

• Refrigerator and freezer not cooling properly

• Clicking or repeated clicking sounds from the compressor area

• Compressor trying to start but shutting off after a few seconds

• Refrigerator running warm despite power being on

• Intermittent cooling or complete cooling loss

• Compressor not starting at all

In many cases, replacing the relay & overload kit resolves these symptoms when the compressor itself is still healthy.

Compatibility Guidance

This part is designed for Whirlpool refrigerator compressor systems and is used across multiple Whirlpool-manufactured refrigerator platforms.

Before ordering, always:

• Verify your refrigerator model number

• Confirm compressor start device compatibility

If you are unsure, Appliance Kingdom can assist in confirming the correct match before purchase.

Replaces Part Numbers (Verified)

WPW10189190 is known to replace multiple OEM and superseded part numbers, including:

• W10189190

• W10197427

• 2319793

• 2255554

• 4357156

• 4344041

• 68001622

• 61002047

• 61002971

• 10097201

• 14200214

• 14203585

(Verified across multiple appliance parts distributors and OEM cross-reference listings.)

Key Features & Benefits

• Genuine OEM Whirlpool compressor start relay & overload kit

• Protects compressor from electrical overload and overheating

• Restores proper refrigerator cooling performance

• Designed for precise fit and electrical compatibility

• Durable, factory-spec construction for long service life

• Common repair solution for “not cooling” and “clicking” issues

• Trusted by appliance technicians across Canada

Installation Overview

Installation is considered moderate difficulty for appliance repair.

Typical steps include:

• Disconnecting refrigerator power

• Accessing compressor compartment at the rear of the fridge

• Removing the old relay/overload device from compressor terminals

• Installing the new WPW10189190 kit securely

No plumbing work is required, but electrical safety is critical. If you are not experienced with sealed-system or compressor components, professional installation is recommended.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom supplies genuine OEM Whirlpool appliance parts across Canada, supporting homeowners, landlords, and appliance repair professionals.

Customers benefit from:

• Fast nationwide shipping from Canada

• OEM-quality verified replacement parts

• Reliable support for part identification

• Consistent availability for high-demand repair components

Buyer Confidence & Reassurance

• 100% Genuine OEM Whirlpool part

• Designed specifically for compressor protection and startup

• Helps resolve common refrigerator “not cooling” issues

• Trusted replacement used by professional technicians

• Compatibility assistance available before ordering
