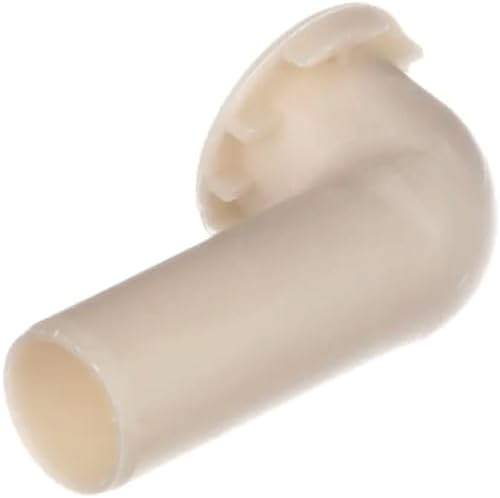

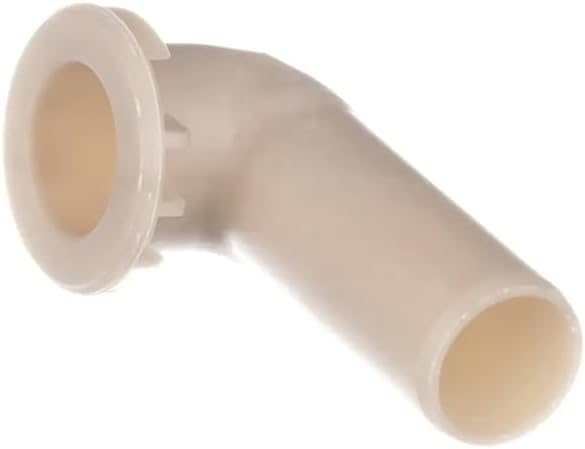

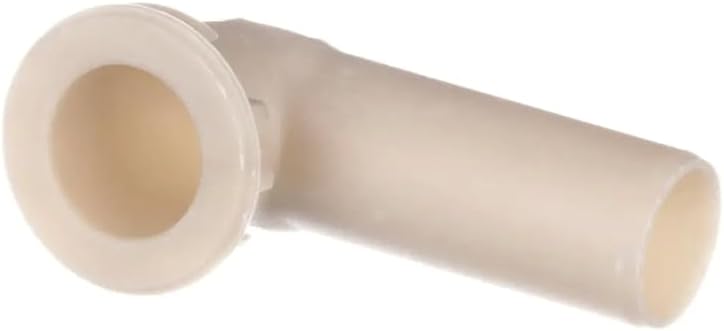

WPW10116738 - Genuine OEM Whirlpool Washer Dryer Siphon Break Elbow

SKU : WPW10116738
$31.66
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

WPW10116738 – Genuine OEM Whirlpool Washer Dryer Siphon Break Elbow

The WPW10116738 Genuine OEM Whirlpool Washer Dryer Siphon Break Elbow is a critical drainage component designed for washing machines and washer-dryer combos. Manufactured by Whirlpool to exact factory specifications, this OEM part ensures proper water flow, prevents backflow contamination, and maintains safe appliance operation.

Available from Appliance Kingdom with fast, reliable Canada-wide shipping, this part is a trusted solution for resolving drainage issues such as leaks, siphoning, and incomplete draining.

Function & Importance of the Siphon Break Elbow

The siphon break elbow is a 90-degree connector installed within the washer’s drain system. Its primary function is to create an air gap (siphon break) that prevents wastewater from flowing back into the appliance.

Key functions include:

  • Connecting the internal drain system to the external drain hose

  • Preventing back-siphoning of dirty water into the washer

  • Maintaining proper drain flow and pressure balance

  • Helping route water efficiently without hose kinks or stress

This component is essential for both sanitation and performance. Without a properly functioning siphon break, contaminated water could re-enter the washer, affecting cleaning results and potentially causing odour or hygiene issues.

Common Symptoms of a Faulty Siphon Break Elbow

If this part becomes cracked, clogged, or disconnected, you may notice:

  • Water leaking from the bottom or rear of the washer

  • Slow or incomplete draining cycles

  • Water backing up into the drum or drain line

  • Washer not washing or rinsing properly

  • Visible cracks or damage on the elbow fitting

Will replacing this part fix your issue?
If your washer is experiencing drainage problems or leaks near the drain hose connection, replacing the siphon break elbow is often a direct and effective solution.

Compatibility Guidance

  • Designed for washing machines and washer-dryer combo units

  • Compatible with Whirlpool and related brands (including Maytag, KitchenAid, Amana, and others)

  • Always verify your appliance model number before ordering to ensure proper fit

Replaces Part Numbers

(Verified from authoritative sources)

  • W10116738

  • AP6015207

  • PS11748480

  • 1266708

  • 2-16016

  • 216016

  • Y216016

Key Features & Benefits

  • Genuine OEM Whirlpool part for guaranteed compatibility

  • Engineered for precise fit and reliable drainage performance

  • Prevents backflow contamination and drainage issues

  • Durable construction for long-lasting use

  • Ideal for homeowners, landlords, and appliance repair professionals

Installation Overview

Replacing the siphon break elbow is typically a moderate-level repair:

  • Requires access to the drain hose connection area

  • Involves loosening clamps and replacing the elbow fitting

  • Basic tools (pliers/screwdriver) are usually sufficient

Important:

  • Disconnect power and water supply before installation

  • Be prepared for residual water in hoses during removal

DIY installation is possible for experienced users, but professional service is recommended if you’re unfamiliar with appliance repairs.

Canada-Wide Availability & Trusted Supplier

Appliance Kingdom is a Canada-based supplier offering genuine OEM and high-quality replacement parts. With fast shipping across Canada, customers can rely on timely delivery and products that meet Canadian appliance standards.

Buyer Confidence & Support

  • 100% Genuine OEM quality assurance

  • Built for exact fit and long-term reliability

  • Expert support available to help confirm compatibility before purchase

  • Trusted by appliance technicians and homeowners across Canada
