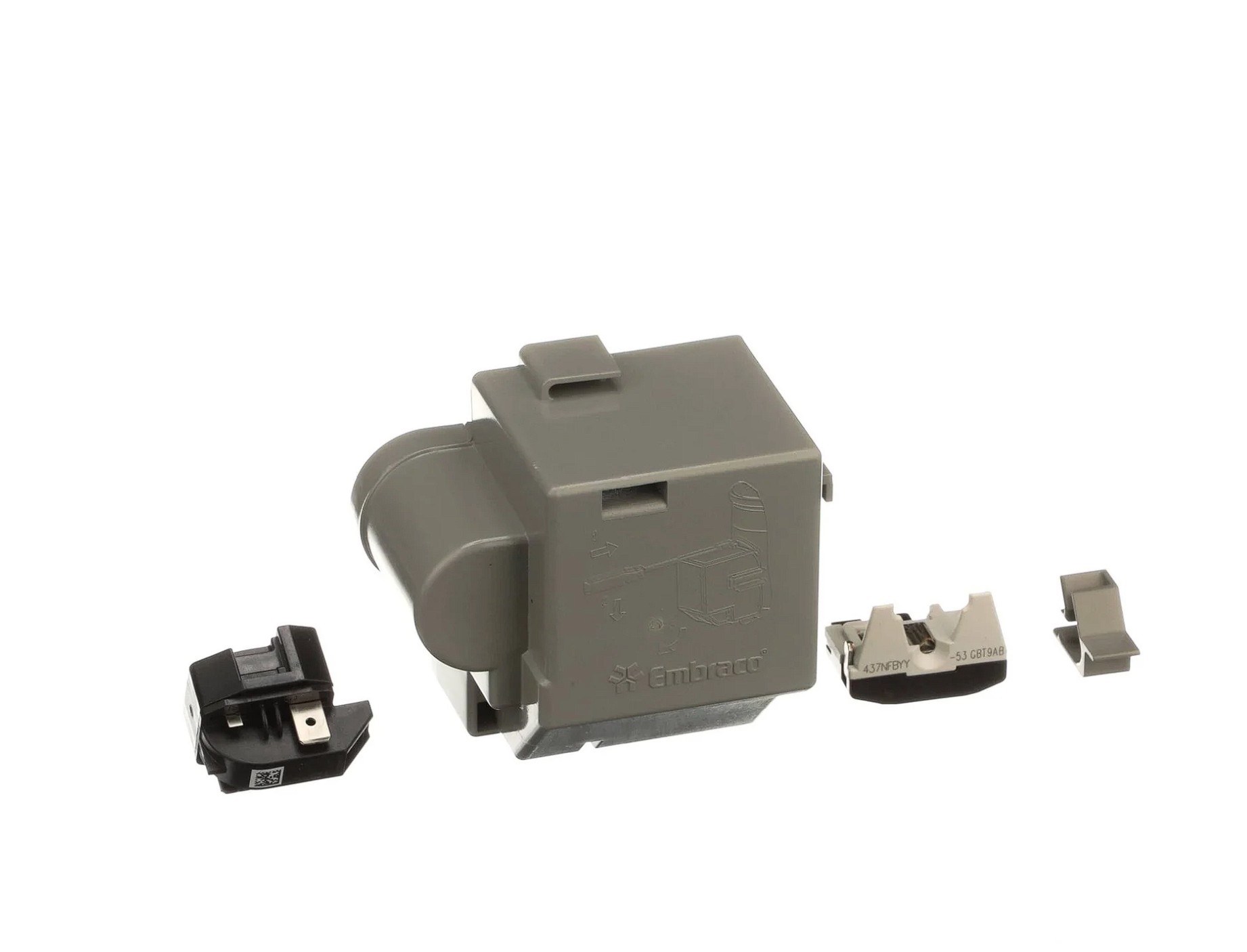

WP4387835 - Genuine OEM Whirlpool Refrigerator Overload Assembly

SKU : WP4387835
$168.66
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

WP4387835 – Genuine OEM Whirlpool Refrigerator Overload Assembly

The WP4387835 is a Genuine OEM compressor protection and start relay kit designed for Whirlpool refrigerators. It includes the compressor relay, overload protector, and cover assembly, engineered to Whirlpool factory specifications for safe and reliable compressor startup performance.

This component is critical for refrigerator operation because it protects the compressor from electrical overload while helping it start correctly during each cooling cycle. Available from Appliance Kingdom with fast Canada-wide shipping, this OEM part is commonly used in Whirlpool, Kenmore, KitchenAid, Estate, and other Whirlpool-built refrigerator systems.

If your refrigerator is not starting, clicking repeatedly, or not cooling properly, a failing overload and relay assembly is one of the most common causes.

Function & Importance of WP4387835

The compressor overload assembly plays a key role in the refrigerator’s sealed system operation.

It is responsible for:

  • Safely starting the compressor motor

  • Protecting the compressor from overheating or electrical overload

  • Cutting power if excessive current is detected

  • Assisting the relay in energizing the compressor windings

Without a properly functioning overload assembly, the compressor may fail to start or shut down prematurely, affecting overall cooling performance.

OEM specification matters because compressor systems require precise electrical tolerance—incorrect resistance or timing can cause compressor stress or long-term damage.

Common Symptoms of a Failing Overload Assembly

If the WP4387835 is failing or degraded, you may notice:

  • Refrigerator not starting at all

  • Repeated clicking sound from the back of the fridge

  • Compressor tries to start but shuts off immediately

  • Refrigerator and freezer not cooling

  • Warm fridge even though interior lights and fans may still work

  • Intermittent cooling or cycling failure

These symptoms often indicate a compressor start issue, where the relay/overload is not properly energizing or protecting the compressor.

Replacing this part often restores normal compressor startup and cooling performance when the compressor itself is still healthy.

Compatibility Guidance

This overload and relay assembly is designed for Whirlpool refrigerator systems, including select models from:

  • Whirlpool

  • Kenmore (Whirlpool-built units)

  • KitchenAid

  • Estate

Before ordering, always verify your refrigerator’s full model number located inside the refrigerator compartment or behind the door gasket area.

Do not install without confirming compatibility, as compressor start components must match system specifications precisely.

Replaces Part Numbers (Verified)

  • 4387835

  • 8201648

Key Features & Benefits

  • Genuine OEM Whirlpool compressor protection assembly

  • Includes relay, overload protector, and cover

  • Designed for safe compressor startup control

  • Helps prevent compressor damage from electrical overload

  • Built to original manufacturer specifications

  • Restores proper cooling performance when start system fails

  • Trusted by appliance technicians and repair professionals

  • Ships across Canada from a reliable Canadian supplier

Installation Overview

Replacing the WP4387835 is considered a moderate-level repair.

Installation typically involves:

  • Unplugging the refrigerator for safety

  • Accessing the compressor at the rear bottom of the unit

  • Removing the existing relay/overload assembly

  • Installing the new OEM assembly onto the compressor terminals

  • Reassembling protective covers and restoring power

Because this part connects directly to the compressor electrical system, careful handling is essential. Improper installation can damage the compressor or create safety risks.

If you are not experienced with appliance electrical components, professional installation is strongly recommended.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom supplies genuine OEM refrigerator components across Canada, supporting homeowners, landlords, and appliance repair technicians with reliable parts sourcing and fast nationwide delivery.

All parts are shipped from Canada, helping reduce downtime for essential refrigerator repairs.

Buyer Confidence & Reassurance

When purchasing WP4387835 from Appliance Kingdom, you benefit from:

  • Genuine OEM Whirlpool quality assurance

  • Correct compressor protection performance

  • Reliable fit for compatible refrigerator systems

  • Reduced risk of compressor damage

  • Support for model verification before purchase

  • Fast Canada-wide shipping and dependable service
