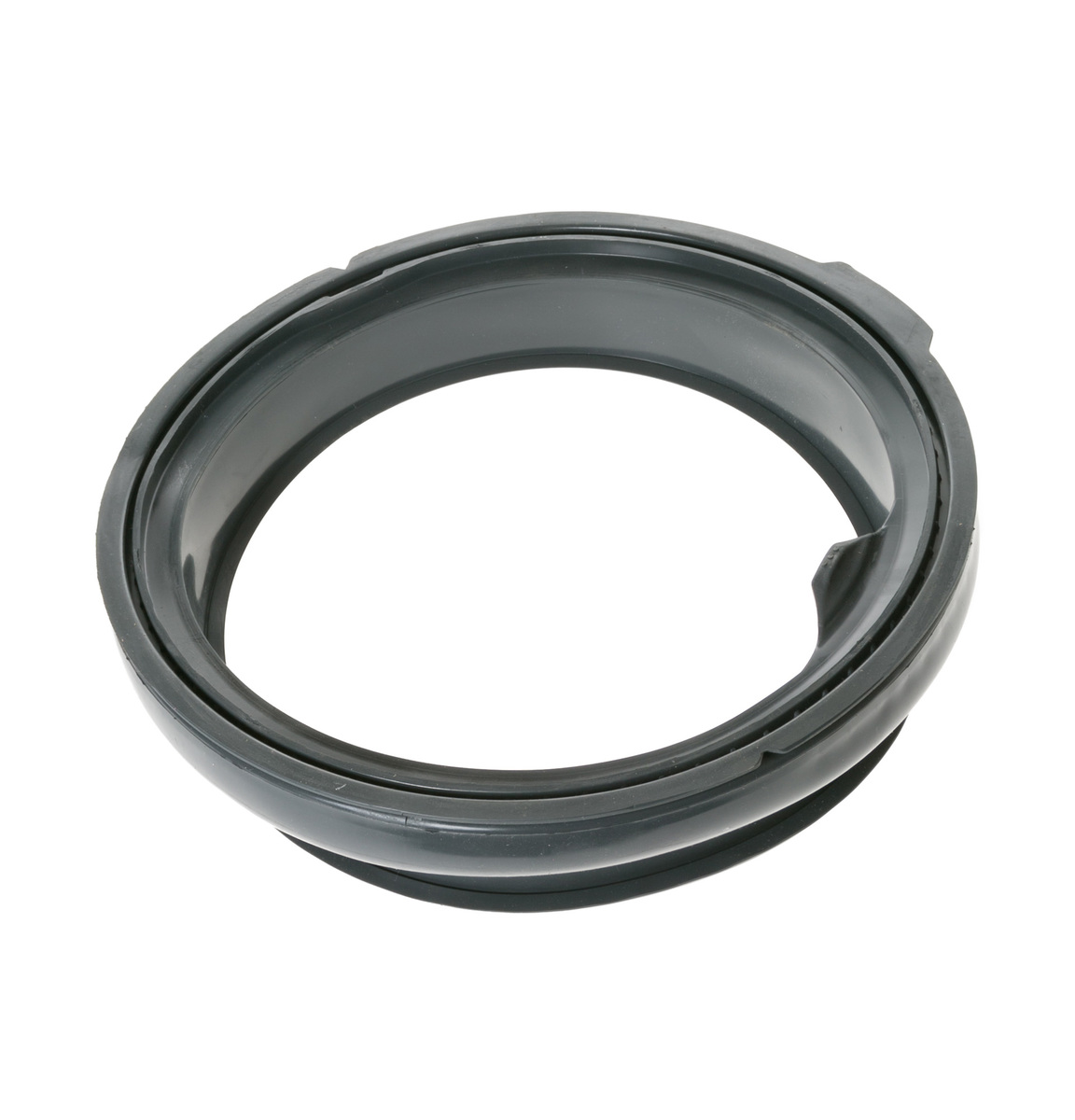

WG04L01689 - Genuine OEM GE Front Load Washer Door Bellow

SKU : WG04L01689
$396.34
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

WG04L01689 – Genuine OEM GE Front Load Washer Door Bellow

The WG04L01689 Genuine OEM GE Front Load Washer Door Bellow is a factory-original replacement seal designed for GE front-load washing machines and compatible brands. This flexible rubber gasket forms the watertight seal between the washer tub and the door, preventing leaks while allowing the drum to move freely during wash and spin cycles.

Available from Appliance Kingdom, a trusted Canadian appliance parts supplier based in Edmonton, AB, this genuine OEM washer door bellow ships quickly across Canada to homeowners, landlords, and professional appliance repair technicians. Replacing a worn or damaged door bellow commonly resolves front-load washer leaks, sealing issues, and door closure problems.

What the Washer Door Bellow Does

The door bellow (also called a door boot seal) is a flexible rubber gasket that connects the washer tub to the front door opening. Its design allows the tub to move independently during high-speed spin cycles while maintaining a secure watertight seal.

The WG04L01689 door bellow performs several important functions:

  • Creates a watertight seal between the washer tub and door

  • Prevents water from leaking out during wash and rinse cycles

  • Allows the drum to move independently from the door frame

  • Helps maintain proper pressure and containment during high-speed spin cycles

Using a Genuine OEM GE door bellow ensures the gasket fits correctly and maintains proper sealing performance. OEM seals are engineered to match the exact shape, thickness, and flexibility required for safe washer operation.

If the bellow becomes torn, stretched, or deteriorated, water leaks and operational issues can occur.

Common Symptoms Indicating Replacement

A damaged or worn washer door bellow can cause several noticeable problems. Replacing the WG04L01689 washer door boot seal may resolve issues such as:

  • Water leaking from the front of the washer door

  • Washer door not sealing properly

  • Visible tears, holes, or cracks in the rubber gasket

  • Mold buildup or severe deterioration in the seal folds

  • Door failing to close or lock correctly

  • Unusual noises or improper washing performance due to sealing issues

If you notice water pooling near the door or visible damage to the gasket, replacing the door bellow can restore proper sealing and prevent further leaks.

Compatibility Guidance

The WG04L01689 door bellow is designed for GE front-load washing machines and may also be used in compatible models from related brands manufactured by GE.

Compatible brands include:

  • GE (General Electric)

  • Hotpoint

  • Café

  • Profile

  • Monogram

  • Moffat

  • Kenmore

  • Westinghouse

  • McClary

  • Sears brands

Always verify your washer’s model number before ordering to ensure compatibility with this component. The model number is typically located inside the washer door frame or on the appliance rating label.

Replaces Part Numbers

Verified replacement or cross-reference part numbers include:

  • 3015111

  • AH6011699

  • AH9863642

  • AP5656609

  • EA6011699

  • EA9863642

  • EAP6011699

  • EAP9863642

  • PS6011699

  • PS9863642

  • WH08X10064

  • WH8X10064

Key Features & Benefits

  • Genuine OEM GE washer component

  • Designed specifically for GE front-load washing machines

  • Provides a secure watertight seal between the tub and door

  • Durable rubber construction for long-lasting performance

  • Manufactured to original factory specifications

  • Helps prevent leaks and maintain safe washer operation

  • Ideal for homeowners, landlords, and professional appliance technicians

Installation Overview

Replacing the WG04L01689 front-load washer door bellow is considered a moderate repair and typically involves accessing the washer front panel and retaining clamps.

General installation steps may include:

  1. Disconnecting the washer from power

  2. Removing the front retaining clamp around the door opening

  3. Detaching the existing door bellow from the tub and front panel

  4. Installing the new OEM bellow and securing the retaining clamps

  5. Reassembling the washer and testing for leaks

Experienced DIY users may be able to complete this repair, but professional installation is recommended if you are unfamiliar with front-load washer disassembly.

Canada-Wide Availability from Appliance Kingdom

Appliance Kingdom is a trusted Canadian appliance parts supplier based in Edmonton, Alberta, providing genuine OEM and high-quality replacement parts to customers nationwide.

Benefits include:

  • Fast shipping across Canada

  • Genuine OEM appliance parts from trusted manufacturers

  • Reliable supply for homeowners, landlords, and appliance repair technicians

  • Parts compatible with Canadian appliance standards

Buyer Confidence & Support

When purchasing the WG04L01689 Genuine OEM GE Front Load Washer Door Bellow, you receive:

  • Authentic OEM GE quality and durability

  • Proper fit and sealing performance

  • Reliable leak prevention and washer operation

If you need help confirming compatibility with your washer model, the Appliance Kingdom support team can assist before purchase.
