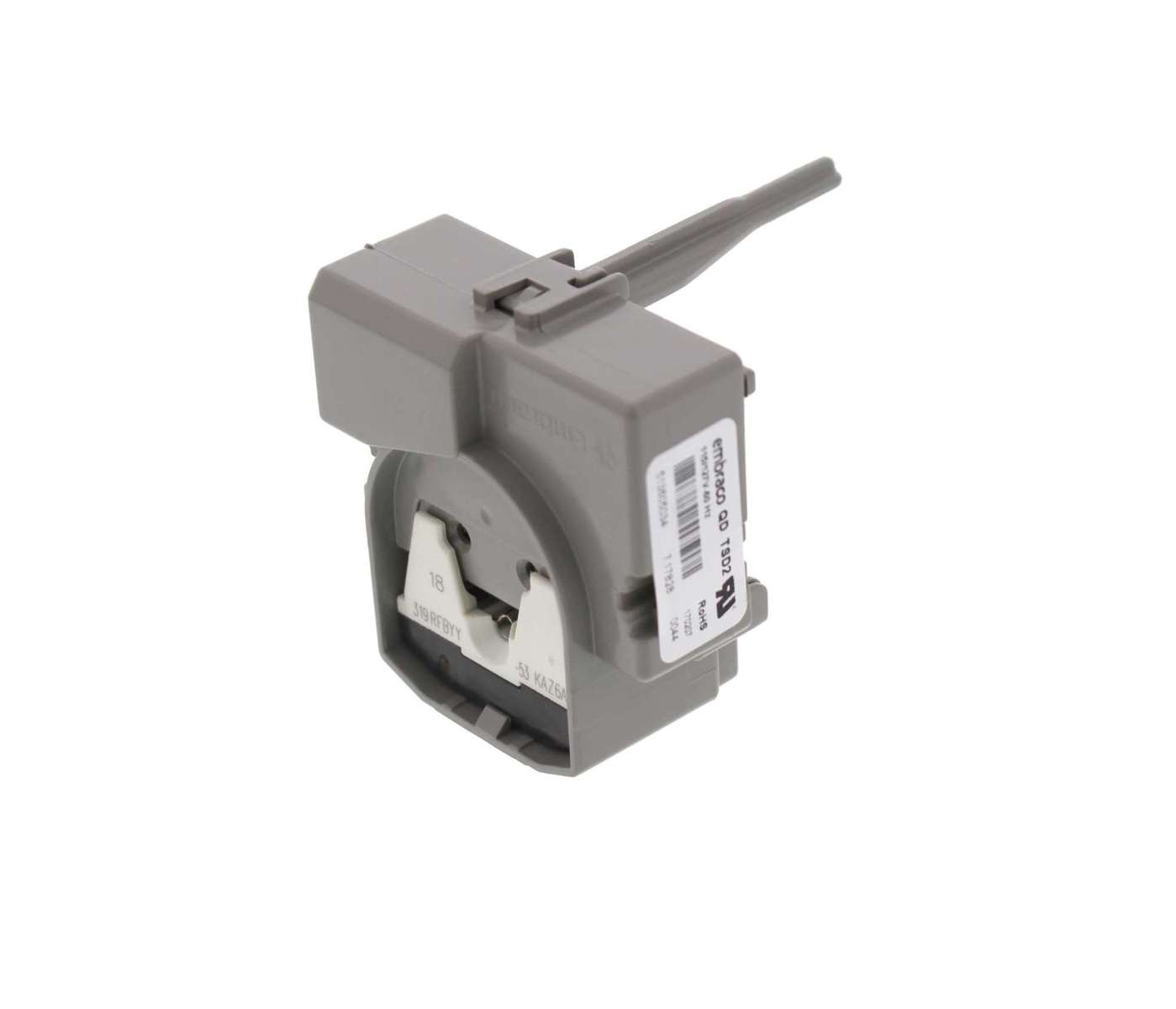

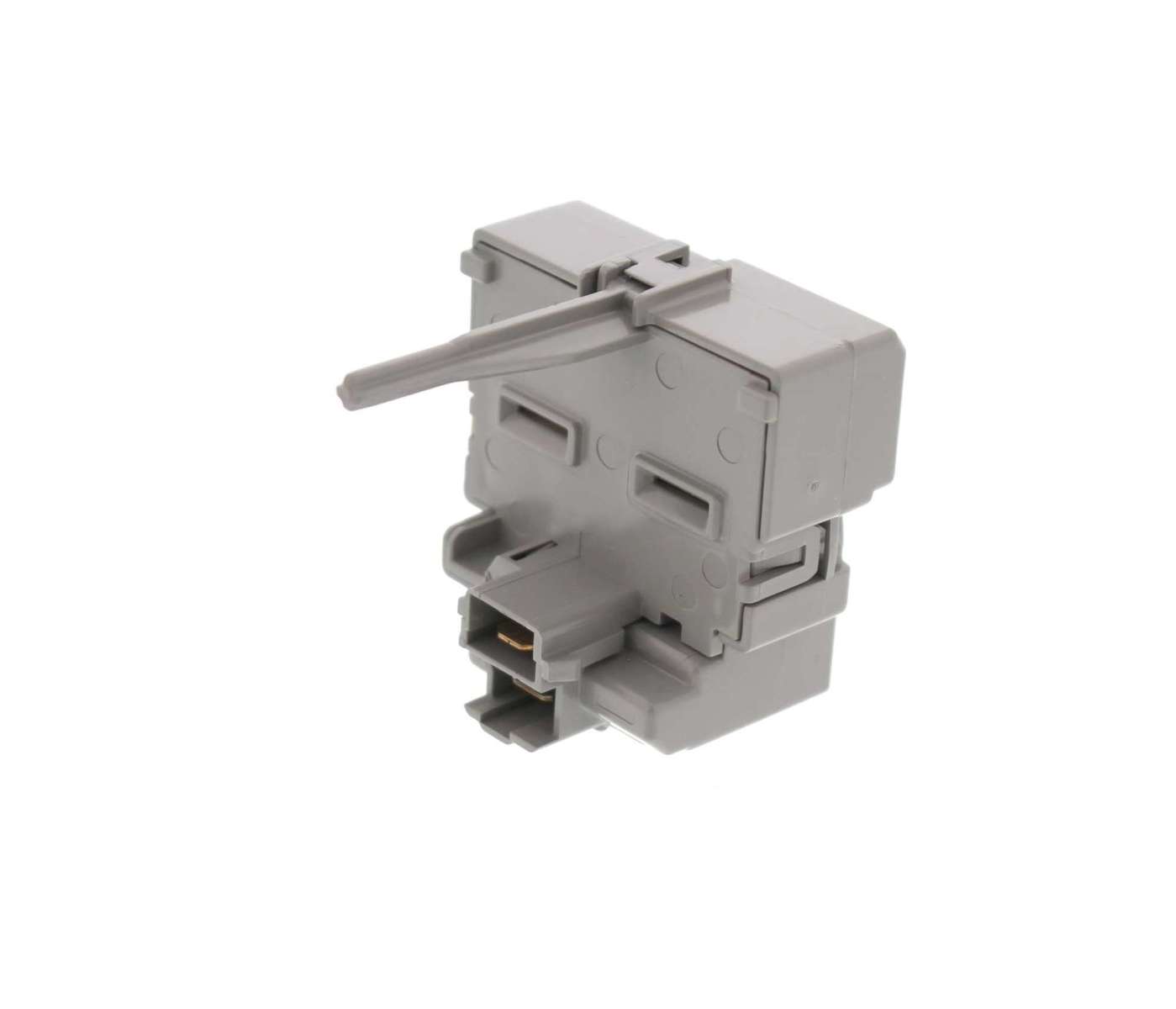

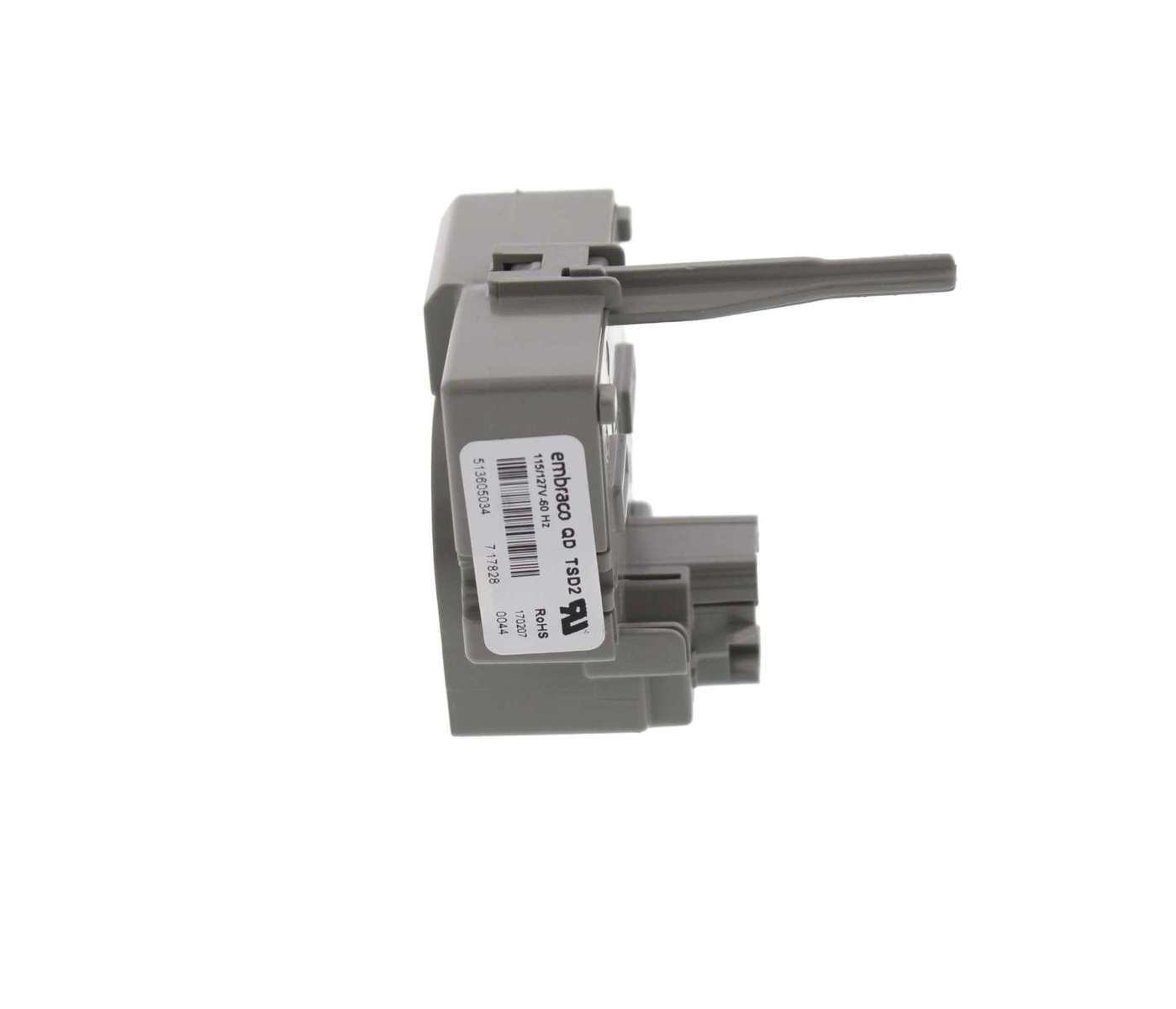

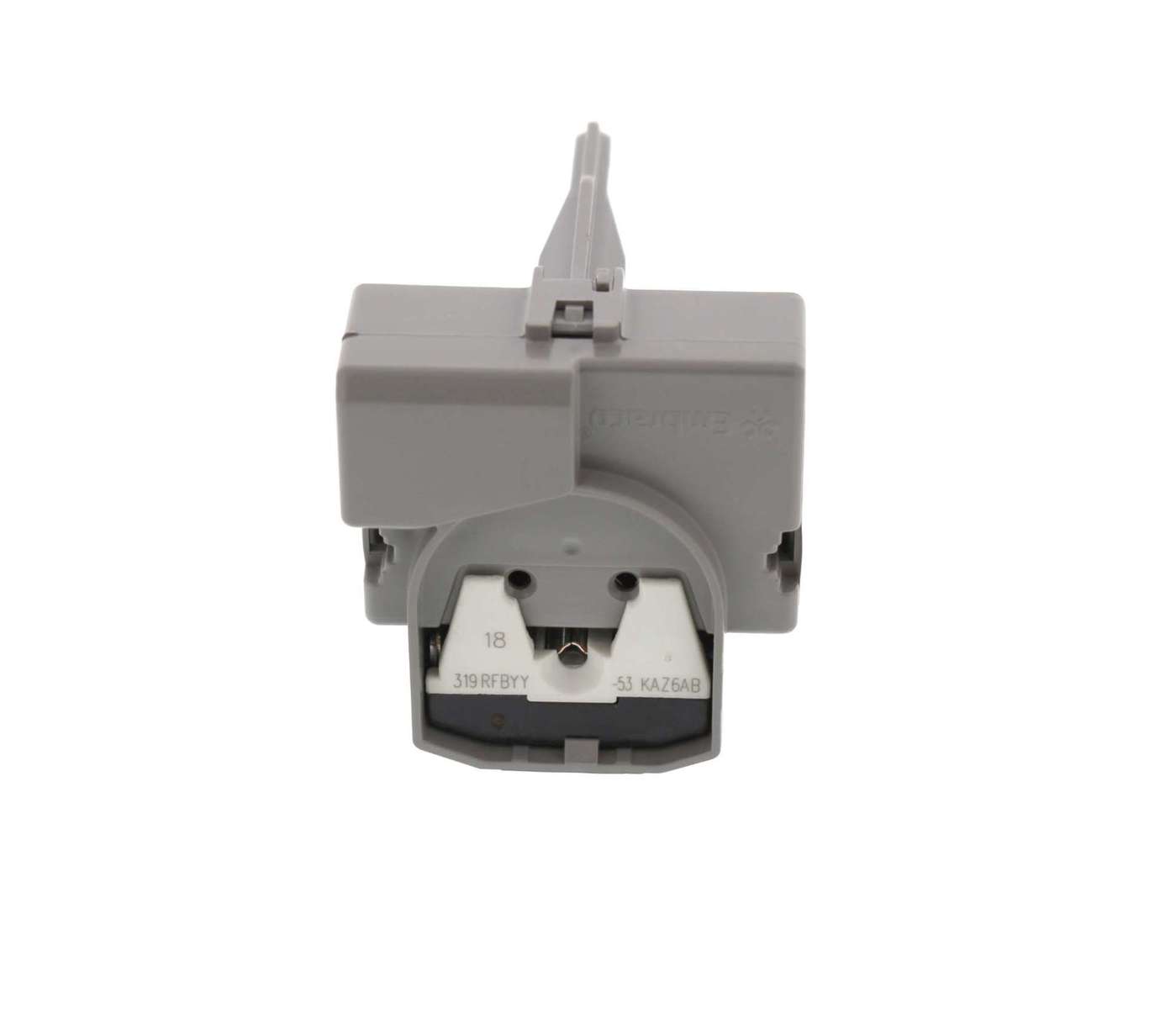

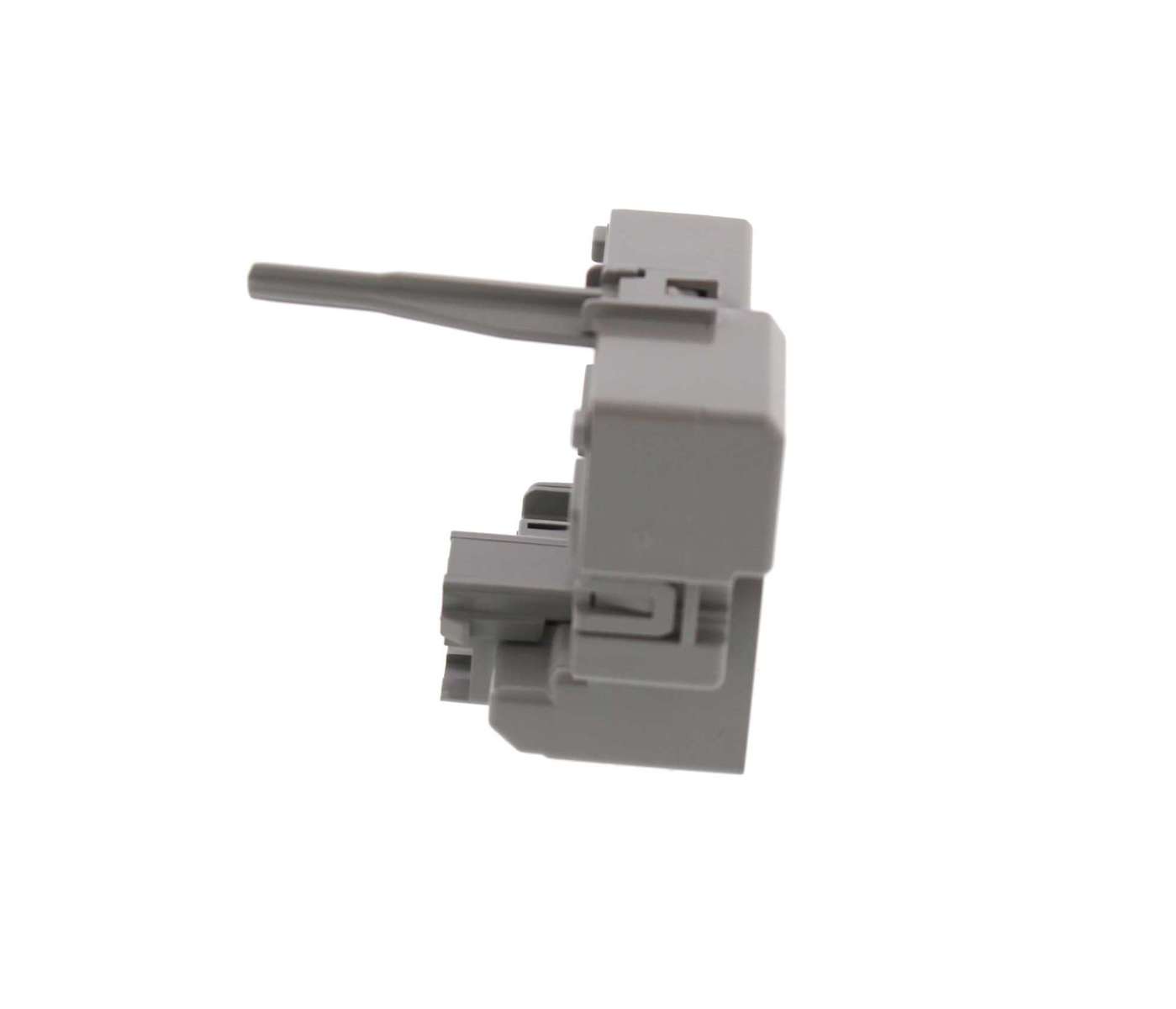

WG03F02235 - Genuine OEM GE Refrigerator Overload & Relay Assembly

WG03F02235 – Genuine OEM GE Refrigerator Overload & Relay Assembly

The WG03F02235 is a Genuine OEM GE refrigerator compressor start device designed to help power and protect the compressor during start-up operation in compatible GE refrigerators. Manufactured to original GE factory specifications, this overload and relay assembly ensures proper compressor activation, electrical protection, and reliable cooling system performance. This genuine GE replacement part is commonly used across select GE, General Electric, Monogram, Café, Profile, Hotpoint, Moffat, and compatible Kenmore refrigerator models.

If your refrigerator is not cooling, repeatedly clicking, or the compressor struggles to start, replacing the WG03F02235 overload and relay assembly often resolves these common compressor-start failures.

Available from Appliance Kingdom with fast Canada-wide shipping for homeowners, landlords, and professional appliance repair technicians.

What Does the WG03F02235 Overload & Relay Assembly Do?

The overload and relay assembly is a critical refrigerator compressor starting component mounted directly to the compressor terminals.

Its two essential functions are:

• Start Relay: Supplies the initial electrical boost needed to start the compressor motor

• Overload Protector: Cuts power if the compressor overheats or draws excessive current, helping prevent compressor damage

This assembly protects one of the refrigerator’s most important and expensive components—the compressor.

Using a genuine OEM GE relay assembly ensures:

• Proper compressor start-up timing

• Safe electrical current regulation

• Protection against overheating and overload conditions

• Consistent refrigerator cooling performance

• Long-term compressor reliability

A faulty relay or overload protector can prevent the compressor from starting, causing total cooling failure.

Common Symptoms Indicating Replacement

A failed refrigerator overload and relay assembly often causes noticeable compressor start problems, including:

• Refrigerator not cooling

• Compressor clicks repeatedly but does not start

• Clicking or buzzing sounds from rear compressor area

• Refrigerator runs briefly then shuts off

• Warm refrigerator and freezer compartments

• Compressor overheating

• Refrigerator appears powered on but does not cool

Replacing the WG03F02235 often restores proper compressor operation if the compressor itself remains functional. Community troubleshooting reports frequently identify failed start relays as the cause of repeated click-and-no-start compressor behaviour.

Compatibility Guidance

The WG03F02235 is designed for select GE refrigerator models and compatible brands manufactured by GE.

Always verify your refrigerator’s complete model number before ordering.

Model numbers are typically located:

• Inside the fresh food compartment wall

• Behind lower crisper drawers

• On the interior cabinet frame

If you need assistance confirming fitment, the support team at Appliance Kingdom can help verify compatibility before purchase.

Replaces Part Numbers

Verified replacement and superseded part numbers include:

• WR07X10097

• 1265640

• AH1766101

• AH9862687

• AP4300623

• EA1766101

• EA9862687

• EAP1766101

• EAP9862687

• PS1766101

• PS9862687

Key Features & Benefits

• Genuine OEM GE factory-certified part

• Designed for reliable compressor start-up

• Provides overload protection for compressor safety

• Built to original manufacturer electrical specifications

• Helps restore refrigerator cooling performance

• Supports safe and efficient compressor operation

• Designed for long-term durability

• Suitable for homeowners and professional appliance repair technicians

• Ships across Canada from a trusted Canadian appliance parts supplier

Installation Overview

Replacing the WG03F02235 is generally considered a moderate refrigerator repair.

Installation typically involves:

• Disconnecting refrigerator power

• Removing rear compressor access panel

• Detaching the failed overload/relay assembly

• Installing the replacement onto compressor terminals

• Reconnecting wiring harnesses

• Restoring power and testing compressor operation

Experienced DIY users with electrical repair knowledge may complete installation safely.

Because this is a live electrical compressor-start component, professional installation is recommended if you are unfamiliar with refrigerator electrical servicing.

Canada-Wide Availability & Trusted Canadian Supplier

Appliance Kingdom supplies genuine OEM appliance replacement parts to customers across Canada.

Canadian homeowners, landlords, appliance repair technicians, and property managers trust Appliance Kingdom for:

• Genuine OEM quality parts

• Fast nationwide shipping

• Canadian appliance support expertise

• Reliable compatibility assistance

Buyer Confidence & Support

When purchasing the WG03F02235 Genuine OEM GE Refrigerator Overload & Relay Assembly from Appliance Kingdom, you receive:

• Genuine OEM factory-certified quality

• Reliable compressor-start performance

• Confidence in fit and function

• Expert compatibility verification support

• Fast Canadian shipping
