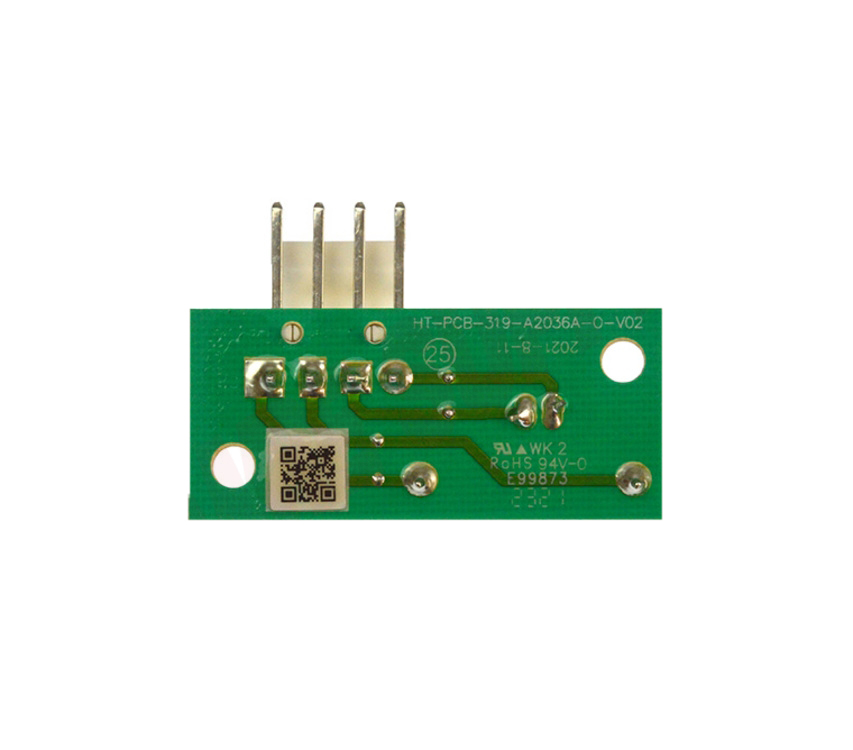

W11629974 - Genuine OEM Whirlpool Refrigerator Electronic Control Board

W11629974 Genuine OEM Whirlpool Refrigerator Electronic Control Board

The W11629974 Genuine OEM Whirlpool Refrigerator Electronic Control Board is a factory-original replacement control module designed for select Whirlpool refrigerators and compatible brands including Maytag, KitchenAid, Kenmore, and Jenn-Air. This OEM electronic control board is responsible for managing and coordinating critical refrigerator functions such as cooling cycles, defrost timing, fan operation, and ice system control.

Available from Appliance Kingdom (Edmonton, AB), this genuine OEM control board ships across Canada and is engineered to restore proper electronic communication within your refrigerator system. It is commonly used to resolve issues such as inconsistent cooling, ice production failures, and unresponsive refrigerator controls when a faulty main board is diagnosed.

What Does the W11629974 Control Board Do?

The electronic control board acts as the “brain” of your Whirlpool refrigerator. It continuously monitors temperature sensors and sends precise electrical signals to key components such as:

• Compressor system

• Evaporator and condenser fans

• Defrost system

• Ice maker control modules

• User interface and sensor feedback systems

When functioning correctly, it ensures your refrigerator maintains stable temperatures, runs efficient cooling cycles, and properly manages defrost timing to prevent ice buildup.

Because it directly controls multiple systems, OEM accuracy is essential. Even minor voltage or programming differences in non-OEM boards can lead to performance instability, erratic cooling, or repeated system failures.

Common Symptoms of a Failing Control Board

A failing W11629974 electronic control board may cause:

• Refrigerator not cooling or inconsistent cooling

• Freezer too warm or fluctuating temperatures

• Compressor not running or running continuously

• Ice maker not producing ice

• Refrigerator completely unresponsive or dead display

• Random cycling or shutting off

• Defrost system not activating properly

• Error codes or intermittent control panel failure

In many Whirlpool refrigerator diagnostics, replacing the control board is a common solution when sensors and wiring are confirmed good.

Compatibility Guidance

This part is designed for Whirlpool refrigerator systems and is also used across several Whirlpool-manufactured brands, including:

• Whirlpool

• Maytag

• KitchenAid

• Jenn-Air

• Kenmore (select Whirlpool-built models)

Before ordering, customers must verify their exact refrigerator model number, as electronic control boards are highly model-specific and not universally interchangeable.

Replaces Part Numbers

The W11629974 OEM control board is known to replace multiple Whirlpool control board part numbers, including:

• W10757851

• W10290817

• W10193840

• W10193666

• 4389102

• 4389102R

• 2198585

• 2198586

• 2220398

• 2220402

• 2255114

• 4388635

Key Features & Benefits

• Genuine OEM Whirlpool electronic control board

• Precision-engineered for refrigerator system control

• Restores cooling performance and system coordination

• Compatible with multiple Whirlpool-built refrigerator platforms

• Meets strict manufacturer electrical and safety standards

• Reliable long-term operation under continuous load

• Trusted by appliance technicians and repair professionals

• Ideal for both residential and rental property appliance repairs

Installation Overview

Replacing an electronic control board requires technical knowledge of appliance electrical systems.

General installation steps include:

• Disconnecting refrigerator power supply

• Accessing control housing (typically rear or top compartment)

• Carefully disconnecting wiring harnesses

• Removing and replacing the control board

• Ensuring correct reconnection of all terminals

• Running diagnostic or reset procedures after installation

Because improper installation can damage other components, professional installation is strongly recommended for homeowners without appliance repair experience.

Canada-Wide Availability & Supplier Trust

The W11629974 Whirlpool control board is available through Appliance Kingdom, a trusted Canadian appliance parts supplier based in Edmonton, Alberta.

Customers across Canada benefit from:

• Fast nationwide shipping

• OEM-certified appliance components

• Support for compatibility verification

• Reliable sourcing for Whirlpool refrigerator parts

• Parts suitable for Canadian residential appliance standards

Buyer Confidence & Reassurance

• 100% Genuine OEM Whirlpool component

• Designed for precise system-level compatibility

• Helps restore full refrigerator functionality when correctly diagnosed

• Supported by expert guidance before purchase

• Trusted by homeowners, landlords, and technicians across Canada
