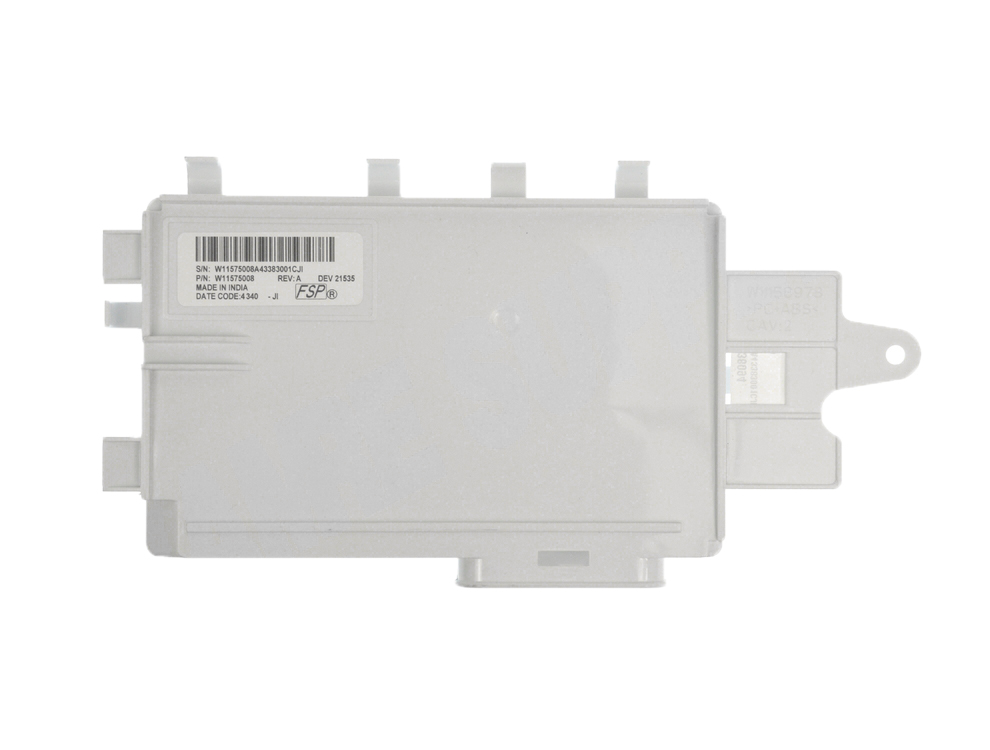

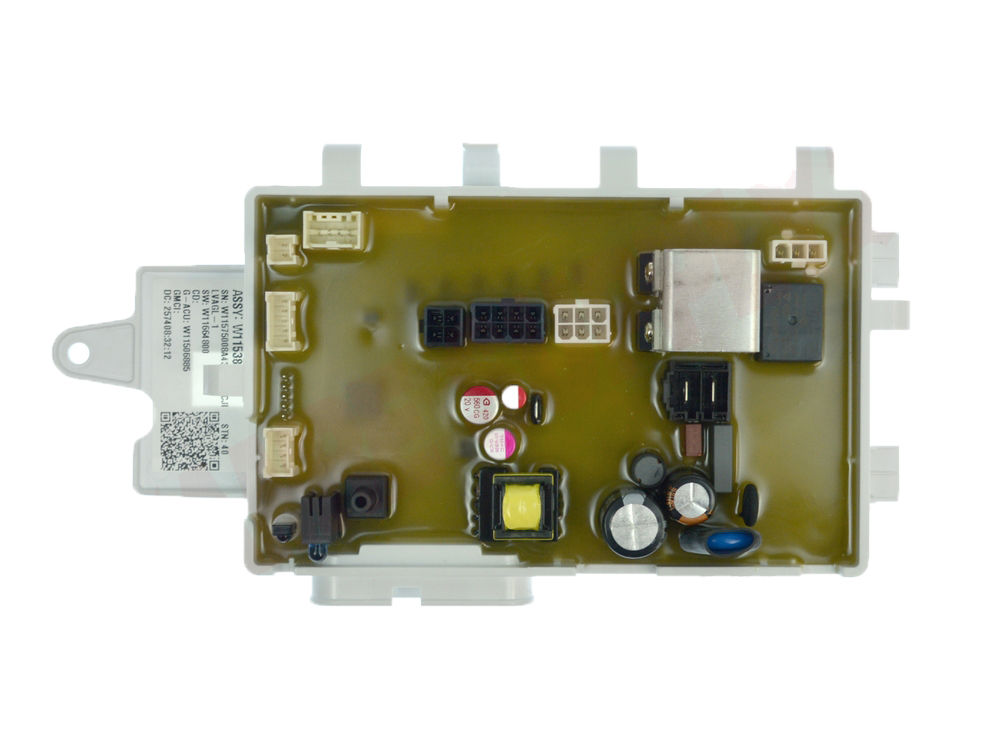

W11543998 - Genuine OEM Whirlpool Washer Electronic Control Board

W11543998 – Genuine OEM Whirlpool Washer Electronic Control Board

Part Number: W11543998
Full Part Name: Genuine OEM Whirlpool Washer Electronic Control Board
Appliance Category: Washer – Electronic Control Board
Brand: Whirlpool (Original Manufacturer)
Canada Availability: Ships Canada‑wide from Appliance Kingdom, serving homeowners, landlords, and appliance technicians across Canada with fast fulfillment and expert support.

This Genuine OEM Whirlpool electronic control board is the main brain of select Whirlpool washing machines. When your washer exhibits erratic or incomplete cycles, unresponsive controls, or fails to start properly, replacing the control board with the correct OEM part like W11543998 often restores normal operation and reliability.

Function & Importance

The electronic control board in a washing machine orchestrates the machine’s entire operation. It receives input from the control panel, sensors, and switches, and directs key functions including:

• Water fill timing and level regulation

• Wash cycle progression and agitation control

• Spin speed and drain timing

• Sensor communications for balance, water temperature, and load sensing

Because this board manages electrical signals and timing for virtually all washer functions, a faulty or degraded control board can cause unpredictable machine behaviour and cycle failures. Using a Genuine OEM Whirlpool control board ensures that the replacement matches the original manufacturer’s design, connections, and performance standards.

Common Symptoms Indicating

Watch for these washer‑specific signs that often point to a failing electronic control board:

• Washer does not start or respond to button inputs

• Wash cycles stop mid‑cycle or fail to complete

• Water fill levels are incorrect or erratic

• Washer won’t drain or spin properly

• Machine displays error codes or unresponsive displays

In many cases, replacing the control board resolves these issues by restoring correct electronic control and communication across components.

Compatibility Guidance

• Designed for use in Whirlpool washing machines that originally came with W11543998

• Always verify your specific washer’s model number against a parts diagram or manual before purchase

• If uncertain, contact Appliance Kingdom support to confirm part fitment

Key Features & Benefits

• 100% Genuine Whirlpool OEM Part: Engineered to match original specifications for optimal performance and reliability.

• Essential Washer Component: Controls major functions including wash cycles, fill/drain operations, and spin speed.

• Restores Proper Operation: Addresses control‑board‑related failures that affect multiple washer behaviours.

• Trusted Quality: Precision‑built for longevity and consistent cycle management.

• Ideal for Repair Technicians & DIYers: Suitable for professional service or experienced at‑home repairs.

Installation Overview

• Difficulty: Intermediate to advanced

• Requires disassembly of the washer’s top or rear panel and careful handling of electrical connections

• Professional installation recommended unless you are experienced with appliance electronics

• Always unplug the washer before beginning repair to eliminate risk of electric shock

Canada‑Wide Availability & Trusted Supply

Appliance Kingdom is a Canadian appliance parts retailer based in Edmonton, Alberta, offering:

• Fast Canada‑wide shipping

• Genuine OEM parts for Whirlpool washers

• Support to help confirm part compatibility before ordering

• Reliable replacements that meet Canadian appliance standards

Buyer Confidence & Reassurance

• Verified OEM part: Manufactured by Whirlpool with original specifications

• Accurate cross‑referencing: Replaces older part numbers where applicable

• Compatibility support: Expert help available to confirm your model’s needs

• Ship from Canada: Quick fulfillment across provinces and territories
