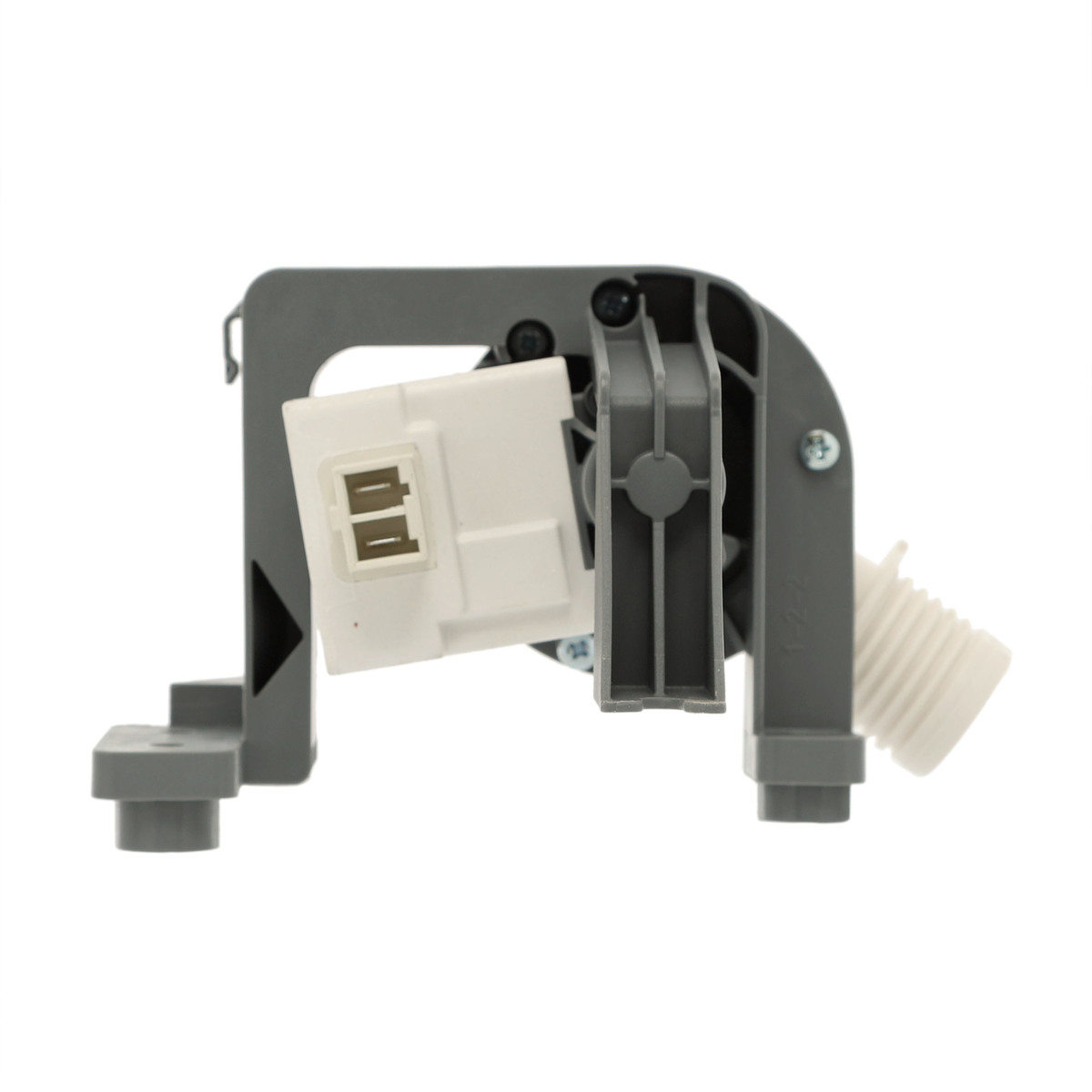

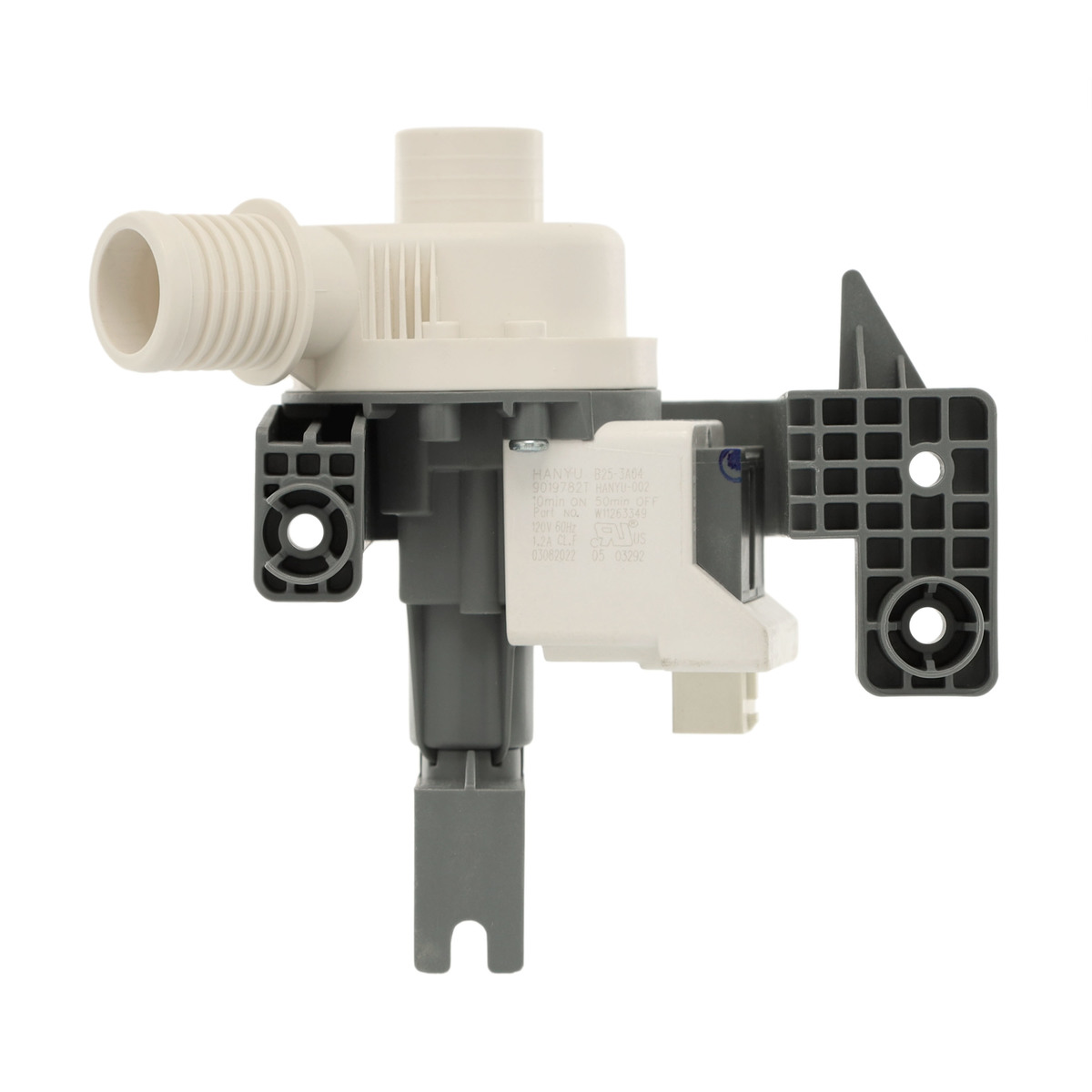

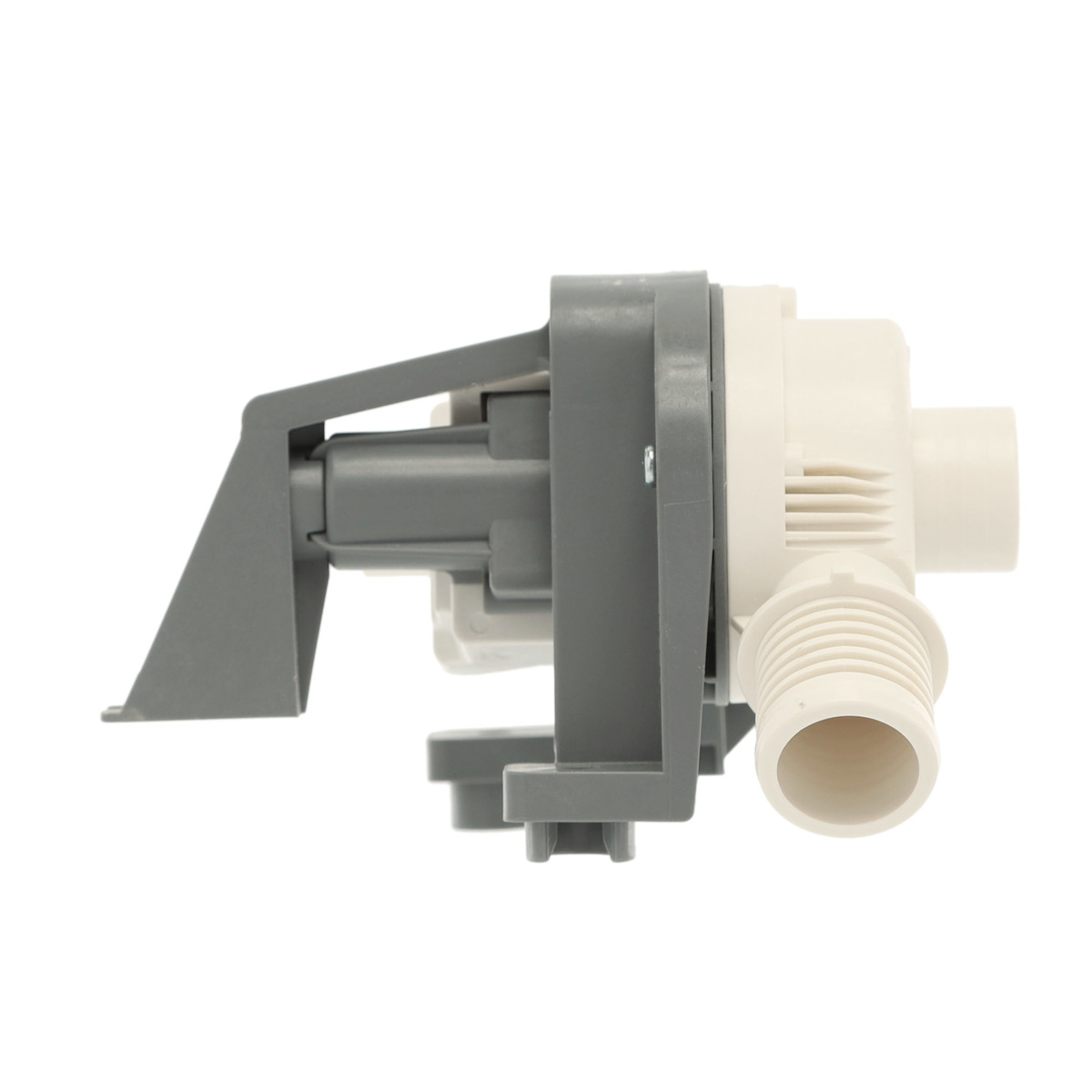

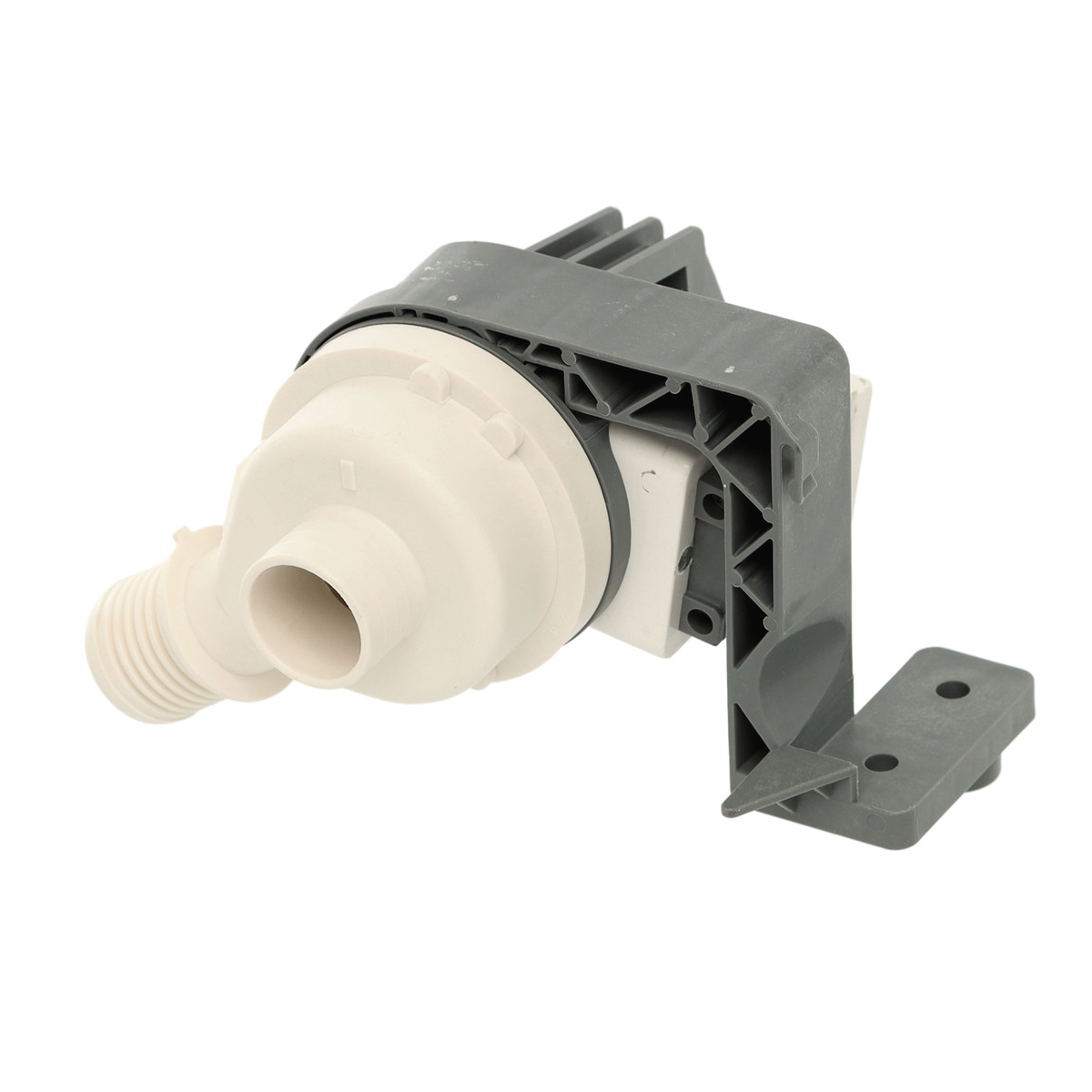

W11396717 - Genuine OEM Whirlpool Washer Drain Pump & Motor Assembly

W11396717 - Genuine OEM Whirlpool Washer Drain Pump & Motor Assembly

The W11396717 Genuine OEM Whirlpool Washer Drain Pump & Motor Assembly is a critical replacement component designed for Whirlpool washing machines and compatible brands. This genuine OEM part is engineered to meet exact manufacturer specifications, ensuring dependable performance, precise fit, and long-lasting durability. Available from Appliance Kingdom, this part ships quickly across Canada, making it a trusted solution for homeowners, landlords, and professional appliance repair technicians.

If your washer is failing to drain or leaving water behind after cycles, this drain pump assembly is one of the most common and effective fixes.

Function & Importance of the Drain Pump Assembly

The drain pump and motor assembly is responsible for removing water from the washer during the drain cycle.

It works by:

• Activating during the drain phase of the wash cycle

• Pumping used water out through the drain hose

• Allowing the washer to proceed to spin and rinse cycles properly

Using a Genuine OEM assembly like W11396717 is essential because:

• It ensures proper water flow and pressure

• Maintains safe and efficient washer operation

• Prevents leaks, clogs, and motor strain

A failing pump can disrupt the entire wash cycle, leading to incomplete cleaning and potential water damage.

Common Symptoms Indicating Replacement

If your washing machine is showing any of the following issues, replacing the drain pump assembly may resolve the problem:

• Washer won’t drain or leaves water in the tub

• Standing water after the cycle ends

• Unusual noises (grinding, humming, or rattling) during drain cycle

• Washer stops mid-cycle or fails to spin properly

• Error codes related to drain or pump failure

• Washer not washing properly due to poor drainage

Will replacing this part fix your issue?
If your washer cannot remove water effectively or is making abnormal noises during draining, this part is a highly likely solution.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also compatible with select models from brands such as Maytag, Kenmore, Amana, and others

• Fits a wide range of washer models—always verify your appliance model number before ordering

Replaces Part Numbers

• W11263349

Key Features & Benefits

• Genuine OEM Whirlpool part for guaranteed reliability

• Integrated pump and motor assembly for efficient water removal

• Engineered for exact fit and optimal performance

• Helps restore full washer functionality and cycle completion

• Suitable for DIY repairs and professional technicians

Installation Overview

Replacing the drain pump assembly is typically a moderate-level repair:

• Requires access to the washer’s lower panel or rear section

• Involves disconnecting hoses, wiring, and mounting screws

• Basic tools like a screwdriver and pliers may be required

Most experienced DIY users can complete the repair, but due to water and electrical connections, professional installation is recommended if you are unsure.

Canada-Wide Availability & Trusted Supplier

Appliance Kingdom is a Canada-based supplier providing genuine OEM appliance parts with fast nationwide shipping. All parts meet applicable standards for Canadian households, ensuring safe and reliable appliance performance.

Buyer Confidence & Support

• 100% Genuine OEM quality assurance

• Built for precise compatibility and long-term use

• Reduces risk of repeat failures or improper fit

• Support available to confirm compatibility before purchase
