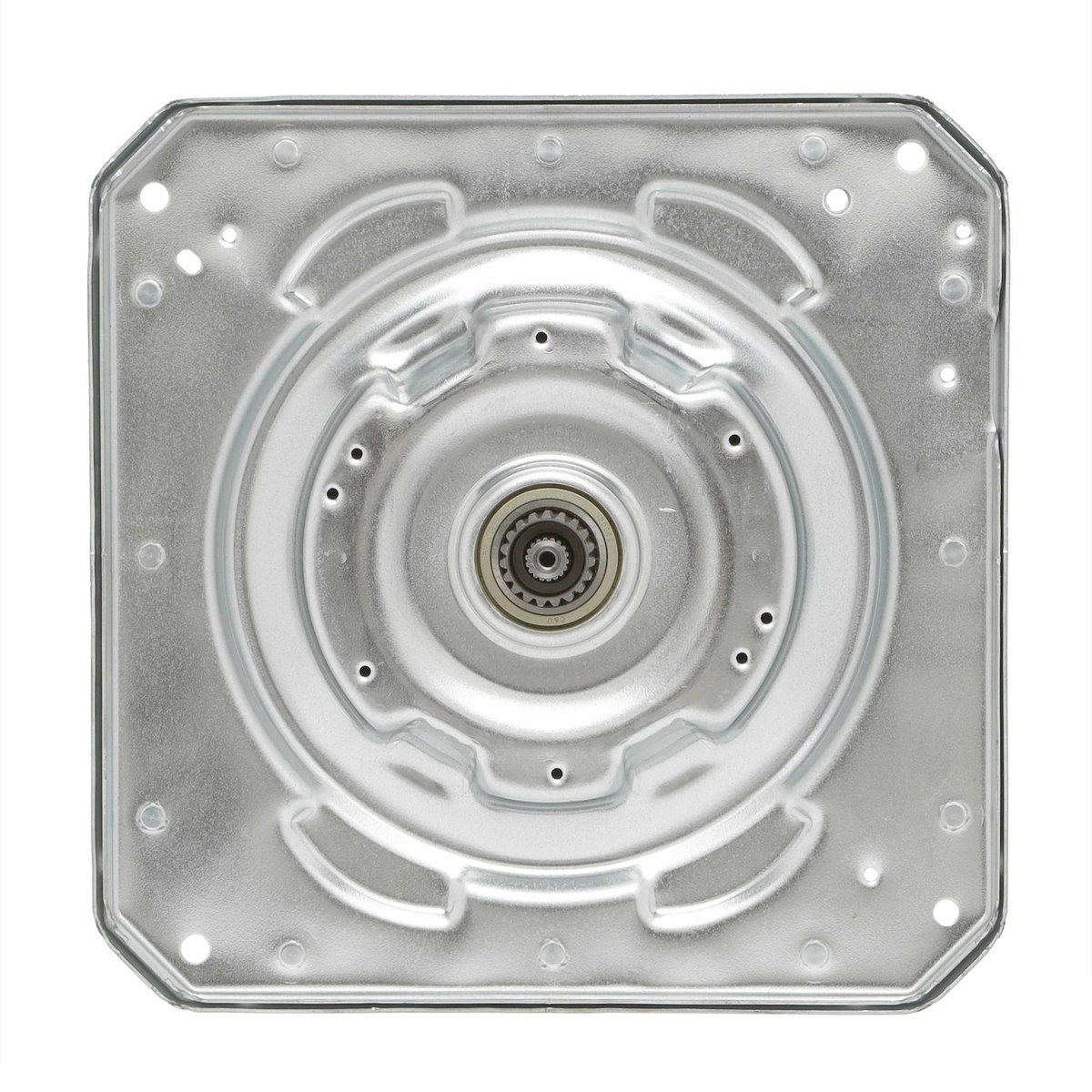

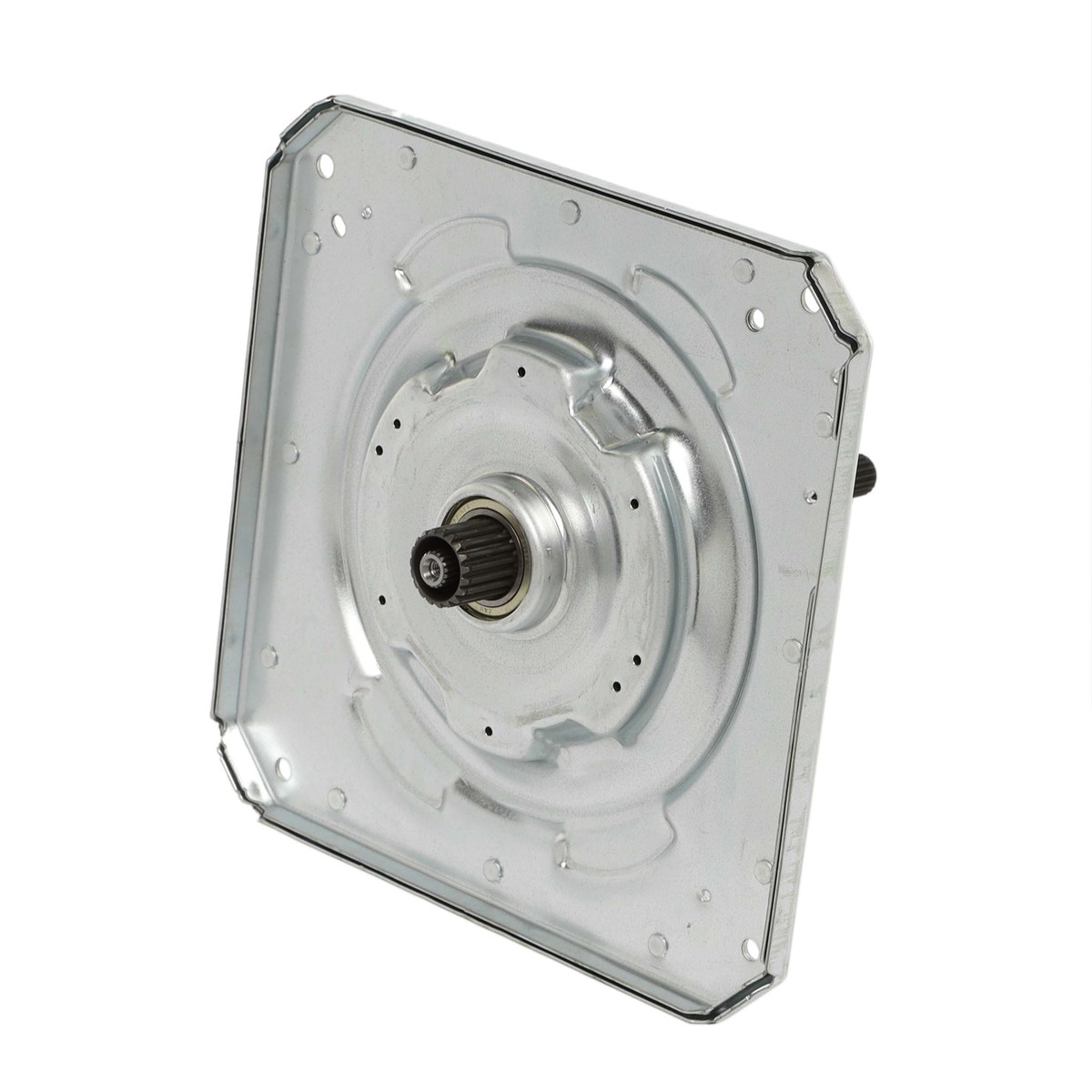

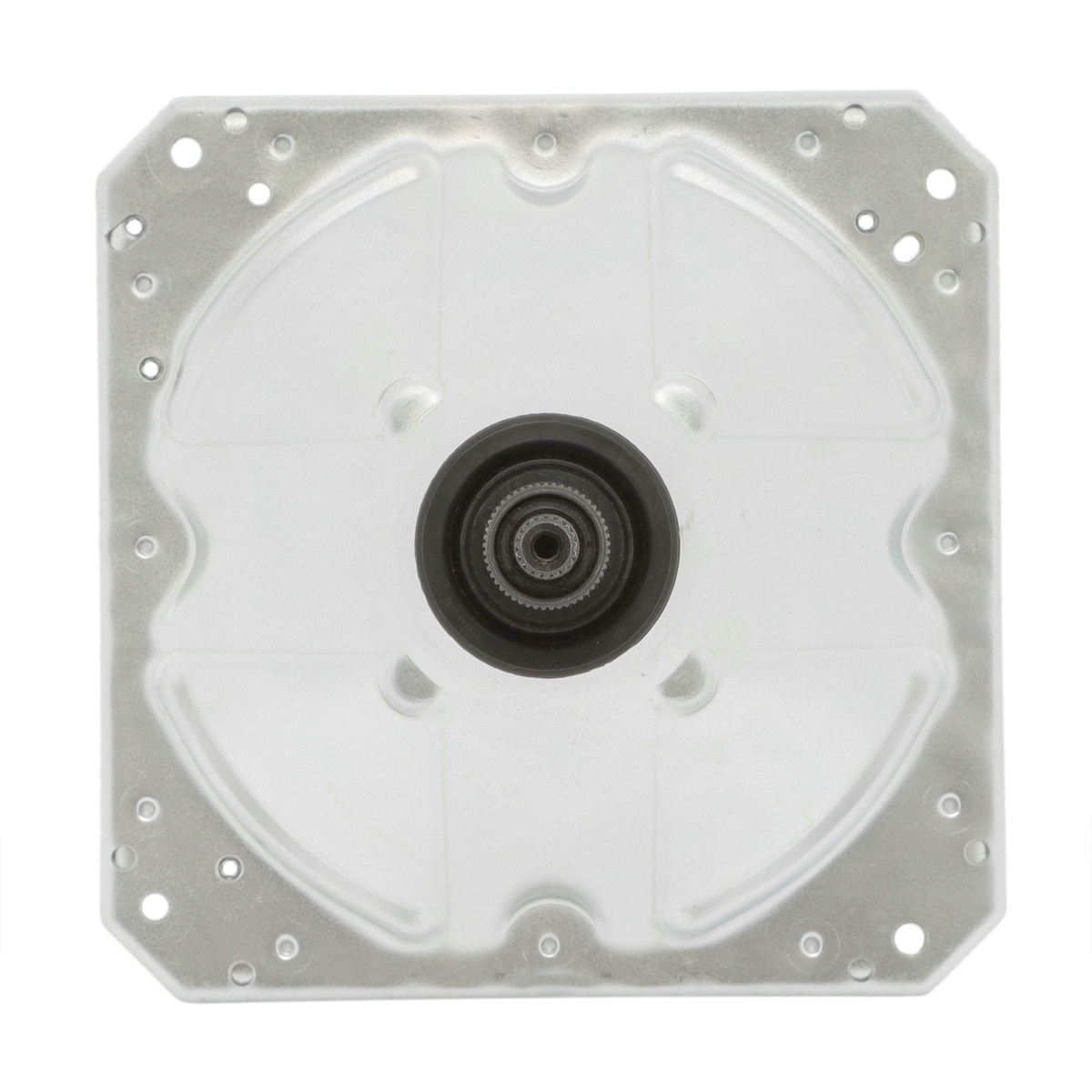

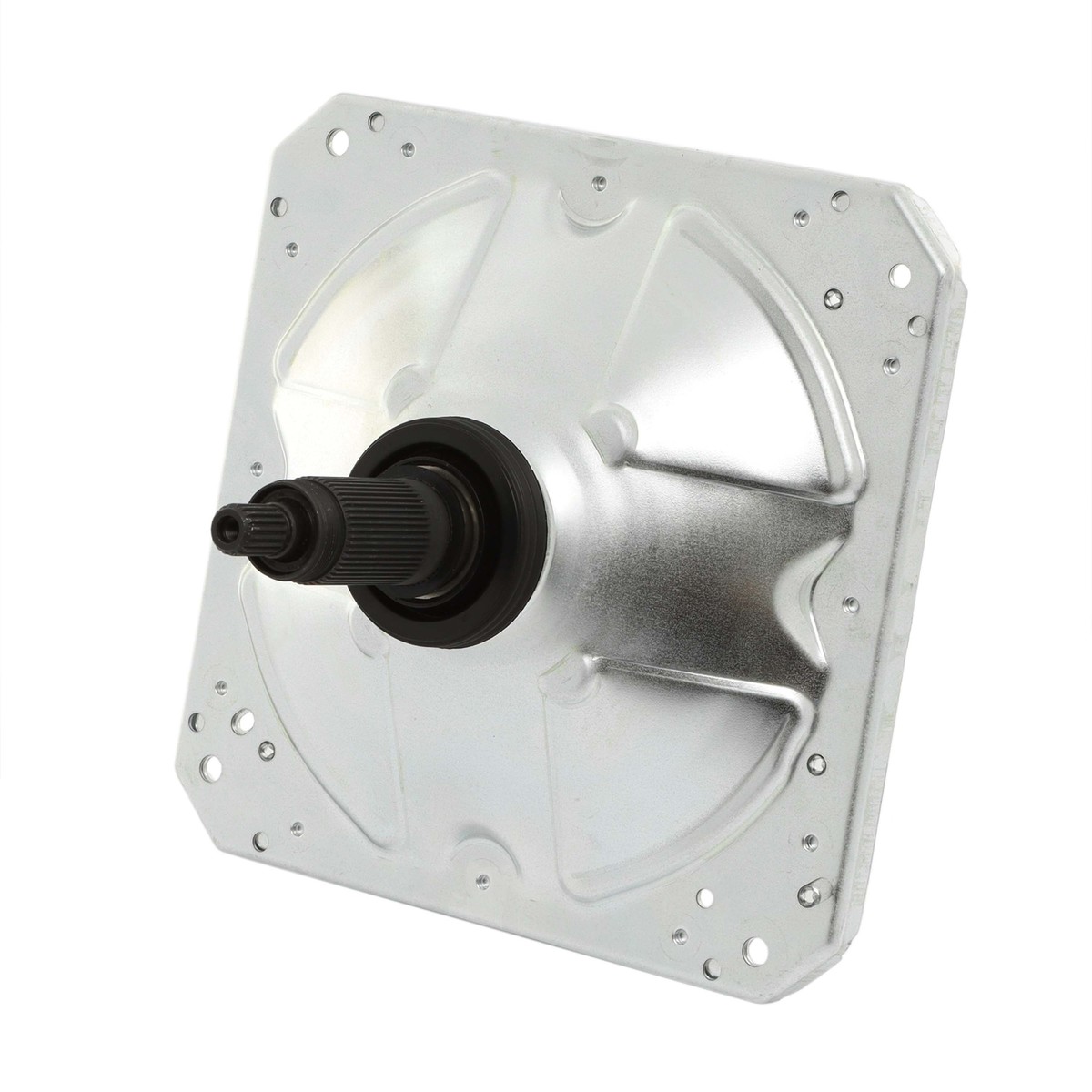

W11393685 - Genuine OEM Whirlpool Washer Transmission Assembly

W11393685 - Genuine OEM Whirlpool Washer Transmission Assembly

The W11393685 Genuine OEM Whirlpool Washer Transmission Assembly is a heavy-duty, factory-engineered drivetrain component designed specifically for Whirlpool washing machines (Washer category). As a Genuine OEM gearcase/transmission assembly, it delivers precise mechanical power transfer for both agitation and spin cycles, ensuring your washer operates smoothly and efficiently.

Available through Appliance Kingdom (Canada-wide shipping from Edmonton, AB), this part is trusted by homeowners, landlords, and appliance technicians for restoring full wash performance and resolving critical drive-related failures.

Function & Importance of the Washer Transmission

The transmission (also called a gearcase assembly) is the mechanical heart of a top-load Whirlpool washer. The W11393685 assembly converts motor rotation into controlled motion for:

• Agitating clothes during wash cycles

• Spinning the basket for water extraction

• Managing internal gear, bearing, and shaft movement

Because it handles constant torque and load stress, OEM precision is essential. A genuine Whirlpool transmission ensures:

• Correct gear alignment

• Proper torque distribution

• Reduced vibration and wear on other components

• Long-term reliability under heavy laundry loads

Common Symptoms of a Failing Transmission

A worn or damaged washer transmission can cause serious performance issues, including:

• Washer not agitating properly

• Washer not spinning or spinning weakly

• Loud grinding, knocking, or metallic noises during cycles

• Drum turns inconsistently or gets stuck mid-cycle

• Washer completes fill/drain but fails during wash or spin phases

• Visible oil leakage from the bottom of the unit

These symptoms are strongly associated with gearcase or bearing failure in Whirlpool washers, and replacing the transmission is often the most effective long-term repair.

Will replacing this part fix the issue?
If the problem is related to internal drivetrain failure (gear wear, bearing damage, or shaft issues), replacing the transmission typically restores full washing and spinning function.

Compatibility Guidance

• Designed for Whirlpool washing machines (top-load systems using gearcase transmission assemblies)

• Also used across select models from Maytag, Kenmore, Amana, KitchenAid, Jenn-Air, and related Whirlpool-built brands

• Always verify your appliance model number before ordering to ensure correct fit and configuration

Replaces Part Numbers

Based on verified OEM cross-reference data, the W11393685 transmission assembly replaces:

• W10447976

• W10811956

• W10868473

• W11134159

• W11393686

• W11455453

Key Features & Benefits

• Genuine OEM Whirlpool construction for factory-grade performance

• Includes integrated gearcase, bearings, and drive components

• Restores proper wash agitation and spin speed

• Designed for heavy-duty, long-term appliance use

• Reduces vibration, noise, and mechanical failure risks

• Trusted by professional appliance repair technicians

Installation Overview

Replacing a washer transmission is a moderate to advanced repair:

• Requires partial disassembly of the washer base

• Involves removal of drive components and basket assembly

• May require lifting tools and mechanical experience

While experienced DIY users may attempt installation, professional appliance technician installation is strongly recommended due to the weight and complexity of the assembly.

Always disconnect power and water supply before servicing.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom supplies genuine OEM Whirlpool appliance parts across Canada, with fast shipping from within the country. Customers benefit from:

• Reliable nationwide delivery

• Parts suited for Canadian appliance usage standards

• Support for homeowners, landlords, and service technicians

• Trusted sourcing of OEM-grade components

Buyer Confidence & Assurance

• 100% Genuine OEM Whirlpool part

• Verified mechanical fit and performance reliability

• Helps restore full washer functionality

• Pre-purchase compatibility support available from Appliance Kingdom
