W11342242 - Genuine OEM Whirlpool ARM-SHUT

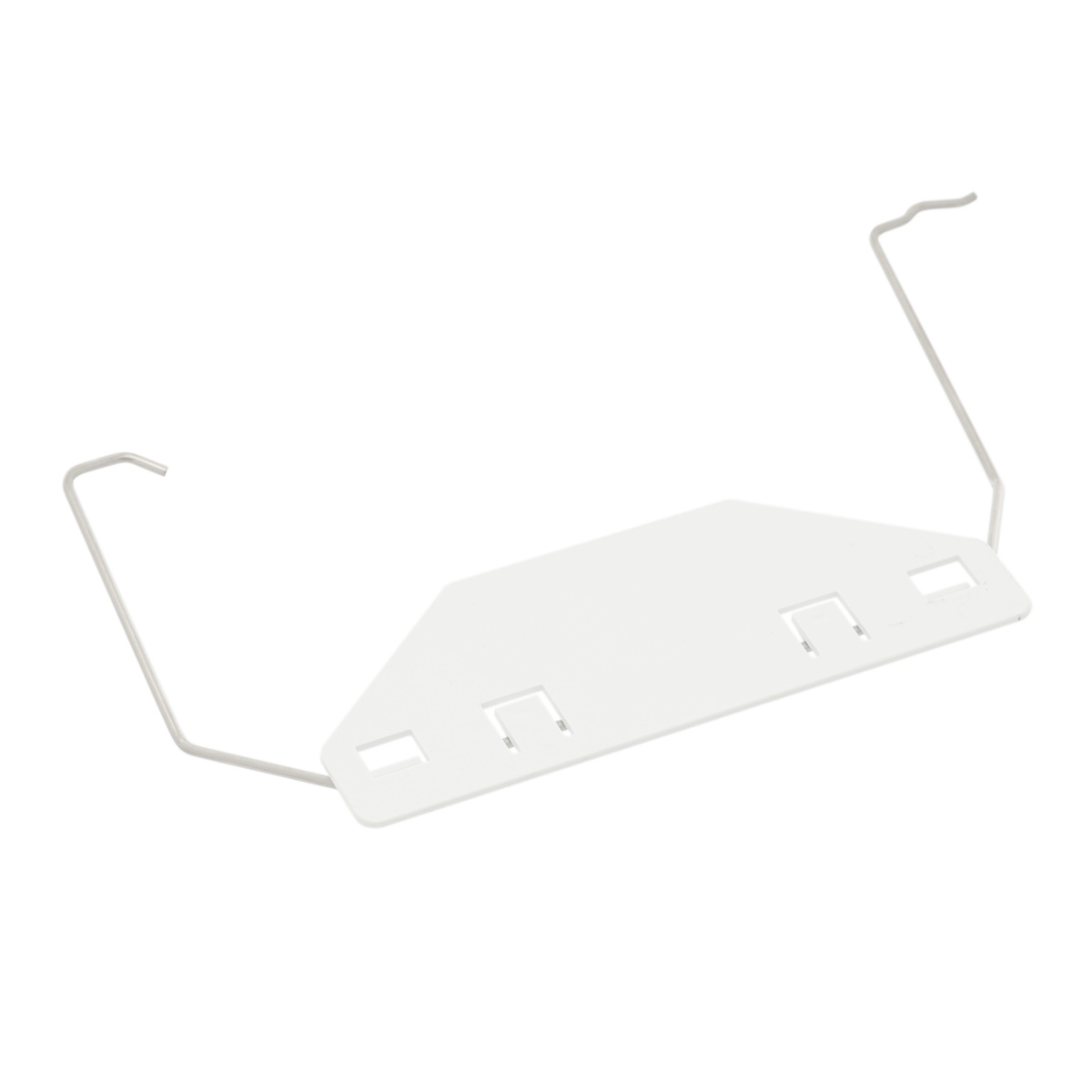

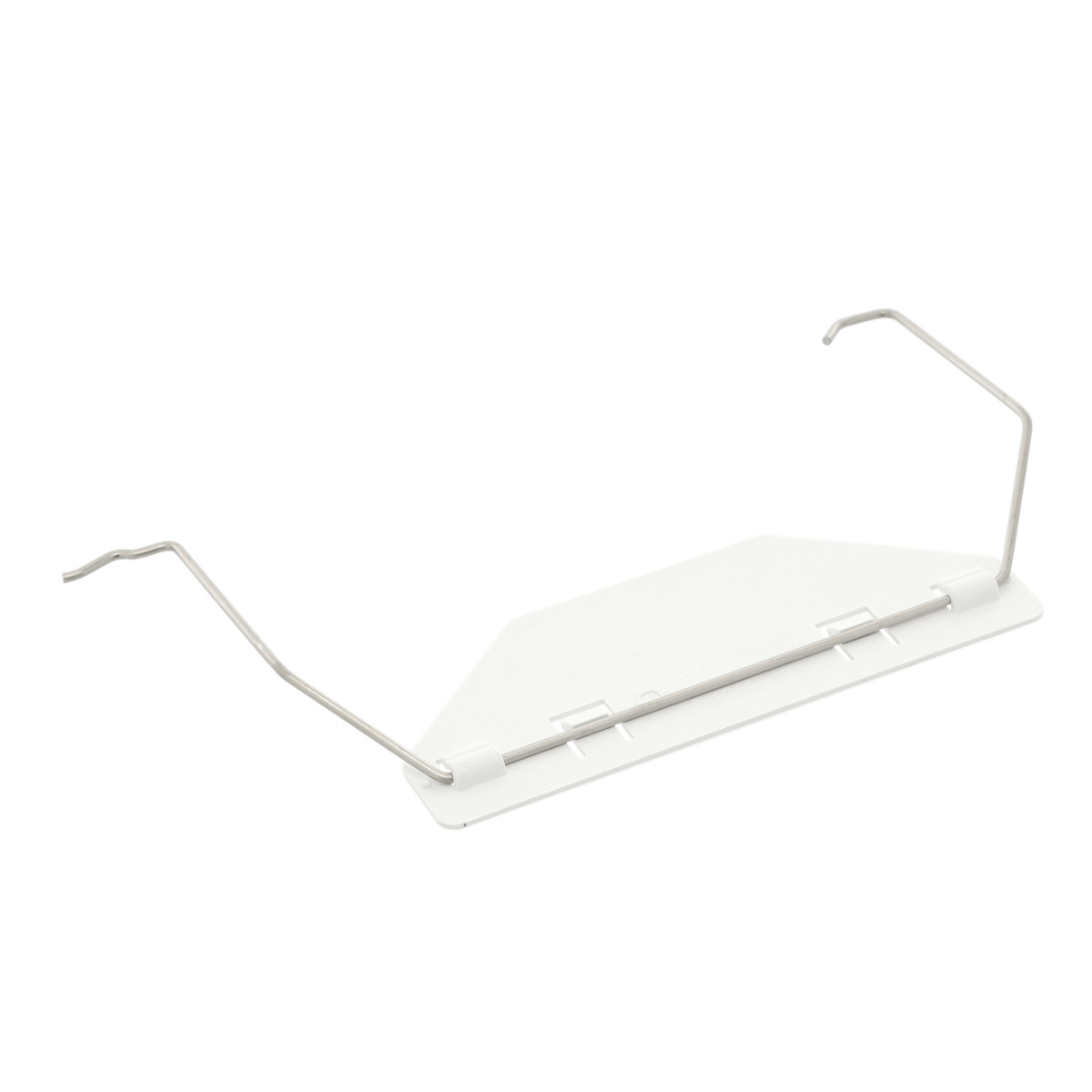

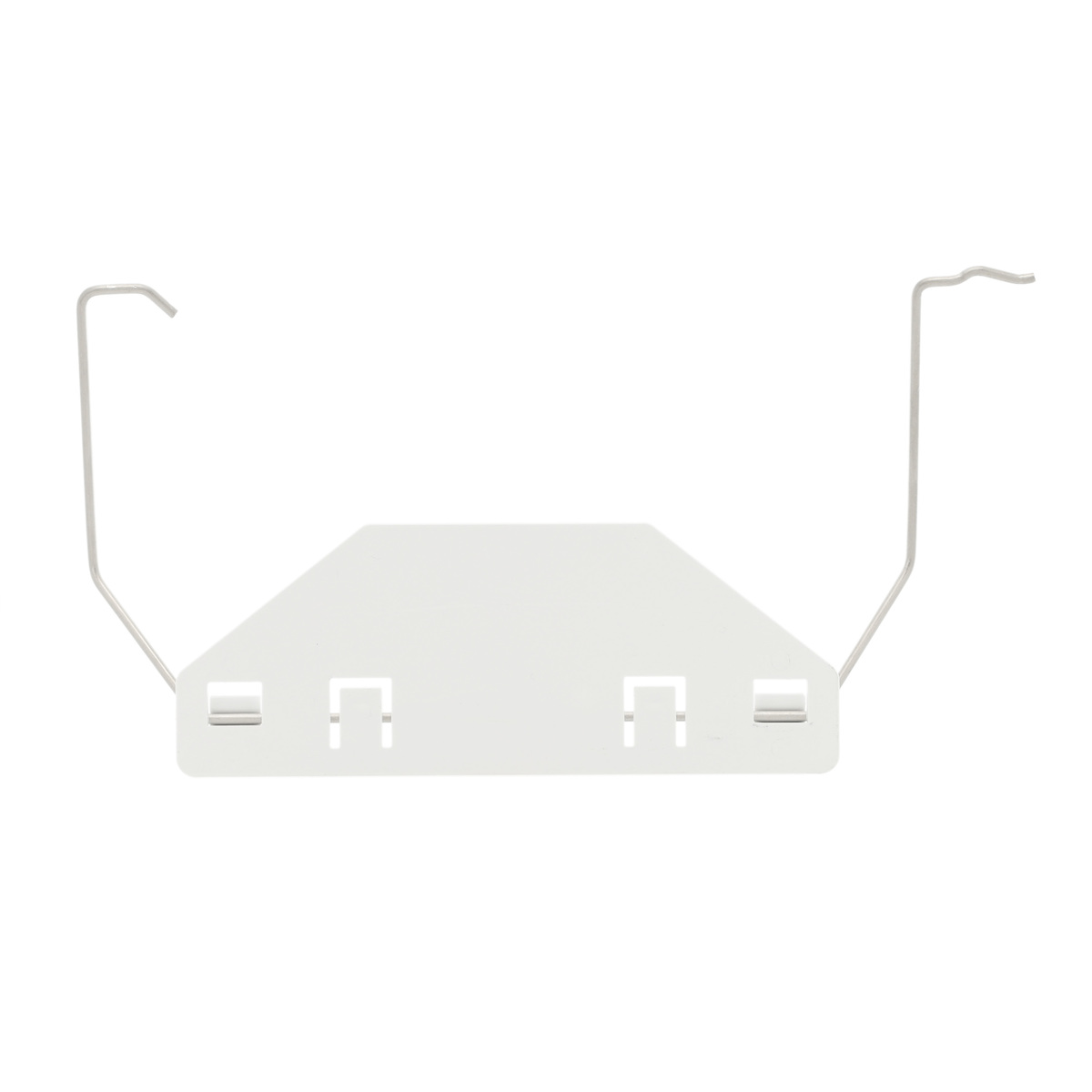

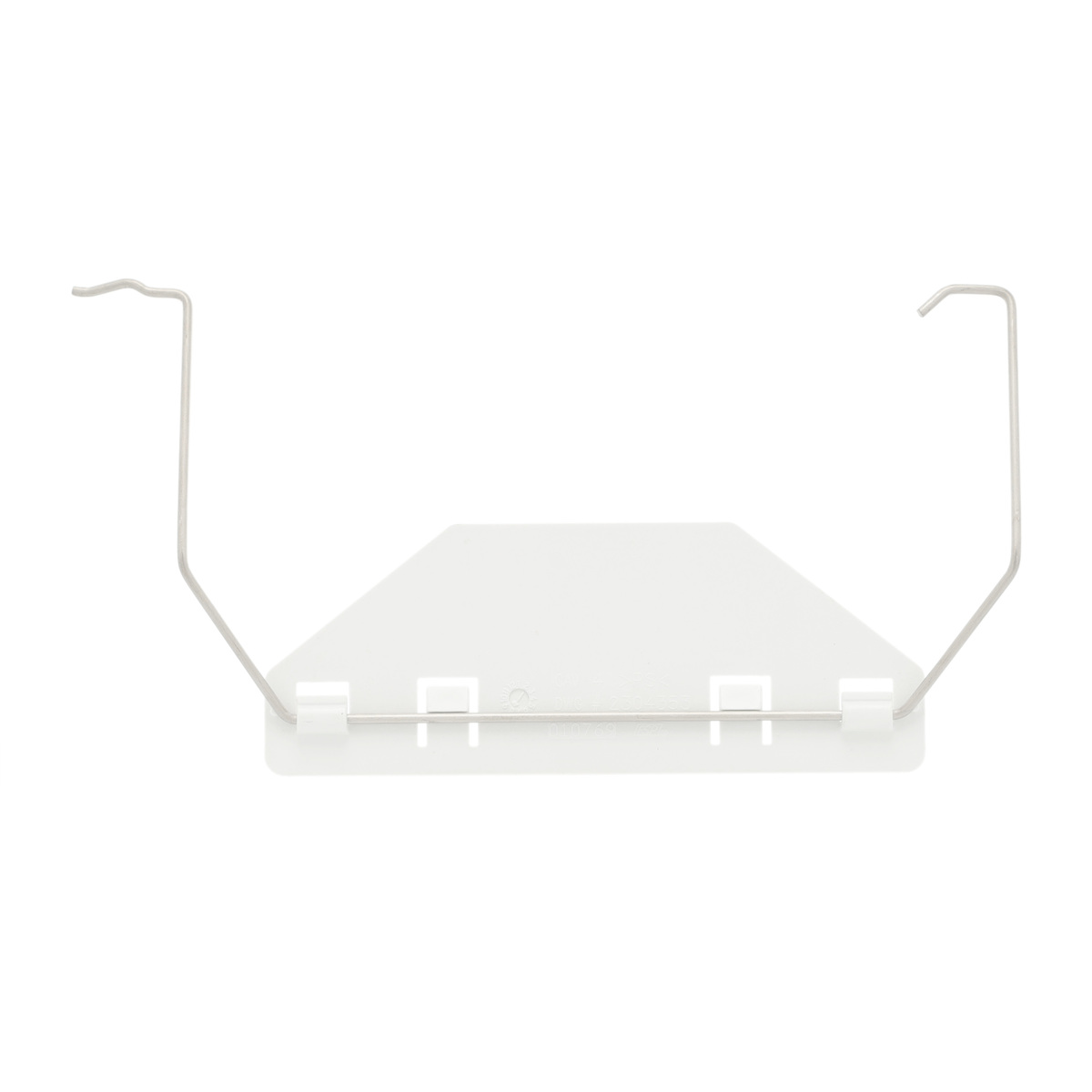

W11342242 – Genuine OEM Whirlpool Refrigerator Ice Maker Shut-Off Arm

The W11342242 Genuine OEM Whirlpool Refrigerator Ice Maker Shut-Off Arm is an original equipment manufacturer (OEM) replacement part designed to help regulate ice production in compatible refrigerators. Also known as an ice-level arm or bail arm, this component detects when the ice bin is full and signals the ice maker to stop producing additional ice. It helps prevent overproduction and supports normal ice maker operation.

Appliance Kingdom serves customers across Canada with appliance replacement parts and convenient shipping options. If your refrigerator is producing too much ice or the shut-off arm is damaged or missing, replacing this component may restore proper ice-level control when the arm is the cause of the problem.

Function & Importance

The ice maker shut-off arm moves in response to the ice level in the storage bin. When the bin fills, the arm activates the shut-off mechanism to stop further ice production. As ice is removed, the mechanism allows production to resume when appropriate.

A properly functioning arm helps maintain normal ice maker operation and prevents excess ice from accumulating. Using the correct OEM component helps ensure the intended fit and interaction with the compatible ice maker.

Common Symptoms Indicating Replacement

A faulty, broken, or missing shut-off arm may cause the following problems:

• Ice maker continues producing ice when the bin is full.

• Ice accumulates excessively inside the ice storage area.

• The shut-off arm is visibly bent, damaged, detached, or missing.

• The ice maker does not respond correctly to the ice level in the bin.

If your refrigerator is not producing ice at all, the issue may involve another component, such as the ice maker assembly, water supply, or inlet valve. Replacing the shut-off arm will help only if it is responsible for the fault.

Compatibility Guidance

W11342242 is a refrigerator ice maker shut-off arm associated with compatible Whirlpool appliances and certain related-brand models, including some KitchenAid, Maytag, and Kenmore refrigerators.

Compatibility depends on the exact refrigerator and ice maker configuration. Check your appliance's complete model number against an authoritative parts catalogue before ordering. Do not assume that every refrigerator from these brands uses this arm.

Replaces Part Numbers

The following replacement part numbers are documented by Whirlpool's authorised parts retailer: <Cite refs={["turn372542search0","turn372542search12"]}/>

• W11188841

• W11128135

• W10889530

• WP2304354

• 2304354

• 2304352

• 2300169

• 2209675

• 2160689

• 2171593

• 4343695

• 627913

• 628187

• 628310

• 628323

• 701421

• 70142-1

Confirm the correct part number for your specific refrigerator model before purchasing.

Key Features & Benefits

• Genuine OEM Whirlpool replacement part.

• Designed for compatible refrigerator ice maker systems.

• Helps stop ice production when the storage bin reaches the appropriate level.

• Replaces a damaged, broken, or missing shut-off arm when confirmed as the cause of the problem.

• Supports proper ice-level detection and normal ice maker operation.

• Suitable for homeowners, landlords, property managers, and professional appliance repair technicians.

Installation Overview

Replacing an ice maker shut-off arm is generally a straightforward repair for someone with basic appliance repair experience. The process typically involves accessing the ice maker compartment, removing or disengaging the damaged arm, and securing the replacement in the correct position.

Disconnect refrigerator power before beginning work, follow the manufacturer's service instructions, and avoid forcing the arm or its mounting points. Professional assistance is recommended if the ice maker assembly or electrical connections require further repair.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, serving customers across Canada. Customers can shop for replacement components for household refrigerators and other appliances, with support available to help identify the correct part.

Shipping options, stock availability, and delivery estimates depend on the product listing and destination. Contact Appliance Kingdom if you need help confirming compatibility before ordering.

Buyer Confidence & Reassurance

Choosing the genuine OEM W11342242 shut-off arm helps maintain the intended fit and operation of a compatible Whirlpool ice maker. Verify the model number and the condition of the existing arm before purchasing. If the problem persists after replacement, the ice maker's sensing mechanism or another component may need diagnosis.
