W11330486 - Genuine OEM Whirlpool Refrigerator User Interface Assembly

W11330486 – Genuine OEM Whirlpool Refrigerator User Interface Assembly

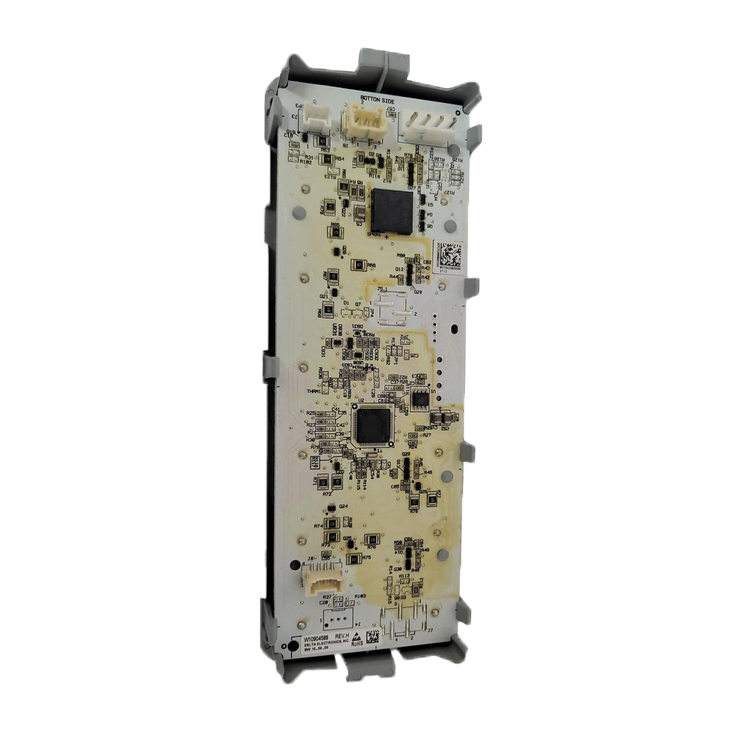

The W11330486 Genuine OEM Whirlpool Refrigerator User Interface Assembly is a factory-original electronic control and display module designed for Whirlpool refrigerators (Refrigerator appliance category). This OEM user interface assembly acts as the primary command center for your refrigerator, allowing you to control temperature settings, ice and water functions, and system modes through the front display and touch controls.

Manufactured to Whirlpool’s original specifications, this part ensures accurate communication between the user interface and the refrigerator’s internal control system. It is commonly used across Whirlpool and affiliated brands and is available for fast, Canada-wide shipping from Appliance Kingdom in Edmonton, AB.

A failing or unresponsive user interface is one of the most common causes of control issues in modern refrigerators, and replacing the W11330486 UI assembly often restores full functionality and reliable operation.

Function & Importance of the User Interface Assembly

The user interface assembly is the refrigerator’s main control point. It receives input from the touch buttons or capacitive controls and sends commands to the main control board.

In Whirlpool refrigerators, this component is responsible for:

• Adjusting refrigerator and freezer temperature settings

• Controlling ice and water dispenser functions (if equipped)

• Displaying temperature readings and system status

• Managing lock/unlock and diagnostic modes

• Sending user commands to internal electronic systems

Because this part directly communicates with the control system, OEM-level accuracy is critical. Even small inconsistencies in voltage response or firmware compatibility can result in unresponsive controls or incorrect system behavior.

When this component fails, the refrigerator may still run—but it becomes difficult or impossible to control properly.

Common Symptoms of a Failed User Interface Assembly

Replacing the W11330486 user interface assembly may resolve issues such as:

• Refrigerator display not lighting up or going blank

• Buttons or touch controls not responding

• Temperature settings not changing

• Ice or water dispenser controls not working

• Random or incorrect temperature readings

• Control panel freezing or locking unexpectedly

• Intermittent operation of display or UI functions

If your refrigerator shows these symptoms while still receiving power, the user interface assembly is a strong candidate for replacement.

Compatibility Guidance

This part is designed for Whirlpool refrigerator systems and compatible brands under Whirlpool Corporation platforms.

Compatible appliance category: Refrigerator (Whirlpool-style electronic control systems)

Before ordering, always confirm:

• Your exact refrigerator model number

• That your existing part number matches or corresponds to W11330486

• Physical layout and connector style of your current user interface

If you are unsure, Appliance Kingdom can help verify compatibility before purchase.

Replaces Part Numbers

• W11112889

• W11212167

• W11227903

Key Features & Benefits

• Genuine OEM Whirlpool factory replacement part

• Designed for precise refrigerator control system communication

• Restores full user interface and display functionality

• Built to meet original manufacturer electrical specifications

• Supports consistent temperature and dispenser control operation

• Durable construction for long-term appliance reliability

• Ideal for homeowners, landlords, and appliance repair technicians

Installation Overview

Replacing a refrigerator user interface assembly typically involves:

• Disconnecting refrigerator power

• Removing the front control panel or door interface section

• Carefully detaching wiring harness connections

• Installing and securing the replacement UI assembly

• Reassembling the panel and testing all functions

Because this component is electronic and control-system based, careful handling is required. Professional installation is recommended if you are not experienced with appliance electronics.

Canada-Wide Availability & Appliance Kingdom Trust

The W11330486 OEM Whirlpool Refrigerator User Interface Assembly ships quickly across Canada from Appliance Kingdom (Edmonton, Alberta).

Customers across Canada choose Appliance Kingdom for:

• Genuine OEM appliance replacement parts

• Fast nationwide shipping

• Reliable inventory for Whirlpool refrigerator components

• Support for compatibility verification before ordering

• Trusted supply for technicians, landlords, and homeowners

Buyer Confidence & Reassurance

When purchasing from Appliance Kingdom, you benefit from:

• Authentic OEM Whirlpool replacement quality

• Accurate part identification and performance reliability

• Reduced risk of mismatched or incompatible components

• Expert support for model verification

• Nationwide Canadian service and fulfillment
