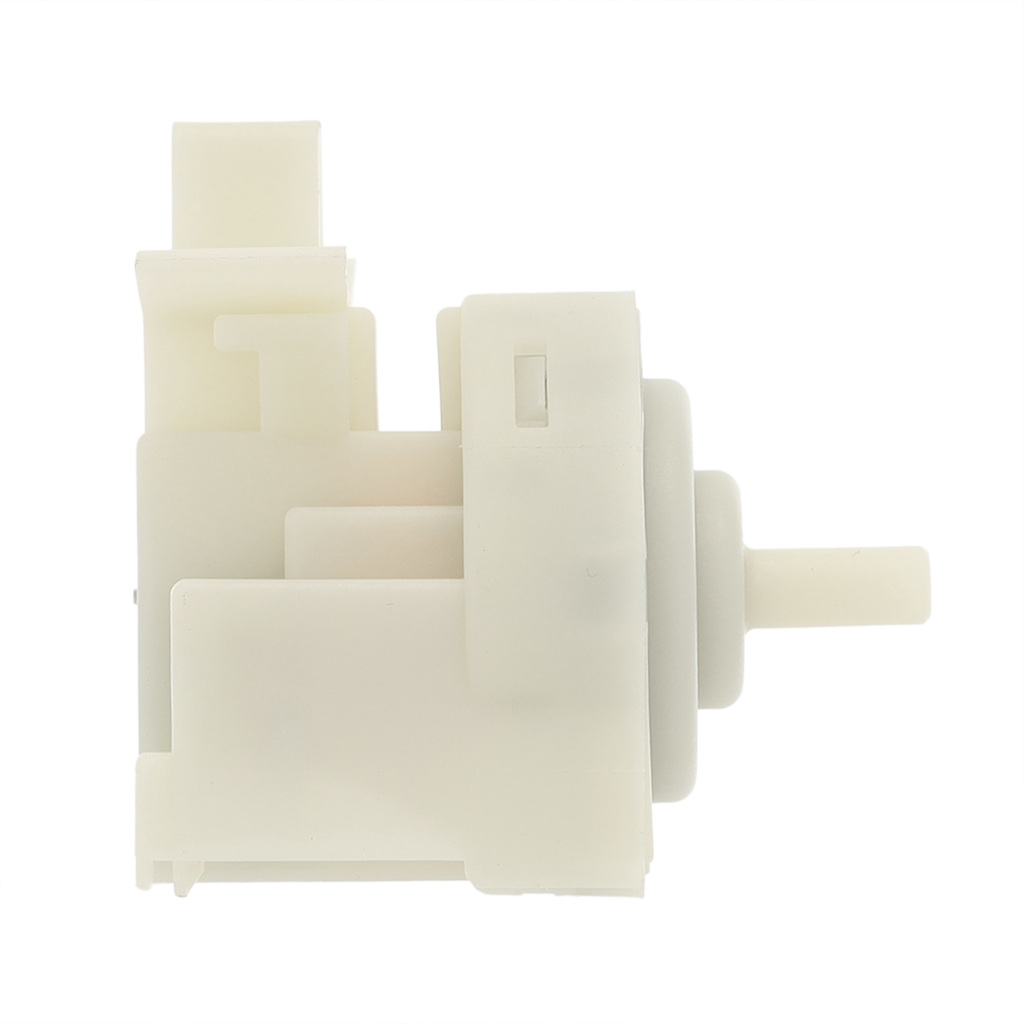

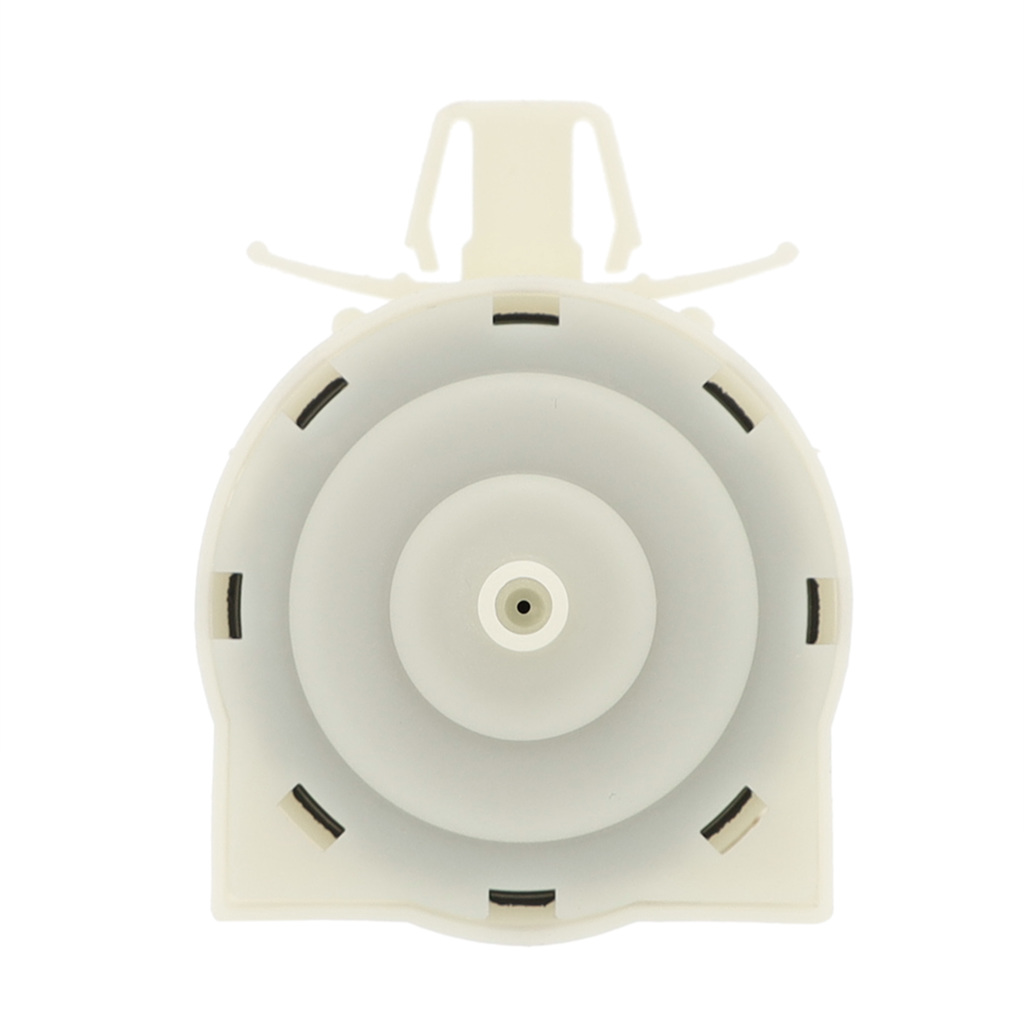

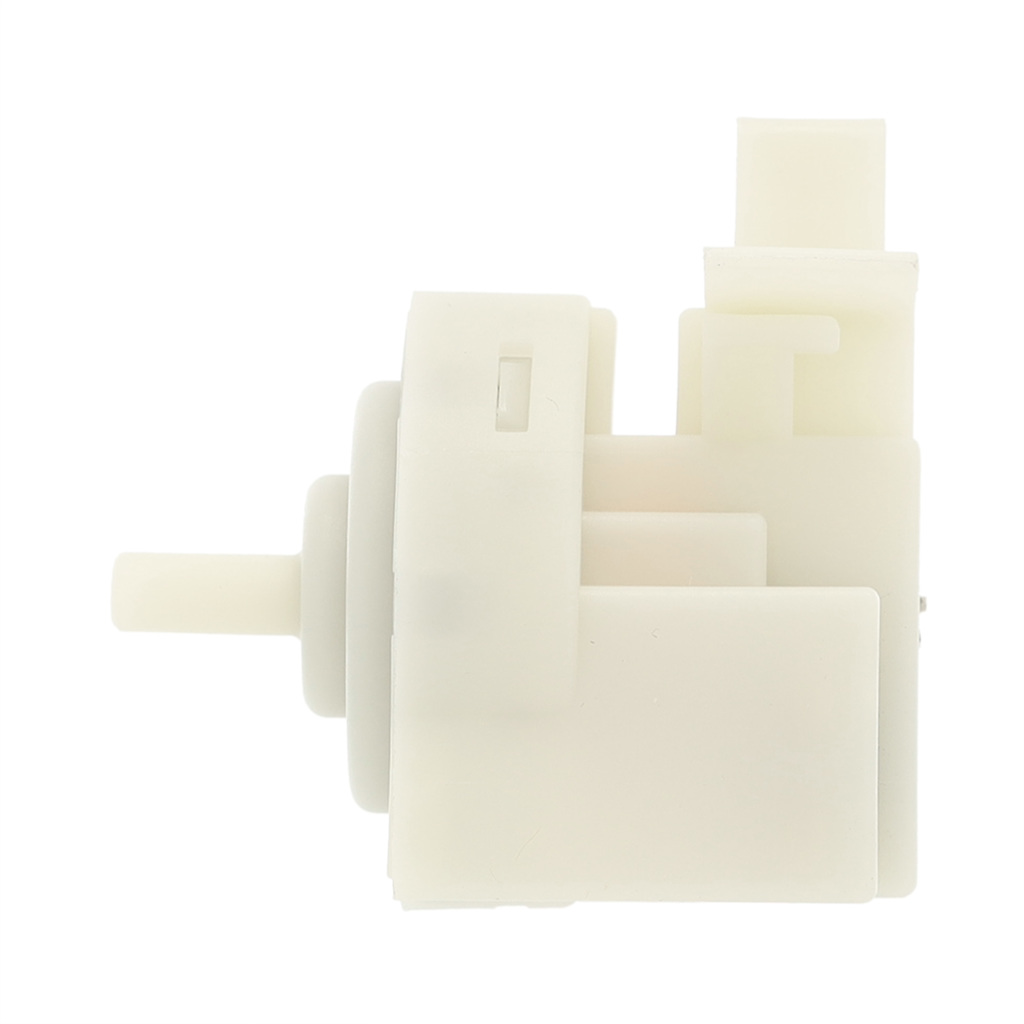

W11316246 - Genuine OEM Whirlpool Washer Water Level Pressure Switch

W11316246 - Genuine OEM Whirlpool Washer Water Level Pressure Switch

The W11316246 Genuine OEM Whirlpool Washer Water Level Pressure Switch is a critical control component designed to regulate and monitor water levels in Whirlpool washing machines. As a genuine OEM part, it is manufactured to exact factory specifications, ensuring accurate sensing, reliable operation, and long-term durability.

Available from Appliance Kingdom with fast Canada-wide shipping, this pressure switch is a trusted solution for resolving water-level-related washer issues for homeowners, landlords, and professional appliance technicians.

Function & Importance of the Water Level Pressure Switch

The water level pressure switch is responsible for monitoring how much water is inside the washer tub during each cycle. It works by detecting air pressure changes in a connected hose as the water level rises.

• Sends signals to the control board to start or stop water filling

• Ensures the washer uses the correct amount of water for each load

• Helps regulate wash, rinse, and drain cycles

This component is essential for proper washer performance. A genuine OEM part like W11316246 ensures precise calibration and communication with the washer’s control system—something aftermarket or incorrect parts may fail to deliver.

Common Symptoms of a Faulty Pressure Switch

If your washer is not handling water levels correctly, this component is often the cause. Typical signs include:

• Washer overfilling or underfilling with water

• Washer won’t fill at all

• Incorrect or inconsistent water levels during cycles

• Washer won’t advance cycles properly

• Error codes related to water level or pressure system

• Washer fails to drain properly or stops mid-cycle

Will replacing this part fix your issue?
If your washer cannot accurately detect water levels or shows fill/drain-related errors, replacing the pressure switch is a common and effective fix.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used in select models from Whirlpool-associated brands (e.g., Maytag, Amana, KitchenAid, etc.)

• Always verify your appliance model number before ordering to ensure compatibility

Replaces Part Numbers

Verified from authoritative sources, this part replaces the following part numbers:

• W11125159

• AP6835020

• PS12711555

• 4931206

• EAP12711555

Key Features & Benefits

• Genuine OEM Whirlpool part for guaranteed quality and performance

• Accurately monitors and controls washer water levels

• Designed for precise fit and seamless integration

• Helps prevent overfilling, underfilling, and cycle errors

• Durable construction for long-lasting reliability

• Ideal for DIY repairs and professional technicians

Installation Overview

Replacing the water level pressure switch is typically a moderate repair:

• Usually located inside the control panel or under the top panel

• Involves disconnecting the pressure hose and wiring harness

• Requires basic tools and careful handling

Important:

• Disconnect power and water supply before installation

• Professional installation is recommended if you are unfamiliar with appliance electrical components

Canada-Wide Availability & Trusted Supplier

Appliance Kingdom supplies genuine OEM appliance parts across Canada, ensuring fast delivery and dependable service. All parts are suitable for Canadian appliance standards and widely trusted by repair professionals nationwide.

Buyer Confidence & Support

• 100% Genuine OEM quality assurance

• Engineered for accurate performance and long-term reliability

• Expert support available to help confirm compatibility before purchase

• Trusted by Canadian homeowners and appliance repair technicians
