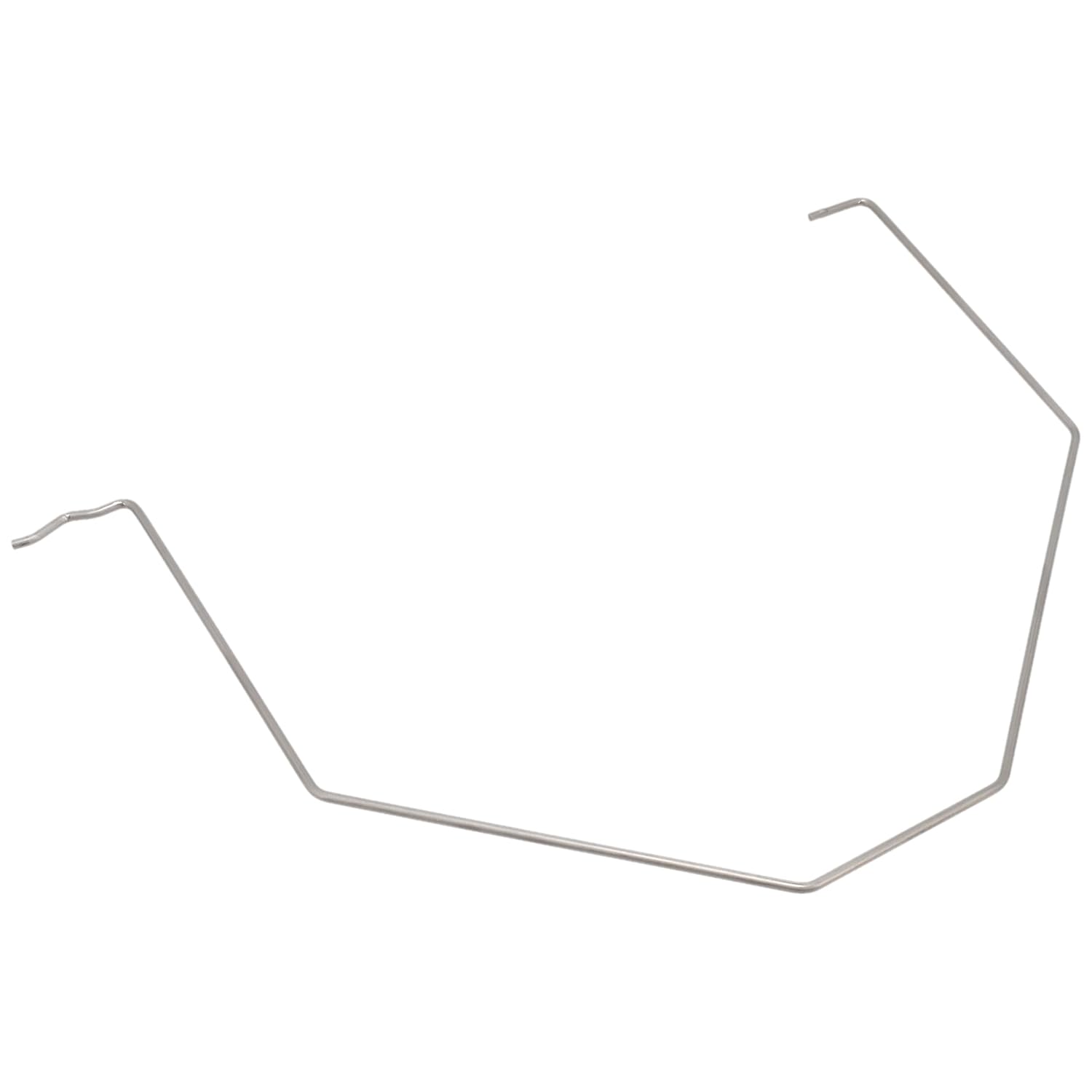

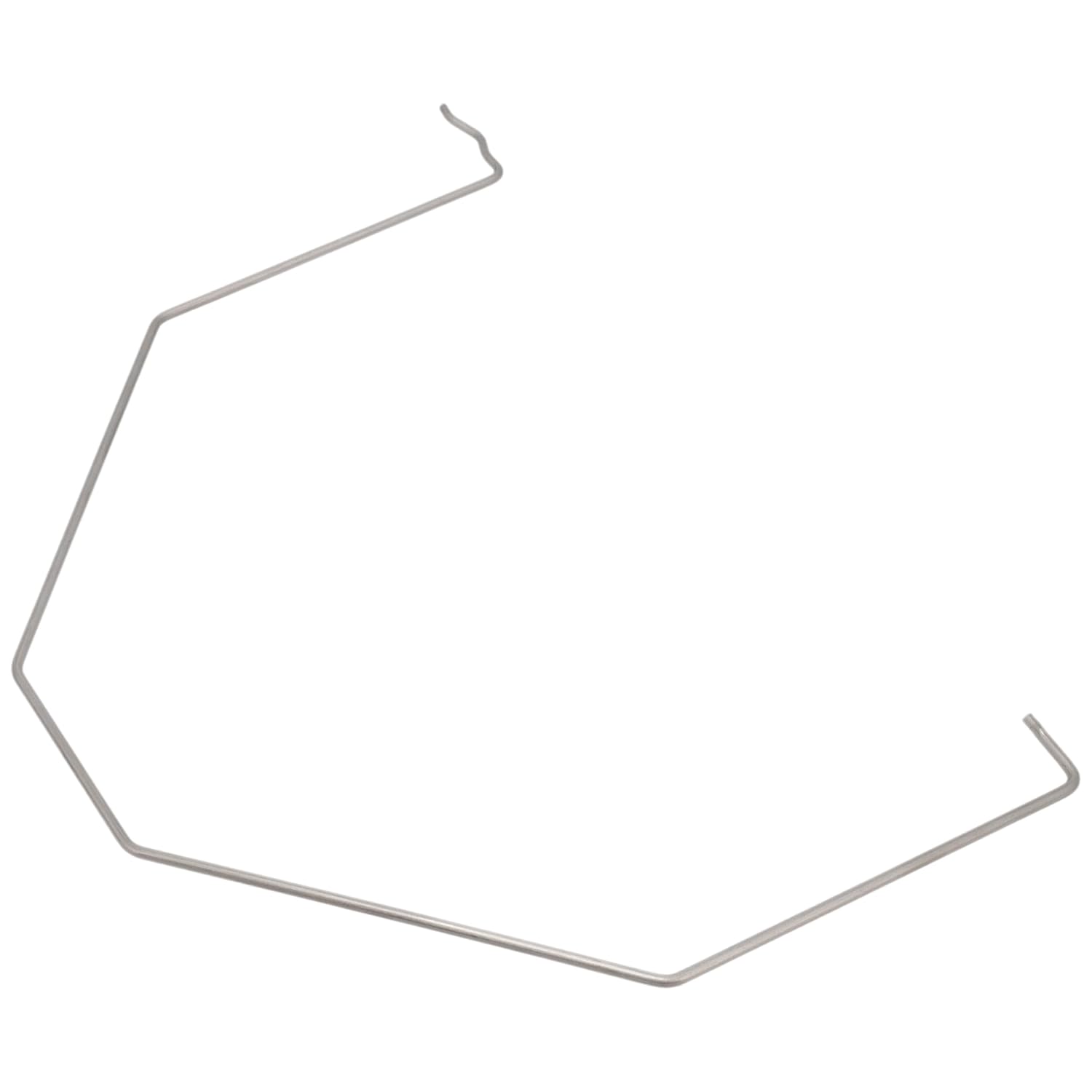

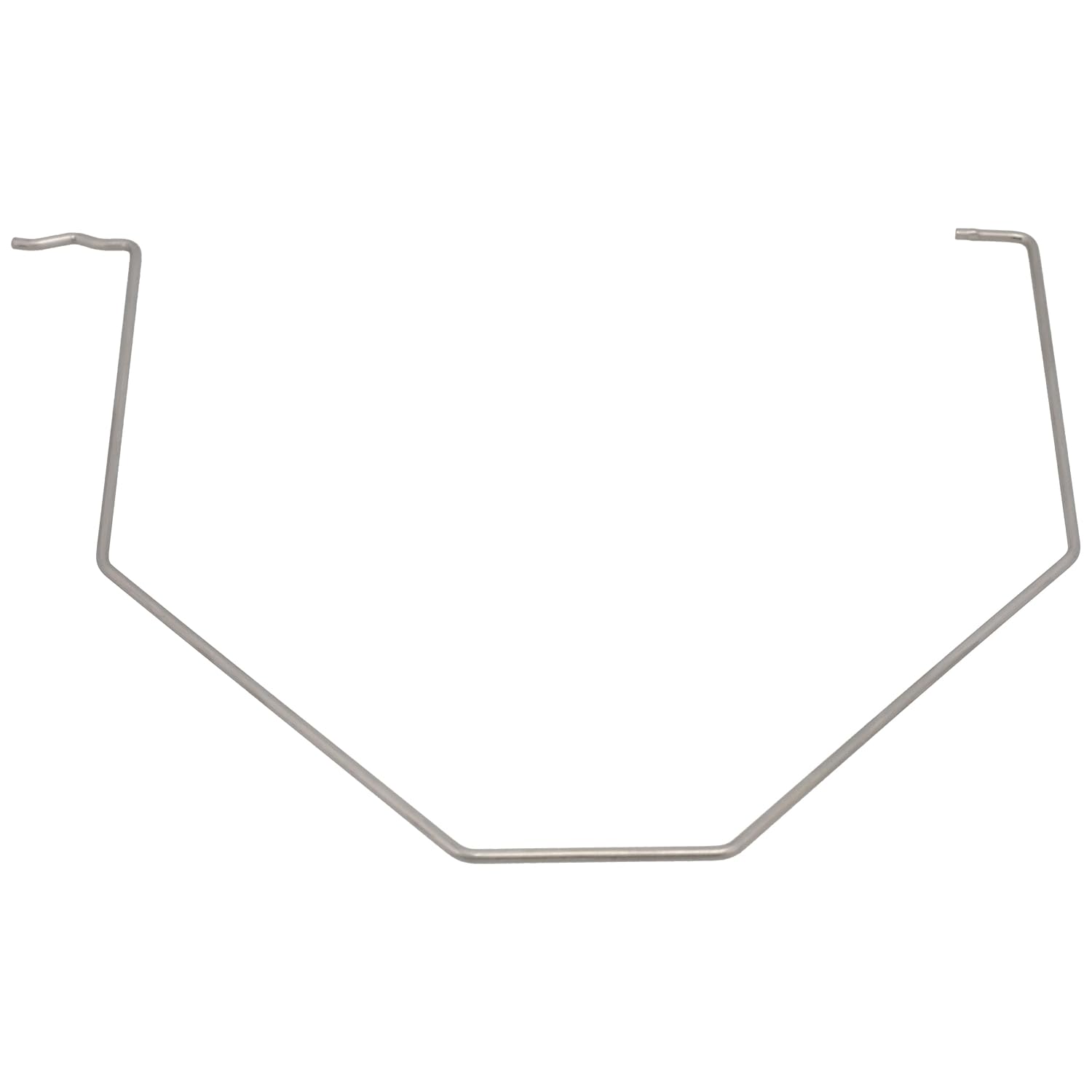

W11285509 - Genuine OEM Whirlpool Refrigerator Icemaker Arm Shut Off

SKU : W11285509
$98.70
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

W11285509 – Genuine OEM Whirlpool Refrigerator Icemaker Arm Shut Off

The W11285509 Genuine OEM Whirlpool Refrigerator Icemaker Arm Shut Off is an original Whirlpool replacement part designed to control ice production in compatible refrigerators. This shut-off arm detects when the ice bin reaches its intended fill level and signals the ice maker to stop producing ice, helping prevent overfilling.

If your refrigerator's ice maker continues producing ice when the bin is full, stops working because the arm is damaged, or has a loose or missing shut-off arm, replacing this component may restore proper operation. Appliance Kingdom serves customers across Canada with genuine appliance replacement parts and convenient shipping options.

Function & Importance

The icemaker shut-off arm is a mechanical control component that helps regulate ice production. As the ice bin fills, the arm moves to the shut-off position, signalling the ice maker to stop its production cycle. When the ice level drops, the arm can return to its operating position, allowing ice production to resume.

A properly functioning shut-off arm helps prevent excess ice accumulation and supports reliable ice maker operation. Using the correct genuine OEM Whirlpool part helps ensure the intended fit and movement within the compatible ice maker assembly.

Common Symptoms Indicating Replacement

A damaged or improperly positioned icemaker shut-off arm may cause the following problems:

  • The ice maker continues producing ice when the bin is full.

  • Ice production stops because the arm is stuck in the raised position.

  • The shut-off arm is bent, broken, detached, or missing.

  • Ice production becomes inconsistent because the arm cannot move freely.

  • The arm fails to engage the ice maker's shut-off mechanism correctly.

Will replacing this part fix the problem? It can if the shut-off arm is damaged, missing, or jammed. If the issue is caused by a faulty ice maker assembly, water supply problem, or another control component, further diagnosis may be necessary.

Compatibility Guidance

W11285509 is a refrigerator icemaker shut-off arm for compatible Whirlpool refrigerators and certain models from related appliance brands, including KitchenAid, Maytag, Jenn-Air, Amana, and Kenmore.

Compatibility depends on the exact appliance model. Check the model number on your refrigerator's identification label and confirm the part reference before ordering. Similar-looking shut-off arms are not necessarily interchangeable.

Replaces Part Numbers

Verified replacement references for W11285509 include:

  • W10202524

  • W11260635

  • WPW10202524

Confirm compatibility with your refrigerator's complete model number before purchase.

Key Features & Benefits

  • Genuine OEM Whirlpool replacement part.

  • Designed for the refrigerator ice maker shut-off mechanism.

  • Helps stop ice production when the storage bin is full.

  • Supports proper ice-level control and reliable operation.

  • Suitable for homeowners, landlords, property managers, and professional appliance repair technicians.

  • Helps address shut-off arm damage without replacing the entire ice maker when the arm is the only faulty component.

Installation Overview

Replacing the icemaker shut-off arm is generally a straightforward repair for someone familiar with refrigerator components. Access typically involves removing the ice bin and reaching the ice maker assembly.

Before beginning, disconnect the refrigerator from electrical power and follow the manufacturer's service instructions. Install the arm securely in its designated pivot points and verify that it moves freely without obstruction.

Professional installation is recommended if the arm is part of a more complex assembly or if you are unsure how to access the ice maker safely.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, serving homeowners, landlords, and repair professionals across Canada.

Find genuine OEM Whirlpool replacement parts with support to help identify the correct component for your appliance. Shipping availability and delivery estimates depend on stock status and destination; check the product listing for current details.

Buyer Confidence & Reassurance

Choosing the correct W11285509 shut-off arm helps maintain the intended ice-level control of a compatible refrigerator. Verify your appliance's model number before ordering, and contact Appliance Kingdom if you need assistance confirming compatibility.
