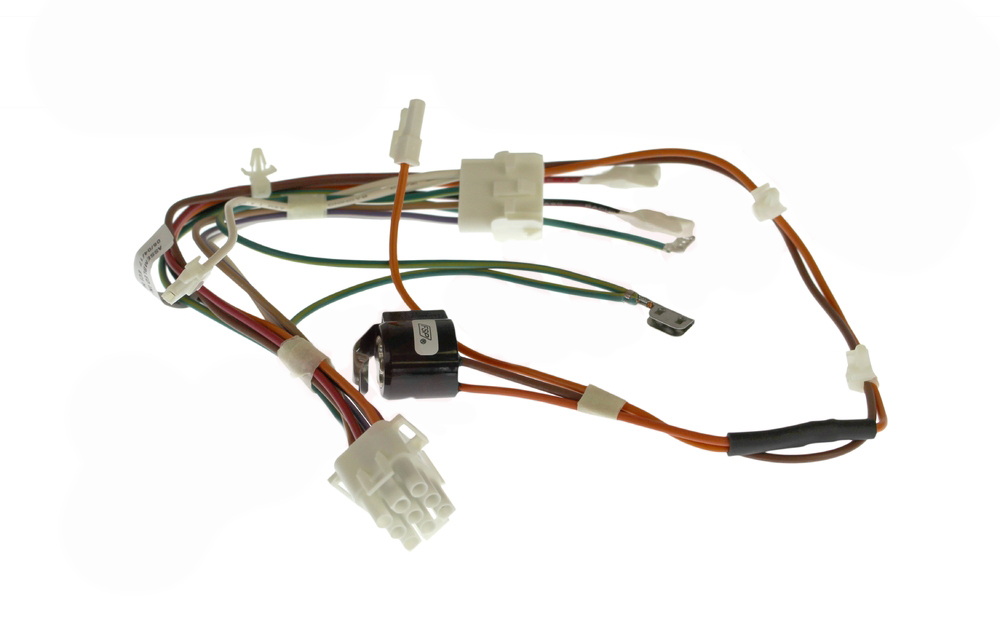

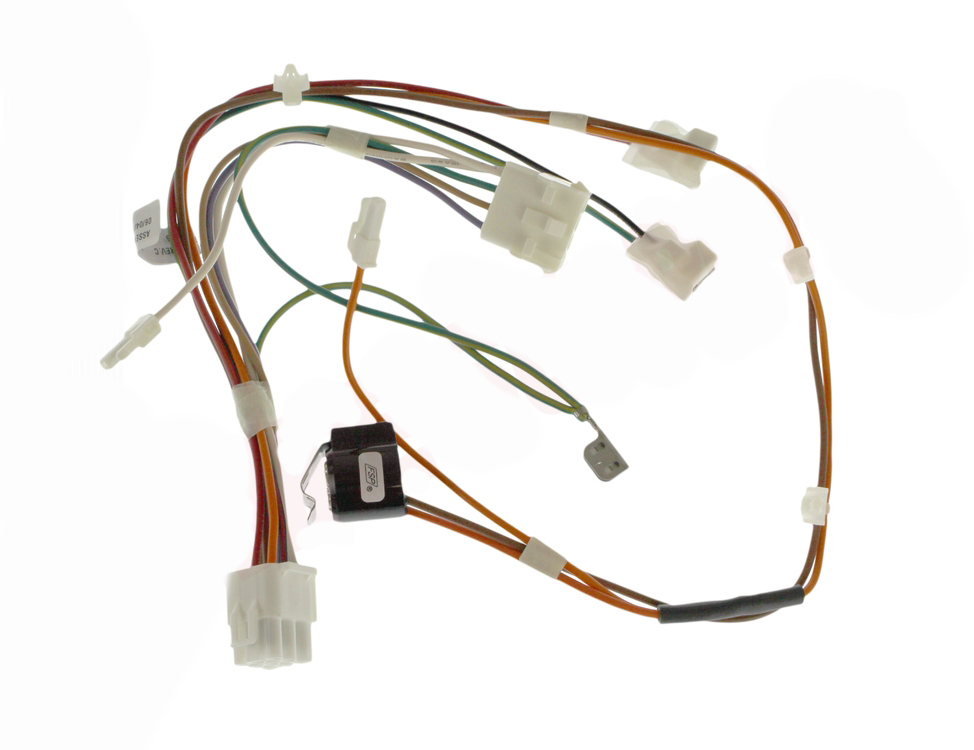

W11260592 - Genuine OEM Whirlpool Refrigerator Wire Harness

W11260592 – Genuine OEM Whirlpool Refrigerator Wire Harness

The W11260592 Genuine OEM Whirlpool Refrigerator Wire Harness is an original manufacturer electrical wiring assembly designed for Whirlpool refrigerators and select compatible brands. This OEM harness ensures stable electrical connectivity between critical refrigerator components such as the control board, sensors, fans, defrost system, and compressor circuits. Available from Appliance Kingdom (Canada), this part ships nationwide across Canada with fast delivery for homeowners, landlords, and professional appliance technicians.

This component is commonly used to resolve electrical communication failures, defrost issues, and intermittent cooling problems caused by damaged or worn wiring harness assemblies. It is engineered to Whirlpool factory specifications for safe, reliable operation.

Function & Importance of the Wire Harness

The W11260592 wire harness acts as the central electrical pathway inside the refrigerator, distributing power and signals between key systems including the evaporator fan, defrost thermostat, control board, and compressor control circuits.

Because refrigerators rely on precise electronic communication, OEM-quality wiring is essential. A genuine Whirlpool harness ensures:

• Proper voltage delivery to all connected components
• Stable communication between control board and sensors
• Safe defrost cycle operation
• Reliable cooling performance and system coordination

If the harness becomes damaged, it can interrupt electrical flow, leading to inconsistent or failed refrigeration cycles.

Common Symptoms of a Faulty Wire Harness

A failing or damaged refrigerator wire harness may cause:

• Refrigerator not cooling or cooling intermittently
• Freezer not maintaining temperature
• Ice maker or water dispenser not working
• Evaporator fan or condenser fan not running
• Refrigerator completely unresponsive or dead
• Error codes related to communication or sensor failure
• Frost buildup due to defrost system failure
• Intermittent electrical operation after door movement or vibration

These symptoms often appear when wires become frayed, connectors loosen, or insulation breaks down over time.

Replacing the harness often restores full electrical communication when the wiring assembly is confirmed to be the root cause.

Compatibility Guidance

This part is designed for Whirlpool refrigerator systems and select compatible brands.

Compatible brands may include:

• Whirlpool
• Maytag
• KitchenAid
• Jenn-Air
• Amana

Before ordering:

• Always verify your refrigerator’s model number
• Confirm compatibility with W11260592
• Ensure wiring routing and connector configuration match your original harness

Replaces Part Numbers

Verified cross-reference replacements for W11260592 include:

• W10280423
• W10292244
• WPW10292244
• W11050969

Key Features & Benefits

• Genuine OEM Whirlpool replacement part
• Designed for precise electrical communication in refrigerators
• Restores proper power distribution to cooling and defrost systems
• Built to OEM specifications for safety and durability
• Helps resolve intermittent or total system failure issues
• Suitable for technicians, landlords, and DIY appliance repairs
• Reliable long-term performance under refrigeration operating conditions

Installation Overview

Installation is typically moderate difficulty and requires careful routing of electrical connections inside the refrigerator.

General steps include:

• Disconnect power before servicing
• Access internal panels and existing harness routing
• Disconnect connectors one by one while documenting placement
• Install new harness following original routing path
• Secure connectors firmly and ensure no wire pinching

Professional installation is recommended if you are not experienced with appliance electrical systems.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom supplies genuine OEM refrigerator parts across Canada, ensuring fast shipping and dependable service from a trusted Canadian supplier. Whether you are repairing a household refrigerator or managing multiple rental units, this part supports reliable nationwide availability and professional-grade repair standards.

Buyer Confidence & Reassurance

• Genuine OEM Whirlpool-manufactured component
• Built to restore original refrigerator performance
• Designed for safe and stable electrical operation
• Verified cross-references for accurate replacement
• Support available for compatibility confirmation before purchase
• Trusted Canadian supply chain and fast delivery
