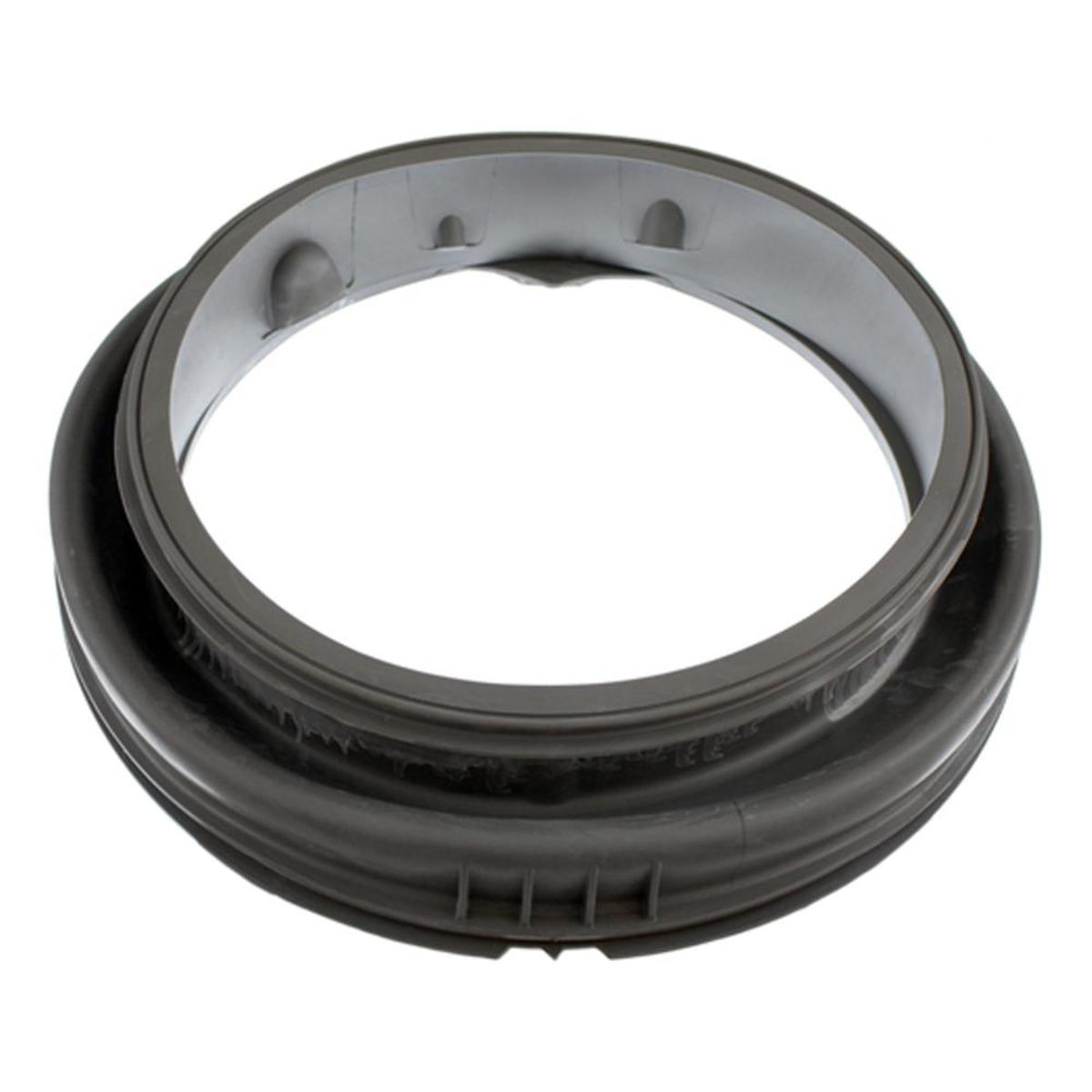

W11222077 - Genuine OEM Whirlpool Washer Bellow

SKU : W11222077
$274.12
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

W11222077 – Genuine OEM Whirlpool Washer Bellow (Door Boot Seal)

The W11222077 Genuine OEM Whirlpool Washer Bellow, also known as a door boot seal, is a factory-original replacement component designed for front-load Whirlpool washing machines and compatible brands. This critical washer gasket creates a watertight seal between the washer door and the outer tub, preventing leaks while allowing the drum to rotate freely during wash and spin cycles.

Available from Appliance Kingdom, a trusted Canadian supplier of genuine and high-quality appliance replacement parts based in Edmonton, AB, this OEM washer bellow ships quickly across Canada to homeowners, landlords, and professional appliance technicians. Replacing a torn or worn door boot seal is one of the most common solutions for front-load washer door leaks and gasket damage.

What the Washer Bellow (Door Boot Seal) Does

The washer bellow, also called the door gasket or boot seal, forms a flexible seal between the washer drum and the front door opening in front-load washing machines.

The W11222077 bellow performs several important functions:

  • Prevents water from leaking out during wash cycles

  • Allows the washer drum to move freely while maintaining a seal

  • Helps direct water and detergent back into the drum

  • Protects internal washer components from moisture exposure

Because the bellow is made from flexible rubber, it must withstand constant motion, moisture, and detergent exposure. Using a Genuine OEM Whirlpool bellow ensures proper elasticity, sealing performance, and durability under normal washing conditions.

If the bellow becomes cracked, torn, or loose, water can escape from the door area and leak onto the floor.

Common Symptoms Indicating Replacement

A damaged washer door boot seal can cause several noticeable issues. Replacing the W11222077 washer bellow may resolve problems such as:

  • Water leaking from the front of the washing machine

  • Visible tears, cracks, or wear in the rubber gasket

  • Mold, mildew, or persistent odours inside the door seal

  • Washer door not sealing properly

  • Water pooling near the door opening

These issues often occur due to normal wear, overloading the washer, or sharp objects damaging the rubber seal.

If your washer is leaking around the door area, replacing the bellow is frequently the correct repair.

Compatibility Guidance

The W11222077 washer bellow is designed for front-load washing machines manufactured by Whirlpool and related brands.

Compatible brands may include:

  • Whirlpool

  • Maytag

  • Amana

  • KitchenAid

  • Jenn-Air

  • Inglis

  • Estate

  • Crosley

  • Kenmore

These brands share manufacturing platforms within the Whirlpool appliance family.

Always verify your washer’s model number before ordering to ensure compatibility with this component.

Replaces Part Numbers

The following part numbers are confirmed replacements or cross-references for this component:

  • WPW10311051

  • W10311051

  • W10577024

  • AP6329244

  • PS12349478

  • 4844636

Key Features & Benefits

  • Genuine OEM Whirlpool washer part

  • Functions as the front-load washer door boot seal / bellow

  • Prevents water leakage between the washer door and tub

  • Designed to meet original manufacturer specifications

  • Durable rubber construction for long-term sealing performance

  • Ideal for homeowners, landlords, and appliance repair technicians

Installation Overview

Replacing the W11222077 washer bellow typically requires moderate appliance disassembly.

General installation steps include:

  1. Disconnect power and turn off the water supply

  2. Remove the outer retaining clamp from the door gasket

  3. Access the inner clamp securing the bellow to the washer tub

  4. Remove the damaged boot seal

  5. Install the new OEM bellow and secure both clamps properly

Proper alignment of the gasket and drain holes is essential to ensure correct sealing and drainage.

Experienced DIY users may complete this repair with standard tools, but professional installation is recommended if you are unfamiliar with washer disassembly.

Canada-Wide Availability from Appliance Kingdom

Appliance Kingdom is a trusted Canadian appliance parts supplier based in Edmonton, Alberta, serving customers nationwide.

Benefits include:

  • Fast shipping across Canada

  • Genuine OEM and high-quality replacement appliance parts

  • Reliable parts supply for homeowners, landlords, and professional repair technicians

  • Parts compatible with Canadian appliance installations and standards

Buyer Confidence & Support

When purchasing the W11222077 Genuine OEM Whirlpool Washer Bellow, you receive:

  • Authentic OEM Whirlpool quality

  • Reliable leak-prevention performance

  • Exact fit for compatible front-load washers

If you are unsure whether this is the correct part for your appliance, the Appliance Kingdom support team can help verify compatibility before purchase.
