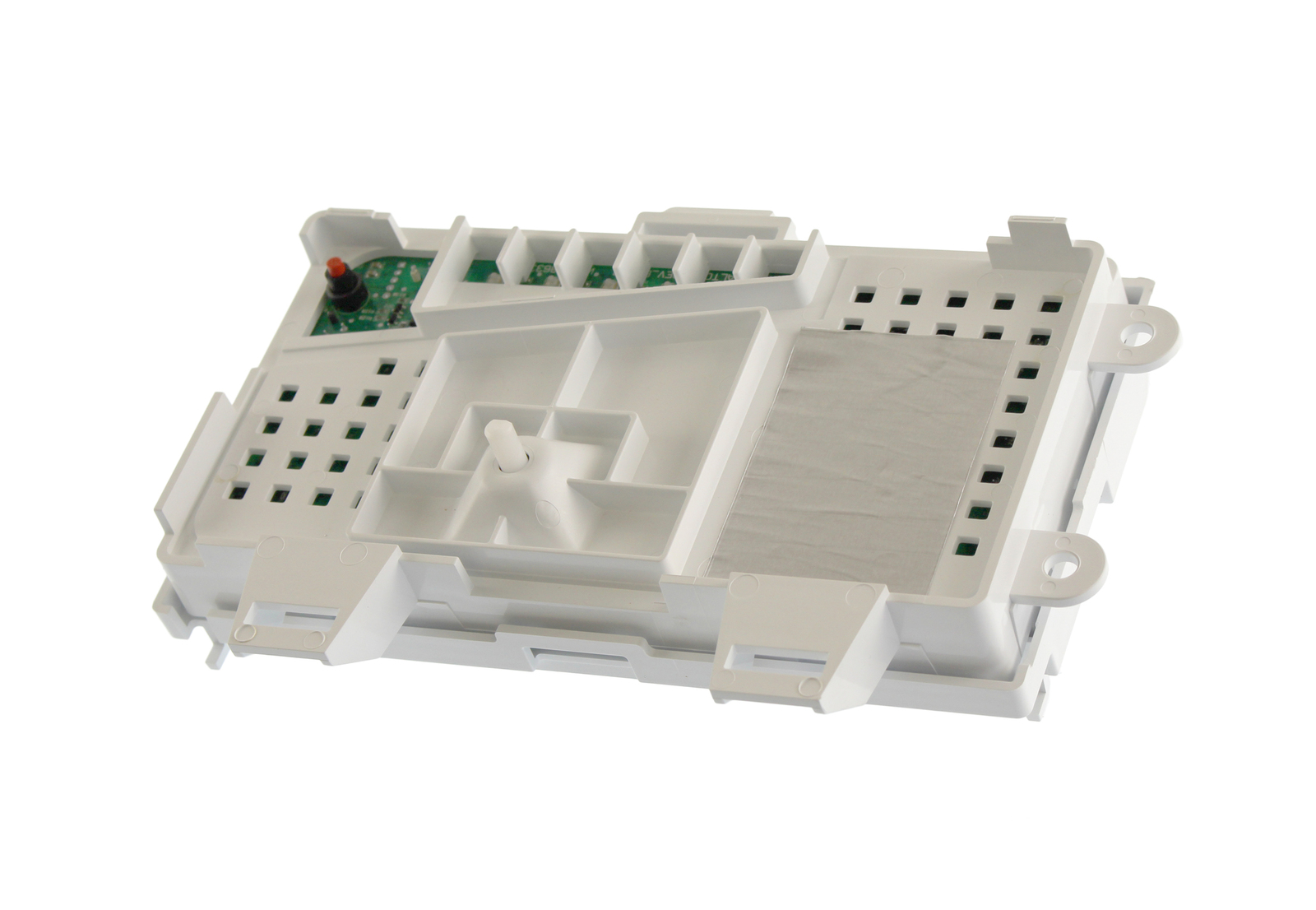

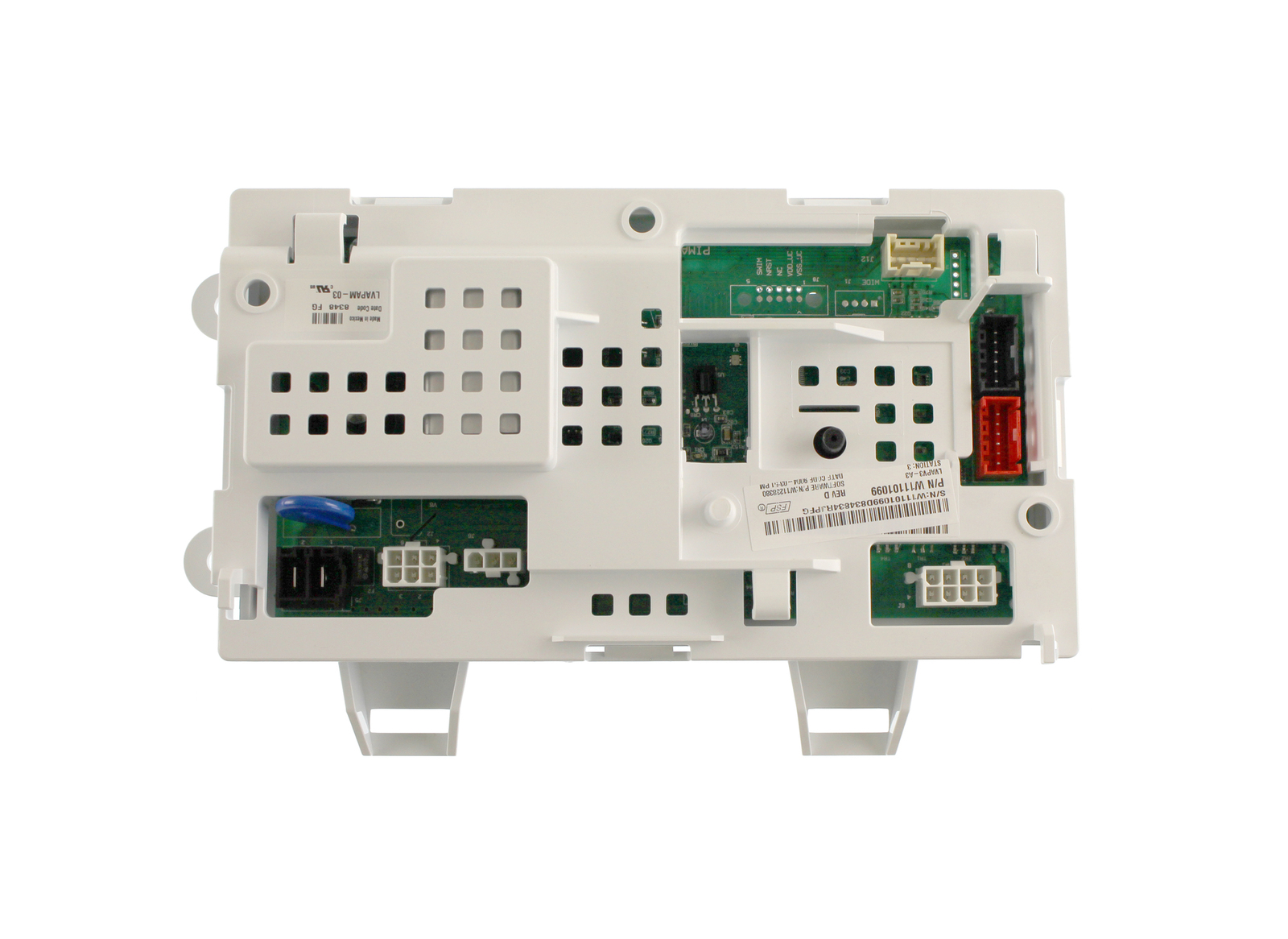

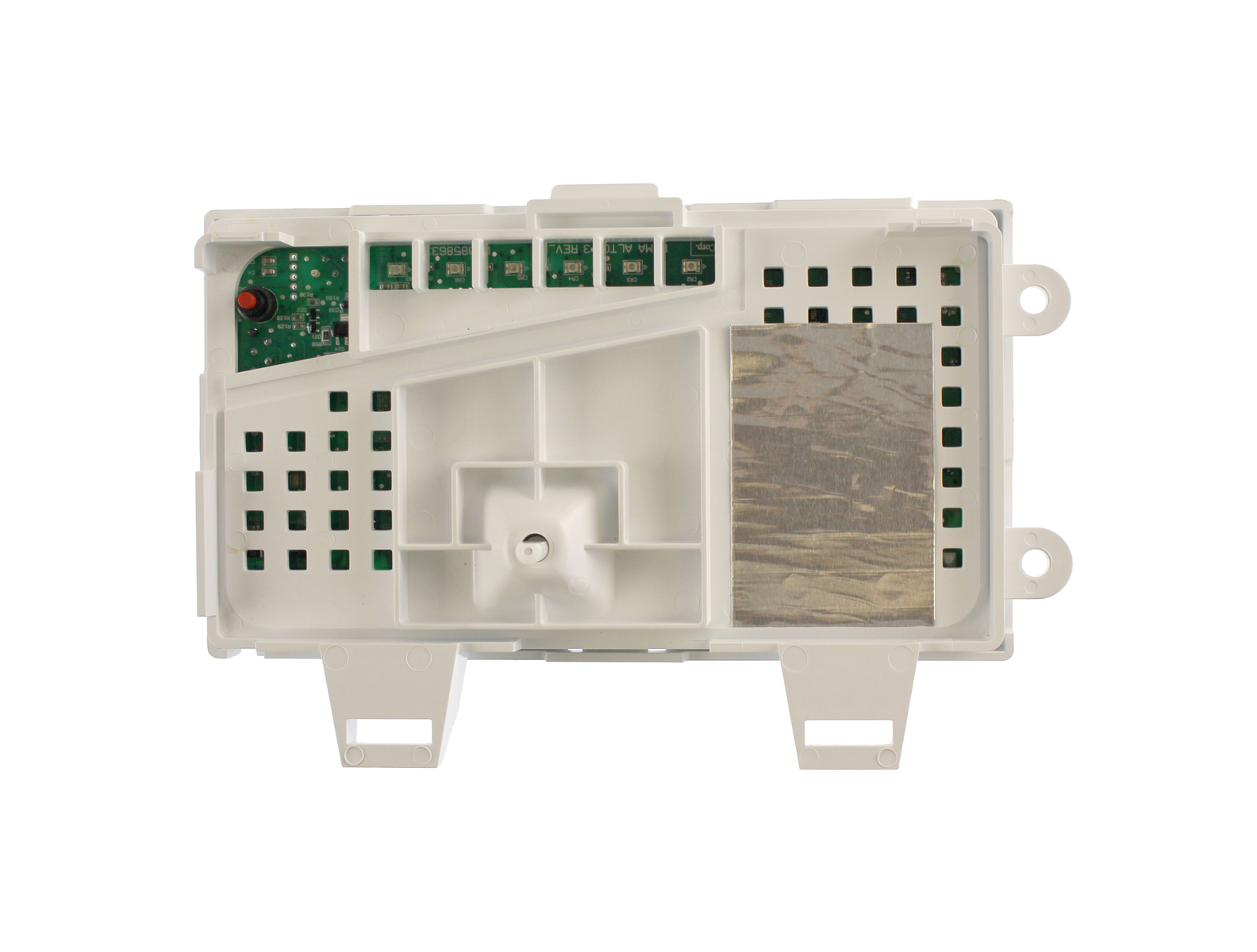

W11170647 - Genuine OEM Whirlpool Washer Electronic Control Board

W11170647 - Genuine OEM Whirlpool Washer Electronic Control Board

The W11170647 Genuine OEM Whirlpool Washer Electronic Control Board is a factory-original replacement control module designed for Whirlpool washing machines. As a Genuine OEM part, it is engineered to Whirlpool’s exact specifications to ensure reliable electronic control, accurate cycle management, and long-term durability. Available through Appliance Kingdom, this part ships across Canada, supporting homeowners, landlords, and appliance technicians who need a dependable solution for washer control and programming failures.

This control board is one of the most critical components in a Whirlpool washer, responsible for coordinating every stage of the wash cycle—from filling and agitation to draining and spinning.

Function & Importance of the Electronic Control Board

The electronic control board (W11170647) acts as the “brain” of the washing machine. It receives input signals from user controls and sensors, then directs all major washer functions.

It manages:

• Water fill timing and level control

• Wash, rinse, and spin cycle sequencing

• Drain pump activation

• Motor operation and speed control

• Error detection and system diagnostics

Because it controls nearly every function, OEM precision is essential. A properly functioning board ensures efficient performance, correct cycle timing, and safe operation. A faulty or damaged control board can cause unpredictable washer behavior or complete system failure.

Common Symptoms of a Faulty Control Board

If your Whirlpool washer is experiencing any of the following issues, the control board may be the cause:

• Washer will not start or power on properly

• Cycles stop mid-program or do not complete

• Washer fills, drains, or spins incorrectly or erratically

• Unresponsive control panel or inconsistent button response

• Washer displays random or persistent error codes

• Drain pump or motor behaves abnormally

Will replacing this part fix your washer?
If electrical functions are inconsistent or the washer is unresponsive despite power supply being intact, replacing the control board is often the correct repair solution.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used in select models from Whirlpool-family brands (e.g., Maytag, Amana, Inglis, Kenmore, KitchenAid depending on configuration)

• Always verify your washer model number before ordering to ensure correct compatibility

Replaces Part Numbers

• W11170647

• W11101099

Key Features & Benefits

• Genuine OEM Whirlpool electronic control board

• Restores full washer cycle control and system communication

• Engineered for accurate timing and dependable performance

• Designed for long service life under repeated load cycles

• Suitable for professional appliance technicians and experienced DIY repairs

Installation Overview

Replacing the electronic control board is considered a moderate to advanced repair:

• Requires access to internal washer control housing

• Involves disconnecting wiring harnesses and mounting screws

• Care must be taken to avoid static or electrical damage

Recommendation: Professional installation is advised unless you have appliance repair experience, as incorrect installation can lead to further electrical issues.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom supplies genuine OEM Whirlpool appliance parts across Canada, ensuring fast, reliable shipping from within the country. All parts are selected for compatibility with Canadian household appliance standards and supported by trusted inventory sourcing.

Buyer Confidence & Support

• 100% Genuine OEM Whirlpool part

• Factory-engineered reliability and performance

• Verified part-number matching for accuracy

• Support available to confirm compatibility before purchase

• Trusted by homeowners, property managers, and repair professionals
