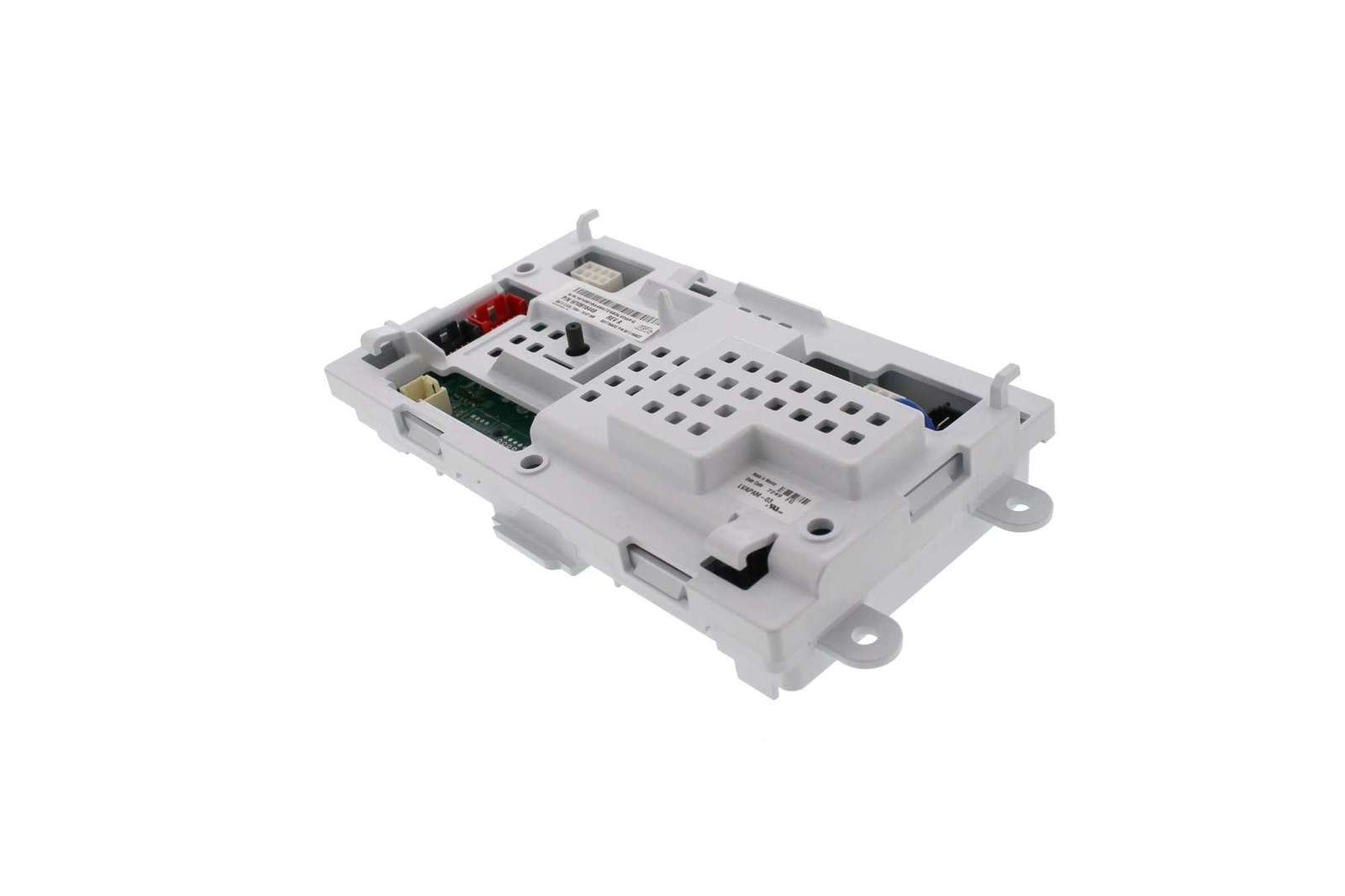

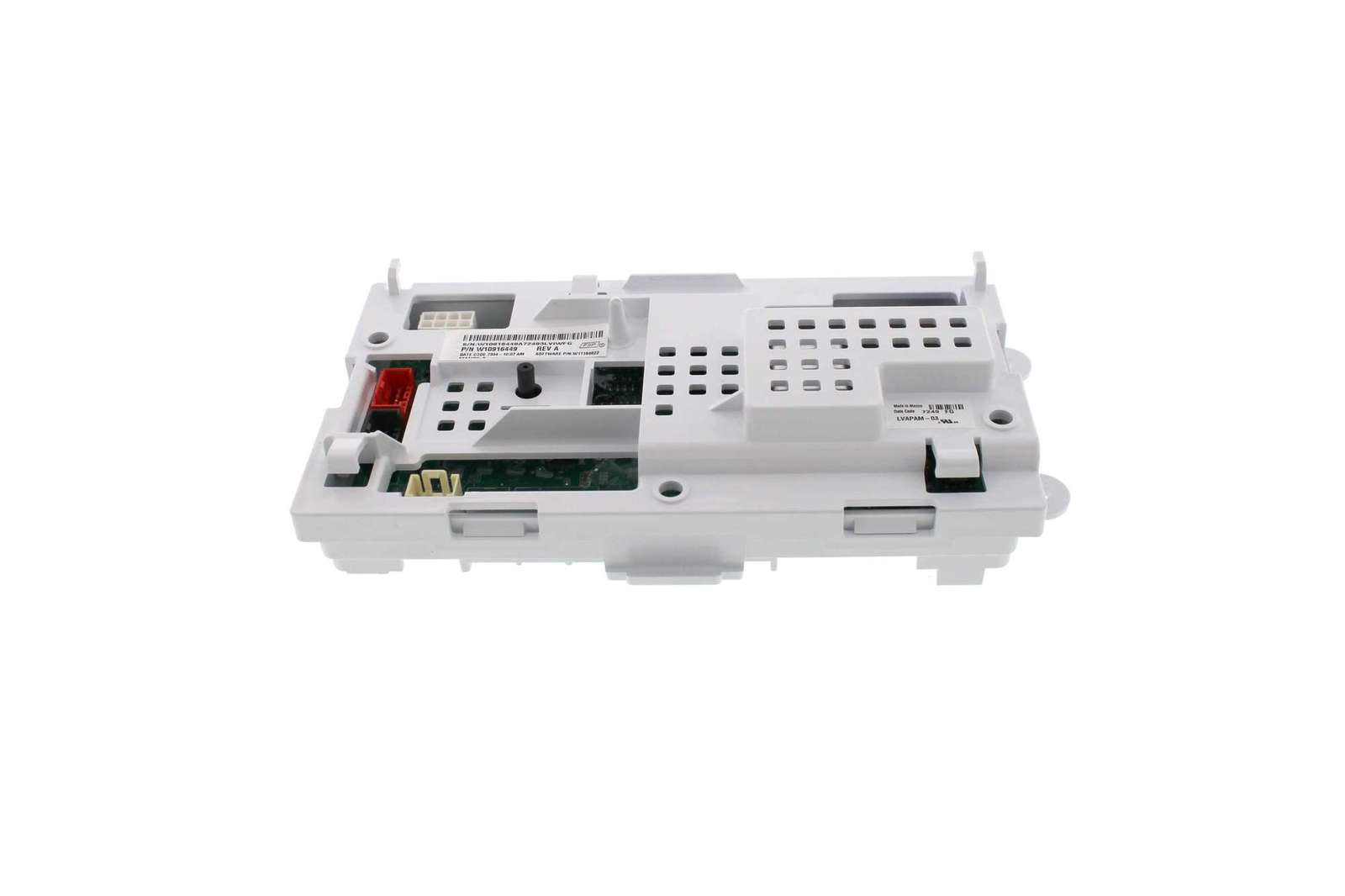

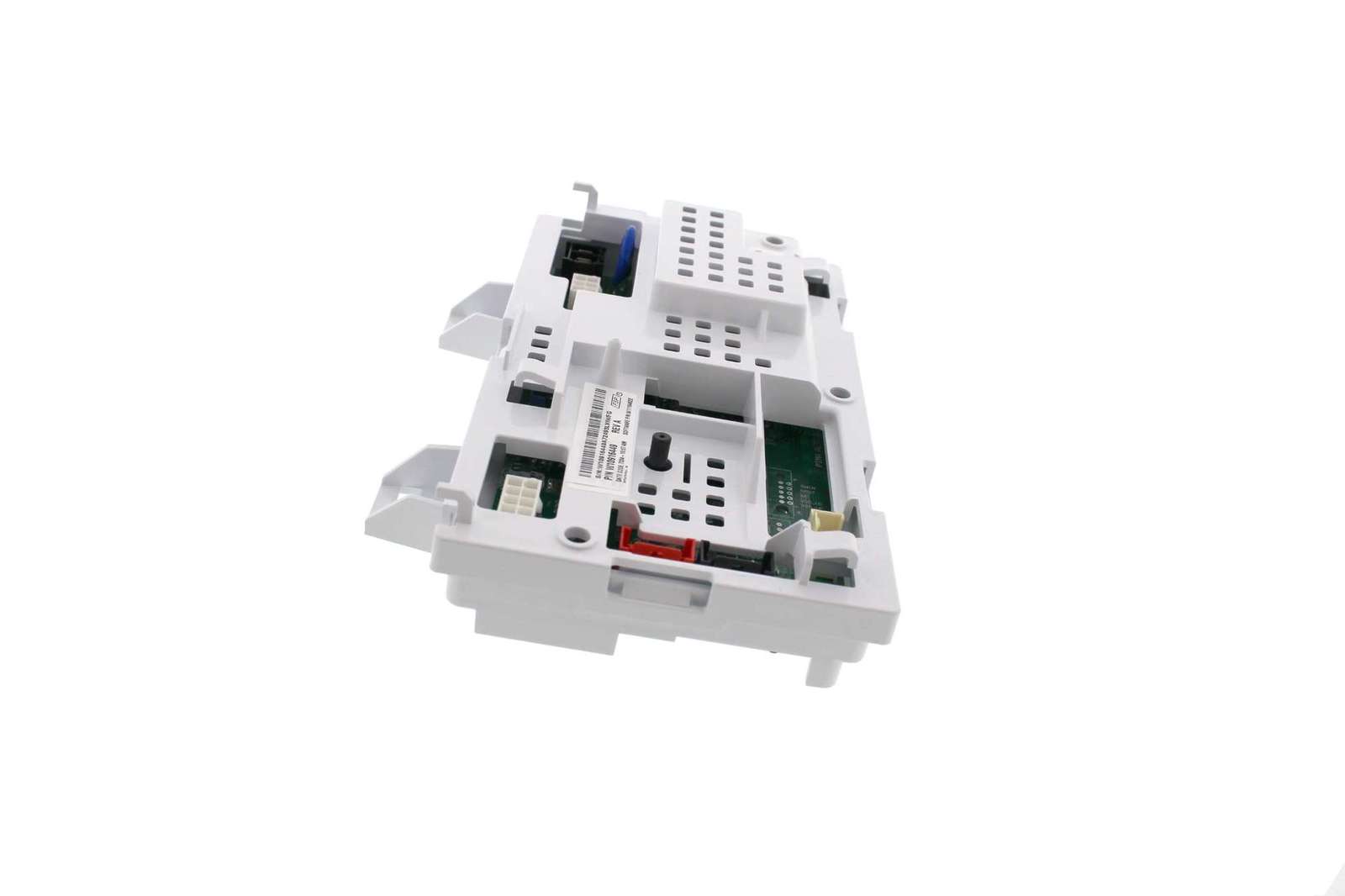

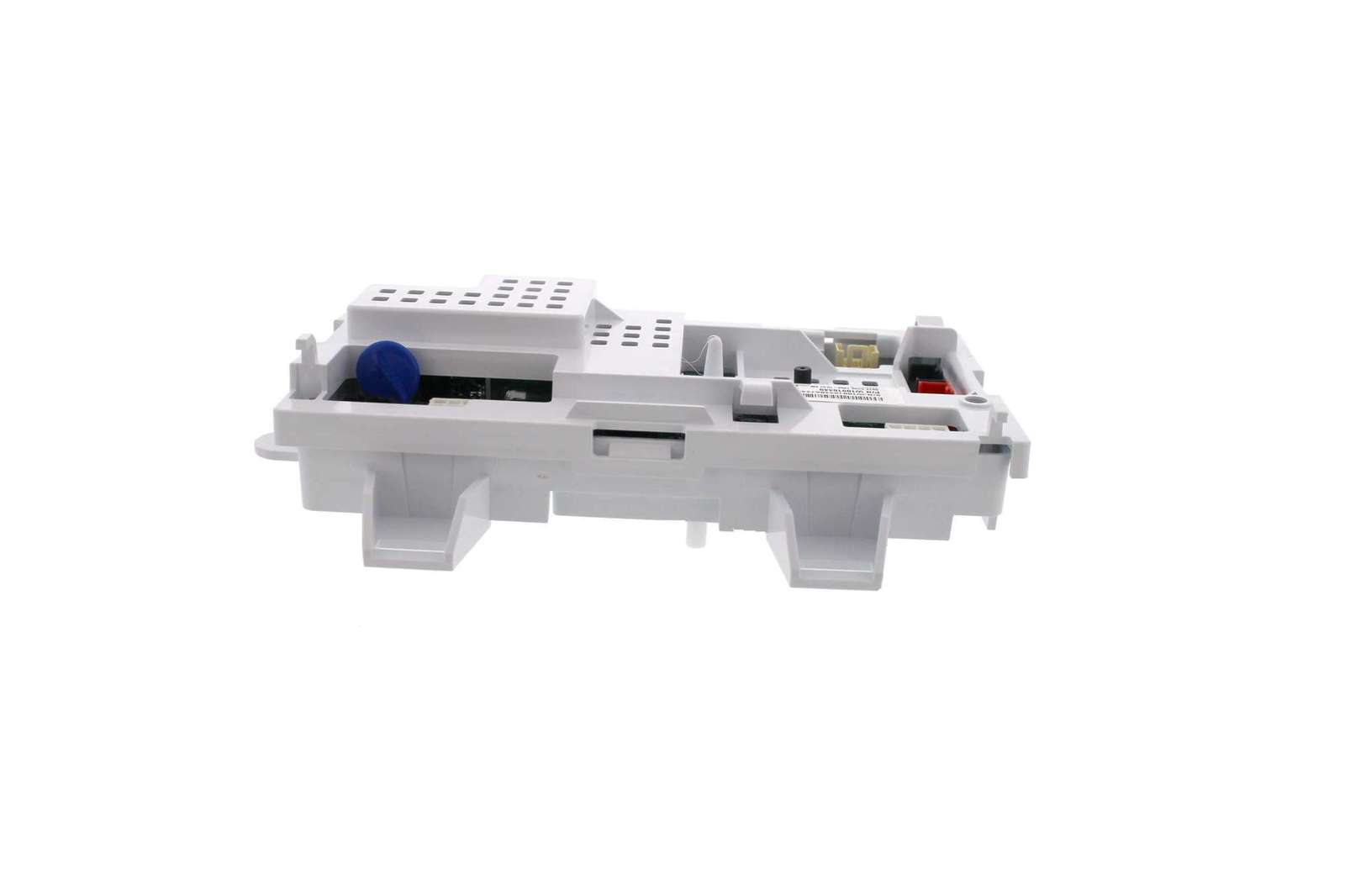

W11124713 - Genuine OEM Whirlpool Washer Electronic Control Board

W11124713 - Genuine OEM Whirlpool Washer Electronic Control Board

The W11124713 Genuine OEM Whirlpool Washer Electronic Control Board is the central “brain” of your Whirlpool washing machine, responsible for controlling and coordinating every major function. Designed and manufactured by Whirlpool to exact factory standards, this genuine OEM control board ensures optimal performance, precise cycle control, and long-term reliability.

Available from Appliance Kingdom with fast, Canada-wide shipping, this part is a trusted solution for homeowners, landlords, and professional appliance technicians looking to restore full washer functionality. If your washer is not starting, behaving erratically, or failing to complete cycles, replacing the control board is often the definitive fix.

Function & Importance of the Control Board

The electronic control board manages all washer operations, including:

• Water fill levels and timing

• Wash and rinse cycle coordination

• Drain and pump activation

• Spin speed and motor control

• Communication between internal sensors and components

This component essentially acts as the command centre of your washer. When it fails, multiple systems can malfunction simultaneously.

Using a Genuine OEM board like W11124713 is critical because:

• It ensures correct programming and compatibility

• Maintains safe electrical operation

• Prevents communication errors between internal components

A non-OEM or incorrect board can result in improper cycles, errors, or complete failure.

Common Symptoms of a Faulty Control Board

If your Whirlpool washer is experiencing any of the following, the control board may be the issue:

• Washer won’t start or power on

• Cycles are too long, too short, or won’t advance

• Washer won’t fill, drain, spin, or agitate

• Control panel is unresponsive or erratic

• Washer stops mid-cycle or shows error codes

• Drain pump runs continuously or incorrectly

These symptoms are commonly linked to a failing control board, as it governs all operational logic.

Will replacing this part fix your issue?
If multiple functions are failing at once or the washer is not responding properly, replacing the control board is often the most effective solution.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used in select models under Whirlpool-owned brands

• Always verify your appliance model number before ordering to ensure compatibility

Replaces Part Numbers

The W11124713 control board is confirmed to replace the following part numbers:

• W10862205

• W10888107

• W10897780

• W10915205

• W10916449

Key Features & Benefits

• Genuine OEM Whirlpool control board

• Controls all major washer functions and cycles

• Ensures accurate operation and system communication

• Built to meet original manufacturer specifications

• Ideal for professional repairs and advanced DIY fixes

Installation Overview

Replacing a washer control board is considered an advanced repair:

• Requires access to the washer’s internal control housing

• Involves disconnecting and reconnecting multiple wiring harnesses

• Care must be taken to avoid electrical damage

Important:

• Always unplug the washer before installation

• Professional installation is recommended if you are not experienced with appliance electronics

Canada-Wide Availability & Trusted Supplier

Appliance Kingdom proudly supplies genuine OEM appliance parts across Canada, with fast shipping and reliable service. All parts are suitable for Canadian appliance standards, ensuring safe and consistent operation.

Buyer Confidence & Support

• 100% Genuine OEM part

• Designed for exact fit and performance

• Helps restore full washer functionality

• Expert support available to confirm compatibility before purchase
