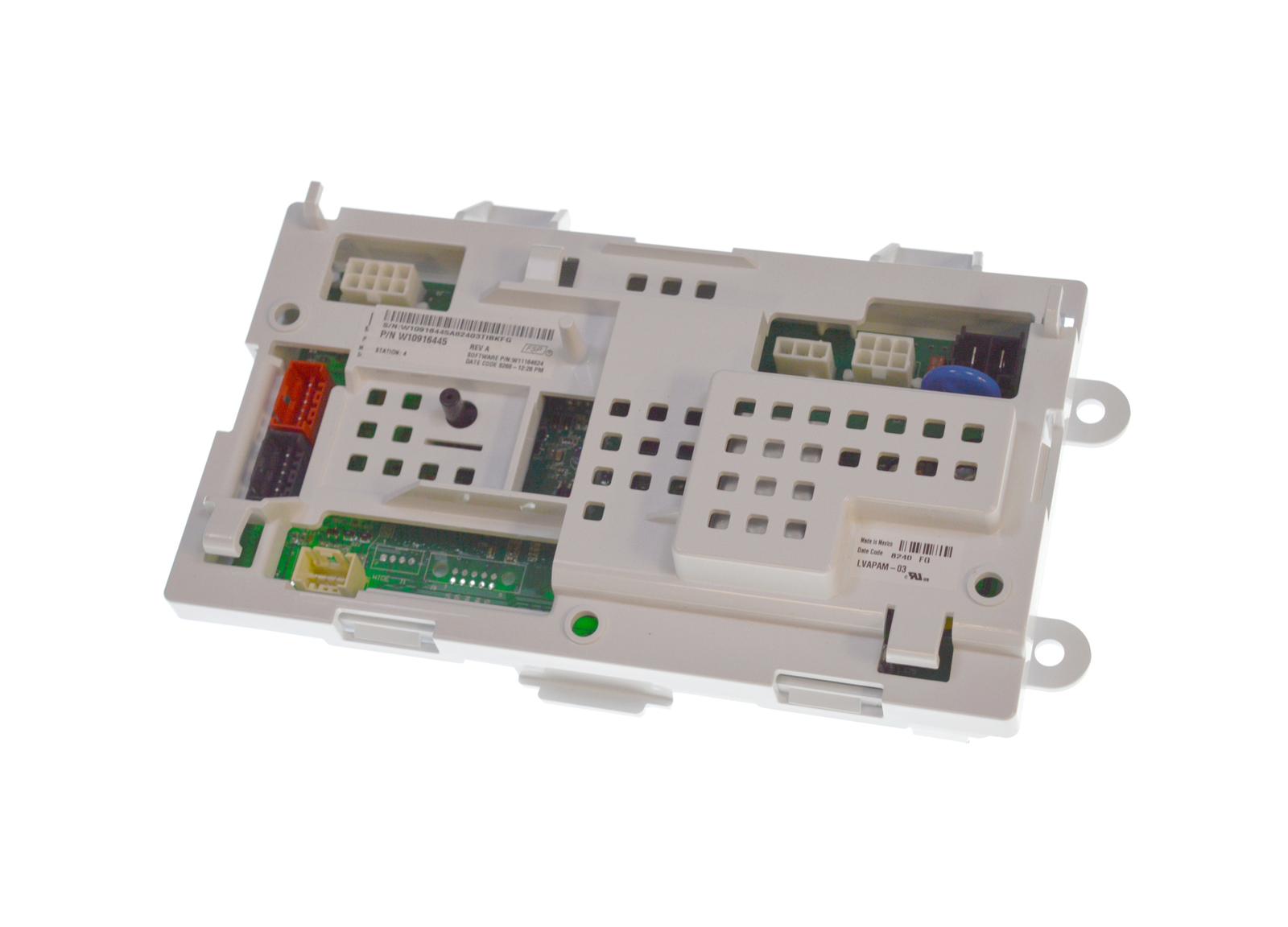

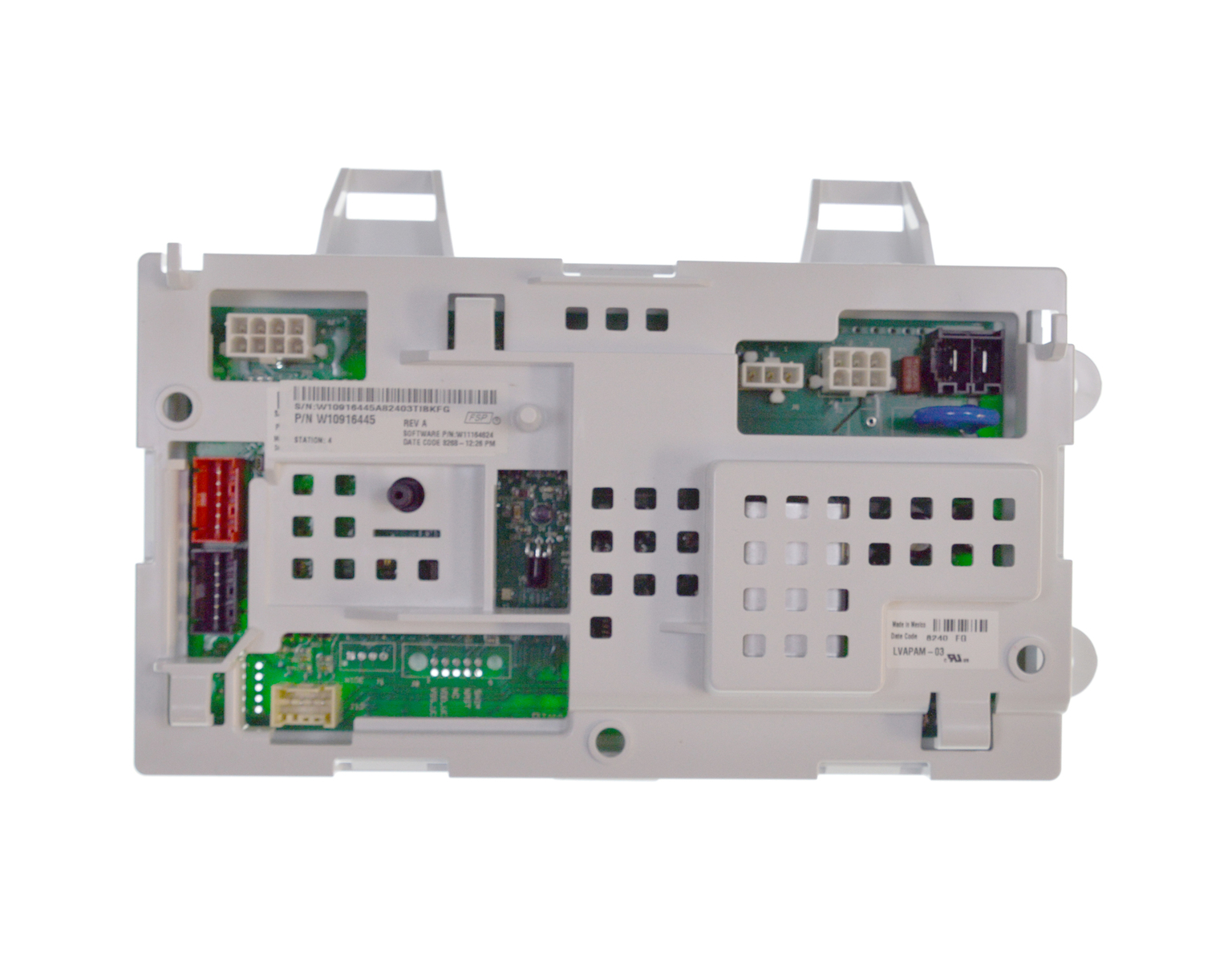

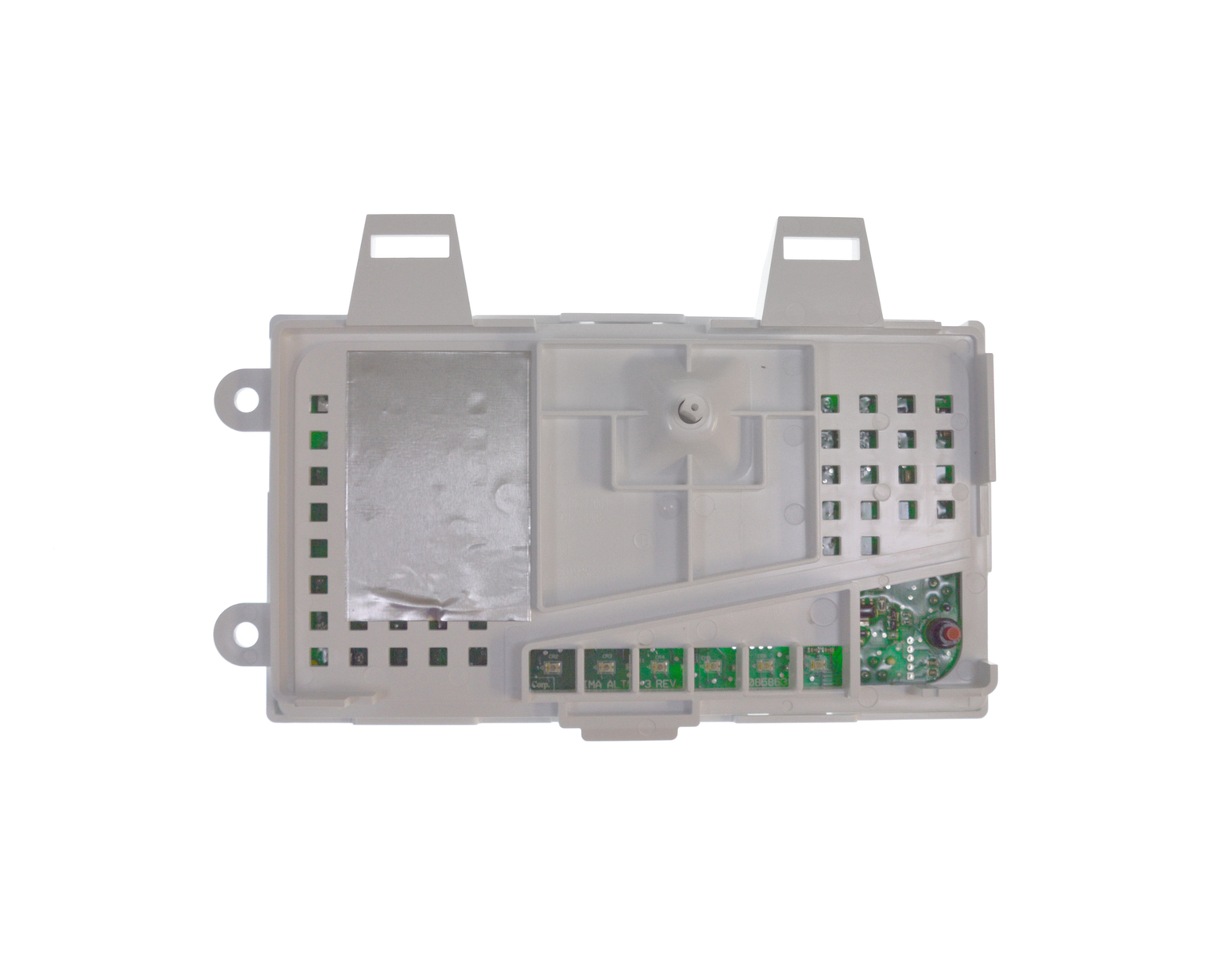

W11124710 - Genuine OEM Whirlpool Washer Electronic Control Board

W11124710 - Genuine OEM Whirlpool Washer Electronic Control Board

The W11124710 Genuine OEM Whirlpool Washer Electronic Control Board is the central control unit of your washing machine, designed to manage and coordinate all major washer functions. As a genuine OEM Whirlpool part, it is manufactured to exact factory specifications, ensuring seamless compatibility, reliable performance, and long-term durability. Available from Appliance Kingdom with fast, Canada-wide shipping, this control board is a trusted solution for restoring full washer functionality.

If your washer is experiencing multiple operational failures or unresponsive controls, this part is one of the most critical components to consider replacing.

Function & Importance of the Control Board

The electronic control board acts as the “brain” of your washer. It receives input from the user interface and internal sensors, then sends commands to various components such as the motor, water inlet valve, drain pump, and spin system.

It controls essential operations including:

• Water filling and level management

• Wash and rinse cycle timing

• Drain and spin functions

• Safety interlocks and diagnostics

Because it governs nearly every function, a properly working OEM control board is essential for safe, efficient, and accurate washer operation. A faulty or incompatible board can lead to widespread performance issues or complete appliance failure.

Common Symptoms of a Faulty Control Board

A defective control board can cause a wide range of washer problems. Based on verified repair data, common symptoms include:

• Washer won’t start or power on

• Unresponsive control panel or buttons

• Cycles that are too long, too short, or won’t advance

• Washer won’t fill, drain, spin, or agitate

• Random error codes, beeping, or flashing lights

• Machine stops mid-cycle or behaves erratically

Will replacing this part fix your issue?
If your washer shows multiple system failures or inconsistent behaviour across cycles, replacing the control board is often the most effective solution—especially after ruling out simpler components.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used in select models from Whirlpool-associated brands such as Maytag, Amana, and others

• Fits top-load washers and specific configurations using this control system

Always verify your appliance model number before ordering to ensure compatibility.

Replaces Part Numbers (Verified)

The W11124710 control board is confirmed to replace the following part numbers:

• W10914909

• W10868064

• W10897771

• W10902804

• W10916445

• AP6262431

• 4547172

• PS12347385

Key Features & Benefits

• Genuine OEM Whirlpool part for exact fit and reliability

• Controls all major washer functions for complete system operation

• Engineered to meet manufacturer safety and performance standards

• Durable electronic construction for long-term use

• Ideal for homeowners, landlords, and professional technicians

Installation Overview

Replacing the control board is considered a moderate to advanced repair:

• Requires access to the washer’s control panel or console

• Involves disconnecting and reconnecting multiple wiring harnesses

• Basic tools are typically required

Important:

• Always disconnect power before installation

• Use proper handling to avoid static damage

• Professional installation is recommended if you’re unfamiliar with electrical components

Canada-Wide Availability & Trusted Supplier

Appliance Kingdom provides fast shipping across Canada, ensuring quick access to genuine OEM parts when you need them most. All parts are compatible with Canadian appliance standards and sourced for reliability.

Buyer Confidence & Support

• 100% Genuine OEM Whirlpool control board

• Designed for precise compatibility and long-term performance

• Expert assistance available to confirm fit before purchase

• Trusted by appliance repair professionals across Canada
