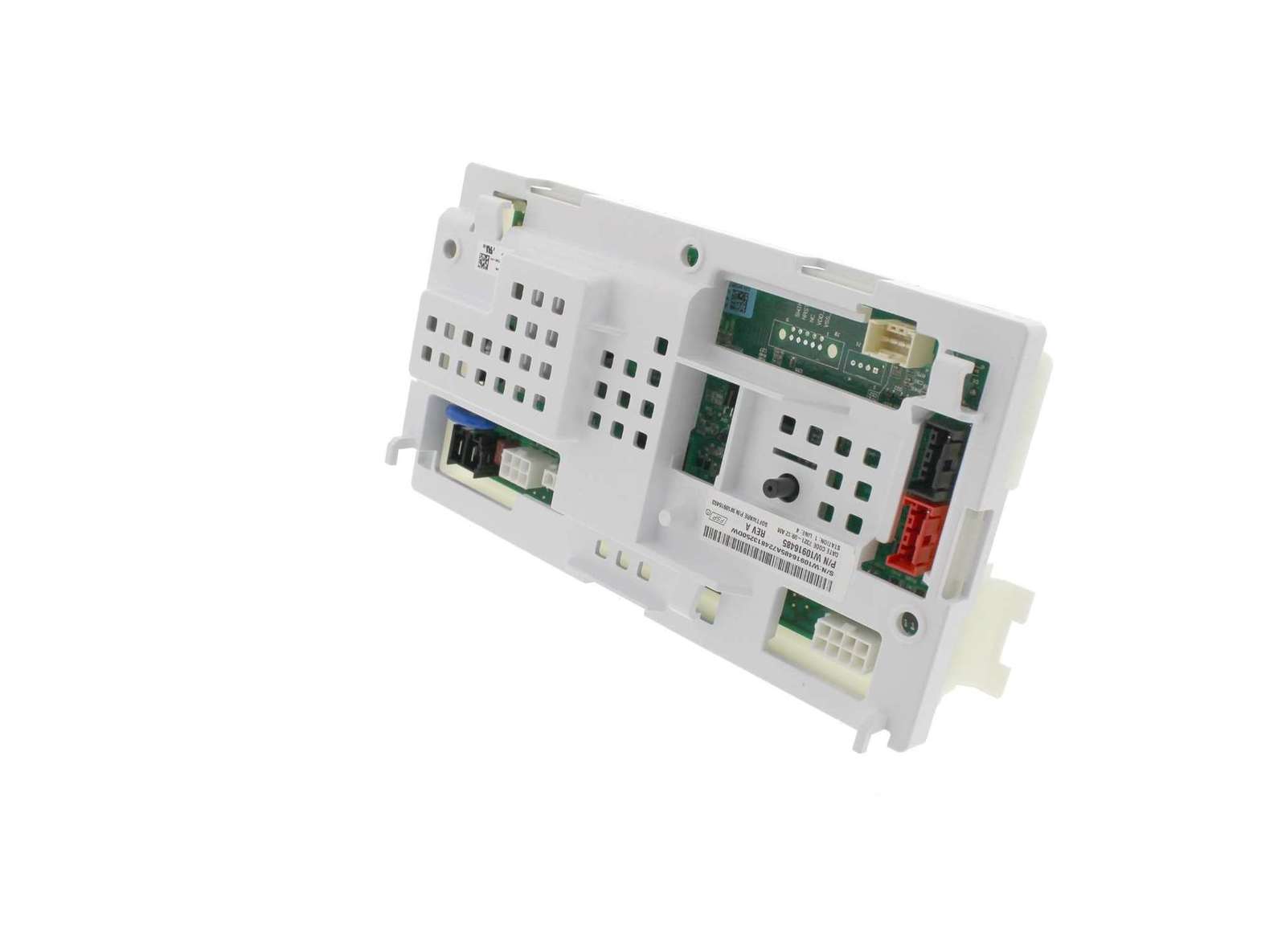

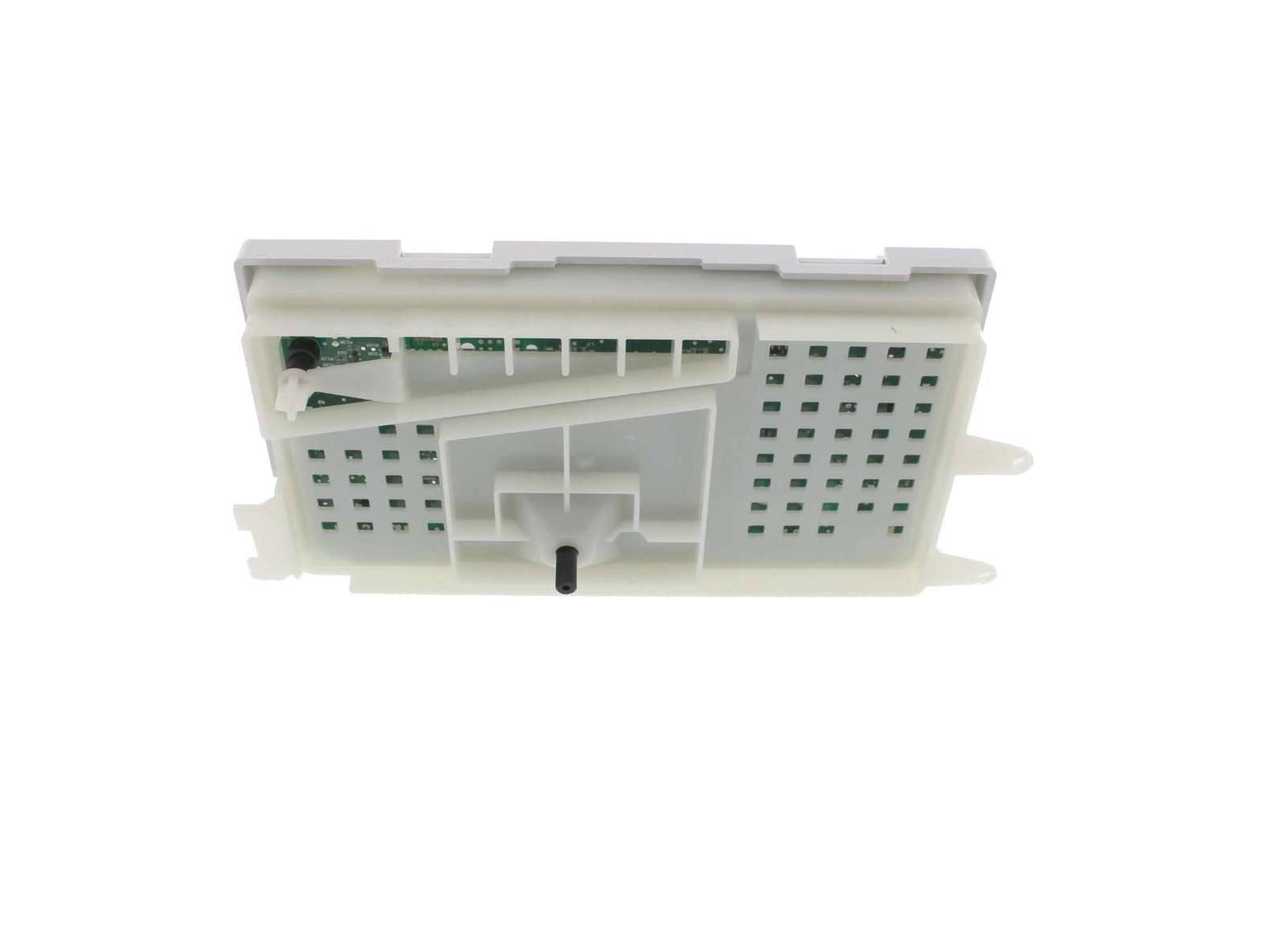

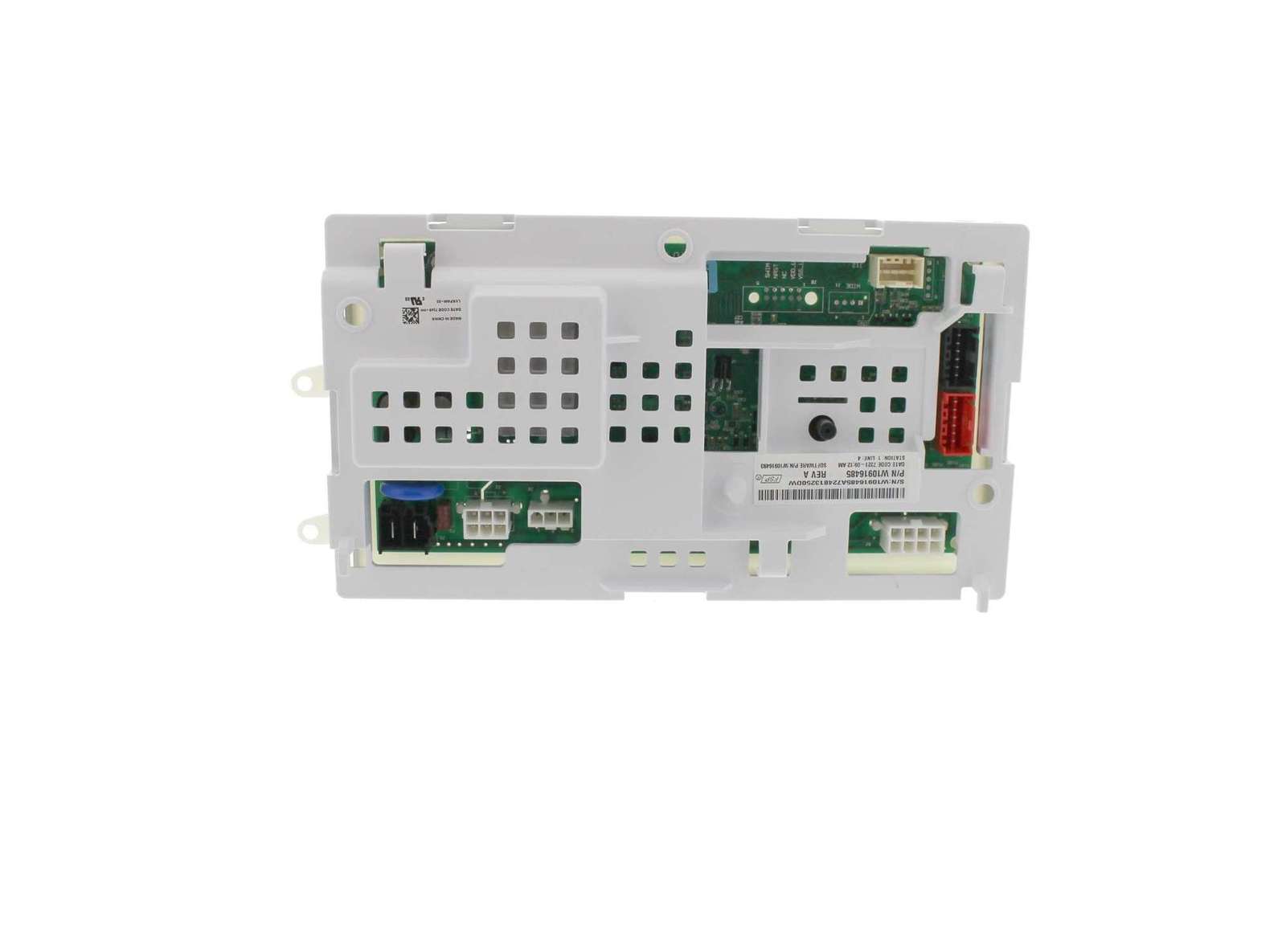

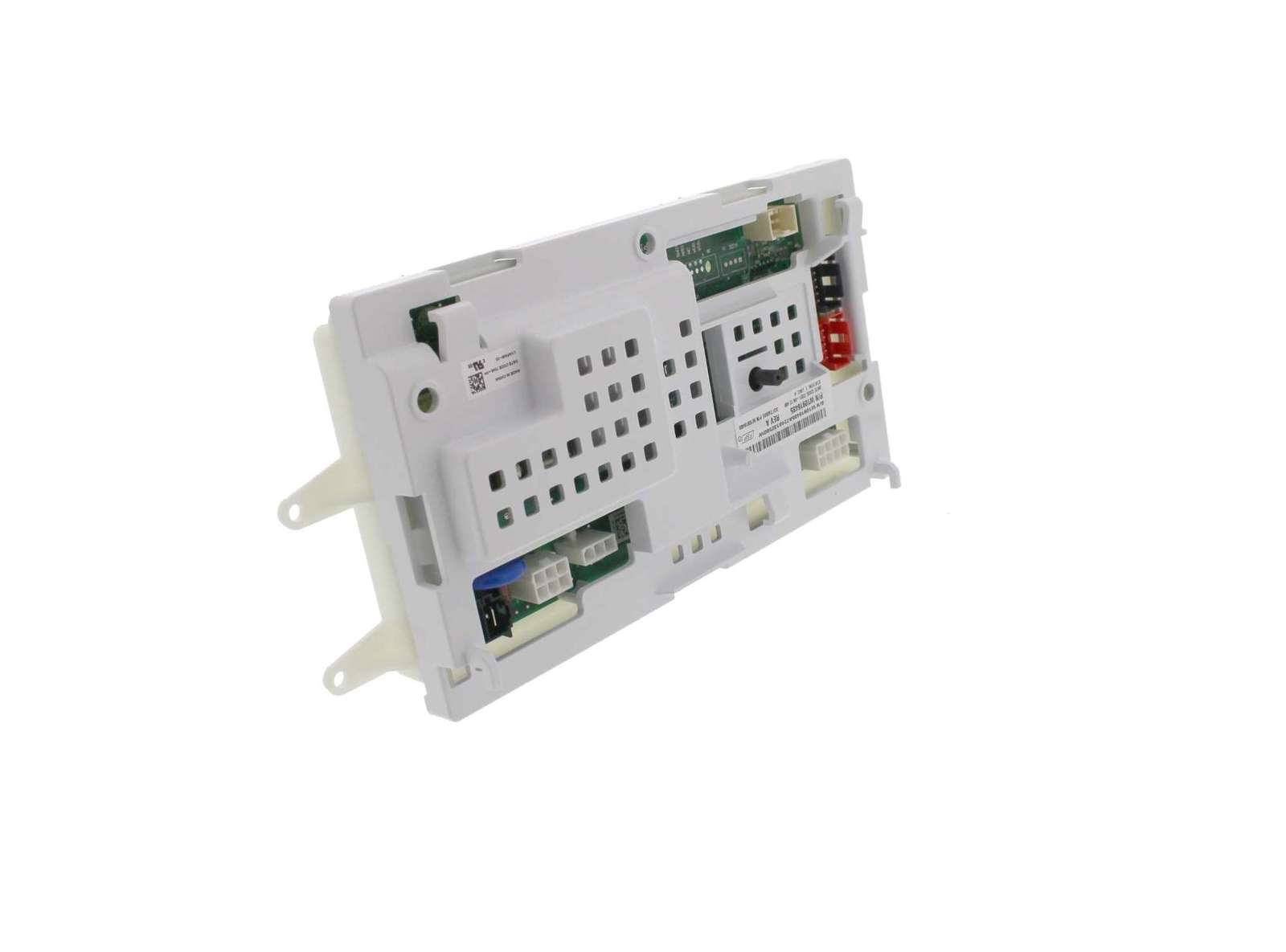

W11116594 - Genuine OEM Whirlpool Washer Electronic Control Board

W11116594 - Genuine OEM Whirlpool Washer Electronic Control Board

The W11116594 Genuine OEM Whirlpool Washer Electronic Control Board is the central control unit designed for Whirlpool washing machines. As a genuine OEM (Original Equipment Manufacturer) component, it is built to exact factory specifications to ensure seamless integration, reliable performance, and long-term durability. Available from Appliance Kingdom with fast Canada-wide shipping, this part is essential for restoring full washer functionality when electronic failures occur.

This control board is a high-impact repair solution—it commonly resolves major operational issues such as washers not starting, erratic cycles, or complete system failure.

Function & Importance of the Control Board

The electronic control board acts as the “brain” of your washing machine. It manages and coordinates all core operations, including:

• Water filling and level sensing

• Wash and rinse cycle timing

• Drain and spin functions

• User input and program selection

Without a properly functioning control board, the washer cannot execute commands or complete cycles.

Using a Genuine OEM Whirlpool control board ensures:

• Correct communication between internal components

• Safe and stable electrical performance

• Long-term reliability without compatibility issues

When this component fails, the washer may become partially or completely non-functional.

Common Symptoms of a Faulty Control Board

If your washer is experiencing any of the following problems, the W11116594 control board is often the root cause:

• Washer won’t start or power on

• Unresponsive control panel or buttons

• Washer stops mid-cycle unexpectedly

• Cycles run erratically or incorrectly

• Washer fails to fill, spin, or drain properly

• Display shows error codes or no display at all

Will replacing this part fix your issue?
In many cases, yes. If multiple functions are failing simultaneously or the washer behaves unpredictably, the control board is a primary suspect and replacing it often restores full operation.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used across select models from Whirlpool-associated brands (e.g., Maytag, Amana, Kenmore)

• Always verify your appliance model number before ordering to ensure compatibility

Replaces Part Numbers

Verified from authoritative parts suppliers, the W11116594 replaces the following part numbers:

• AP6261036

• 4591603

• PS12114300

• W10863406

• W10885320

• W10910381

• W10916229

• W10916485

• W11048591

• W11082577

Key Features & Benefits

• Genuine OEM Whirlpool component

• Controls all major washer operations for optimal performance

• Engineered for precise fit and reliable communication

• Durable electronic design for long service life

• Ideal for homeowners, landlords, and professional technicians

Installation Overview

Replacing the control board is typically a moderate to advanced repair:

• Requires access to the washer’s control panel or rear housing

• Involves disconnecting and reconnecting multiple wiring harnesses

• Careful handling is essential to avoid electrical damage

Important:

• Always disconnect power before installation

• Professional installation is recommended if you’re unfamiliar with electrical components

Canada-Wide Availability & Trusted Supply

Appliance Kingdom supplies genuine OEM appliance parts across Canada, ensuring fast delivery and dependable service. All parts meet Canadian appliance standards, making them suitable for residential and commercial applications nationwide.

Buyer Confidence & Support

• 100% Genuine OEM verification

• Reliable fit and performance guaranteed

• Expert assistance available to confirm compatibility

• Trusted supplier for Canadian appliance repair needs
