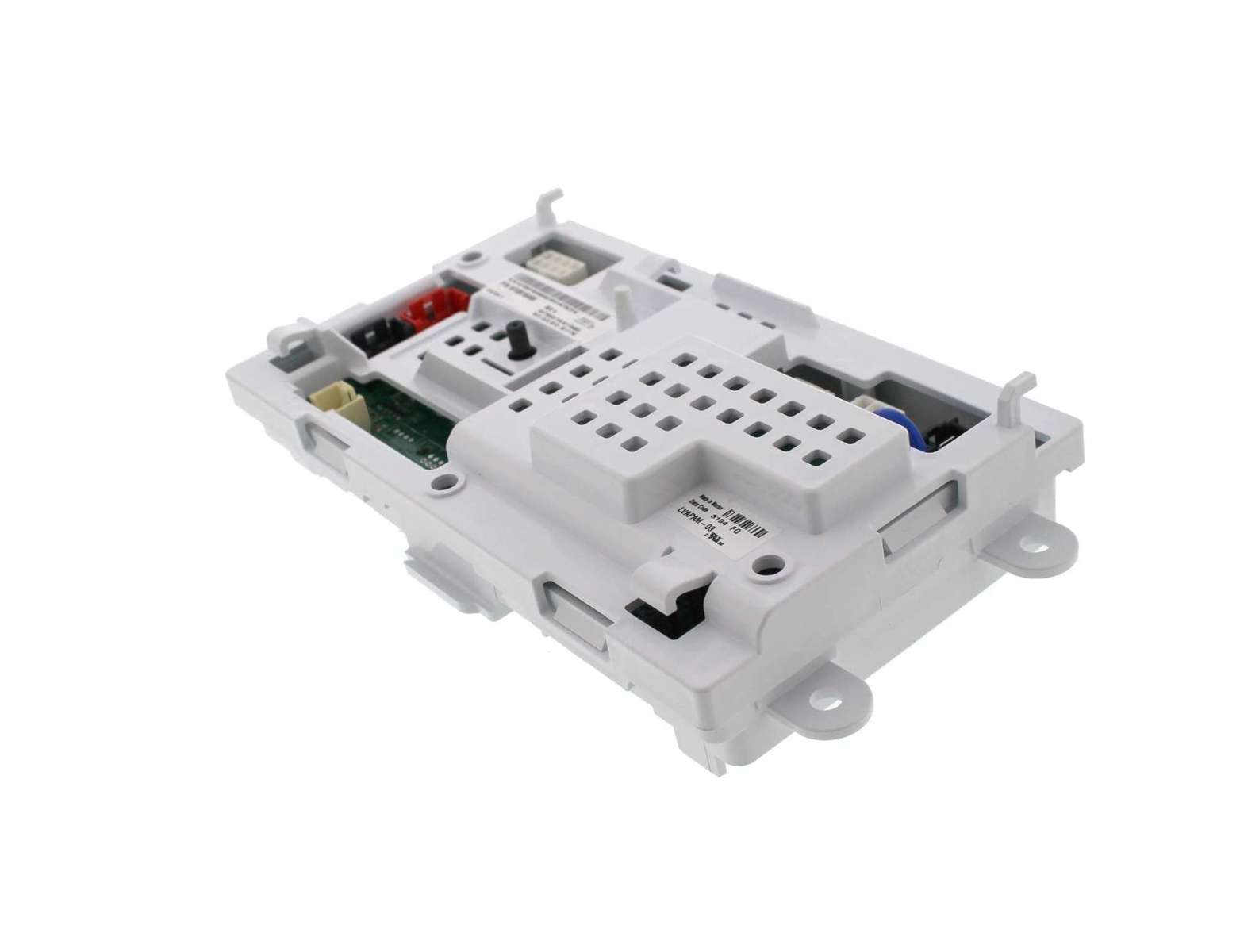

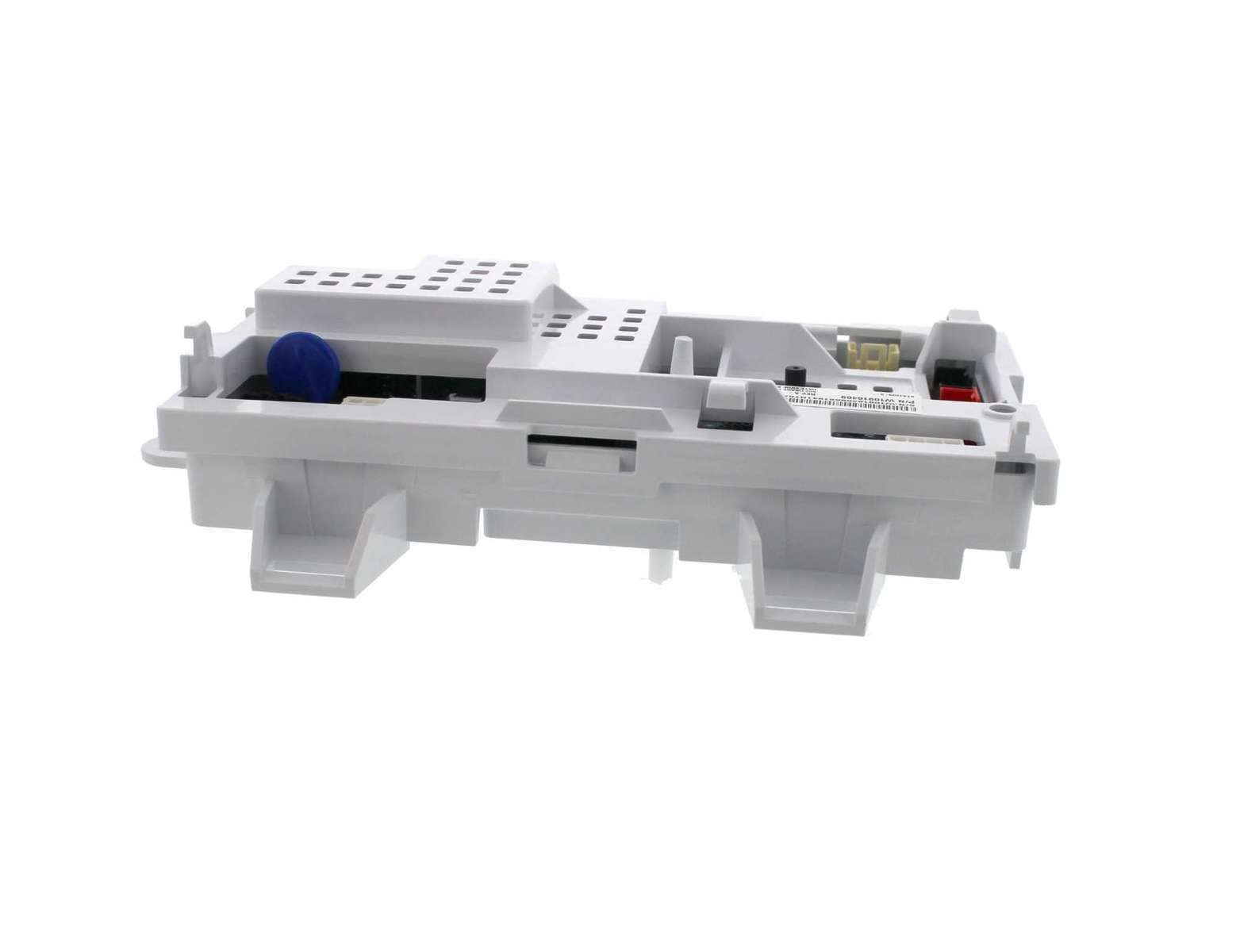

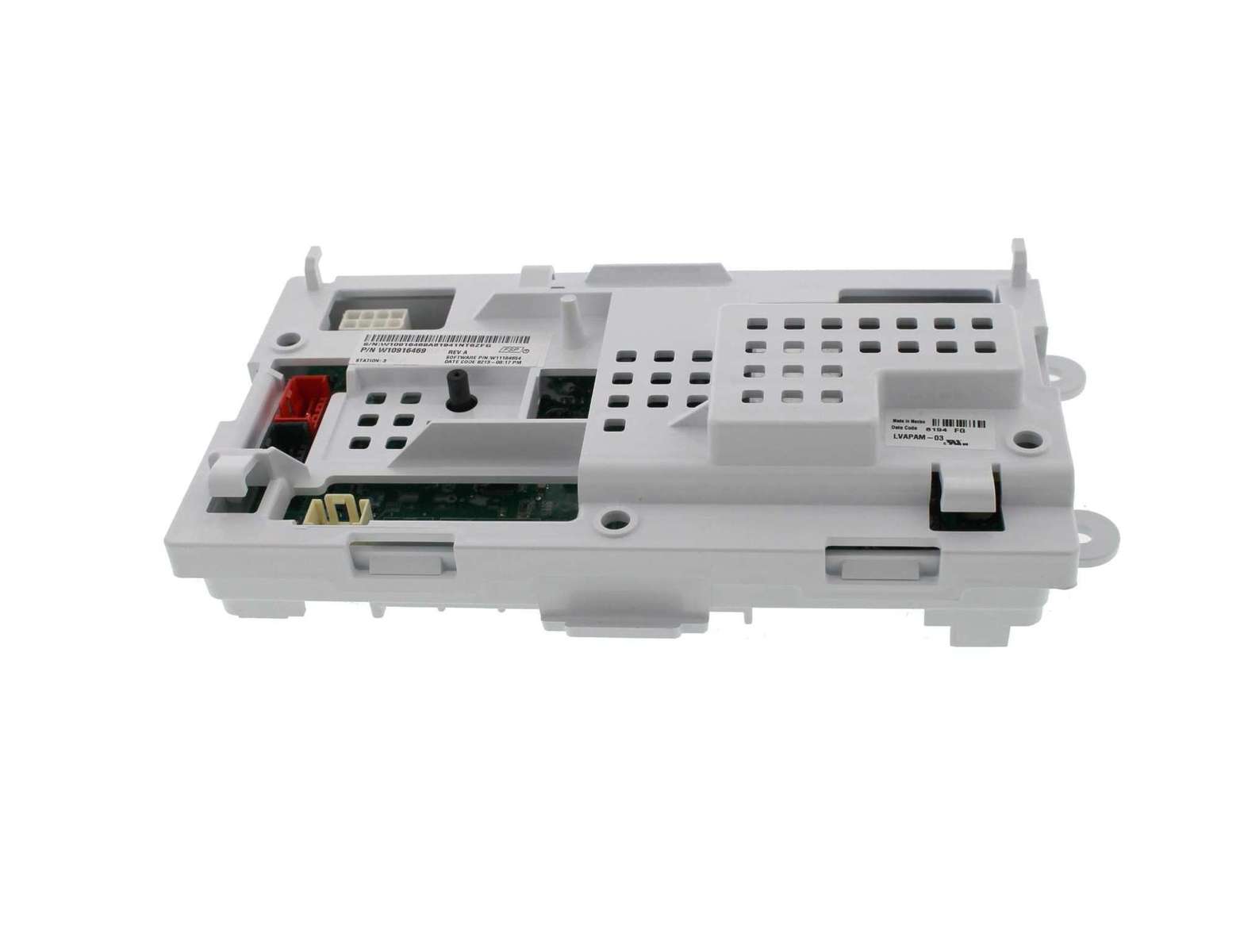

W11116540 - Genuine OEM Whirlpool Washer Electronic Control Board

W11116540 - Genuine OEM Whirlpool Washer Electronic Control Board

The W11116540 Genuine OEM Whirlpool Washer Electronic Control Board is the central control unit responsible for managing all operations in your Whirlpool washing machine. As a genuine OEM (Original Equipment Manufacturer) component, it is engineered to exact factory specifications for optimal performance, durability, and compatibility.

Designed for Whirlpool washers and select compatible brands, this electronic control board is available from Appliance Kingdom with fast, reliable Canada-wide shipping, making it an essential replacement for restoring full washer functionality when electronic failures occur.

If your washer is not responding, failing to complete cycles, or behaving unpredictably, replacing the control board is often the most effective solution.

Function & Importance of the Electronic Control Board

The electronic control board acts as the “brain” of the washer, coordinating and controlling all major functions, including:

• Water filling and level control

• Agitation and wash cycles

• Drain and spin operations

• Cycle timing and sequencing

• Communication with sensors and user controls

This component receives input from various sensors and sends commands to key parts like the motor, valves, and pump to ensure proper washing performance.

Because it governs the entire appliance, using a Genuine OEM board like W11116540 is critical. Non-OEM or incompatible boards can result in incorrect cycle behaviour, system errors, or complete washer failure.

Common Symptoms Indicating Replacement

A faulty control board can cause a wide range of washer issues. Common signs include:

• Washer won’t start or power on

• Cycles stop mid-operation or fail to complete

• Washer not filling, draining, spinning, or agitating properly

• Unresponsive control panel or erratic button behaviour

• Incorrect cycle timing (too long or too short)

• Random error codes or inconsistent operation

Will replacing this part fix your problem?
If multiple washer functions are failing simultaneously or the machine is unresponsive, the electronic control board is a likely cause and replacing it often restores normal operation.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used in select models from related brands under Whirlpool Corporation

• Always verify your appliance model number before ordering to ensure proper compatibility

Replaces Part Numbers

The following replacement part numbers have been verified from authoritative parts sources:

• W10914887

• W10785693

• W10831395

Key Features & Benefits

• Genuine OEM Whirlpool control board

• Controls all major washer functions for reliable performance

• Ensures accurate cycle timing and operation

• Built to meet strict manufacturer specifications

• Ideal for homeowners, landlords, and professional technicians

• Helps extend the life of your washer and avoid costly replacements

Installation Overview

Replacing the electronic control board is considered a moderate to advanced repair:

• Requires access to the washer’s control panel or top console

• Involves disconnecting wiring harnesses and mounting screws

• Care must be taken to avoid electrical damage

Important:

• Always disconnect power before installation

• Due to the electrical nature of the component, professional installation is recommended if you are not experienced

Canada-Wide Availability & Trusted Supplier

Appliance Kingdom is a trusted Canadian supplier of genuine appliance parts, offering:

• Fast shipping across Canada

• High-quality OEM components

• Reliable service for homeowners and repair professionals

All parts meet applicable Canadian appliance standards, ensuring safe and dependable operation.

Buyer Confidence & Support

• Guaranteed Genuine OEM part

• Designed for exact fit and long-term reliability

• Reduces risk of repeat failures

• Support available to help confirm compatibility before purchase
