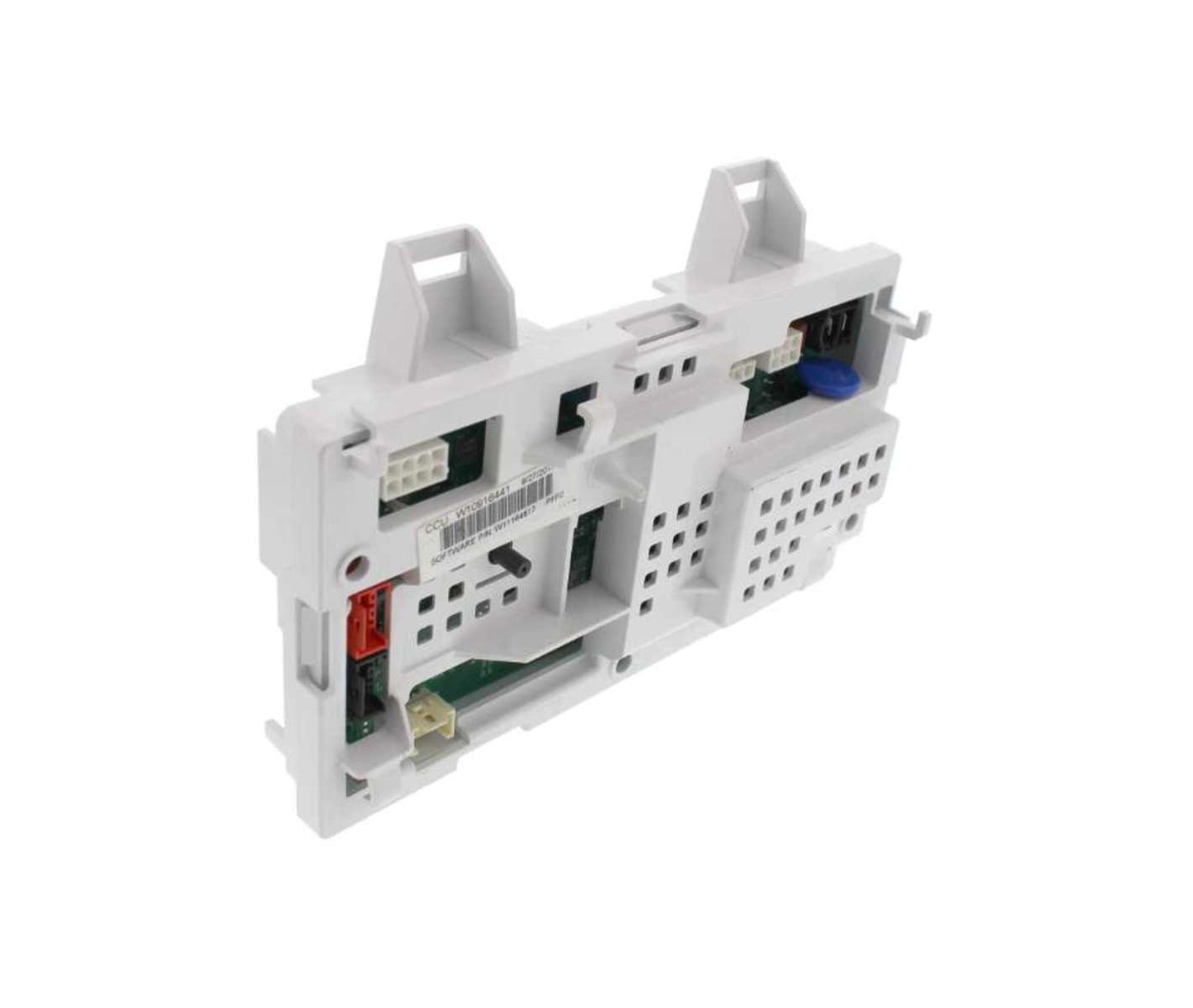

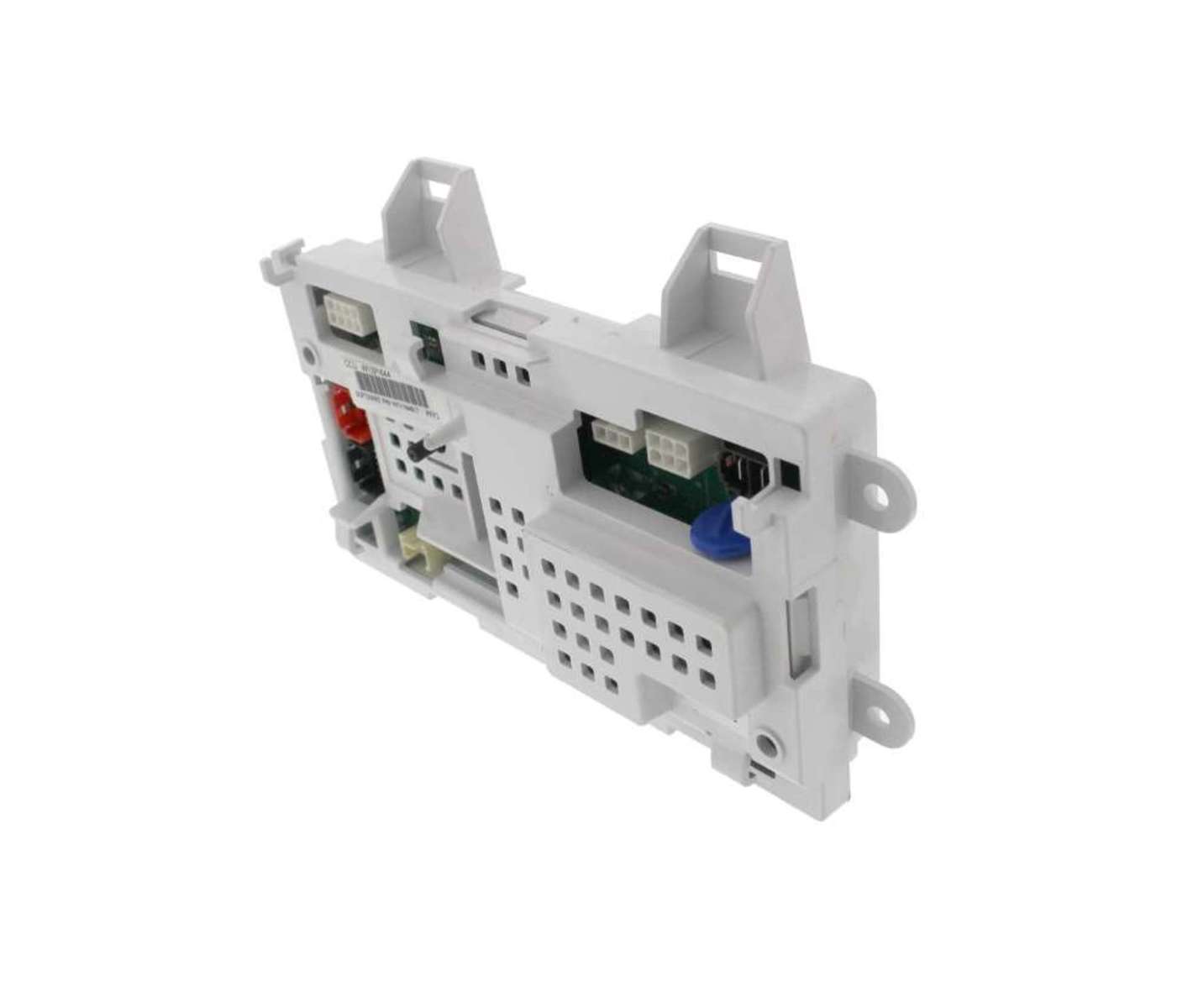

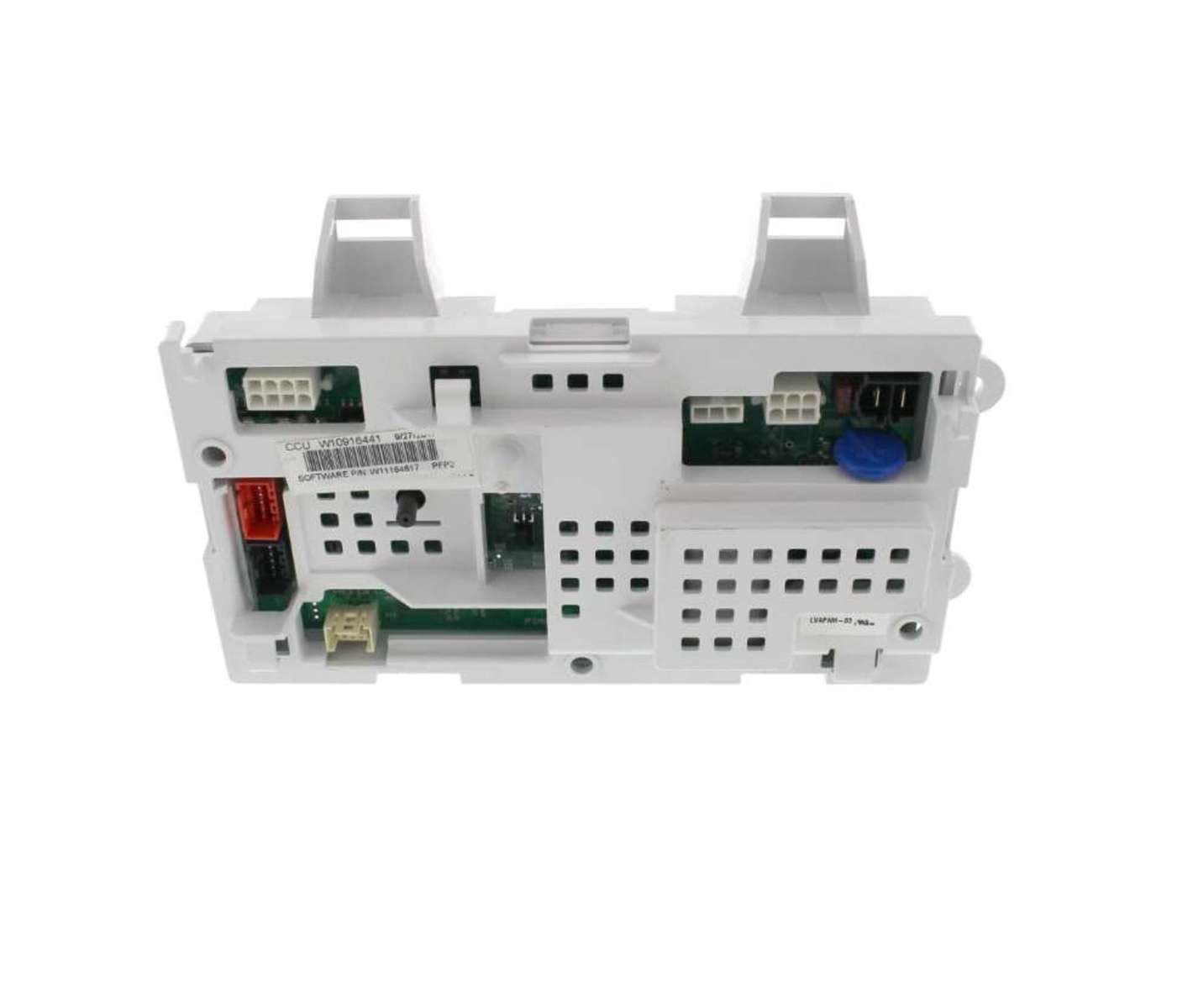

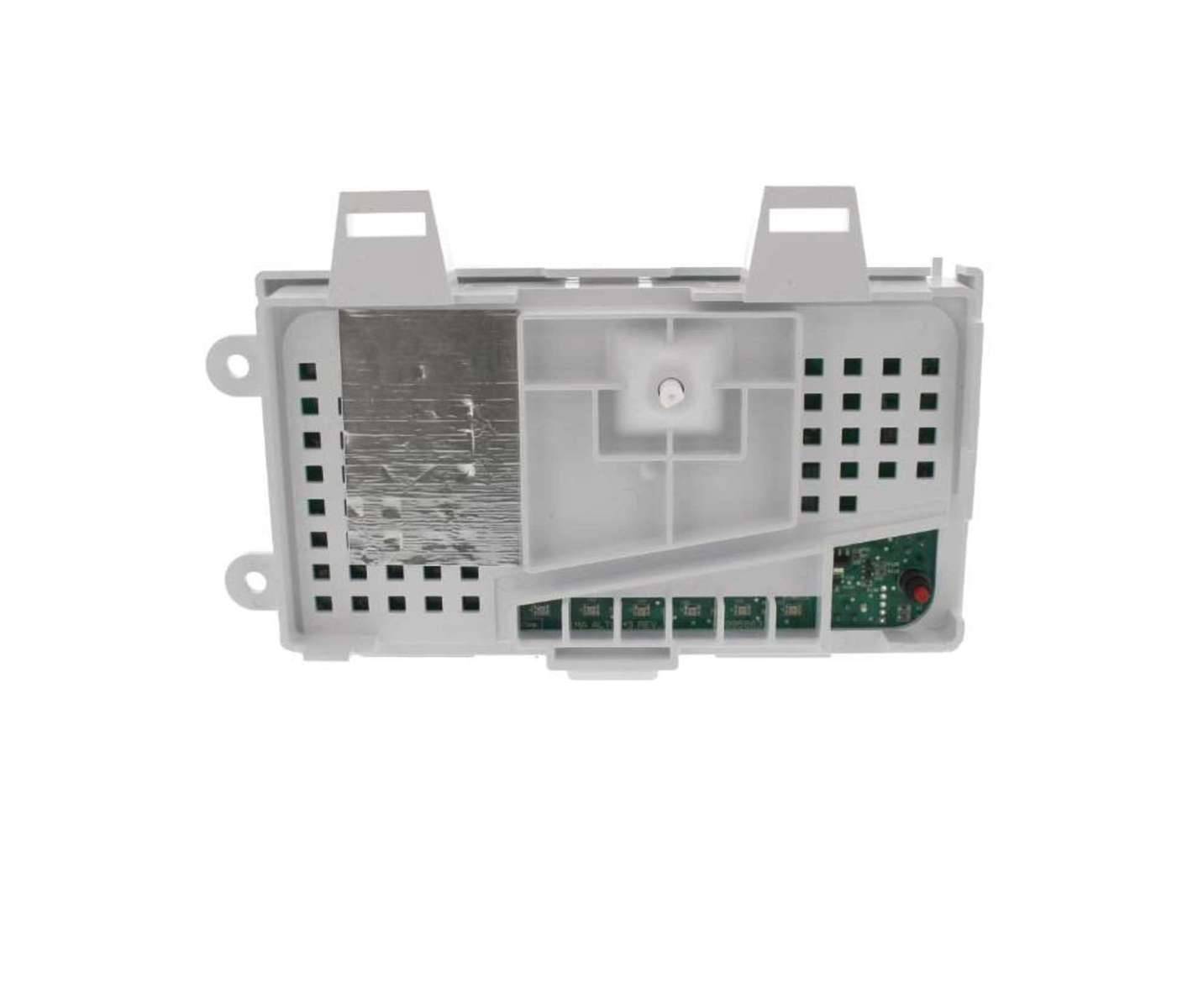

W11116504 - Genuine OEM Whirlpool Washer Electronic Control Board

W11116504 – Genuine OEM Whirlpool Washer Electronic Control Board

The W11116504 Genuine OEM Whirlpool Washer Electronic Control Board is the central control unit designed for Whirlpool washing machines. As a genuine OEM component, it is manufactured to exact factory specifications to ensure precise communication between all major washer systems. Available from Appliance Kingdom with fast Canada-wide shipping, this control board is a trusted solution for restoring full washer functionality when electronic failures occur.

This part is commonly used to resolve major operational issues such as cycle failures, unresponsive controls, and washers that won’t start.

Function & Importance of the Electronic Control Board

The electronic control board acts as the “brain” of your washer, managing and coordinating all key functions including:

• Water filling and level control

• Agitation and wash cycles

• Drain and spin operations

• Cycle timing and sequence progression

It receives signals from sensors and user inputs, then directs components like the motor, valves, and pump accordingly.

Because of its central role, using a Genuine OEM board like W11116504 is critical. OEM boards ensure:

• Proper communication between components

• Safe electrical performance

• Long-term reliability and compatibility

A faulty or incompatible board can cause erratic behaviour or complete washer failure.

Common Symptoms of a Faulty Control Board

If your washer is experiencing any of the following issues, replacing the control board may resolve the problem:

• Washer won’t start or power on

• Unresponsive control panel or buttons

• Washer stuck mid-cycle or not advancing

• Cycles running too long or too short

• Washer not filling, draining, agitating, or spinning properly

• Random error codes or erratic operation

Will replacing this part fix your issue?
If multiple washer functions are failing or behaving unpredictably, the control board is often the root cause. Replacing it typically restores normal operation.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used across Whirlpool family brands (depending on model configuration)

• Always verify your washer’s model number before ordering to ensure compatibility

Replaces Part Numbers (Verified)

The W11116504 control board is confirmed to replace the following part numbers:

• WPW10785635

• W10916441

• W10864934

• W10785635

• W10914278

Key Features & Benefits

• Genuine OEM Whirlpool part for guaranteed performance

• Controls all major washer functions and cycle operations

• Engineered for precise fit and seamless integration

• Restores proper washer performance and reliability

• Ideal for homeowners, landlords, and professional technicians

Installation Overview

Replacing the electronic control board is considered a moderate to advanced repair:

• Requires disconnecting power and accessing the control panel housing

• Involves handling wiring harness connections

• Care must be taken to avoid static or electrical damage

Recommendation:
Experienced DIY users can perform this repair, but professional installation is advised for safety and accuracy, especially for electrical components.

Canada-Wide Availability & Trusted Supplier

Appliance Kingdom supplies genuine OEM appliance parts across Canada, ensuring:

• Fast domestic shipping

• Reliable inventory sourcing

• Parts compatible with Canadian appliance standards

Buyer Confidence & Support

• 100% Genuine OEM verification

• Designed for exact fit and optimal performance

• Dedicated support to help confirm compatibility before purchase

• Trusted by appliance repair professionals across Canada
