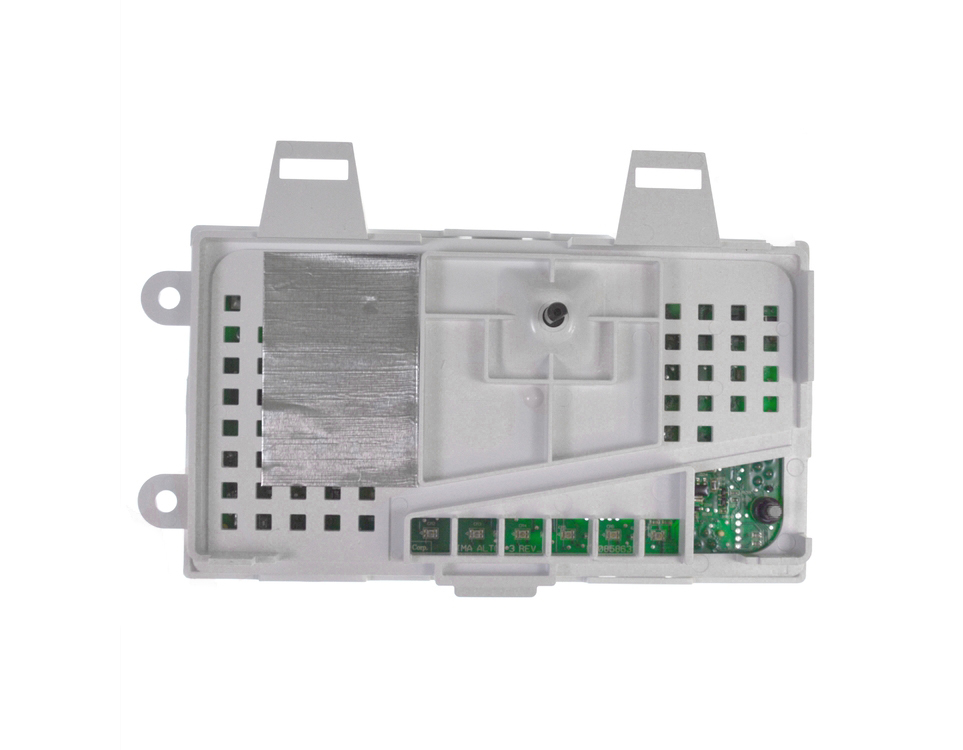

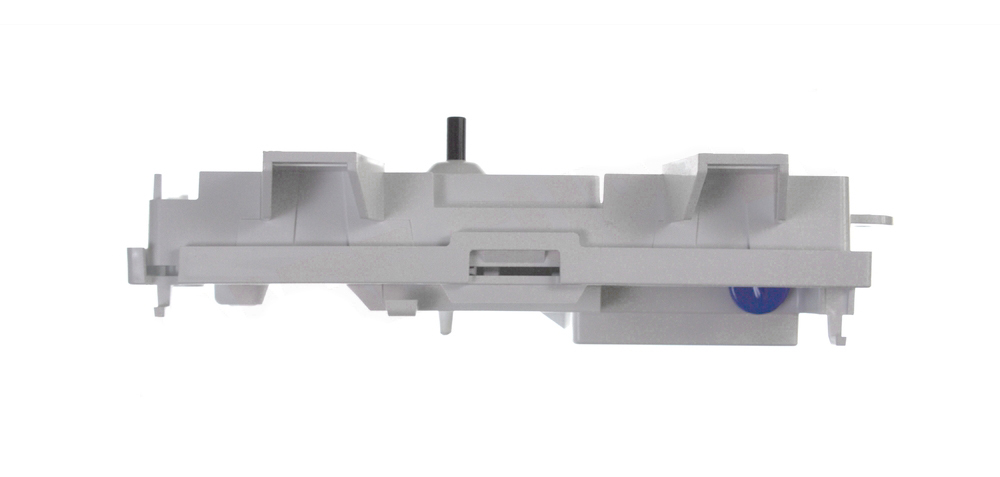

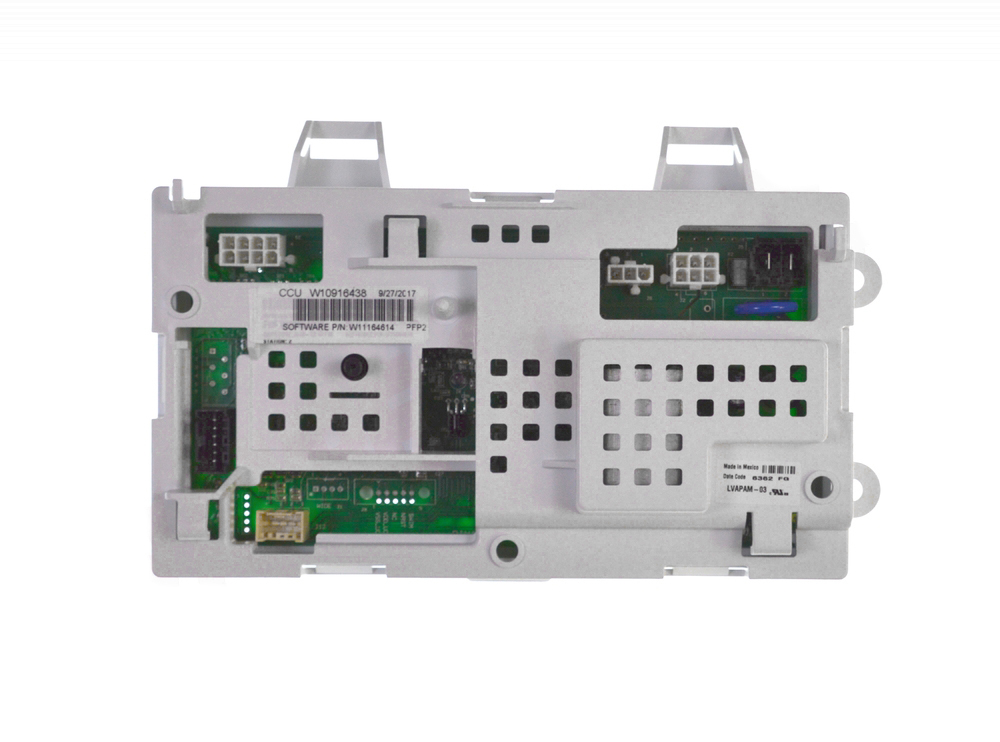

W11116498 - Genuine OEM Whirlpool Washer Electronic Control Board

W11116498 - Genuine OEM Whirlpool Washer Electronic Control Board

The W11116498 Genuine OEM Whirlpool Washer Electronic Control Board is the main control module responsible for managing all critical functions in your washing machine. Designed and manufactured by Whirlpool, this OEM control board ensures precise operation, reliable performance, and seamless compatibility with a wide range of Whirlpool-built washer brands.

Available from Appliance Kingdom with fast Canada-wide shipping, this part is a trusted solution for restoring full washer functionality when electronic failures occur.

Function & Importance of the Control Board

The electronic control board acts as the “brain” of your washer. It receives input from sensors and user controls, then coordinates every stage of the wash cycle.

Key functions include:

• Controlling water fill levels, wash cycles, and spin speeds

• Managing drain, pump, and motor operations

• Processing user commands and cycle selections

• Monitoring system performance and triggering error codes

A properly functioning OEM control board ensures:

• Accurate cycle timing

• Efficient washing performance

• Safe and reliable operation

When this component fails, the washer may lose the ability to perform even basic functions. Replacing it restores full system control and operation.

Common Symptoms of a Faulty Control Board

If your washer is experiencing any of the following issues, the control board may be the root cause:

• Washer won’t start or power on

• Cycles are too long, too short, or not advancing

• Washer won’t fill, drain, spin, or agitate

• Unresponsive control panel or buttons

• Washer stops mid-cycle with error codes

• Inconsistent or erratic behaviour during operation

Will replacing this part fix your issue?
Yes—if your washer is experiencing multiple system failures or not responding correctly, a defective control board is often the primary cause.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used across multiple Whirlpool-associated brands including Maytag, Amana, KitchenAid, Kenmore, and others

• Fits top-load and select washer models using this control board

Always verify your appliance model number before ordering to ensure proper compatibility.

Replaces Part Numbers

Verified from authoritative appliance parts sources, the W11116498 replaces the following part numbers:

• AP6261027

• W10711009

• W10785628

• W10804587

• W10864928

• W10913308

• W10916438

• PS12114291

• 4813878

Key Features & Benefits

• Genuine OEM Whirlpool part for guaranteed fit and performance

• Controls all major washer functions for complete system operation

• Built to meet or exceed original manufacturer specifications

• Ensures accurate cycle timing and efficiency

• Ideal for homeowners, landlords, and professional technicians

Installation Overview

Replacing the control board is considered a moderate to advanced repair:

• Typically located inside the control panel housing

• Requires disconnecting wiring harnesses and mounting screws

• Care must be taken to avoid static damage (ESD)

Important:

• Always disconnect power before installation

• Label wires to ensure proper reconnection

• Professional installation is recommended if you’re not experienced

Canada-Wide Availability & Trusted Supply

Appliance Kingdom is a Canada-based supplier offering fast, reliable shipping nationwide. All parts meet applicable standards for Canadian appliances, ensuring safe and dependable operation in residential and commercial settings.

Buyer Confidence & Support

• 100% Genuine OEM verified part

• Engineered for exact compatibility and long-term durability

• Helps restore full washer functionality quickly

• Expert support available to confirm compatibility before purchase
