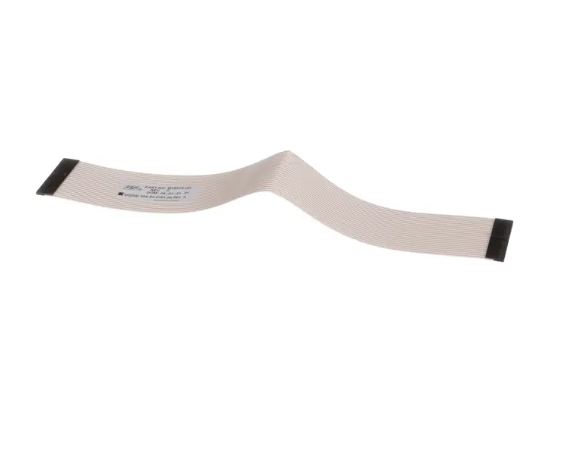

W11025616 - Genuine OEM Whirlpool Range Wire Harness

SKU : W11025616
$69.97
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

Whirlpool W11025616 Range Wire Harness – Genuine OEM Replacement Part

The Whirlpool W11025616 Range Wire Harness is a genuine OEM replacement part designed to maintain safe and reliable electrical connections within your electric range or oven. Available at Appliance Kingdom, this high-quality wire harness is compatible with a variety of Whirlpool, Maytag, KitchenAid, and Amana range models. Replacing a worn or damaged wire harness is essential for restoring proper operation and preventing electrical issues. Always verify your model number before purchase to ensure compatibility.

Function & Importance

The W11025616 wire harness serves as the central electrical connection network inside your range, linking critical components such as the control board, heating elements, and safety sensors. It ensures that power is delivered safely and efficiently to each component. Without a functioning wire harness, your range may experience intermittent operation, failure to heat, or other electrical problems, making this part crucial for safe and reliable appliance performance.

Symptoms Indicating Replacement

Consider replacing the W11025616 wire harness if you notice:

  • Range or oven not powering on or operating intermittently

  • Burnt or melted wires visible inside the appliance

  • Heating elements or burners failing to work consistently

  • Electrical shorts or tripped breakers associated with the range

  • Visible corrosion, fraying, or damage on connectors

These issues indicate that the wire harness is worn, damaged, or malfunctioning and needs a genuine replacement.

Key Features & Benefits

  • Genuine OEM Quality – Ensures proper fit, safety, and reliable electrical connections.

  • Durable Construction – Designed to withstand heat and electrical load for long-term use.

  • Restores Appliance Performance – Ensures all components receive consistent power.

  • Safe & Reliable – Reduces risk of electrical shorts and component damage.

  • Easy Installation – Straightforward replacement for those familiar with appliance wiring.

  • Compatible with Multiple Models – Fits select Whirlpool, Maytag, KitchenAid, and Amana ranges.

Appliance Kingdom provides genuine replacement parts to keep your appliances operating safely and efficiently. The W11025616 Wire Harness is the ideal solution to restore your range’s electrical system and maintain long-lasting performance.
