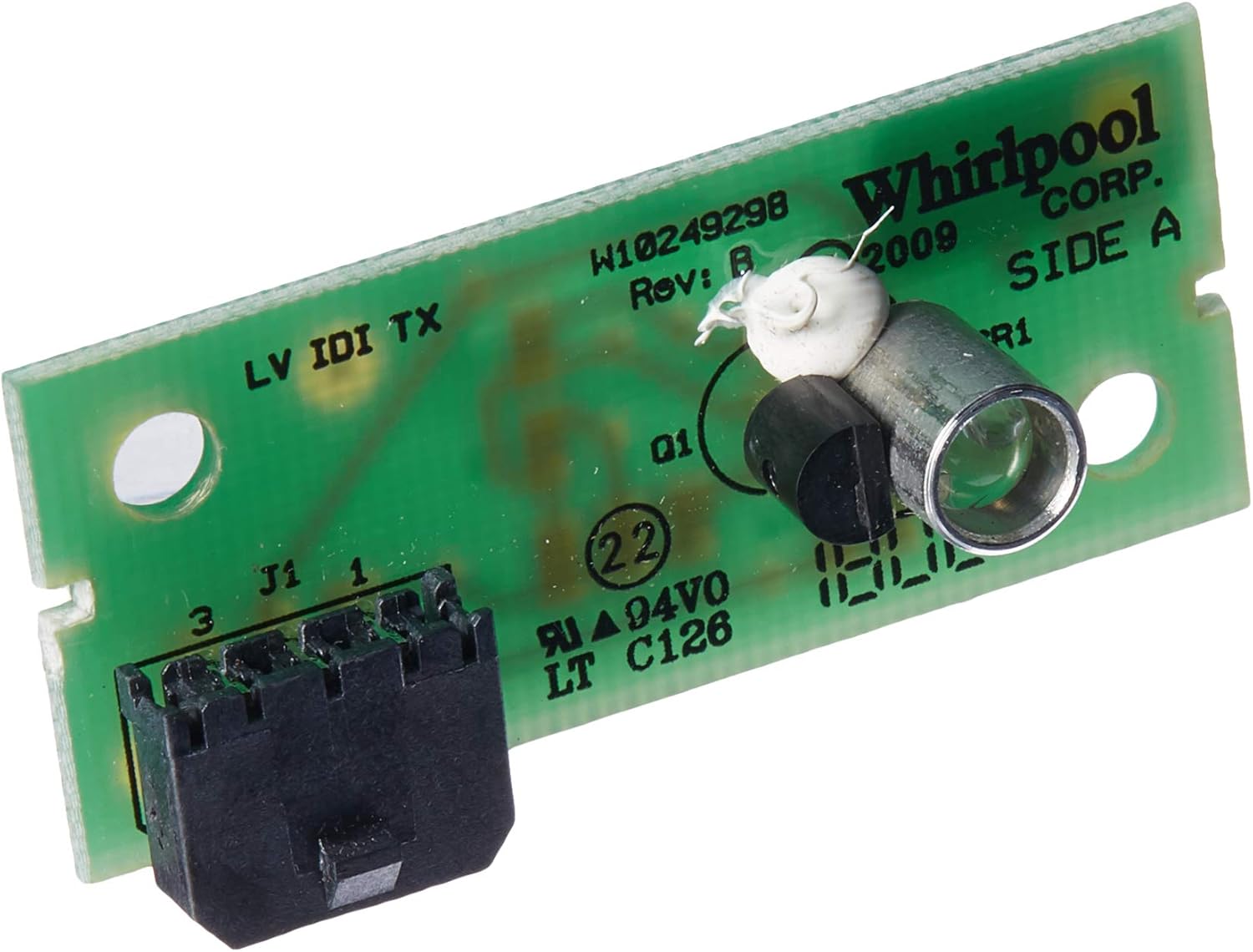

W10870822 - Genuine OEM Whirlpool Refrigerator Emitter Board
W10870822 Genuine OEM Whirlpool Refrigerator Emitter Board
The W10870822 Genuine OEM Whirlpool Refrigerator Emitter Board is an original Whirlpool ice-level control and emitter circuit board designed for compatible refrigerator ice maker systems. This genuine OEM electronic control component works with the receiver board to monitor ice levels in the ice bin and automatically control ice production when the bin reaches capacity. It is used in select Whirlpool-manufactured refrigerators, including certain Whirlpool, KitchenAid, Maytag, Jenn-Air, Kenmore, and Ikea models.
Available from Appliance Kingdom in Edmonton, Alberta, this genuine OEM refrigerator replacement part ships across Canada and is commonly used to resolve ice maker performance issues caused by a failed emitter control system.
What Does the Emitter Board Do?
The W10870822 emitter board is part of the refrigerator's ice-level sensing system. The board emits an infrared signal that works with a corresponding receiver board to detect the amount of ice present in the storage bin.
When the ice bin becomes full, the emitter and receiver system signals the ice maker to stop producing additional ice. This prevents overfilling and ensures proper ice maker operation.
Because this component is part of the refrigerator's electronic control system, genuine OEM specifications are important to ensure accurate communication, reliable ice-level detection, and long-term performance.
Common Symptoms Indicating Replacement
A faulty W10870822 emitter board may contribute to:
-
Ice maker not producing ice
-
Intermittent ice production
-
Ice maker shutting off unexpectedly
-
Ice bin not detecting full capacity properly
-
Ice maker overflow issues
-
Ice dispenser performance problems
-
Inconsistent ice-making operation
Replacing the emitter board can often correct these symptoms when diagnostics confirm a failed ice-level sensing system. However, other components such as the receiver board, ice maker assembly, wiring, or main control board can produce similar symptoms and should also be evaluated during troubleshooting.
Compatibility Guidance
The W10870822 emitter board is designed for refrigerator ice maker systems in compatible Whirlpool-manufactured appliances.
Before ordering:
-
Verify your refrigerator's complete model number.
-
Confirm that W10870822 is specified for your appliance.
-
Compare the original part number from your refrigerator with the replacement part.
Appliance Kingdom can assist with compatibility verification before purchase.
Replaces Part Numbers
The following replacement and superseded part numbers have been verified through authoritative appliance parts sources:
-
W10180607
-
W10518659
-
W10832970
-
WPW10518659
Key Features & Benefits
-
Genuine OEM Whirlpool replacement part
-
Designed for refrigerator ice-level sensing systems
-
Restores proper ice maker operation
-
Helps prevent ice bin overfilling
-
Accurate communication with receiver board
-
Manufactured to Whirlpool factory specifications
-
Reliable fit and performance
-
Suitable for homeowners, landlords, and professional appliance repair technicians
-
Supports long-term refrigerator ice production reliability
Installation Overview
Installation Difficulty: Moderate
Replacing the emitter board typically involves:
-
Disconnecting power to the refrigerator.
-
Accessing the ice maker control compartment.
-
Removing the existing emitter board.
-
Transferring wiring connections.
-
Installing the new OEM board.
-
Reassembling and testing the ice maker system.
Because this is an electronic control component, professional installation is recommended for customers unfamiliar with appliance electrical repairs.
Canada-Wide Availability from Appliance Kingdom
Appliance Kingdom proudly supplies genuine OEM refrigerator parts throughout Canada.
Customers benefit from:
-
Fast Canadian shipping
-
Genuine OEM replacement parts
-
Expert compatibility assistance
-
Support for homeowners and appliance service professionals
-
Reliable service from a Canadian supplier based in Edmonton, Alberta
Buy with Confidence
When you purchase the W10870822 Genuine OEM Whirlpool Refrigerator Emitter Board from Appliance Kingdom, you receive:
-
Authentic Whirlpool OEM quality
-
Factory-specification performance
-
Reliable ice maker system operation
-
Expert compatibility support
-
Fast shipping across Canada
