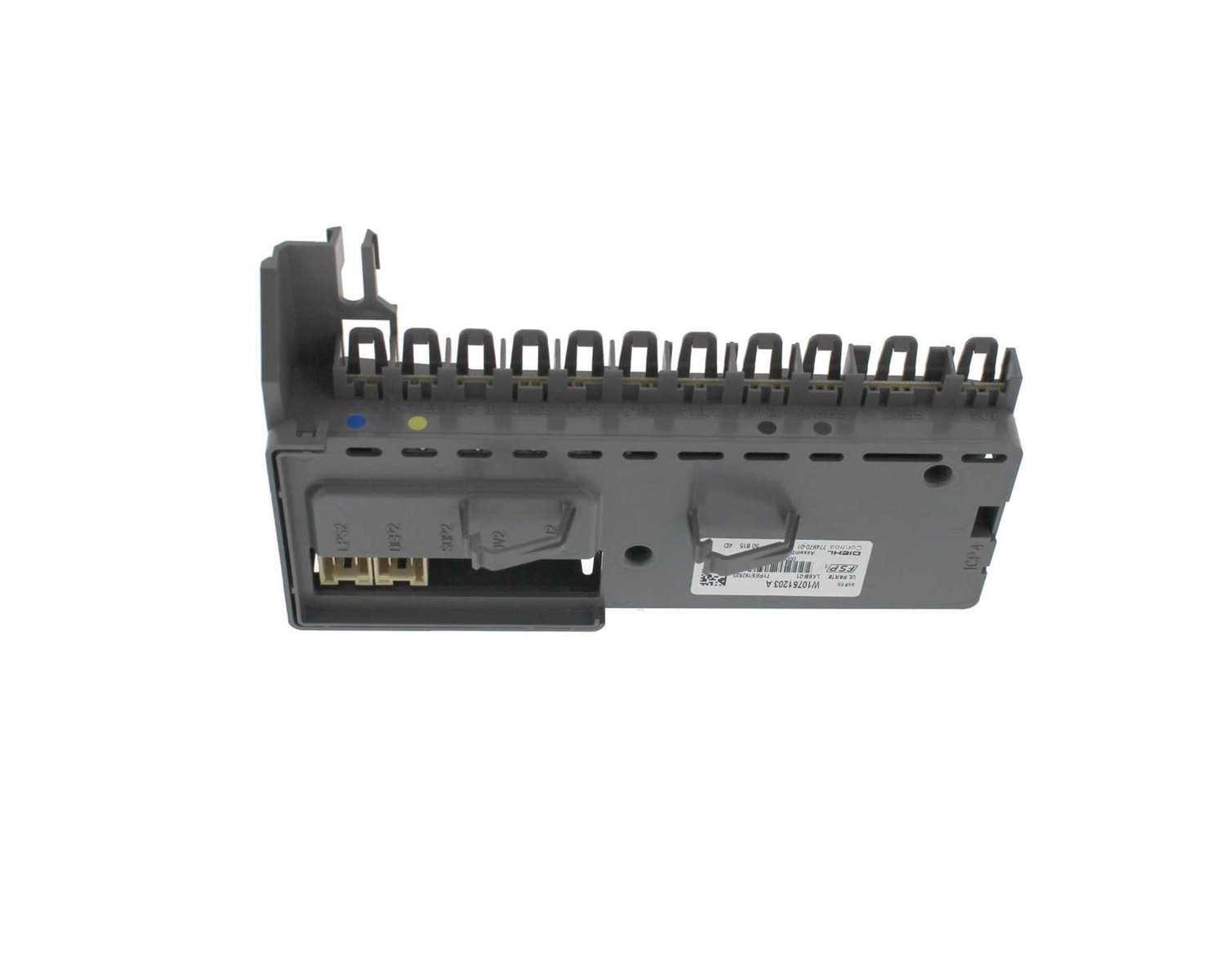

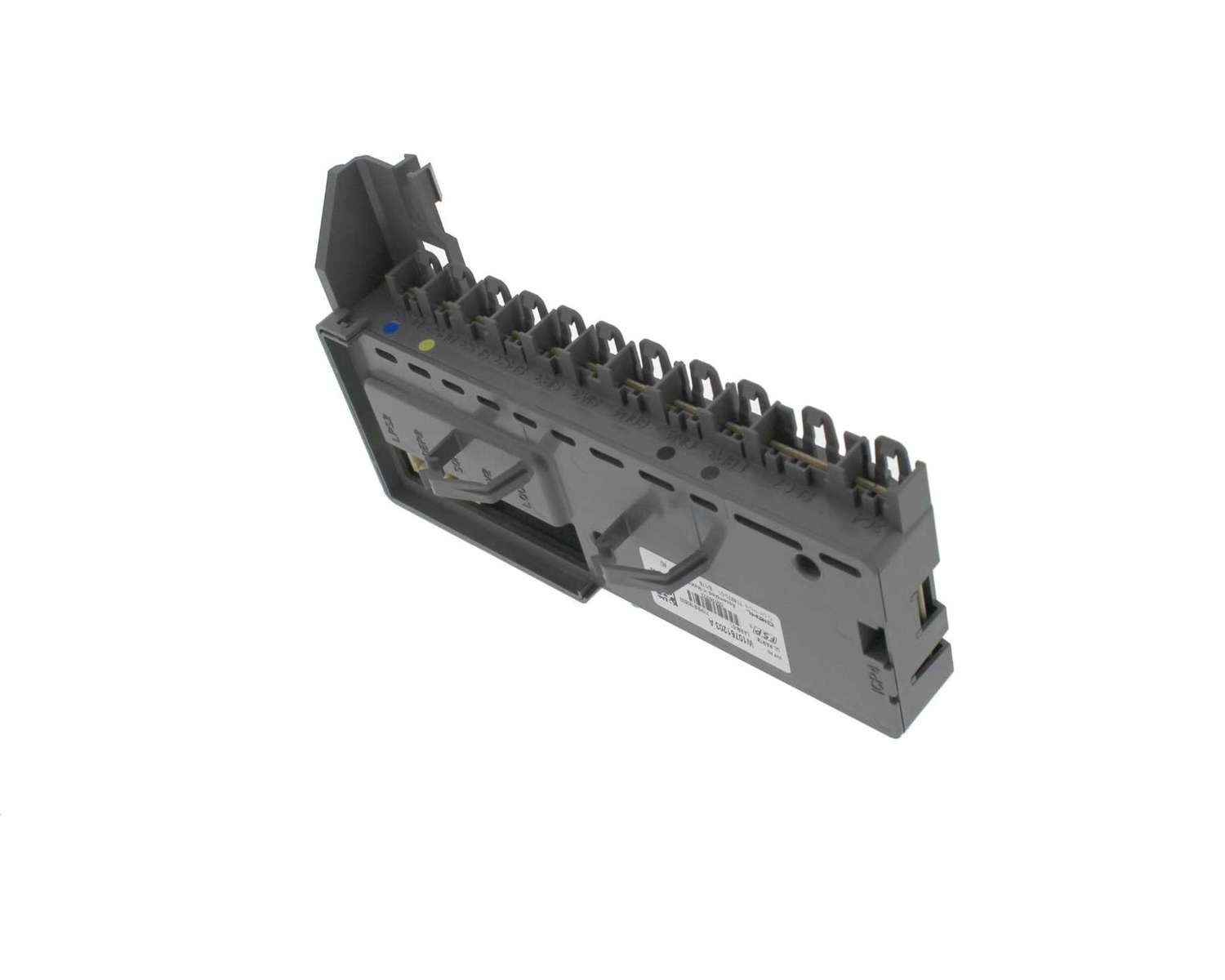

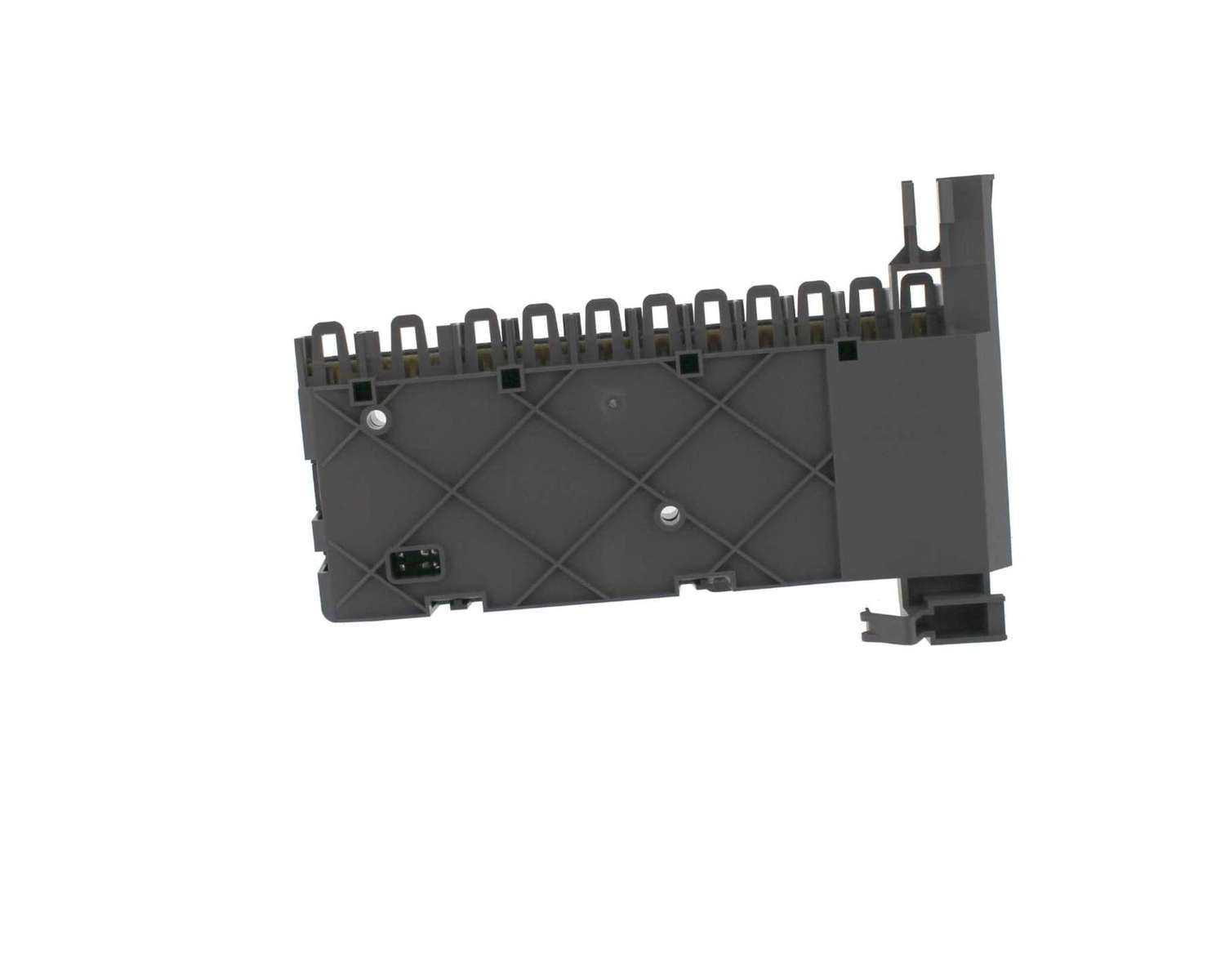

W10864049 - Genuine OEM Whirlpool Washer Electronic Control Board

W10864049 - Genuine OEM Whirlpool Washer Electronic Control Board

The W10864049 Genuine OEM Whirlpool Washer Electronic Control Board is the central control unit designed for Whirlpool washing machines. As a genuine OEM (Original Equipment Manufacturer) component, it is built to precise factory standards to ensure seamless integration, accurate performance, and long-term reliability. Available from Appliance Kingdom, this washer control board ships quickly across Canada, making it a dependable choice for homeowners, landlords, and professional appliance technicians.

This part is commonly used to resolve major operational failures, including washers that won’t start, won’t complete cycles, or display control-related errors.

Function & Importance of the Electronic Control Board

The electronic control board acts as the “brain” of your washing machine, coordinating all major functions such as:

• Water fill and level control

• Wash and rinse cycles

• Spin speed and timing

• Drain and pump operations

• Communication with sensors, valves, and motor components

It uses internal circuitry and microprocessors to execute user-selected settings and ensure precise cycle performance.

Using a Genuine OEM control board is critical because:

• It ensures accurate communication between all washer components

• Maintains safe electrical operation

• Prevents compatibility issues that can arise with non-OEM parts

A faulty or incorrect board can disrupt the entire appliance, making it non-functional.

Common Symptoms of a Faulty Control Board

If your washer is experiencing any of the following issues, the control board may need replacement:

• Washer won’t start or respond to controls

• Cycles won’t advance or complete properly

• Washer won’t fill, drain, spin, or agitate

• Error codes appear on the display

• Buttons, lights, or display become unresponsive

• Cycles run too long or too short

These symptoms are commonly associated with control board failure due to wear, moisture damage, or electrical issues.

Will replacing this part fix your issue?
If multiple washer functions are failing or the machine is unresponsive, replacing the control board often restores full operation.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used in select models from brands under Whirlpool (e.g., Maytag, Amana, KitchenAid, Kenmore)

• Always verify your appliance model number before ordering to ensure compatibility

Replaces Part Numbers

Verified from authoritative parts suppliers, this part replaces:

• AP6004029

• 4459561

• PS11731682

• W10751203

Key Features & Benefits

• Genuine OEM Whirlpool part for guaranteed quality and fit

• Controls all major washer operations with precision

• Designed to meet original manufacturer specifications

• Restores full functionality and cycle accuracy

• Suitable for DIY repairs and professional technicians

Installation Overview

Replacing the control board is typically considered a moderate to advanced repair:

• Requires access to the washer’s control panel or top console

• Involves disconnecting wiring harnesses and mounting screws

• Care must be taken to avoid electrical damage

Recommendation:
Due to the electrical nature of this component, professional installation is recommended, though experienced DIY users can complete the repair with proper precautions.

Canada-Wide Availability & Trusted Supply

Appliance Kingdom supplies genuine OEM appliance parts across Canada, with fast and reliable shipping. All parts are suitable for Canadian appliance standards, ensuring safe and dependable performance in residential and commercial settings.

Buyer Confidence & Support

• 100% Genuine OEM assurance

• Designed for exact fit and long-term reliability

• Helps restore washer performance to like-new condition

• Expert support available to confirm compatibility before purchase
