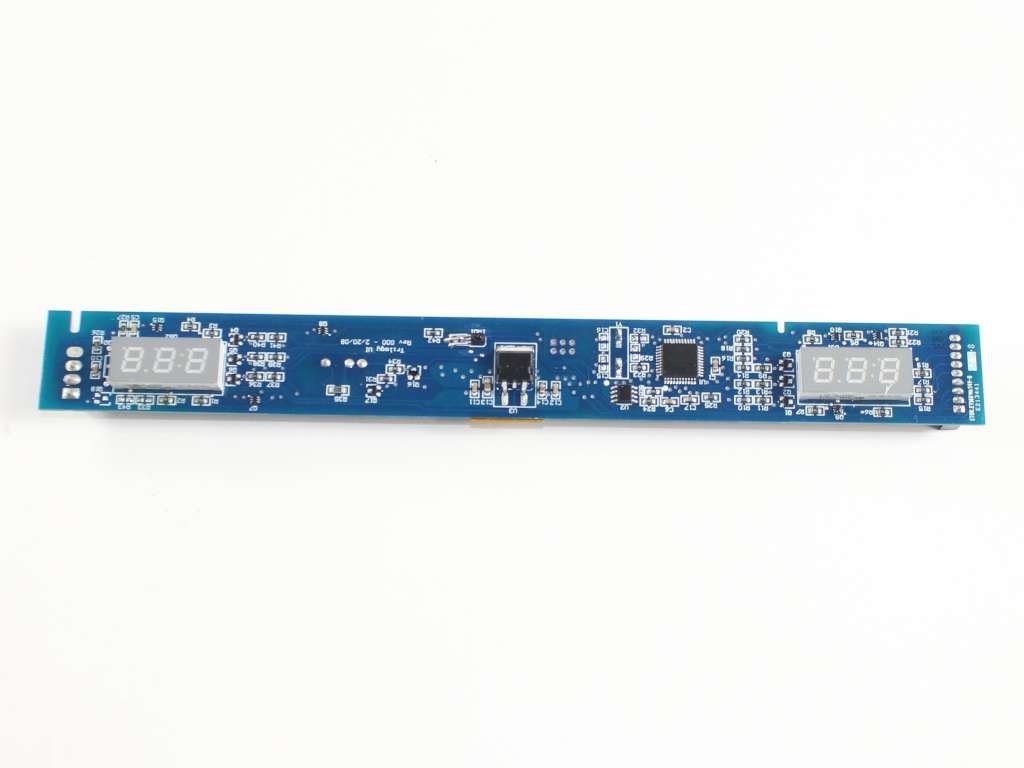

W10860447 - Genuine OEM Whirlpool Refrigerator Electronic Control Board

W10860447 – Genuine OEM Whirlpool Refrigerator Electronic Control Board

The W10860447 Genuine OEM Whirlpool Refrigerator Electronic Control Board is a factory-original replacement electronic control module designed for Whirlpool refrigerators and select compatible brands including Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This is a Genuine OEM electronic control board, engineered to precisely manage refrigeration system functions such as cooling cycles, defrost timing, compressor operation, and fan control.

Available from Appliance Kingdom (Edmonton, AB), this part ships fast across Canada, supporting homeowners, landlords, and appliance repair technicians nationwide.

A failing control board is one of the most common causes of temperature instability, non-cooling conditions, and erratic refrigerator operation, making this a critical diagnostic replacement part for Whirlpool refrigeration systems.

2. Function & Importance of the Part

The electronic control board (main PCB) acts as the brain of the refrigerator.

It continuously processes input from temperature sensors and user settings to regulate:

• Compressor activation and shutdown cycles

• Evaporator and condenser fan operation

• Automatic defrost cycles

• Internal temperature control accuracy

• Error detection and system protection functions

In Whirlpool refrigerators, OEM-grade control boards like W10860447 ensure precise communication between components. If this board fails or becomes unstable, the entire refrigeration system may lose coordination.

Because it controls multiple high-voltage and sensor-driven functions, OEM quality is essential for safety, performance stability, and long-term reliability.

3. Common Symptoms of a Failing Control Board

A defective W10860447 control board may cause the following refrigerator issues:

• Refrigerator or freezer not cooling properly

• Compressor not starting or running continuously

• Intermittent cooling cycles or temperature swings

• Refrigerator stuck in defrost mode or not defrosting

• Non-responsive controls or display issues

• Error codes appearing on the control panel

• Ice maker or fans not functioning correctly

• Unit running too warm or too cold unpredictably

If your refrigerator shows these symptoms, replacing the control board is often a key step in restoring proper operation—although sensor or wiring issues should also be ruled out during diagnosis.

4. Compatibility Guidance (Important)

This part is designed for Whirlpool refrigerator electronic control systems and compatible models across multiple Whirlpool-manufactured brands.

Before ordering, always confirm:

• Your refrigerator model number

• The original control board part number

• Matching electrical and connector configuration

If you are unsure, Appliance Kingdom can help verify compatibility before purchase.

5. Replaces Part Numbers

Confirmed cross-references include:

• AP5999372

• PS11731534

• W10625524

• 4383974

6. Key Features & Benefits

• Genuine OEM Whirlpool electronic control board

• Precision-engineered for refrigerator system control

• Regulates cooling, defrost, and compressor cycles

• Designed for long-term reliability and stable operation

• Direct factory replacement for accurate fit and function

• Trusted by appliance technicians and service professionals

• Supports consistent energy-efficient performance

7. Installation Overview

Installation Difficulty: Advanced

Replacing a refrigerator control board requires careful handling of electrical components and wiring connectors.

Basic steps include:

• Disconnect refrigerator power supply

• Access the control housing (typically rear or top section)

• Label and disconnect wiring harnesses

• Remove mounting screws and old control board

• Install new OEM board and reconnect wiring

• Restore power and test system functions

Because this is an electronic control component, professional installation is strongly recommended to avoid wiring errors or damage to other components.

8. Canada-Wide Availability & Supplier Trust

Appliance Kingdom is a Canada-based appliance parts supplier located in Edmonton, Alberta, providing reliable OEM replacement components nationwide.

Customers benefit from:

• Fast Canada-wide shipping

• OEM-quality verified appliance parts

• Support for homeowners and appliance technicians

• Reliable inventory for Whirlpool refrigerator repairs

• Trusted sourcing for long-term appliance performance

9. Buyer Confidence & Reassurance

When purchasing the W10860447 control board, customers receive:

• Genuine OEM Whirlpool-quality assurance

• Reliable electronic performance restoration

• Reduced risk of premature failure compared to aftermarket boards

• Compatibility verification support before ordering

• Nationwide Canadian delivery from a trusted supplier
