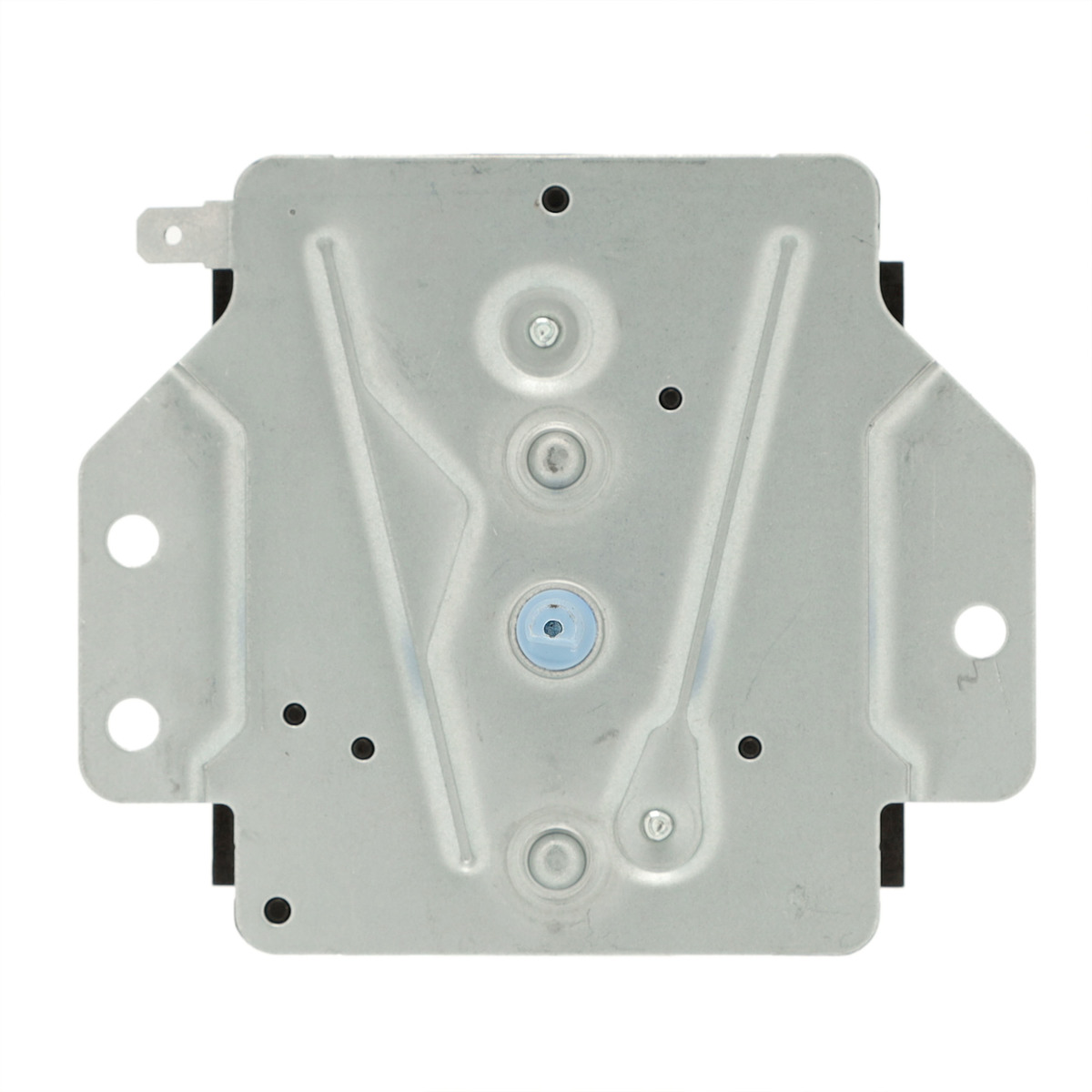

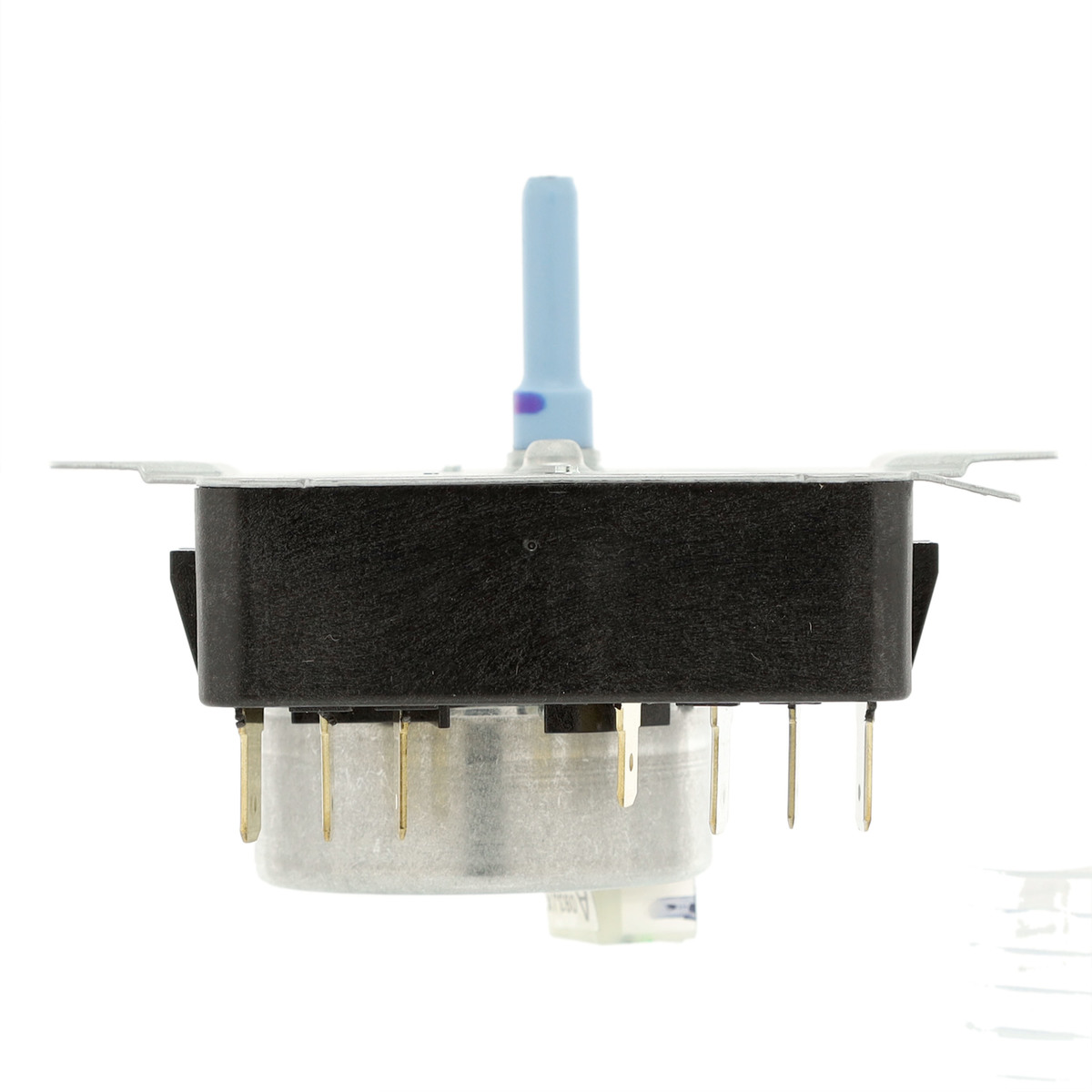

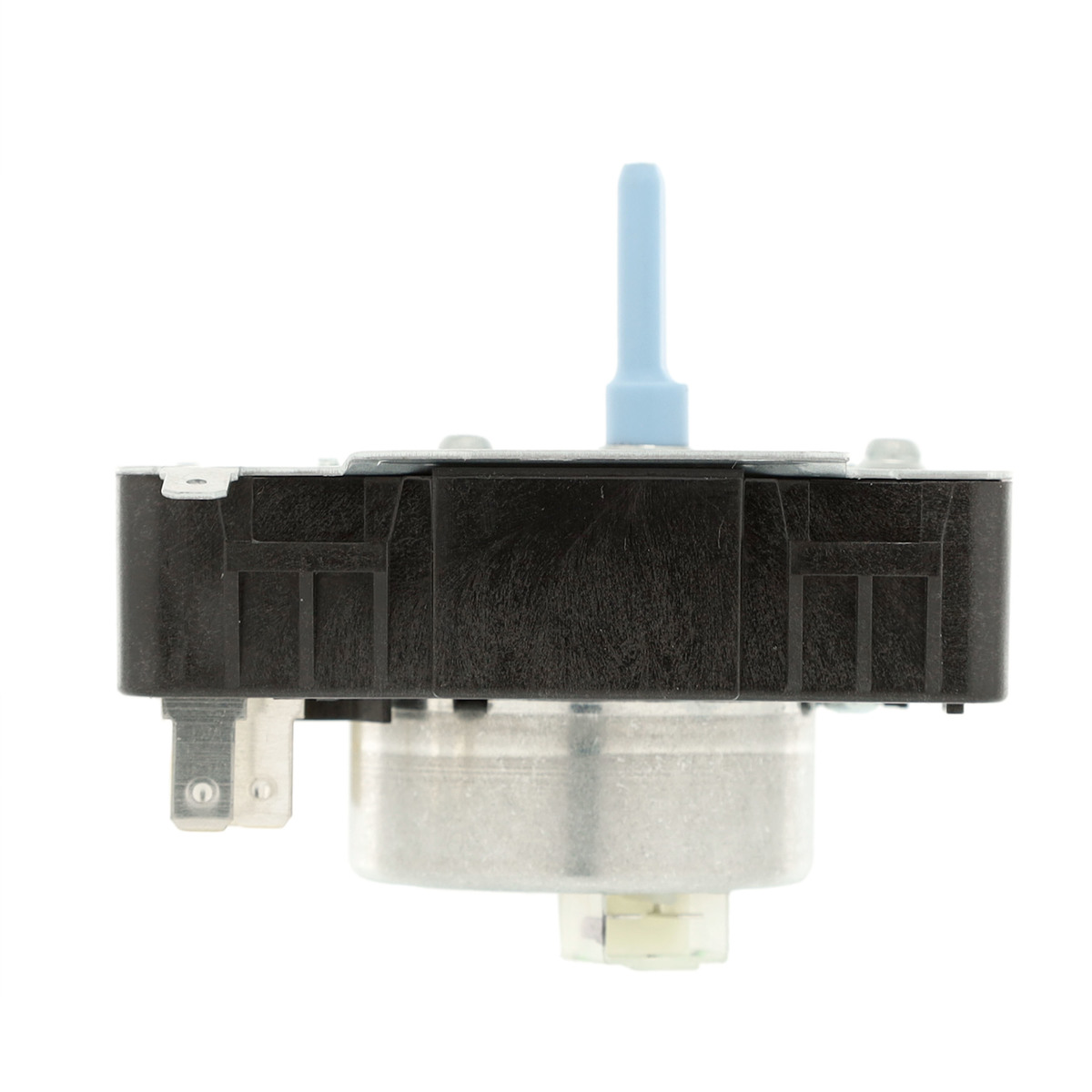

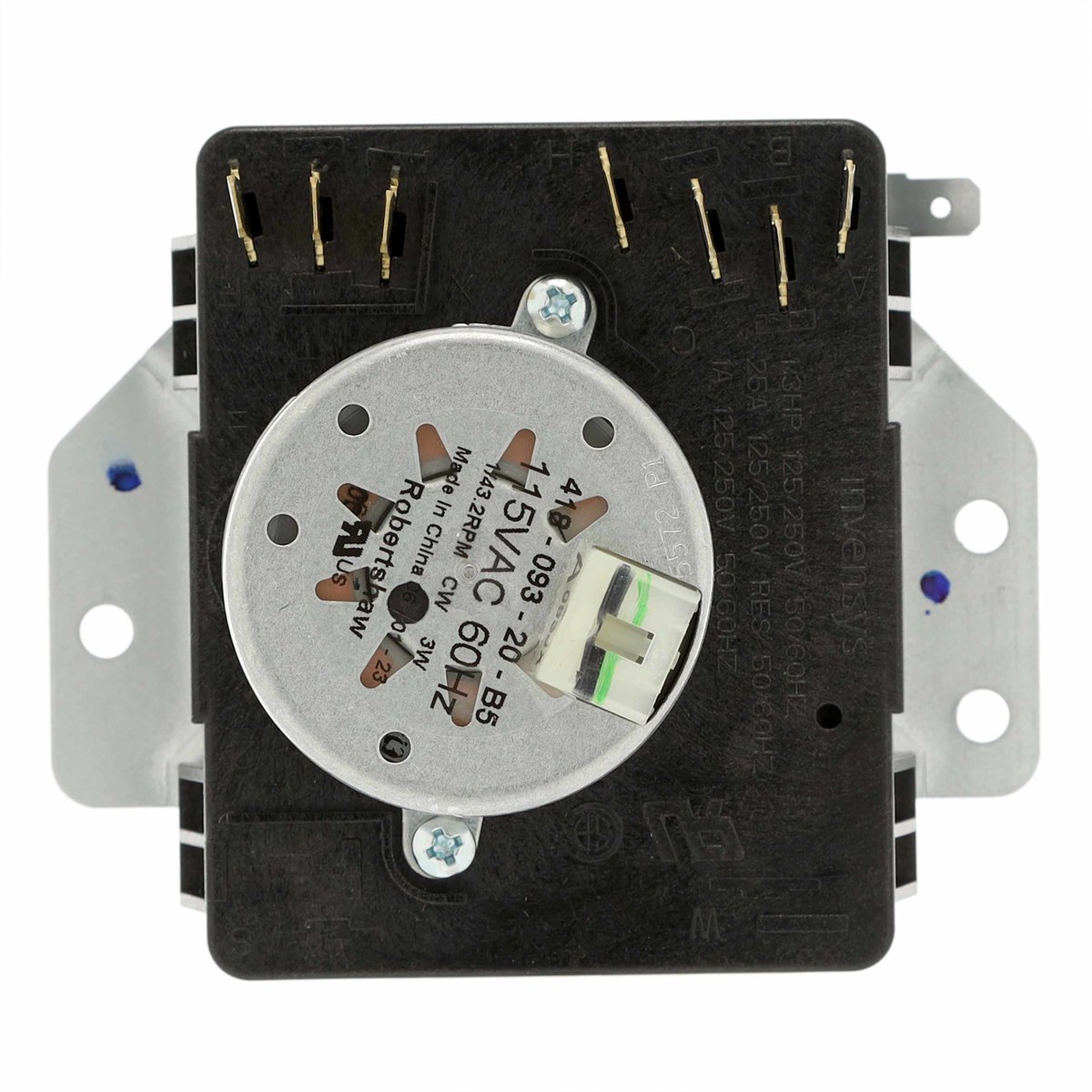

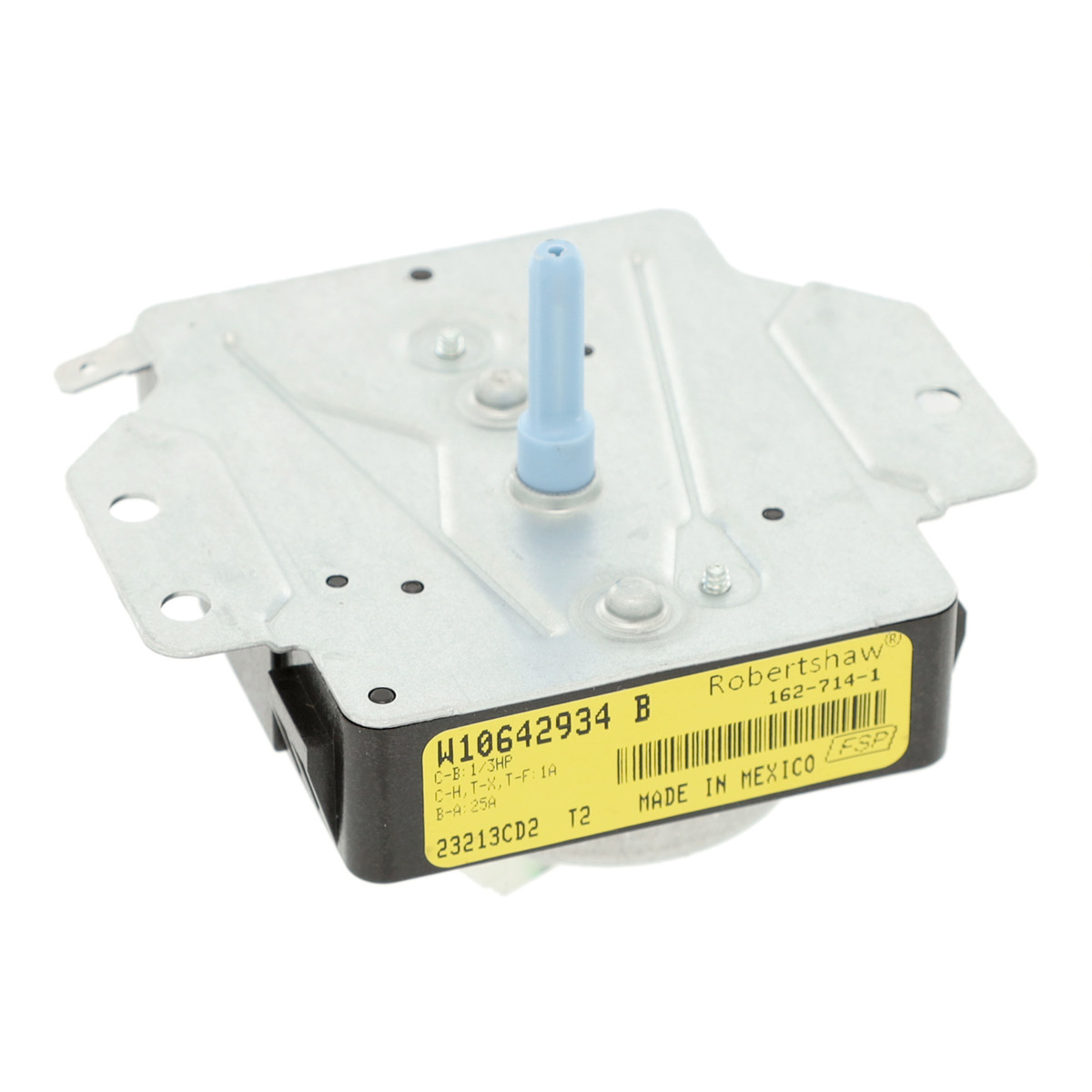

W10854240 - Genuine OEM Whirlpool Washer & Dryer Timer

W10854240 - Genuine OEM Whirlpool Washer & Dryer Timer

The W10854240 Genuine OEM Whirlpool Washer & Dryer Timer is a factory-engineered cycle control component designed for select Whirlpool laundry appliances, particularly washer/dryer combo units and laundry centres. As a genuine OEM part, it meets Whirlpool’s exact specifications to ensure proper cycle timing, reliable performance, and long-term durability. Available from Appliance Kingdom with fast, Canada-wide shipping, this timer is a trusted solution for restoring full appliance functionality.

If your laundry unit is failing to advance through cycles, stopping unexpectedly, or not starting at all, replacing the timer is one of the most effective and commonly required repairs.

Function & Importance of the Timer

The timer (cycle control) acts as the central sequencing mechanism in your washer/dryer combo. It regulates:

• Cycle start and stop timing

• Power distribution to key components like motors, valves, and heating elements

• Progression through wash and dry stages

Internally, the timer uses a motor-driven cam system and electrical contacts to control each phase of operation.

Using a Genuine OEM timer ensures:

• Accurate cycle timing and sequencing

• Proper voltage distribution to internal components

• Reduced risk of electrical faults or premature wear

A faulty or worn timer can disrupt the entire appliance, even if other components are still functioning correctly.

Common Symptoms of a Faulty Timer

If your washer/dryer combo is showing any of the following issues, the W10854240 timer may be the cause:

• Appliance won’t start or starts intermittently

• Cycles do not advance or get stuck mid-cycle

• Unit runs too long or shuts off too early

• Dryer does not heat or complete drying cycles properly

• Timer knob feels loose, unresponsive, or inconsistent

Will replacing this part fix your issue?
Yes—if your appliance is not progressing through cycles or behaving unpredictably, replacing the timer often restores normal operation, as it directly controls cycle sequencing and power flow.

Compatibility Guidance

• Designed for Whirlpool washer/dryer combo units and laundry centres

• Also compatible with multiple brands manufactured by Whirlpool, including Maytag, Amana, KitchenAid, and others

• Always verify your appliance model number before ordering to ensure correct fit

Replaces Part Numbers

The following replacement part numbers are verified from authoritative sources:

• W10642934

• AP5999223

• 4383816

• PS11731277

Key Features & Benefits

• Genuine OEM Whirlpool part for guaranteed compatibility

• Controls full cycle timing and sequencing

• Designed for washer/dryer combo applications

• Durable internal contacts and motor-driven mechanism

• Ideal for homeowners, landlords, and professional technicians

Installation Overview

Replacing the timer is considered a moderate-level repair:

• Requires accessing the control panel assembly

• Involves disconnecting and reconnecting multiple wires

• Best practice: transfer wires one at a time to avoid errors

Important:

• Disconnect power before installation

• Professional installation is recommended if you’re unfamiliar with electrical components

Canada-Wide Availability & Trusted Supply

Appliance Kingdom supplies genuine OEM appliance parts across Canada, ensuring fast delivery and reliable access to essential components. All parts are suitable for Canadian appliance standards and widely used by repair professionals nationwide.

Buyer Confidence & Support

• 100% Genuine OEM quality assurance

• Engineered for exact fit and dependable performance

• Reduces risk of repeat failures

• Expert support available to confirm compatibility before purchase
