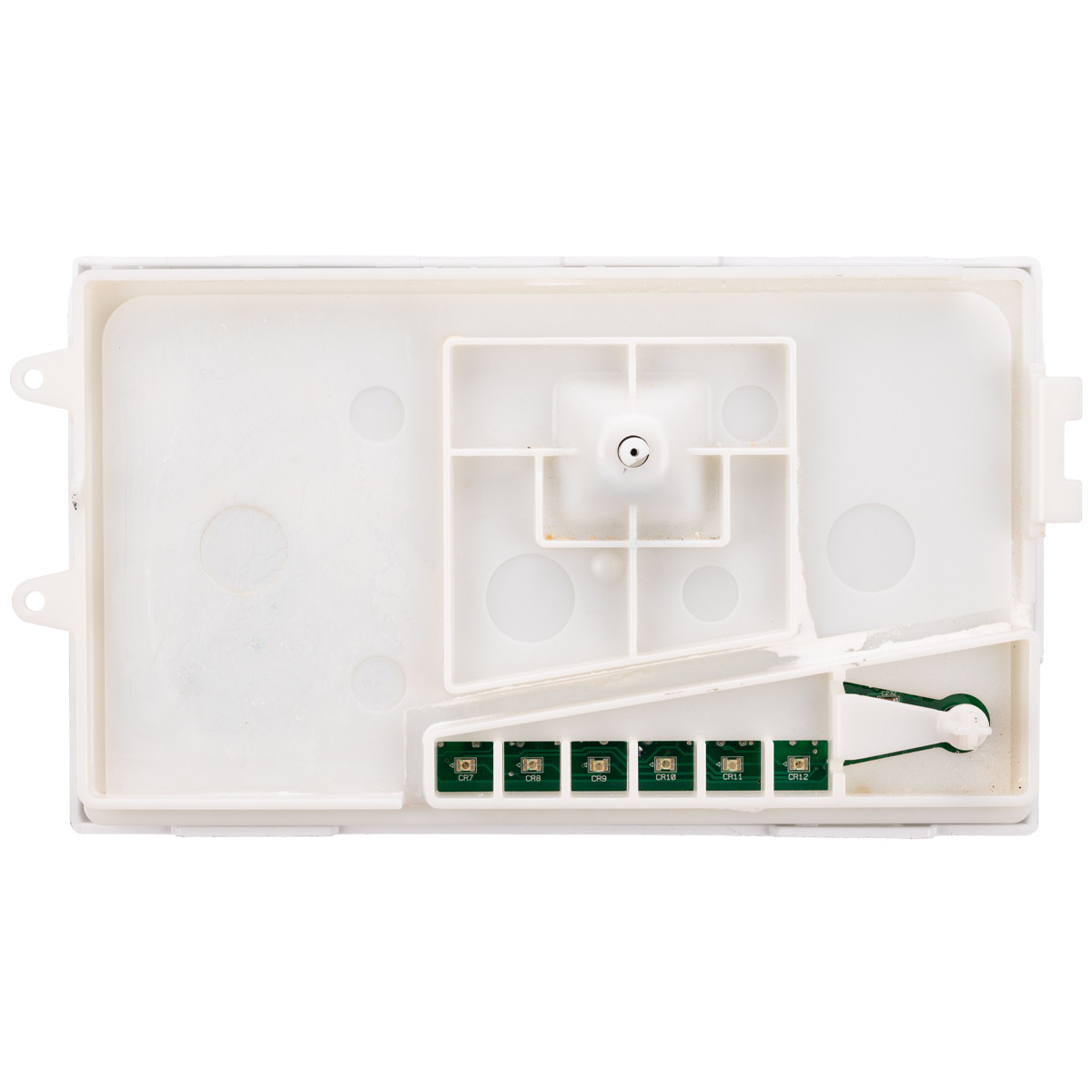

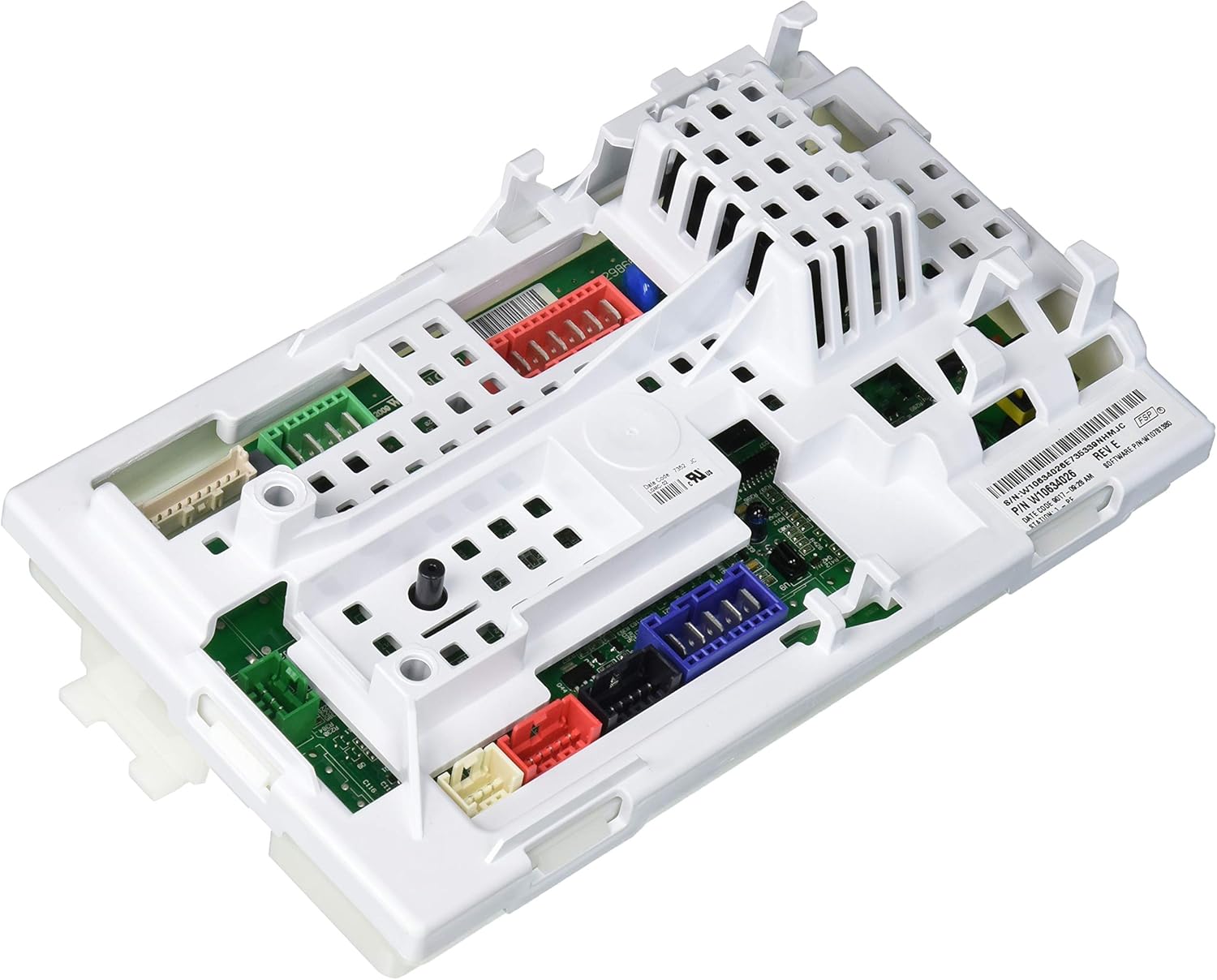

W10683781 - Genuine OEM Whirlpool Washer Electronic Control Board

W10683781 - Genuine OEM Whirlpool Washer Electronic Control Board

The W10683781 Genuine OEM Whirlpool Washer Electronic Control Board is the central control module designed for Whirlpool washing machines and compatible brands. As a genuine OEM part, it is manufactured to exact factory specifications, ensuring precise communication with all washer components and restoring full operational control. Available from Appliance Kingdom, this part ships across Canada, providing a reliable solution for homeowners, landlords, and professional technicians.

This electronic control board is a critical repair component that commonly resolves major washer performance failures, including machines that won’t start, won’t complete cycles, or behave unpredictably.

Function & Importance of the Control Board

The electronic control board acts as the “brain” of your washing machine. It manages and coordinates all essential functions, including:

• Water filling and level control

• Wash cycle timing and sequencing

• Agitation and spin operations

• Draining and pump activation

Without a functioning control board, your washer cannot properly execute or complete cycles. According to manufacturer data, this component directly controls filling, washing, draining, and spinning operations .

Using a Genuine OEM board ensures:

• Correct programming and cycle timing

• Safe electrical communication between components

• Long-term reliability without compatibility issues

Common Symptoms of a Faulty Control Board

A failing control board can cause a wide range of washer problems. You may need to replace this part if you notice:

• Washer won’t start or power on

• Cycles are too long, too short, or stuck

• Washer won’t fill, drain, spin, or agitate

• Unresponsive buttons or control panel

• Washer stops mid-cycle or fails to advance

• Erratic or inconsistent operation

Will replacing this part fix your issue?
If your washer is experiencing multiple system failures or inconsistent behaviour across different functions, the control board is often the root cause and replacing it typically restores normal operation.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used in select models from brands such as Maytag, Amana, KitchenAid, Jenn-Air, Kenmore, and others

• Always verify your appliance model number before ordering to ensure compatibility

Replaces Part Numbers

The following replacement part numbers are verified from authoritative sources:

• AP5951795

• PS10057020

• 3451324

• EAP10057020

Key Features & Benefits

• Genuine OEM Whirlpool control board

• Controls all major washer functions and cycle operations

• Ensures accurate timing, sequencing, and performance

• Built to meet original manufacturer specifications

• Reliable solution for complex washer failures

• Suitable for professional technicians and experienced DIY repairers

Installation Overview

Replacing a washer control board is considered a moderate to advanced repair:

• Requires accessing the control panel or rear housing

• Involves disconnecting and reconnecting multiple wire harnesses

• Care must be taken to avoid static damage to the board

Important:

• Always disconnect power before installation

• Handle the board carefully by edges only

• Professional installation is recommended if you are unfamiliar with electrical components

Canada-Wide Availability & Trusted Supplier

Appliance Kingdom supplies genuine OEM appliance parts across Canada, with fast and reliable shipping. All parts are suitable for Canadian appliance standards, ensuring safe and dependable performance in residential and commercial settings.

Buyer Confidence & Support

• 100% Genuine OEM part

• Designed for exact fit and proper functionality

• Helps restore full washer performance

• Expert support available to confirm compatibility before purchase
