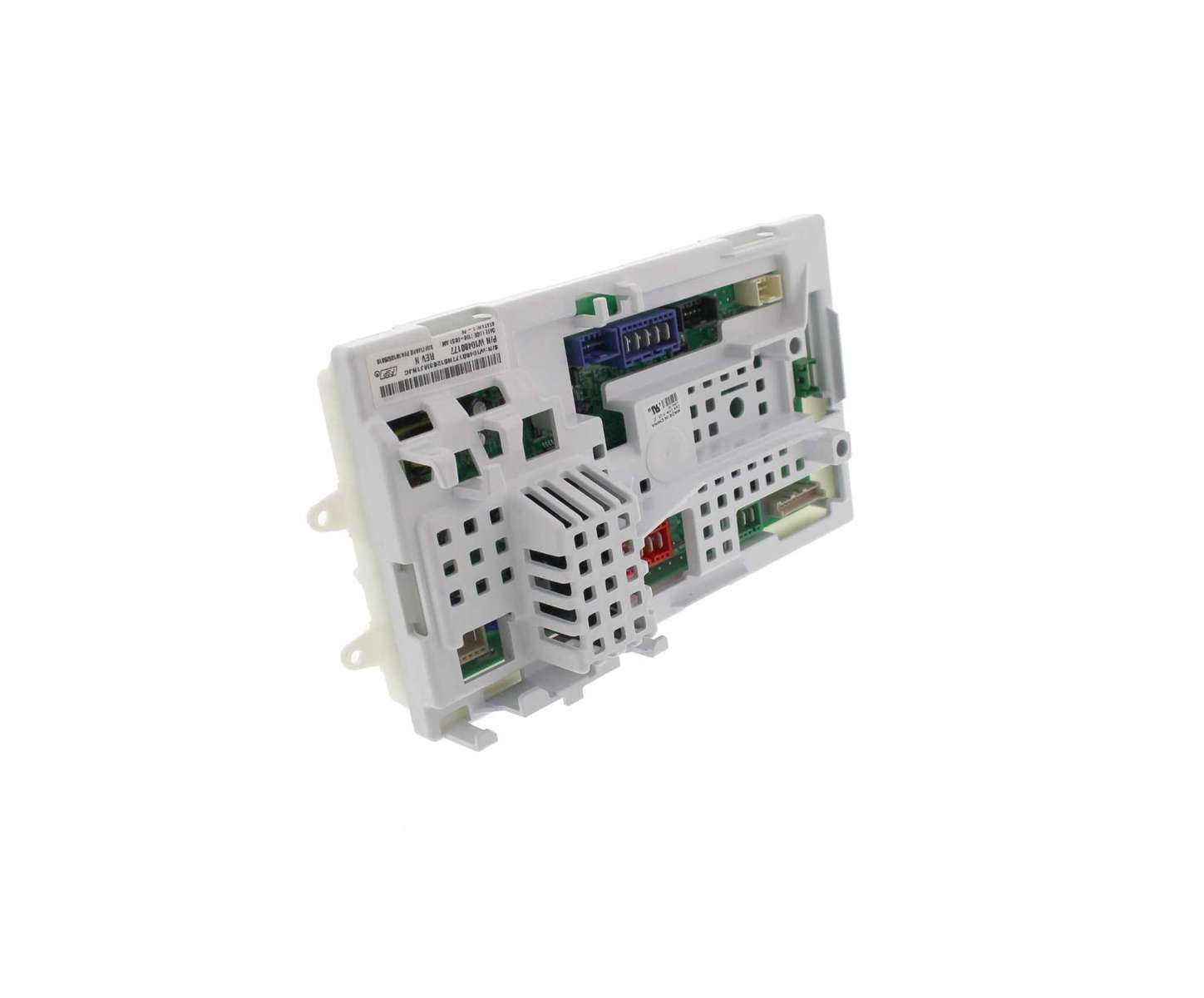

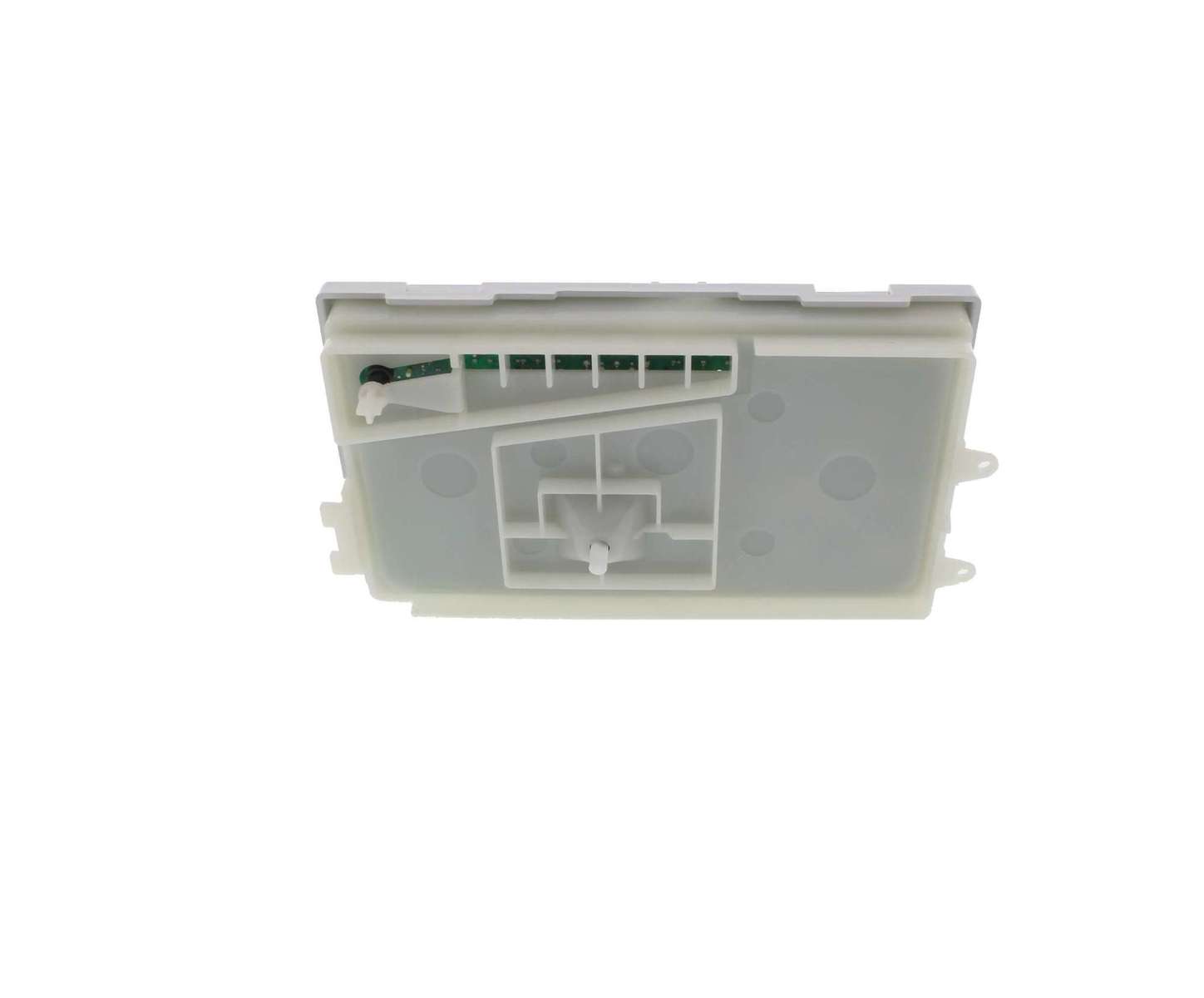

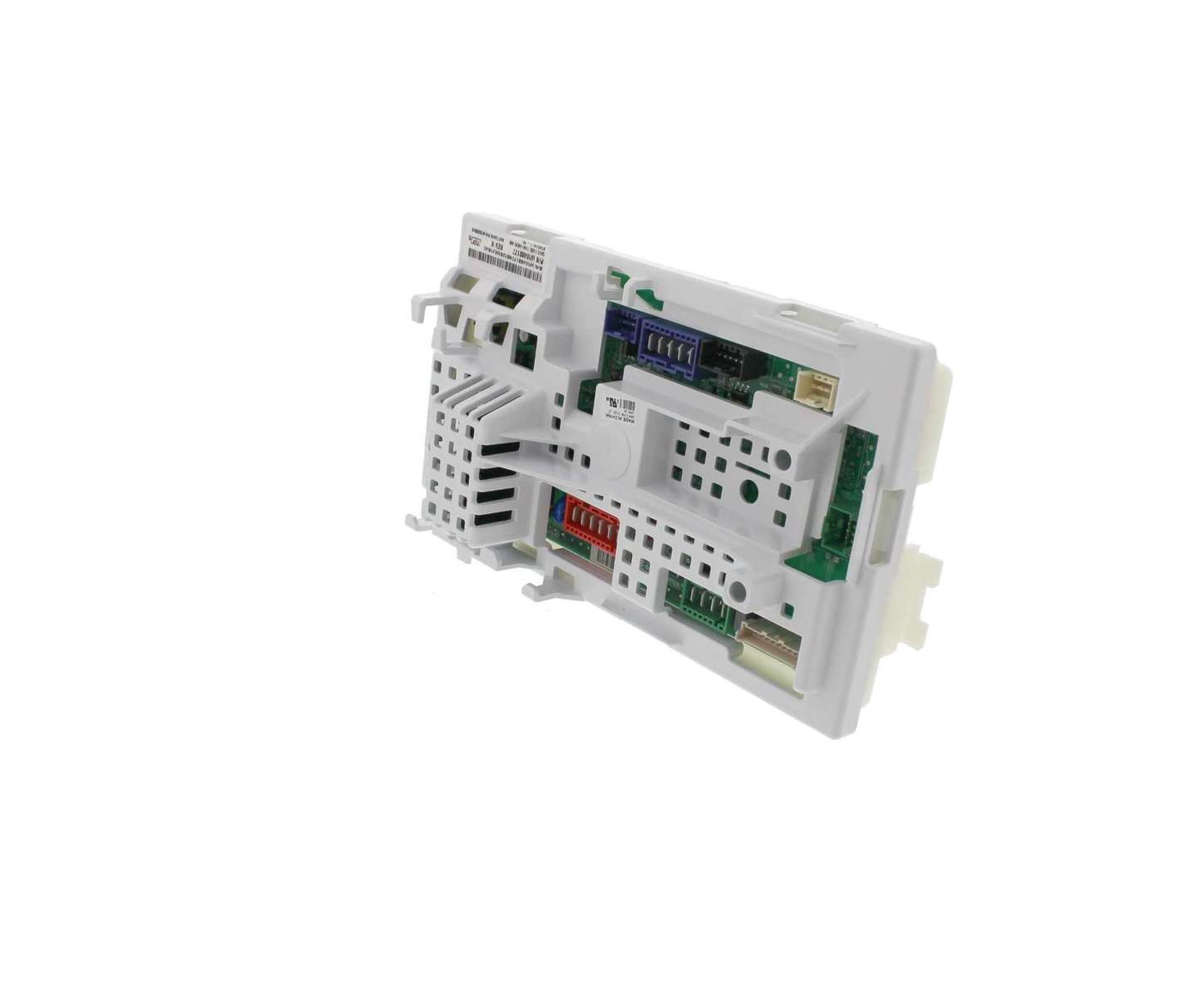

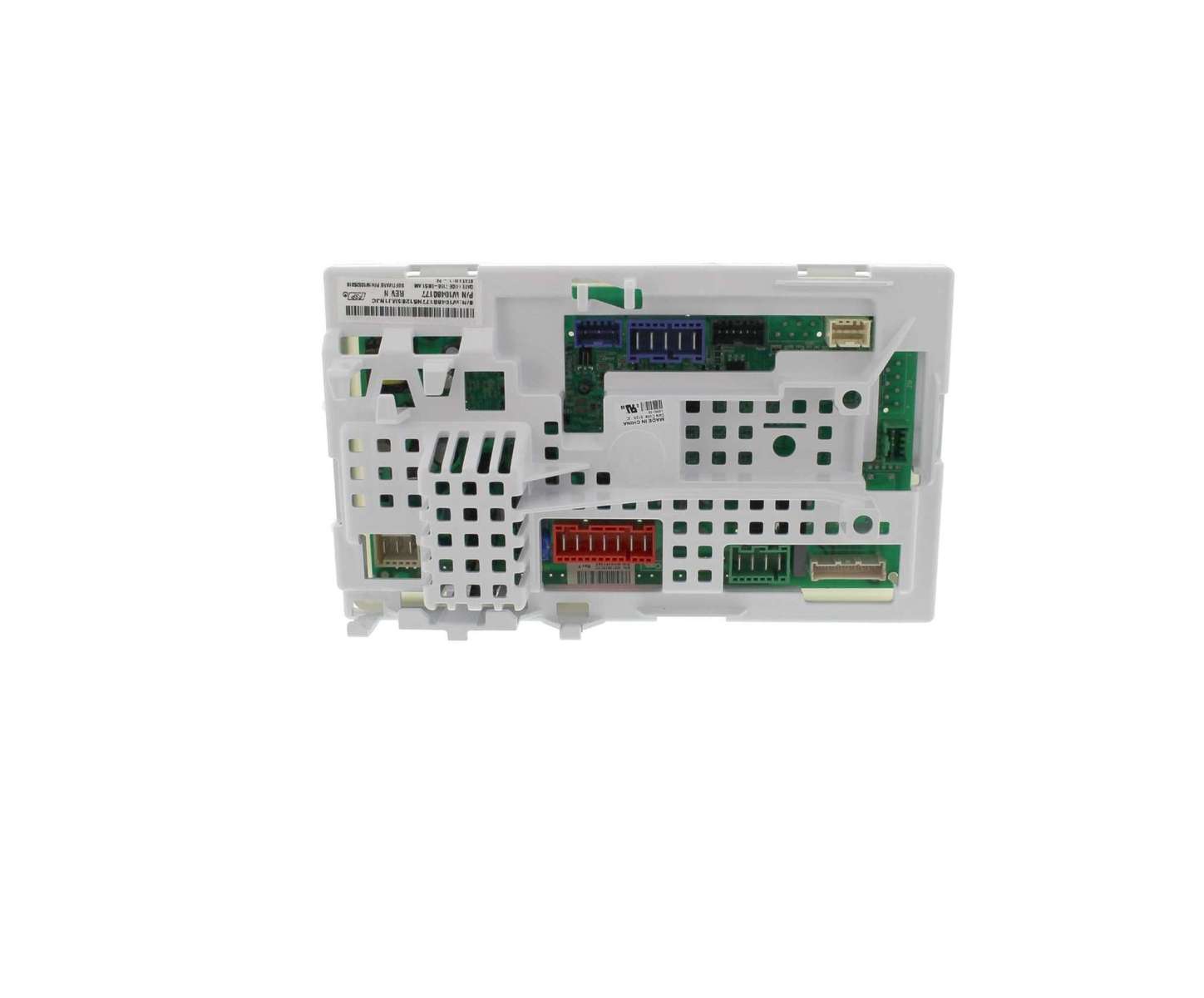

W10480177 - Genuine OEM Whirlpool Washer Electronic Control Board

W10480177 - Genuine OEM Whirlpool Washer Electronic Control Board

The W10480177 Genuine OEM Whirlpool Washer Electronic Control Board is the central “brain” of compatible Whirlpool washing machines. As a Genuine OEM (Original Equipment Manufacturer) component, this control board is engineered to Whirlpool’s exact factory specifications to ensure reliable, safe, and accurate washer operation. Available from Appliance Kingdom with Canada-wide shipping, this part is essential for restoring full washing machine functionality when cycles become unresponsive or erratic.

This electronic control board is commonly used to resolve major operational failures in Whirlpool washers, including units that will not start, do not complete cycles, or fail to respond to user inputs.

Function & Importance of the Control Board (Washer Category)

This part is classified under washing machine electronics and serves as the main control system of the washer.

The W10480177 control board manages all core washer operations, including:

• Water fill timing and water level control

• Wash, rinse, and spin cycle sequencing

• Drain pump activation

• Motor operation and speed control

• User interface communication and cycle commands

Because it coordinates all electrical signals inside the washer, even a minor failure in this board can cause the entire appliance to stop functioning correctly. OEM-grade accuracy is critical because improper voltage control or timing errors can damage other washer components.

Common Symptoms of a Failed Washer Control Board

If your Whirlpool washer control board is failing, you may notice:

• Washer will not turn on or has no response

• Cycles stop mid-wash or do not advance

• Washer fills but does not wash, drain, or spin

• Buttons or control panel become unresponsive or erratic

• Incorrect cycle timing or random resets during operation

• Error codes related to system control failure (varies by model)

In many cases, replacing the control board restores full washer operation when other components (motor, pump, inlet valve) are functioning correctly.

Will replacing this part fix my problem?
If your washer is experiencing system-wide electrical or cycle control failures, the control board is one of the most common root causes and replacement often restores normal operation.

Compatibility Guidance

• Designed for Whirlpool washing machines

• Also used across select Whirlpool-family brands including Maytag, Amana, KitchenAid, Jenn-Air, and others (model-dependent)

• Always verify your exact washer model number before ordering to ensure compatibility

Key Features & Benefits

• Genuine OEM Whirlpool electronic control board

• Restores full washer cycle control and responsiveness

• Engineered for precise communication between washer components

• High reliability for long-term appliance performance

• Suitable for homeowners, property managers, and appliance repair technicians

Installation Overview

Replacing a washer electronic control board is a moderate to advanced repair:

• Requires removal of the washer’s control panel or rear access panel

• Involves careful wire harness reconnection and handling of electronic components

• Must ensure power is fully disconnected before installation

• Incorrect installation can cause further electrical issues

Professional installation is recommended unless you have prior appliance repair experience.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom supplies genuine OEM appliance parts across Canada, ensuring fast and reliable shipping from within the country. All parts meet Canadian appliance standards and are suitable for residential and rental property appliance repairs nationwide.

Buyer Confidence & Assurance

• 100% Genuine OEM Whirlpool part

• Designed for accurate fit and reliable performance

• Helps restore full washer functionality when control systems fail

• Support available to assist with model verification before purchase
