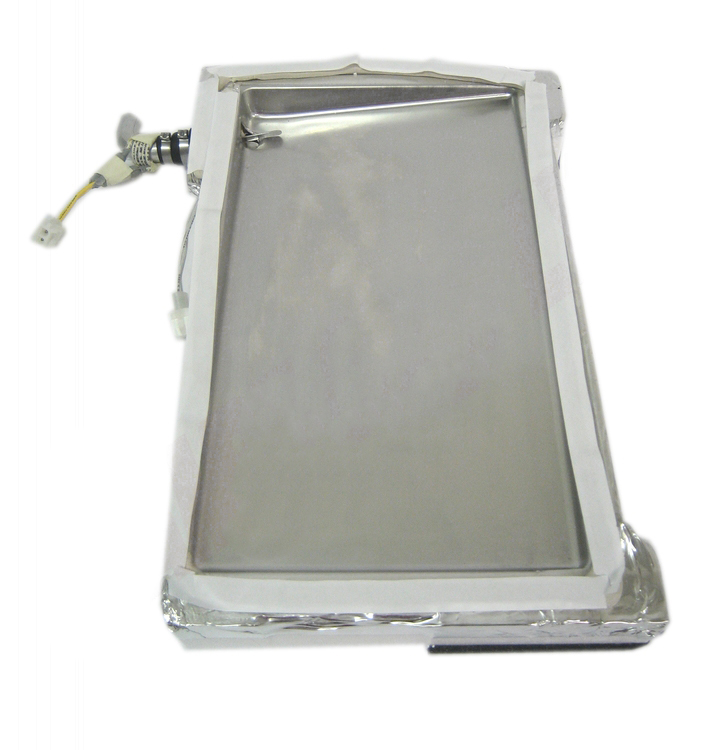

W10199915 - Genuine OEM Whirlpool Refrigerator Evaporator Drain Pan Kit

W10199915 – Genuine OEM Whirlpool Refrigerator Evaporator Drain Pan Kit

The W10199915 Genuine OEM Whirlpool Refrigerator Evaporator Drain Pan Kit is an original equipment manufacturer (OEM) replacement part designed for compatible refrigerators. Manufactured by Whirlpool, this kit includes a drain tube heater, drip pan, and drain tube to help collect and manage water produced during the refrigerator's automatic defrost cycle.

Available through Appliance Kingdom, a Canadian appliance parts supplier based in Edmonton, Alberta, this kit is intended for customers experiencing refrigerator water leaks or defrost drainage problems caused by a faulty or damaged drain pan assembly. We serve homeowners, landlords, and professional appliance technicians across Canada with nationwide shipping.

Function & Importance of the Evaporator Drain Pan Kit

The evaporator drain pan kit sits beneath the evaporator area and collects water generated during the refrigerator's defrost cycle. The drain tube directs the water through the designated drainage path, while the drain tube heater helps prevent water from freezing in the drain area.

When this assembly becomes damaged or its heater or drainage components fail, water may not drain correctly. This can lead to water leakage, ice accumulation around the drainage area, or recurring defrost drainage issues.

Using a genuine OEM replacement helps maintain the intended fit and operation of the refrigerator's drainage system.

Common Symptoms Indicating Replacement

A faulty W10199915 evaporator drain pan kit may be associated with the following symptoms:

• Water leaking from the refrigerator or freezer area.

• Water collecting around the bottom of the appliance.

• Ice buildup around the evaporator drainage area.

• Defrost water freezing before it can drain properly.

• Recurring drainage problems associated with a damaged pan, drain tube, or failed drain tube heater.

These symptoms can also result from other refrigerator components or drainage obstructions. Replacing the kit is most likely to resolve the issue when inspection confirms that the existing drain pan assembly or one of its included components has failed.

Will Replacing W10199915 Fix My Refrigerator?

It can, if the problem originates from the evaporator drain pan kit, drain tube, or included heater. If the leak is caused by a blocked drain, a different damaged component, or another source of water, replacing this kit alone may not solve the problem. Proper diagnosis is recommended before ordering.

Compatibility & Ordering Guidance

W10199915 is a genuine Whirlpool refrigerator evaporator drain pan kit used in selected refrigerator applications associated with Whirlpool and other related appliance brands.

Before purchasing, check your refrigerator's complete model number against an authoritative parts catalogue. Similar-looking drain pans may differ in dimensions, mounting points, heater configuration, or drainage connections.

If you need help confirming compatibility, contact Appliance Kingdom with your complete refrigerator model number before placing your order.

Replaces Part Numbers

The following replacement and cross-reference numbers are documented by approved appliance parts sources, including PartSelect and Reliable Parts:

• AP4340983

• 1456278

• 67001406

• 67003237

Confirm the correct replacement relationship for your specific refrigerator model before ordering.

Key Features & Benefits

• Genuine OEM Whirlpool replacement part.

• Manufacturer part number: W10199915.

• Designed for compatible refrigerator applications.

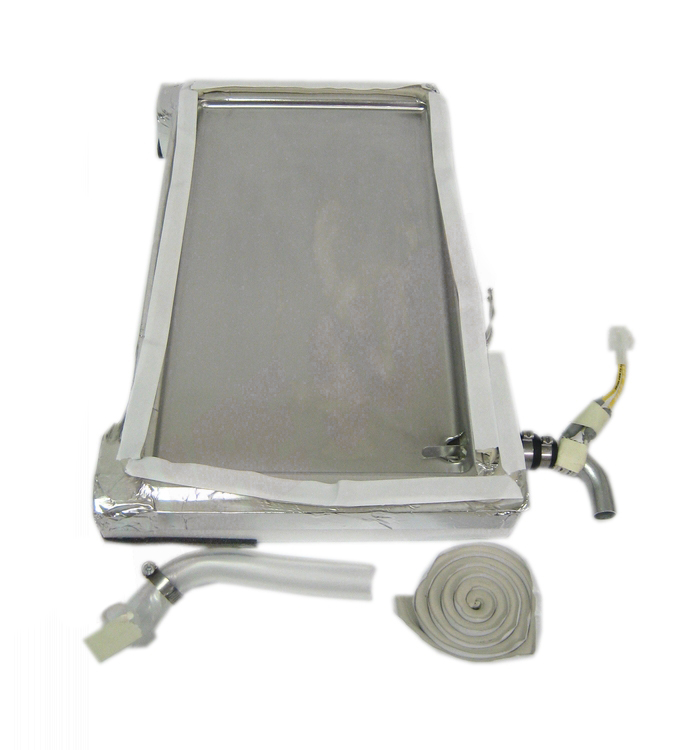

• Includes the drain tube heater, drip pan, and drain tube.

• Helps manage water produced during automatic defrosting.

• Supports proper drainage when the original assembly is faulty.

• Intended for the appliance's specified fit and operating requirements.

• Suitable for homeowners, landlords, property managers, and professional appliance repair technicians.

Installation Overview

Replacing the W10199915 evaporator drain pan kit is generally a moderate repair that may require access to the refrigerator's internal evaporator area, removal of panels, and disconnection of electrical connections or drainage tubing.

An experienced DIYer may be able to complete the repair using the appropriate tools and model-specific service instructions. However, because the kit includes a heater and involves electrical connections, professional installation is recommended if you are unfamiliar with refrigerator repairs.

Always disconnect the refrigerator from electrical power before servicing it. Protect stored food appropriately while the appliance is switched off, and follow the manufacturer's service procedures.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, serving customers nationwide.

We supply appliance replacement parts to homeowners, landlords, property managers, and professional repair technicians across Canada. Our goal is to help customers identify the correct component for their appliance and purchase with confidence.

For the best fit assurance, verify your refrigerator's model number before ordering. Contact our team if you need assistance confirming compatibility.

Buyer Confidence & Quality Assurance

Choosing a genuine OEM Whirlpool component helps ensure that the replacement is intended for the specified appliance application. The W10199915 kit combines the drip pan, drain tube, and drain tube heater in one assembly, providing a practical replacement option when the original components have failed.

For reliable results, confirm the part number against your refrigerator's model-specific parts information and investigate the source of any leak before installation.
