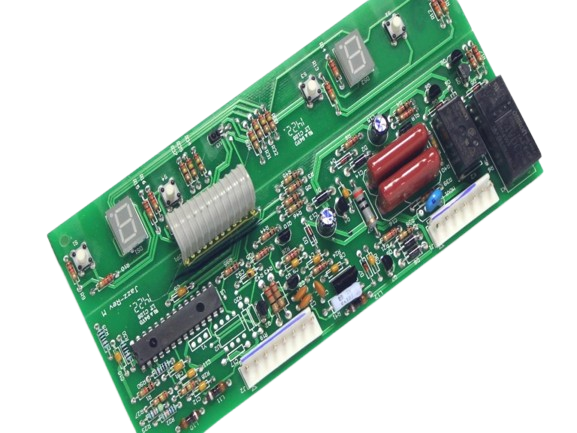

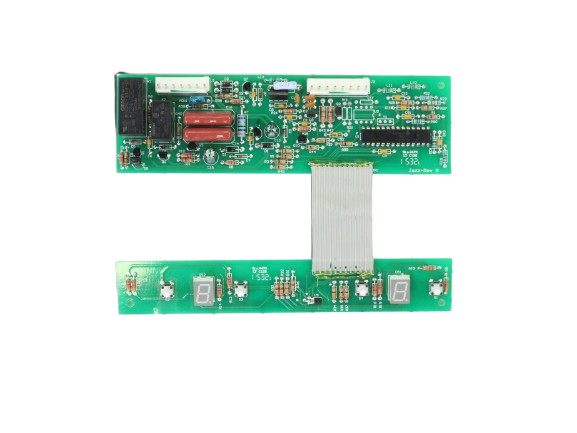

TR10503278 - Genuine OEM Universal Refrigerator Main Control Board

SKU : TR10503278
$119.99
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

TR10503278 – Genuine OEM Universal Refrigerator Main Control Board

The TR10503278 Genuine OEM Universal Refrigerator Main Control Board is a high-performance OEM-grade electronic control module designed for use in refrigerator systems (appliance control category: Refrigeration – Refrigerator Main Control Board). This replacement control board is engineered to manage and coordinate the core electrical operations of a refrigerator, including cooling cycles, defrost timing, compressor control, and fan operation.

Available in Canada through Appliance Kingdom (Edmonton, AB), this control board is a trusted replacement solution for technicians, landlords, and homeowners dealing with refrigerator failures caused by electronic control faults. It is designed to restore stable cooling performance and system communication across key refrigerator components.

Function & Importance of the Part

The main control board is the central “brain” of the refrigerator. It continuously monitors sensors and directs electrical signals to essential components such as:

  • Compressor operation

  • Evaporator and condenser fan motors

  • Defrost heater system

  • Temperature sensors and thermistors

  • Door and internal system controls

When the control board operates correctly, it ensures precise temperature regulation and energy-efficient performance.

Because modern refrigerators rely heavily on electronic control systems, correct OEM-grade specifications are critical. A mismatched or low-quality board can lead to unstable cooling, improper defrost cycles, or complete system failure.

A failing control board can disrupt communication between components, causing unpredictable refrigerator behaviour or total shutdown of cooling functions.

Common Symptoms Indicating Replacement

A failing or defective refrigerator main control board may cause:

  • Refrigerator not cooling or freezer not freezing properly

  • Compressor not starting or running continuously

  • Intermittent cooling performance or temperature fluctuations

  • Refrigerator stuck in defrost mode or not defrosting at all

  • Non-responsive control panel or display issues

  • Fans running incorrectly or not operating at all

  • Clicking sounds or irregular cycling

  • Complete loss of cooling despite interior lights working

If these symptoms are present and other components (fans, sensors, compressor relay) test correctly, the control board is often the root cause.

Compatibility Guidance (Important)

The TR10503278 is a refrigerator main control board replacement used in refrigerator electronic control systems.

Before purchasing:

  • Always verify your refrigerator’s full model number

  • Confirm original board part number match and electrical configuration

  • Ensure connector layout and programming requirements are compatible

If uncertain, Appliance Kingdom can help verify compatibility before ordering to avoid incorrect installations.

Replaces Part Numbers (Verified Compatibility Data)

Based on verified cross-reference data for Whirlpool-family refrigerator main control boards, this category of control board is associated with multiple superseded and alternate part numbers, including:

  • W10503278

  • WPW10503278

  • 12002339

  • 12002445

  • 12002449

  • 12002508

  • 12002509

  • 12002567

  • 12002706

  • 12784415 / 12784415V

  • 12868502 / 12868510 / 12868513

  • 67003867 / 67004453 / 67004496

  • 67004907 / 67005043 / 67005280 / 67005281

(These are established cross-referenced replacements for Whirlpool-compatible refrigerator main control boards.)

Key Features & Benefits

  • Genuine OEM universal refrigerator control board design

  • Restores full cooling system control functionality

  • Manages compressor, fans, and defrost cycles efficiently

  • Built to OEM electrical and safety specifications

  • Reliable long-term performance and system stability

  • Suitable for professional appliance repair technicians and advanced DIY users

  • Helps eliminate intermittent cooling and electronic failure issues

Installation Overview

Installation Difficulty: Advanced

Replacing a refrigerator main control board typically requires:

  • Safe electrical disconnection

  • Accessing rear or control housing panel

  • Transferring multiple wiring harness connections

  • Possible board programming or calibration after installation

Because this component directly controls high-voltage and system-critical functions, professional installation is strongly recommended, especially when programming is required after replacement.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom supplies the TR10503278 OEM refrigerator control board across Canada, ensuring fast shipping from Edmonton, Alberta.

Customers benefit from:

  • Nationwide Canadian shipping

  • Genuine OEM and high-quality replacement parts

  • Support for compatibility verification before purchase

  • Trusted supply for technicians, property managers, and homeowners

  • Parts designed for Canadian appliance standards and usage conditions

Buyer Confidence & Reassurance

  • OEM-grade electronic reliability

  • Tested compatibility within refrigerator control systems

  • Helps restore full appliance functionality when control board failure is the cause

  • Expert support available to confirm correct part selection

  • Trusted Canadian supplier with appliance repair expertise
