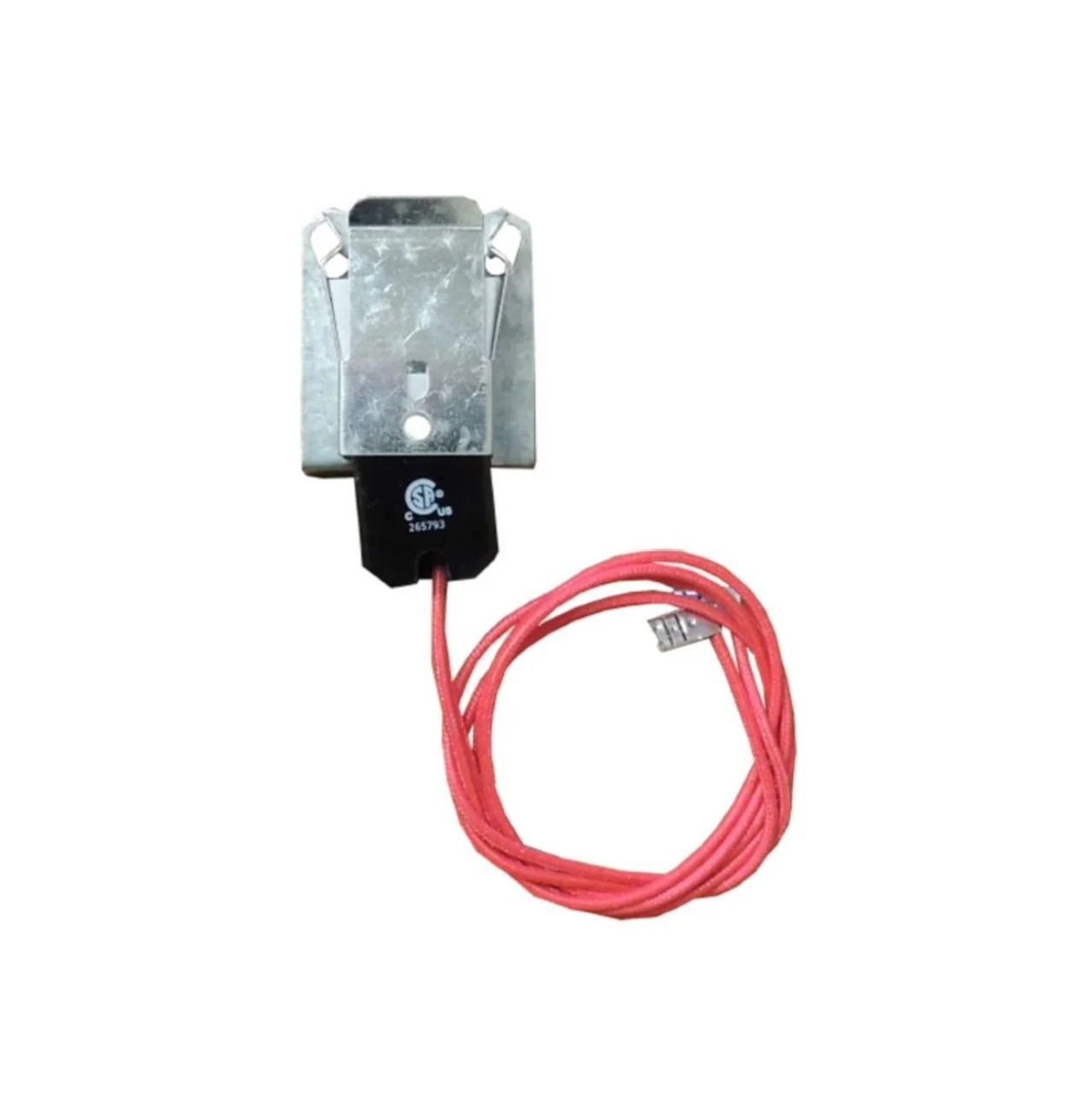

TJRR146 - Universal Supco Universal Oven Range Element Receptacle

SKU : TJRR146
$9.97
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

TJRR146 - Supco Universal Oven Range Element Receptacle

The TJRR146 Universal Oven Range Element Receptacle is a high-quality aftermarket SUPCO replacement part designed for compatible electric ranges, cooktops, stoves, and ovens. Also identified as SUPCO RR146, this receptacle connects the range's wiring harness to the surface heating element, allowing electrical power to reach the element. SUPCO identifies RR146 as a universal range surface-element receptacle for domestic ranges and notes that it includes a mounting bracket and 24-inch leads.

This replacement receptacle is intended for compatible range applications where a worn or damaged element receptacle is preventing the surface element from operating correctly. Appliance Kingdom supplies appliance replacement parts across Canada, with fast shipping available to customers nationwide.

What Does the TJRR146 Range Element Receptacle Do?

The range element receptacle is the electrical connection point between the appliance wiring and the removable surface heating element. It transfers electrical power from the range's wiring harness to the surface element so the element can heat normally.

A damaged receptacle can develop poor electrical contact, overheating, or connection problems. When this happens, the surface element may stop heating even though other parts of the range continue to operate normally.

Using a properly matched replacement receptacle is important because the terminal arrangement, mounting configuration, wiring, and heat resistance need to be appropriate for the range and surface element. An incorrect component can result in poor electrical contact or unreliable operation.

Common Symptoms of a Failed Range Element Receptacle

A damaged or failed surface-element receptacle may cause:

  • Surface element does not heat

  • Surface element will not start

  • One burner stops working while other burners operate normally

  • Intermittent heating from a surface element

  • Loose or unreliable electrical connection at the element

  • Visible damage or deterioration around the receptacle

AMRE Supply and Reliable Parts specifically identify a surface element that will not heat or will not start as possible symptoms associated with this receptacle. They also note that these symptoms can have other causes and should therefore be used as a repair guideline rather than a definitive diagnosis.

Will Replacing TJRR146 Fix My Range?

Replacing the receptacle can resolve the problem when the receptacle or its electrical connection is the cause of the surface element failure.

However, a surface element that does not heat can also result from other electrical or heating components. Before ordering, inspect the receptacle and wiring and diagnose the appliance to confirm that the receptacle is the failed component.

Compatibility & Ordering Guidance

TJRR146/RR146 is intended for compatible domestic electric range and surface-element applications. SUPCO identifies RR146 as fitting most thumbnail-style surface elements commonly found on GE built-in ranges manufactured prior to 1994.

Reliable Parts also lists the RR146 for GE, Hotpoint, and Moffat oven/range applications.

Because receptacles can look similar while having different sizes, shapes, terminals, or mounting configurations, always verify the complete appliance model number and existing part before ordering. Reliable Parts specifically recommends confirming the part number against the appliance model before purchase.

Replaces Part Numbers

Verified replacement and cross-reference information for SUPCO RR146/TJRR146 includes:

  • 101253

  • 101254

  • 107

  • 36383-20

  • 36383-21

  • 38-PBM

  • 902597

  • PBM

  • PB-M

  • RM36383-20

  • WB17M112

  • WB17M144

  • WB17M146

  • WB2M1722

  • WB2M1723

  • WG02F05815

Reliable Parts lists these numbers as replacement parts for RR146. SUPCO's official product page also identifies WB17M146 as the replacement reference for RR146.

Key Features & Benefits

  • SUPCO universal range surface-element receptacle

  • Part number: TJRR146 / RR146

  • High-quality aftermarket replacement construction

  • Connects the range wiring harness to the surface heating element

  • Includes a mounting bracket and 24-inch leads according to SUPCO

  • Designed for compatible domestic range applications

  • Helps restore electrical connection to a non-heating surface element

  • Suitable for homeowners, landlords, property managers, and professional appliance technicians

  • Available for Canadian appliance repair applications

Installation Overview

Replacing a range element receptacle is generally an intermediate electrical appliance repair. The repair may involve removing the surface element, accessing the receptacle and wiring, disconnecting the damaged component, and installing the replacement with the appropriate connections.

SUPCO specifies that RR146 includes a bracket and 24-inch leads, while other appliance-parts sources classify the repair as requiring some basic tools and disassembly.

Always disconnect the range from electrical power before beginning the repair. Because this component carries electrical current and is associated with a high-temperature heating element, professional installation is recommended if you are not experienced with appliance electrical repairs.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian appliance-parts supplier based in Edmonton, Alberta, serving homeowners, landlords, property managers, and appliance repair professionals across Canada.

The TJRR146 Universal Oven Range Element Receptacle is available for customers looking for a replacement surface-element receptacle for a compatible electric range or cooktop. We ship appliance parts across Canada and provide support to help customers identify the correct replacement component.

For the best compatibility confidence, provide your complete appliance model number and, where possible, the number printed on your existing receptacle.

Buyer Confidence

TJRR146/RR146 is a SUPCO universal replacement receptacle rather than a genuine OEM appliance-brand part. SUPCO identifies RR146 as its universal range surface-element receptacle and provides the corresponding GE replacement reference WB17M146.

For reliable fit and performance, verify the appliance model, existing receptacle configuration, terminal arrangement, and mounting style before ordering.

If you are unsure whether TJRR146 is the correct replacement for your range, Appliance Kingdom can help you verify compatibility before purchase.
