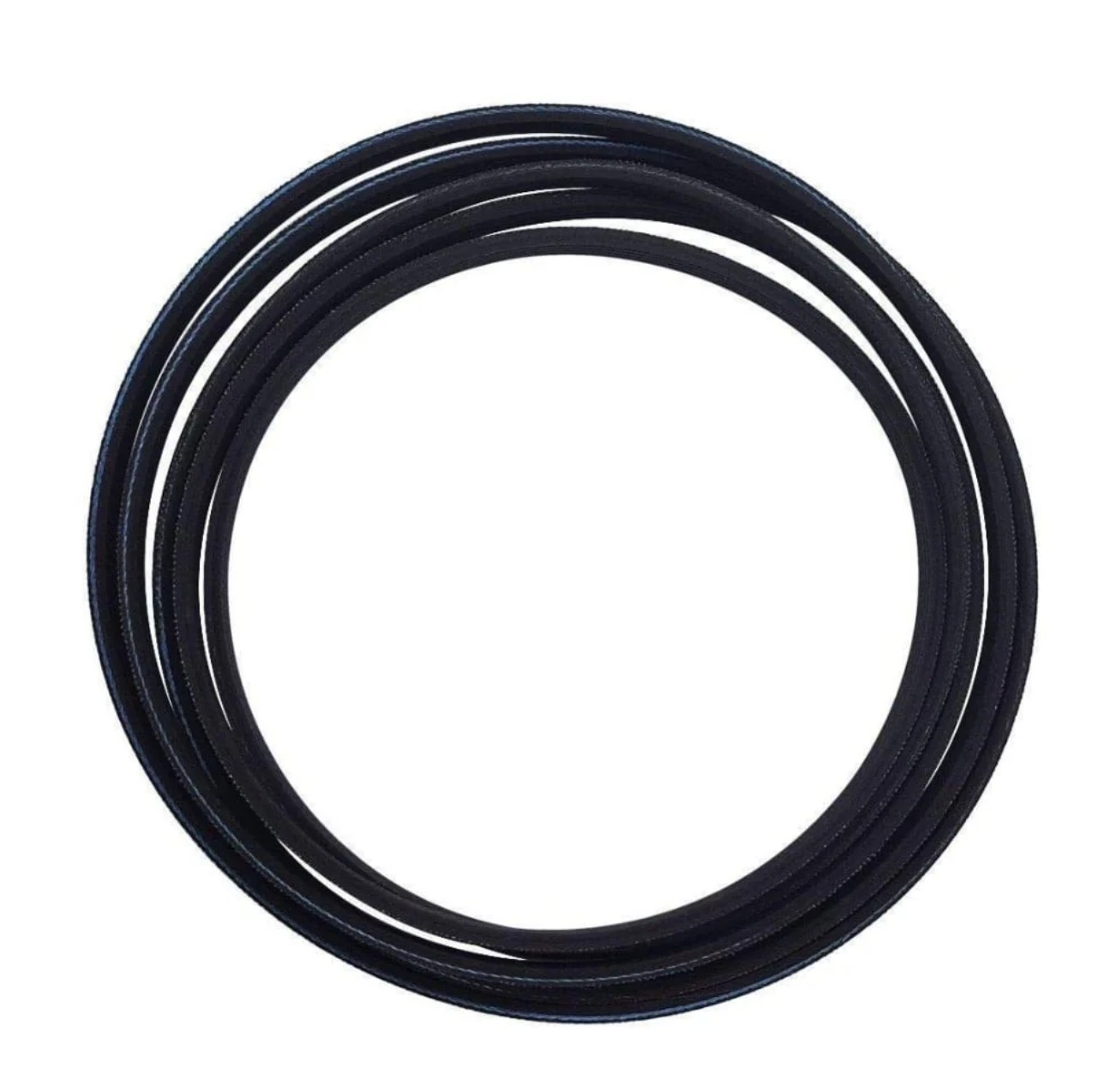

TJLB1655 - Universal Supco Dryer Drum Belt Replacement Part

TJLB1655 - Universal Supco Dryer Drum Belt Replacement Part

The TJLB1655 Universal Supco Dryer Drum Belt Replacement Part is a high-quality replacement dryer drive belt designed for compatible domestic clothes dryers. The corresponding Supco LB1655 belt is a flat 92-inch dryer belt measuring approximately 5/16 inch wide, with 5 ribs and 4 grooves. Supco identifies the LB1655 as a dryer drive belt for compatible Samsung brand dryers.

This dryer drum belt connects the dryer motor to the drum, allowing the drum to rotate during the drying cycle. When a worn or broken belt prevents normal drum rotation, replacing the belt can restore proper dryer operation when the belt is confirmed as the failed component.

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, serving homeowners, landlords, and professional appliance technicians across Canada.

What Does the TJLB1655 Dryer Drum Belt Do?

The dryer drum belt transfers rotational power from the drive motor to the dryer drum. As the motor turns, the belt moves the drum so clothes can tumble during the drying cycle.

The Supco LB1655 specification is approximately 92 inches long and 5/16 inch wide, with 5 ribs and 4 grooves. Correct belt dimensions and rib/groove configuration are important because the belt must properly engage with the dryer drum, motor pulley, and belt-routing system.

A belt that is stretched, cracked, damaged, or broken can prevent the drum from rotating correctly and may cause the dryer to operate abnormally.

Common Symptoms of a Worn or Broken Dryer Drum Belt

A failed or worn dryer drum belt can be associated with symptoms including:

• Dryer drum does not tumble

• Dryer will not start or operate normally

• Unusual squeaking or loud operating noises

• Burning or overheated rubber smell

• Dryer takes longer than normal to dry clothes

• Dryer produces little or no effective tumbling

• Drum stops rotating during operation

AMRE Supply specifically lists failure symptoms associated with this belt, including failure to tumble, unusual or loud noise, failure to start, insufficient or no heat, longer drying times, and burning smell. However, these symptoms can also be caused by other dryer components, so diagnosis is recommended before replacing the belt.

Will Replacing the TJLB1655 Fix My Dryer?

If the dryer belt is broken, stretched, worn, or otherwise unable to properly drive the drum, replacing the belt can restore normal drum rotation.

However, a dryer that does not tumble can also have problems with components such as the motor, idler assembly, drum rollers, or other mechanical parts. Confirm that the belt is the cause of the problem before ordering a replacement.

Compatibility & Ordering Guidance

TJLB1655 is intended for compatible domestic clothes dryer applications. The Supco LB1655 specification identifies the belt as a 92-inch, 5-rib/4-groove dryer drive belt and specifically identifies compatible Samsung dryer applications.

Always verify your dryer's complete model number and the original belt specifications before ordering. Do not rely only on the appearance of the belt, as different dryers can use belts with different lengths, widths, rib counts, and groove configurations.

If you are unsure whether TJLB1655 is correct for your dryer, provide Appliance Kingdom with your complete dryer model number for compatibility assistance.

Replaces Part Numbers

Supco's product information identifies LB1655 as a replacement for Samsung 6602-001655 and also lists 6602-001314 as a replacement part.

For the TJLB1655 listing, verify your specific dryer's model and original belt number before ordering rather than assuming compatibility solely from a replacement number.

Key Features & Benefits

• Universal-style dryer drum drive belt

• Supco LB1655 design

• Approximately 92 inches long

• Approximately 5/16 inch wide

• 5 ribs and 4 grooves

• Flat belt construction

• Transfers motor power to the dryer drum

• Designed for reliable drum rotation in compatible dryers

• Suitable for homeowners, landlords, appliance repair professionals, and maintenance technicians

• Helps restore normal tumbling when a worn or broken belt is the cause of the problem

Installation Overview

Replacing a dryer drum belt is generally an intermediate appliance repair because accessing the belt typically requires partial disassembly of the dryer cabinet or drum area.

An experienced DIYer with suitable tools and appliance-repair knowledge may be able to perform the replacement. The belt must be routed correctly around the drum, motor pulley, and tensioning mechanism according to the dryer's design.

Always disconnect the dryer from electrical power before servicing.

If you are unfamiliar with dryer disassembly or electrical appliance repair, professional installation is recommended.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, serving customers across Canada.

We supply appliance replacement parts to homeowners, landlords, property managers, and professional appliance repair technicians nationwide. Parts are shipped from Canada, helping Canadian customers source replacement components without relying exclusively on international suppliers.

For compatibility assistance, have your complete dryer model number available before ordering.

Buyer Confidence

Choosing the correct dryer belt is important for reliable drum rotation and proper drying performance. The Supco LB1655 specification provides defined dimensions and rib/groove characteristics, making it possible to compare the replacement belt against the requirements of a compatible dryer.

If your dryer drum is not turning and the existing belt is visibly damaged, broken, stretched, or worn, replacing the belt may restore normal operation when the belt is confirmed to be the source of the failure.
