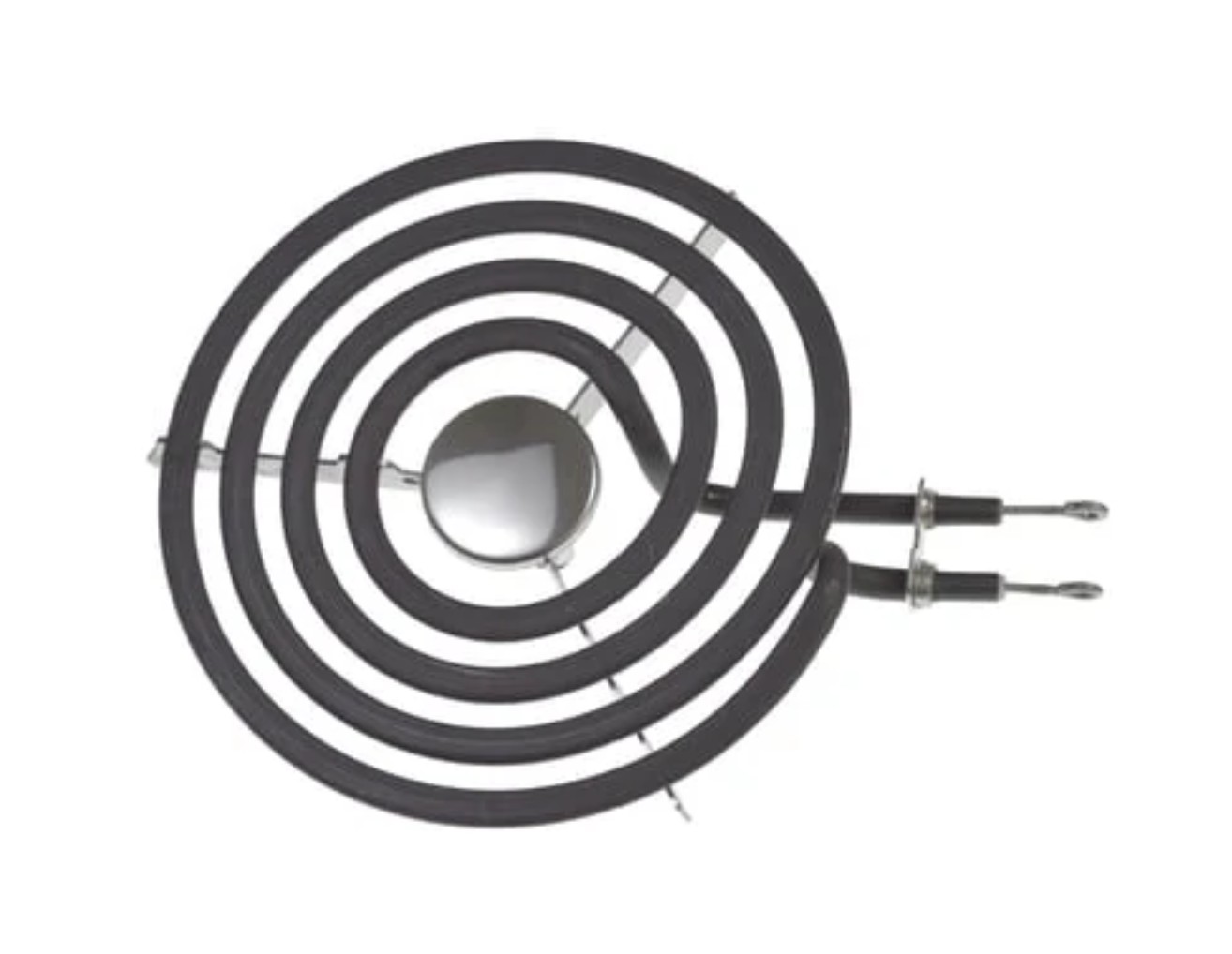

TJ38-815 - Genuine OEM Alltemp 6'' Oven Range Coil Element, 1500W

TJ38-815 - Genuine Alltemp 6" Oven Range Coil Element, 1500W

The TJ38-815 is an Alltemp universal 6-inch range coil surface element designed to provide heat to a cooking area on an electric range or cooktop. Alltemp identifies 38-815 as a universal replacement surface element rated at 1,500 watts and 240 volts, with four coil turns and a small 6-inch size.

This replacement range element features pigtail-style terminals and a chrome centre medallion. It is designed for compatible electric ranges, cooktops, and stove tops where the required element specifications match.

Appliance Kingdom supplies appliance replacement parts across Canada, helping homeowners, landlords, property managers, and professional appliance technicians find reliable replacement components.

Important Product Classification

Alltemp's manufacturer documentation classifies 38-815 as a "Universal Replacement" rather than an OEM direct replacement. Therefore, for accuracy, this product should be described as an Alltemp universal replacement element rather than a genuine OEM appliance-manufacturer part.

What Does the TJ38-815 Range Coil Element Do?

The TJ38-815 is a plug-in surface heating element installed on the cooking surface of compatible electric ranges and cooktops. When electrical power is supplied, the coil heats up and transfers heat to cookware placed above it.

The element is rated at 1,500 watts and 240 volts. Alltemp's catalogue specifies four coil turns and a 6-inch diameter for this element.

Using an element with the correct diameter, wattage, voltage, terminal configuration, and physical connection is important for proper heating performance and safe operation. Installing an incorrectly specified element can result in poor heating or an improper electrical connection.

Common Symptoms of a Failed Range Coil Element

A damaged or failed surface element may cause:

• Surface burner does not heat

• Coil remains completely cold when switched on

• Element heats unevenly

• Element takes unusually long to reach cooking temperature

• Visible damage, cracking, or burning on the coil

• Cooking performance is reduced on one burner

• Element intermittently heats or stops working

A non-heating element is one of the documented repair situations associated with the Alltemp 38-815. However, a range that does not heat can also have a problem with the receptacle, wiring, infinite switch, terminal connection, or other electrical components.

Will Replacing the TJ38-815 Fix My Range?

If the surface coil itself has failed and the rest of the electrical circuit is operating correctly, replacing the element can restore heating to that cooking zone.

Before ordering, compare the existing element's size, wattage, voltage, terminal style, and connection with the TJ38-815 specifications. If the element is not receiving power, replacing the coil alone may not resolve the problem.

Compatibility Guidance

The TJ38-815 is a universal 6-inch range coil surface element intended for compatible electric ranges and cooktops.

Alltemp specifies:

• Diameter: 6 inches

• Power: 1,500 watts

• Voltage: 240 volts

• Coil turns: 4

• Element type: Single-coil plug-in surface element

• Terminal style: Pigtail / looped terminals

Always verify your appliance model number and existing element specifications before ordering. Physical appearance alone is not sufficient to confirm compatibility.

Replaces Part Numbers

This section is intentionally omitted because the available authoritative Alltemp manufacturer documentation confirms the TJ38-815 specifications but does not provide a sufficiently clear manufacturer-approved supersession list for this exact part number.

Key Features & Benefits

• Alltemp universal replacement range coil element

• 6-inch diameter

• 1,500-watt heating capacity

• 240-volt rating

• Four-turn coil design

• Pigtail-style terminal configuration

• Chrome centre medallion

• Designed for compatible electric ranges and cooktops

• Provides direct heat to cookware on the surface cooking area

• Suitable for homeowners, landlords, and professional appliance technicians

Installation Overview

Replacing a plug-in range coil element is generally a straightforward appliance repair when the existing element uses the same compatible terminal configuration.

An experienced DIYer may be able to replace the element by disconnecting power to the appliance, allowing the existing element to cool completely, removing the old element, and installing the replacement into the appropriate receptacle.

Always disconnect the range from electrical power before servicing. Because this is a 240-volt appliance component, anyone uncomfortable working around electrical appliances should use a qualified appliance technician.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, serving homeowners, landlords, property managers, and appliance repair professionals across Canada.

The TJ38-815 is a 240-volt range surface element designed around specifications commonly used in compatible electric cooking appliances. Always confirm the appliance's required electrical specifications and element configuration before installation.

Appliance Kingdom provides Canada-wide shipping and support to help customers identify the correct replacement part before ordering.

Buyer Confidence

The TJ38-815 is an established Alltemp universal replacement surface element. Alltemp's manufacturer catalogue identifies 38-815 as a 6-inch, 1,500-watt, 240-volt, four-turn universal replacement element.

For the best fit confidence, compare your existing element and verify your appliance's complete model number before purchasing. If you are unsure, provide Appliance Kingdom with the model number and existing element details so compatibility can be reviewed.
