TJ38-812 - Genuine OEM 6'' Oven Range Coil Element, 1250W Replacement

SKU : TJ38-812
$40.45
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

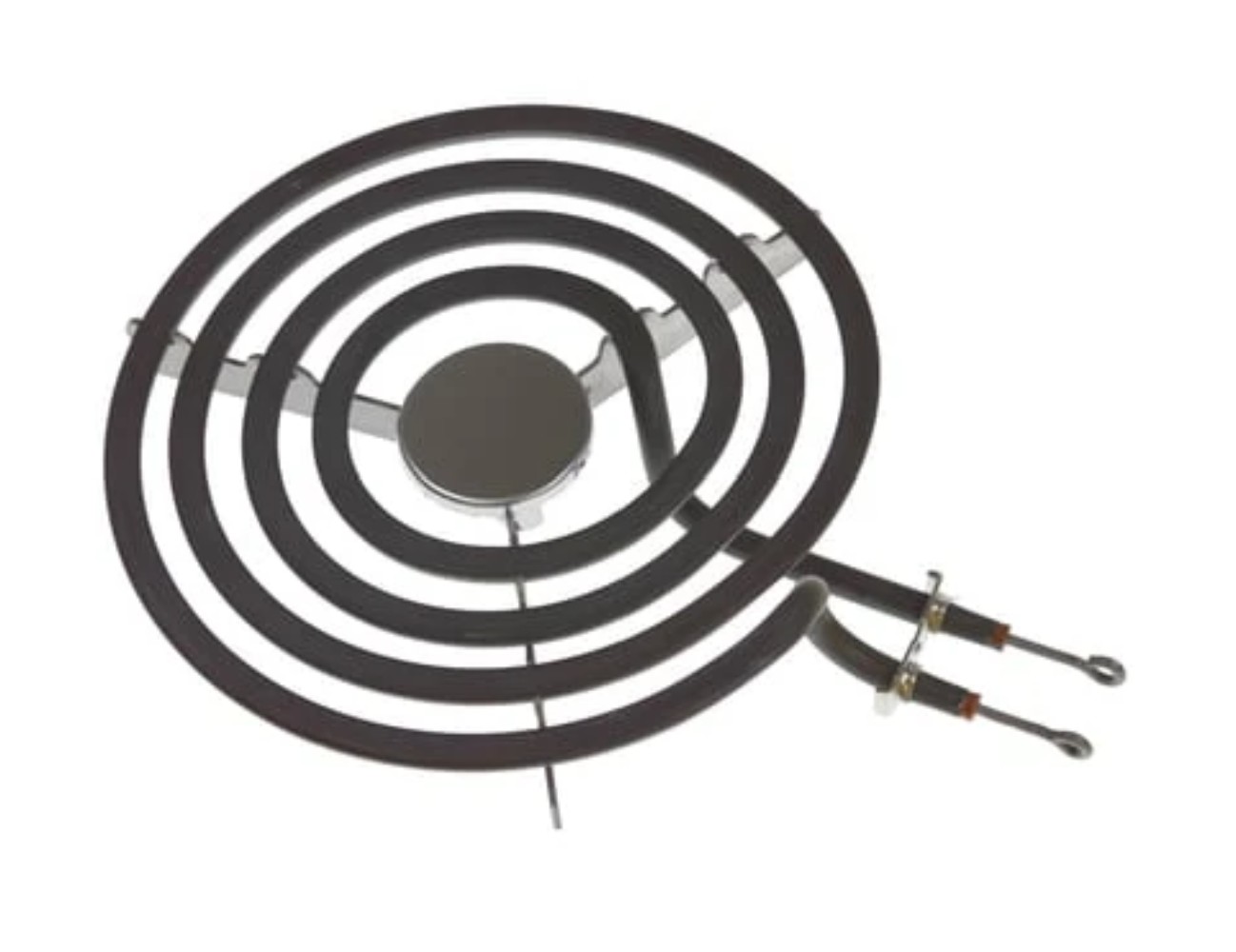

TJ38-812 - 6" Range Coil Surface Element, 1250W Replacement

The TJ38-812 is a 6-inch electric range coil surface element rated at 1250 watts and 240 volts. It is designed as a replacement surface element for compatible electric coil-top ranges, stoves, and cooktops.

This replacement coil features a 6-inch diameter and 1250W heating capacity. Canadian appliance-parts sources identify the TJ38-812 with the PW1C12HT-style 6-inch, 1250W coil surface element, while AMRE Supply lists the corresponding universal 38-812 element specification as a 6-inch, 1250W, 240V coil with pigtail/looped terminals.

Appliance Kingdom serves homeowners, landlords, property managers, and appliance repair technicians across Canada, with Canada-wide shipping available for replacement appliance parts.

What Does the TJ38-812 Range Coil Element Do?

The coil surface element is the heating component on an electric coil-top range. When electrical power is supplied to the element, its resistance wire heats up and transfers heat to cookware placed on the burner.

A properly matched element is important because the diameter, wattage, voltage, terminal configuration, and physical design must correspond to the range. The TJ38-812 specification is 6 inches, 1250 watts, and 240 volts.

Using the correct replacement specification helps the surface element heat properly and reduces the risk of ordering a coil that is physically similar but electrically or mechanically incompatible.

Common Symptoms of a Failed Range Coil Element

A defective surface element can produce symptoms including:

  • The burner does not heat

  • The coil remains completely cold when switched on

  • The element heats intermittently

  • The element does not reach normal cooking temperature

  • Cooking takes considerably longer than usual

  • The coil has visible damage or a break in the heating element

AMRE Supply specifically identifies an element that will not heat as a possible repair symptom for this type of 6-inch, 1250W universal coil element.

Will Replacing the TJ38-812 Fix My Range?

If the surface element itself has failed, replacing it can restore heating to the affected cooking area.

However, a burner that does not heat is not automatically proof that the coil is defective. The element receptacle, wiring, or control switch can also cause heating problems. The element should therefore be tested or diagnosed before replacement. AMRE Supply specifically notes that other components can produce the same symptom.

Compatibility & Ordering Guidance

The TJ38-812 is intended for compatible electric coil-top ranges, stoves, and cooktops.

Before ordering, verify:

  • Complete appliance model number

  • Existing element diameter

  • Voltage requirement

  • Wattage

  • Number and configuration of terminals

  • Physical connection style

Do not rely solely on the appearance or diameter of the old coil. Similar-looking surface elements can have different electrical specifications or terminal configurations.

If you are unsure whether TJ38-812 is correct for your appliance, provide the complete model number to Appliance Kingdom for compatibility assistance.

Key Features & Benefits

  • 6-inch electric coil surface element

  • 1250-watt heating capacity

  • 240-volt specification

  • Coil-style surface element for compatible electric ranges

  • Designed to restore heating to a failed cooking surface

  • Replacement solution for compatible range and cooktop applications

  • Suitable for homeowners, landlords, property managers, and appliance repair technicians

  • Canadian appliance-parts support and Canada-wide shipping

The corresponding 38-812 universal element specification listed by AMRE Supply includes 6-inch diameter, 1250W, 240V, four turns, and pigtail/looped terminals. Verify the physical configuration against your appliance before ordering.

Installation Overview

Replacing an electric range coil element is generally a straightforward appliance repair when the element uses a removable plug-in or compatible terminal connection.

Before servicing the appliance:

  1. Turn off the range and allow the element to cool completely.

  2. Disconnect electrical power to the appliance.

  3. Remove the existing surface element according to the range manufacturer's procedure.

  4. Inspect the receptacle and terminals for signs of overheating or damage.

  5. Install the replacement element using the correct connection configuration.

  6. Restore power and test the burner.

Experienced DIYers may be able to perform this repair. If the receptacle, wiring, or electrical connections show signs of burning, melting, or damage, professional diagnosis and repair are recommended.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, serving customers across Canada.

The TJ38-812 is a replacement range coil element intended for compatible electric cooking appliances. We provide Canada-wide shipping and support homeowners, landlords, property managers, and professional appliance technicians looking for replacement appliance components.

For the best compatibility confidence, provide your appliance's complete model number before ordering.

Buyer Confidence

The TJ38-812 provides a clearly defined 6-inch, 1250W replacement specification for compatible electric coil ranges. Canadian parts sources also identify the TJ38-812 with the PW1C12HT 6-inch, 1250W replacement coil specification.

Because range elements can differ in terminal configuration and electrical specifications, always verify the appliance model and existing element specifications before purchase.
