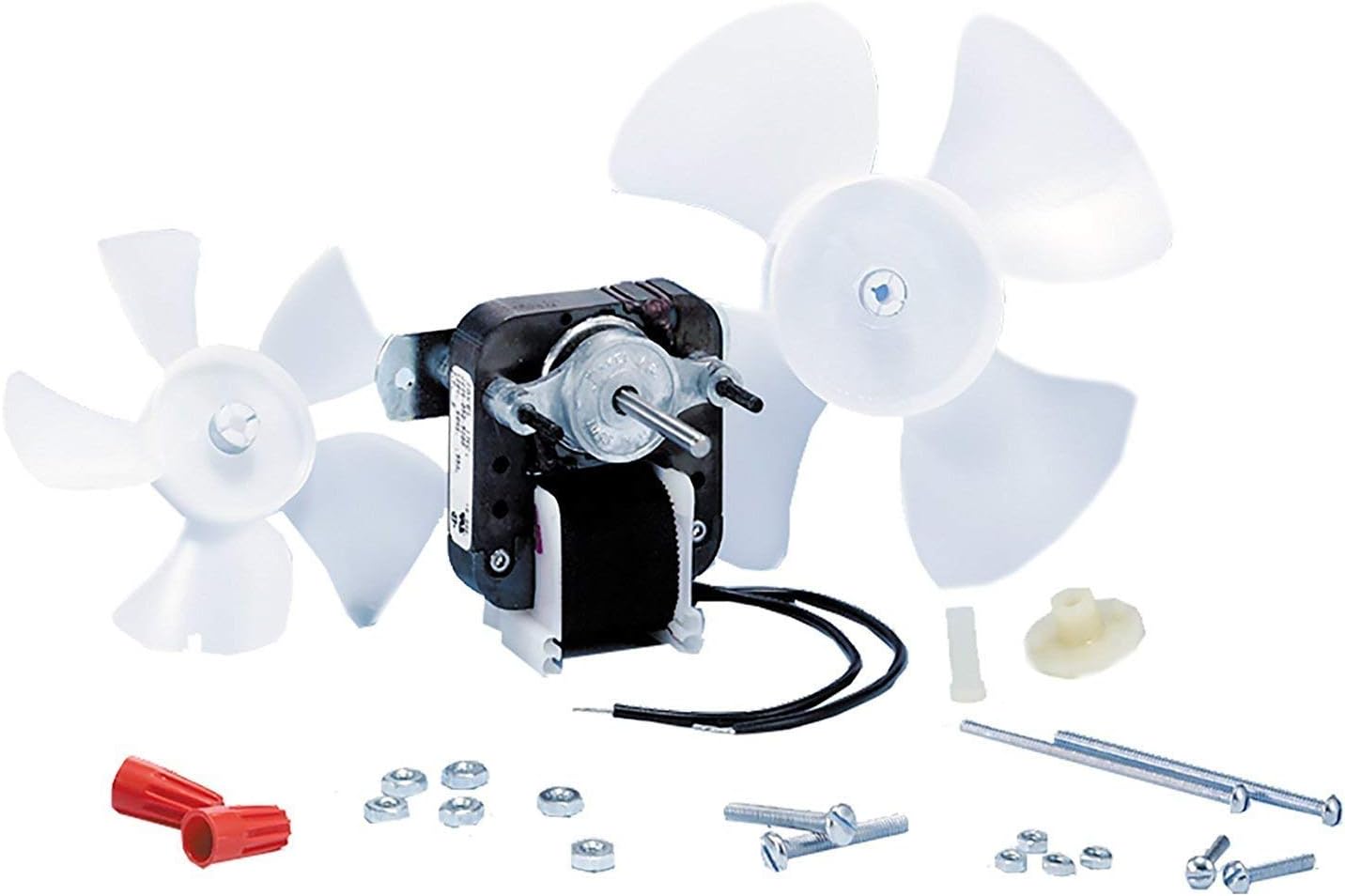

SM670 - Universal Frame Motor & Fan Blade Kit

SM670 – Universal Frame Motor & Fan Blade Kit

The SM670 Universal Frame Motor & Fan Blade Kit is a universal replacement motor kit designed for compatible refrigeration evaporators, range hoods, exhaust fans, ventilator fans, and reach-in or walk-in coolers. This utility motor kit includes mounting hardware and fan blades to support replacement of compatible C-frame and 3-1/2-inch round-style motors. It is a practical replacement solution for homeowners, property managers, and professional appliance repair technicians seeking to restore reliable fan operation.

Available through Appliance Kingdom, your Canadian appliance parts supplier based in Edmonton, Alberta, this universal motor kit serves customers across Canada. Verify the original motor's electrical specifications, mounting arrangement, shaft dimensions, and rotation requirements before ordering.

Function & Importance of the SM670 Motor Kit

The SM670 motor drives a fan blade to circulate air within compatible refrigeration and ventilation equipment. Proper airflow helps refrigeration systems distribute air and helps exhaust or ventilation equipment move air as designed.

A correctly specified replacement motor is essential for reliable operation. Voltage, speed, shaft dimensions, mounting configuration, and rotation must match the intended application. An incompatible motor can cause inadequate airflow, incorrect fan direction, installation difficulties, or premature component failure.

Common Symptoms Indicating Motor Replacement

A failed or worn fan motor may cause the following symptoms, depending on the equipment in which it is installed:

• Fan does not start or operate consistently.

• Fan blade rotates slowly or airflow is reduced.

• Motor produces unusual humming, rattling, or mechanical noise.

• Motor overheats or stops during operation.

• Refrigeration equipment experiences airflow-related cooling problems.

• Exhaust or ventilation equipment fails to move air effectively.

Replacing the motor can resolve these issues when the motor itself is defective. However, electrical supply problems, damaged wiring, obstructed fan blades, faulty controls, or other mechanical issues can produce similar symptoms. Diagnose the equipment before replacing the motor.

Compatibility & Ordering Guidance

The SM670 is a universal utility motor kit intended for compatible C-frame and 3-1/2-inch round-style motor applications.

Before ordering, compare your existing motor and equipment requirements with these specifications:

• Voltage: 120 VAC

• Speed: Single speed

• Rotation: Reversible, depending on configuration

• Speed rating: 3,000 RPM

• Shaft diameter: 3/16 inch

• Shaft length: 1-1/4 inches

• Bearing type: Sleeve

• Current rating: Approximately 0.55 A

Confirm all specifications against the manufacturer's documentation for your particular application. Universal does not mean compatible with every appliance or fan assembly.

Key Features & Benefits

• Universal utility motor replacement kit

• Designed for compatible C-frame and 3-1/2-inch round-style motors

• Includes fan blades and mounting hardware

• Includes mounting bracket, hub adapter, and shaft adapters

• Single-speed motor rated at 120 VAC and 3,000 RPM

• Reversible rotation when correctly configured

• Suitable for compatible refrigeration evaporators, range hoods, exhaust fans, ventilator fans, and commercial cooler applications

• Practical replacement option for homeowners, landlords, maintenance teams, and professional technicians

Installation Overview

Installation difficulty depends on the original motor, equipment design, wiring arrangement, and mounting configuration. An experienced DIYer may be able to install the kit, but electrical knowledge and careful attention to the manufacturer's instructions are necessary.

Before installation:

1. Disconnect the equipment from its electrical supply.

2. Document the existing wiring and motor orientation.

3. Check the original mounting arrangement and fan blade rotation.

4. Confirm the replacement motor's voltage, shaft dimensions, and speed.

5. Install the correct mounting hardware and fan blade configuration.

6. Route and secure wiring away from moving components.

7. Check the assembly for secure mounting and unobstructed fan movement before restoring power.

Professional installation is recommended if you are unfamiliar with electrical wiring or servicing refrigeration and ventilation equipment.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian appliance parts supplier based in Edmonton, Alberta, serving homeowners, landlords, property managers, and appliance repair professionals across Canada.

We help customers source replacement components for appliance repair and maintenance. Before purchasing the SM670, confirm that its electrical ratings and physical configuration are suitable for your equipment.

Buyer Confidence & Compatibility Support

The SM670 provides a versatile motor replacement option for compatible applications requiring the appropriate C-frame or round-style configuration. Checking the original motor's specifications before ordering helps reduce installation issues and improves the likelihood of a successful repair.

If you need help confirming compatibility, provide Appliance Kingdom with the equipment model number, original motor part number, and motor specification label.
