PFWRWH - Genuine OEM PROFLO Heavy Duty Wax Bowl Ring with Horn

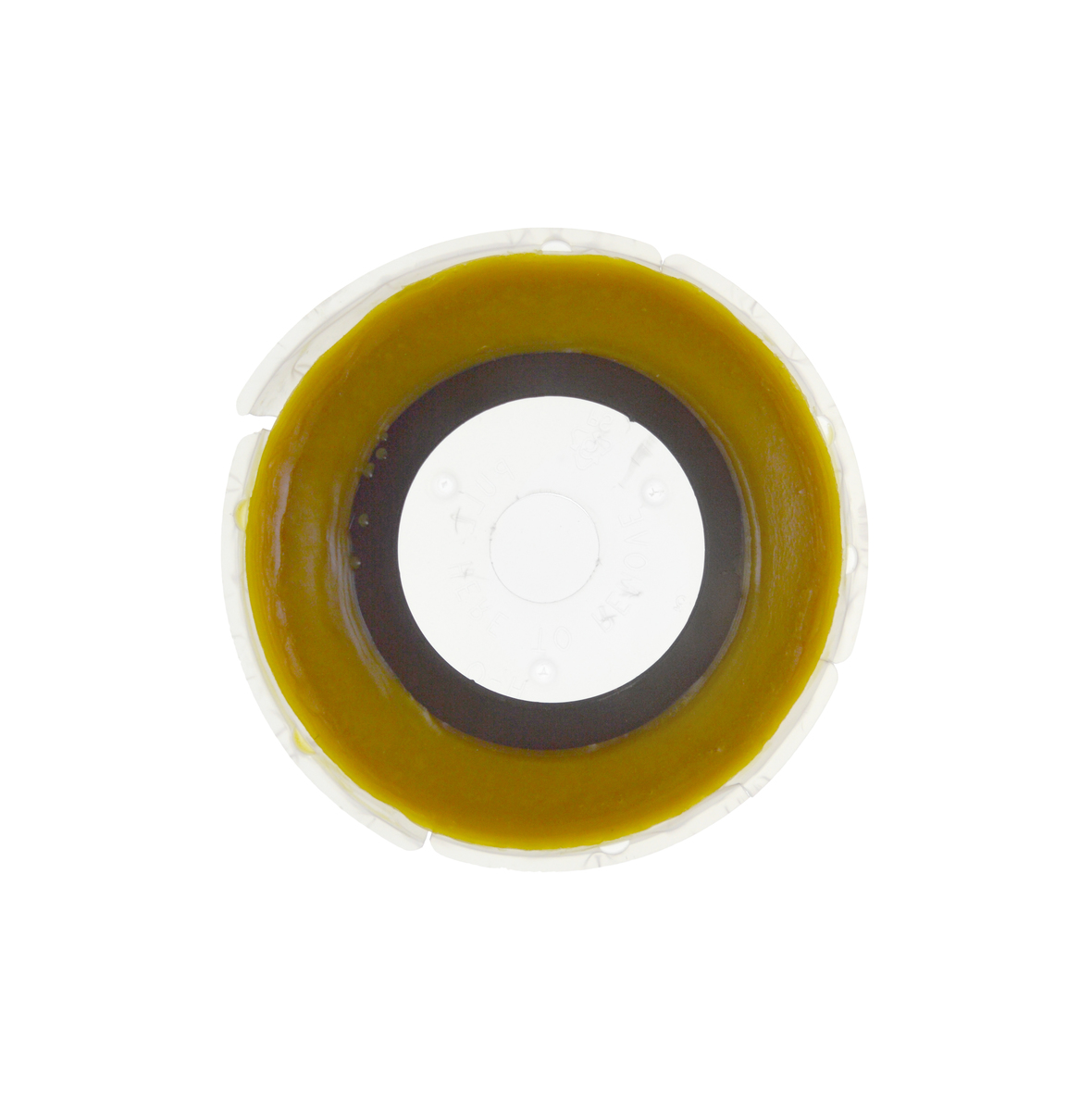

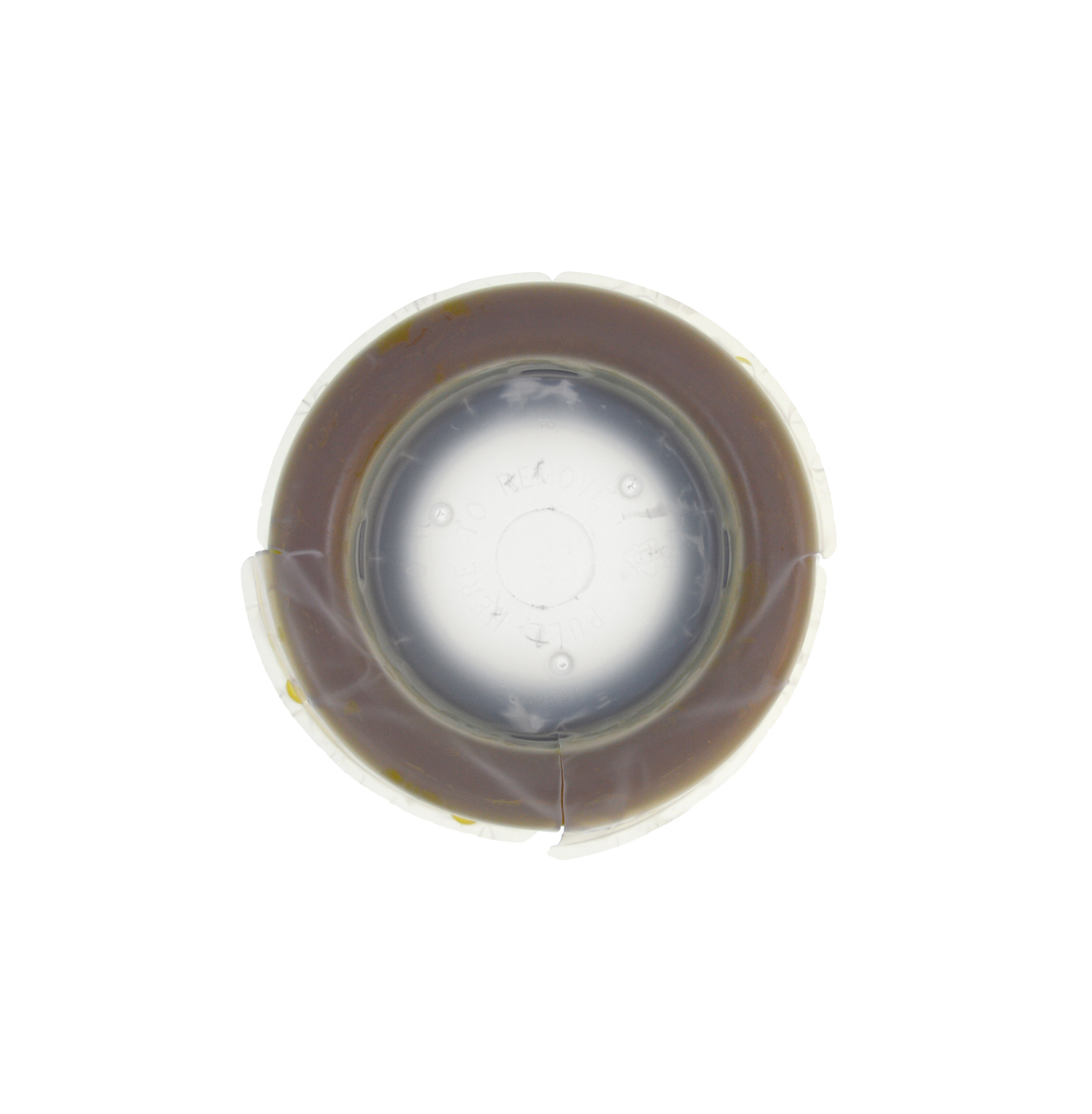

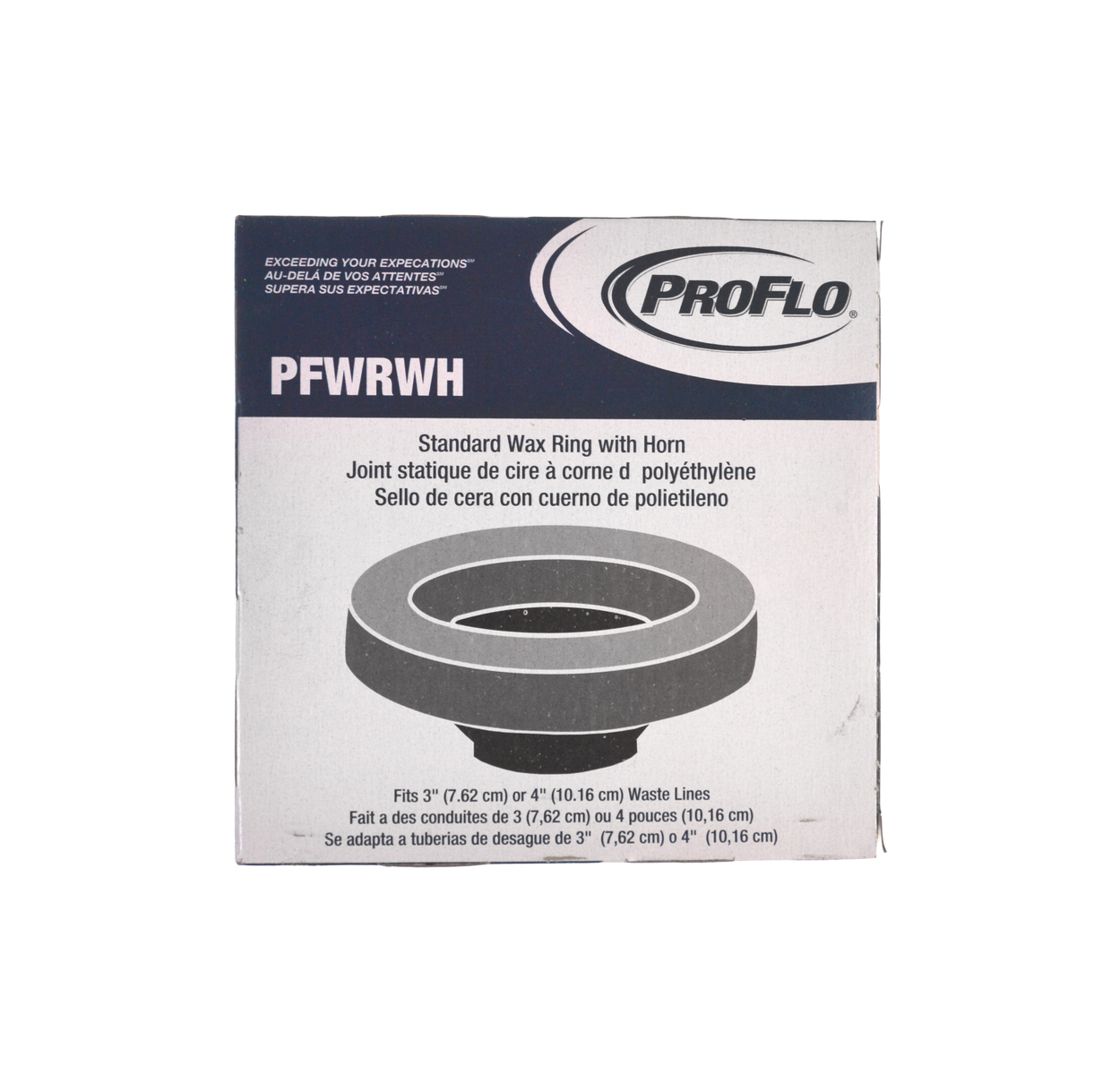

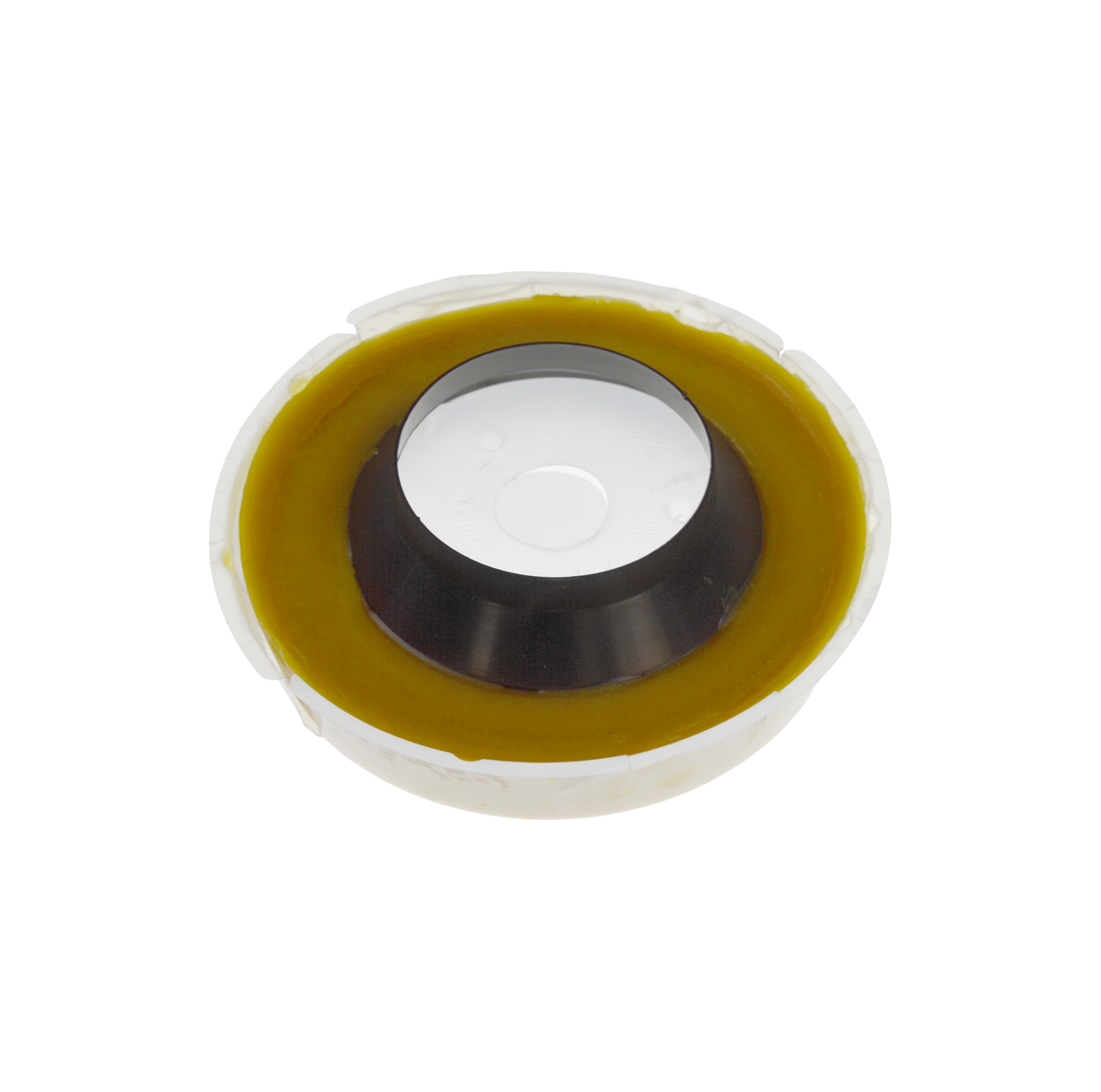

The PFWRWH Genuine OEM PROFLO Heavy Duty Wax Bowl Ring with Horn is a heavy-duty toilet sealing gasket designed for floor-type toilet bowls with 3-inch or 4-inch waste lines. The ring is made from 100% pure petroleum wax and includes a polyethylene flanged sleeve that extends into the discharge opening to help provide a secure, reliable seal. Ferguson identifies PFWRWH as PROFLO Part #PFWRWH and Manufacturer Part #1077.

Appliance Kingdom supplies genuine PROFLO replacement and plumbing components to customers across Canada. This heavy-duty wax bowl ring is intended for toilet installation and replacement applications where a properly sized wax seal is required.

What Does the PFWRWH Wax Bowl Ring Do?

The PFWRWH creates a watertight and odour-resistant seal between the toilet bowl and the waste connection. Its petroleum-wax construction conforms to the mating surfaces during installation, while the integrated polyethylene horn extends into the waste opening.

The horn helps guide the toilet's discharge into the waste line while supporting proper sealing at the connection. Ferguson specifies PFWRWH for floor-type toilet bowls using either 3-inch or 4-inch waste lines.

Using the correct wax ring size and configuration is important because an improperly sized or damaged seal can allow water, sewer odours, or gases to escape around the toilet base.

Common Signs the Toilet Wax Ring Needs Replacement

A worn, compressed, damaged, or improperly sealed toilet wax ring can contribute to:

• Water leaking around the base of the toilet

• Sewer odours around the toilet

• Moisture appearing near the toilet base

• A toilet that does not maintain a proper seal against the floor flange

• Leakage after toilet installation or removal

• A deteriorated seal after the toilet has been disturbed or repositioned

A wax ring is a sealing component rather than a mechanical appliance component. If leakage is caused by a damaged wax seal, replacing the wax ring can correct the problem. However, leaks can also originate from the toilet, flange, supply connection, or other plumbing components, so the source of the leak should be identified before replacement.

Will Replacing PFWRWH Fix My Toilet Leak?

If the leak is coming from the toilet-to-flange connection and the existing wax seal has failed, replacing the wax ring can restore the seal.

Wax rings are generally replaced when a toilet is removed because the existing wax seal can become compromised during removal. A new ring provides a fresh sealing surface when the toilet is reinstalled.

If water continues to leak after installation, inspect the toilet flange, toilet base, mounting hardware, and surrounding plumbing connections for other possible causes.

Compatibility & Ordering Guidance

PFWRWH is designed for floor-type toilet bowls with 3-inch or 4-inch waste lines. It features a horn and a polyethylene flanged sleeve.

Before ordering, confirm:

• Your toilet is a floor-type installation

• The waste line is compatible with the 3-inch or 4-inch specification

• You require a wax ring with a horn

• The existing toilet flange and mounting arrangement are suitable for installation

Unlike appliance parts, toilet wax rings generally do not require an appliance model number. Correct waste-line size and installation configuration are the key considerations.

Key Features & Benefits

• Genuine PROFLO replacement plumbing component

• Part Number: PFWRWH

• Manufacturer Part Number: 1077

• Heavy-duty wax ring construction

• 100% pure petroleum wax gasket

• Integrated horn

• Polyethylene flanged sleeve

• Designed for 3-inch or 4-inch waste lines

• Suitable for floor-type toilet bowls

• Helps create a reliable seal between the toilet and waste connection

• Suitable for homeowners, landlords, property managers, and professional plumbers

• Supplied through established plumbing-parts distribution channels

Technical Specifications

• Brand: PROFLO

• Part Number: PFWRWH

• Manufacturer Part Number: 1077

• Type: Heavy Duty Wax Ring with Horn

• Application: Floor-type toilet bowls

• Waste Line Size: 3-inch or 4-inch

• Material: Petroleum Wax

• Horn: Yes

• Flanged Sleeve: Polyethylene

• Extra Wax: No

• Quantity: 1 each

• UPC: 781889160268

Installation Overview

Installing a toilet wax ring generally requires removing the toilet from the floor, removing the old sealing material, inspecting the toilet flange, positioning the new wax ring, and carefully resetting the toilet.

This can be completed by an experienced DIYer with appropriate tools and plumbing knowledge. Because the toilet is heavy and must be correctly positioned and secured, professional installation is recommended if you are unfamiliar with toilet installation or flange repairs.

Do not reuse a wax ring after a toilet has been removed. A fresh wax seal should be installed when resetting the toilet.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian supplier serving homeowners, landlords, property managers, maintenance professionals, and tradespeople across Canada.

PFWRWH is a PROFLO plumbing component suitable for Canadian residential and commercial toilet installation applications where the specified 3-inch or 4-inch waste-line configuration applies.

We provide Canada-wide shipping and help customers identify the appropriate replacement parts for their plumbing and appliance repair needs.

Buyer Confidence

PFWRWH is an identified PROFLO heavy-duty wax ring with horn, with specifications documented by Ferguson and AMRE Supply. AMRE Supply also lists PFWRWH as a ProFlo Wax Ring with Horn and confirms its 100% pure petroleum wax construction and use with 3-inch or 4-inch waste lines.

For installation confidence, verify the waste-line size and toilet configuration before ordering. If you need assistance determining whether PFWRWH is appropriate for your installation, Appliance Kingdom can help review the application details.
