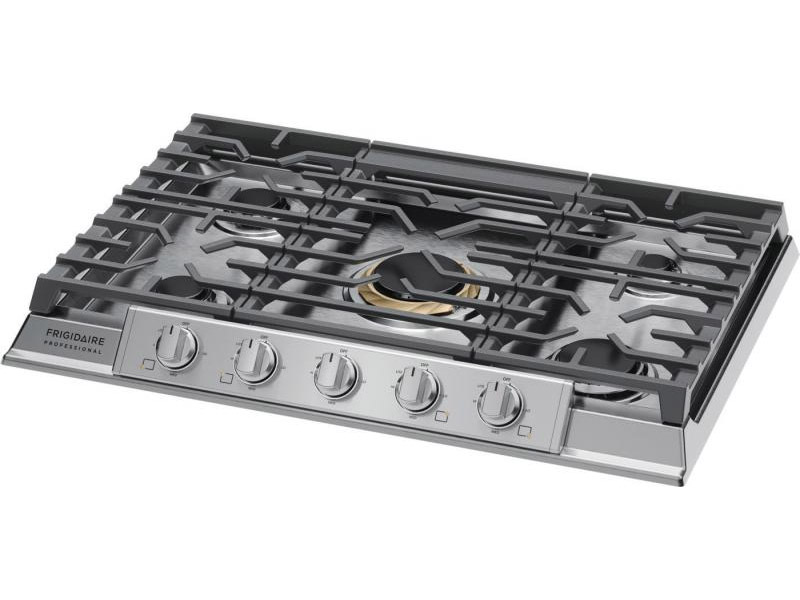

30" Frigidaire Professional 5 Burner Gas Cooktop in Stainless Steel - PCCG3080AS

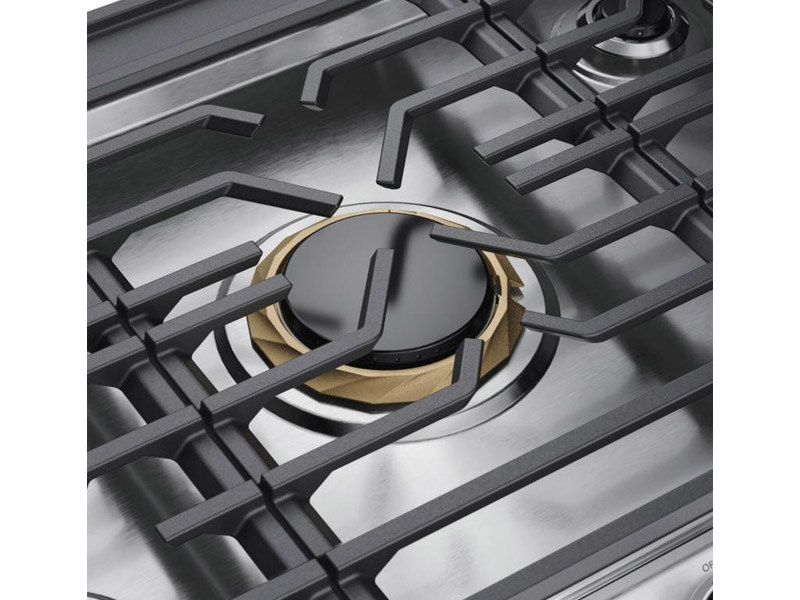

Even Temp™ Burner
When using the Even Temp™ burner, heat is more evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

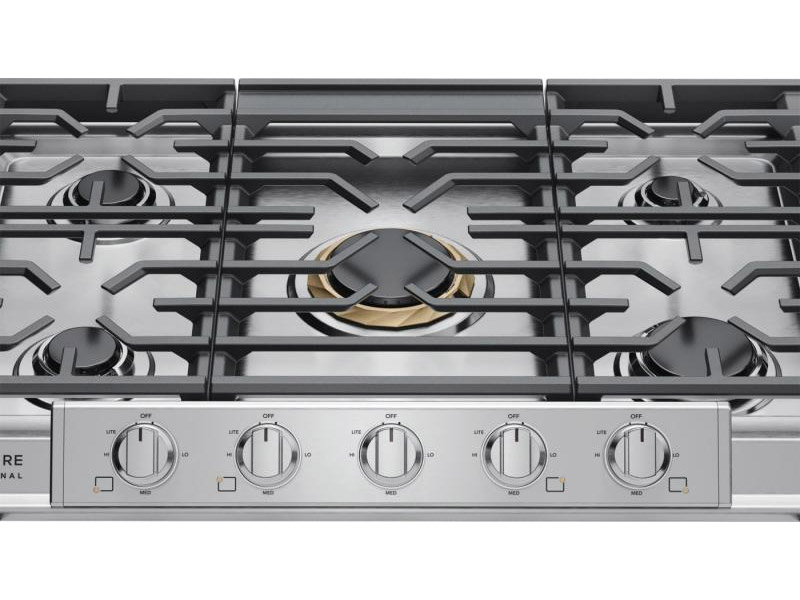

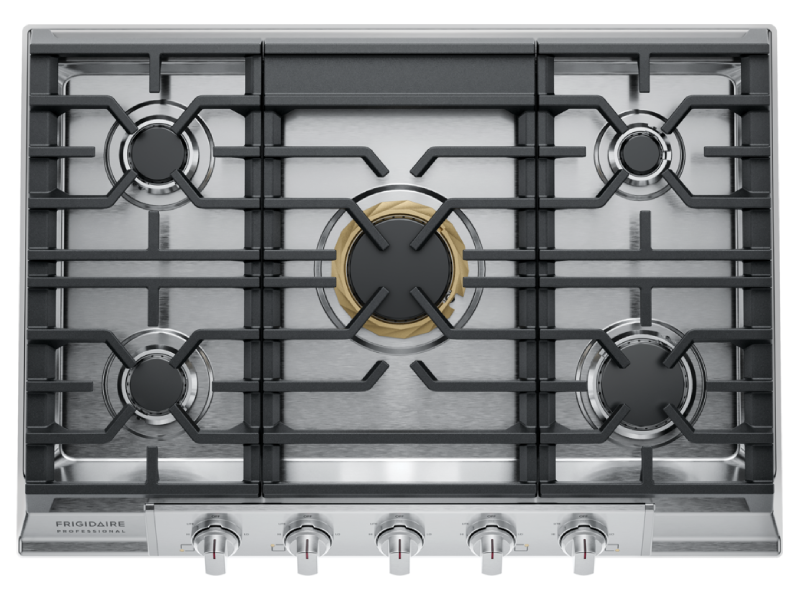

Five Burner Cooktop
From a 5,000 BTU simmer burner for delicate foods to a powerful 18,000 BTU Even Temp burner, this five-burner cooktop is designed to handle all of your cooking needs.

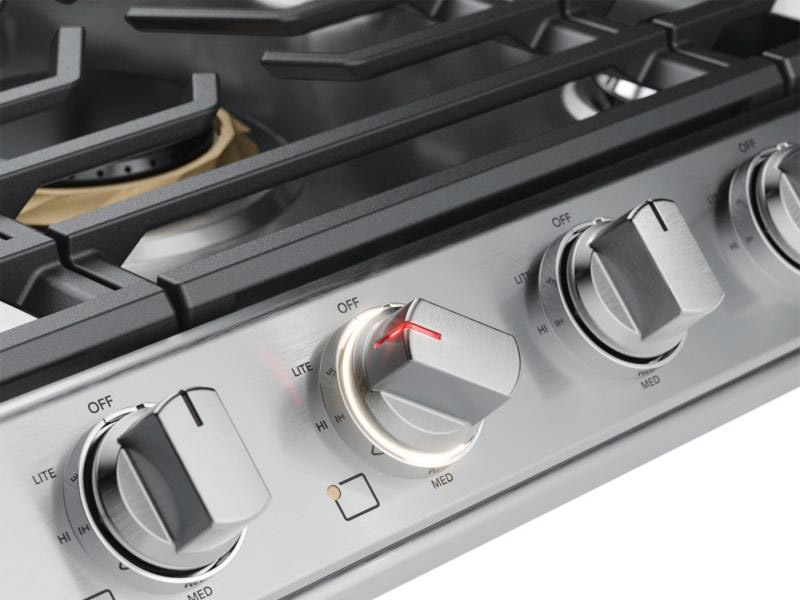

Backlit LED Knobs
Backlit LED knobs light up so you know when your burner is on.
Features
Dishwasher Safe Grates
Cleaning your cooktop is easier with our dishwasher safe grates and burner caps.
Cast Iron Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge cast iron grates.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire Professional gas cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100 1
Front Control Design
Adjust the cooking temperature without having to reach over hot items on the cooktop.
Approved over Frigidaire® Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire Wall Ovens.
| Installation | |
|---|---|
| LP Conversion Kit Included | Yes |
| Installed Over a Wall Oven | Yes |
| Gas Supply Connection Location | Top Right |
| Power Supply Connection Location | Top Right |
| Power Cord Included | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Voltage Rating | 120 V |
| Minimum Circuit Required | 5 Amps |
| Dimensions and Volume | |
| Maximum Cutout Depth | 20" |
| Maximum Cutout Width | 29 5/16" |
| Minimum Cutout Depth | 19" |
| Minimum Cutout Width | 27 1/4" |
| Cutout Height | 7 1/2" |
| Depth | 21" |
| Width | 30" |
| Height | 2 7/16" |
| Exterior | |
| Backlit Knobs | Yes |
| Cooktop Performance | |
| Center Front Element Burner | 18000 BTU |
| Left Rear Element Burner | 9500 BTU |
| Left Front Element Burner | 9500 BTU |
| Right Rear Element Burner | 5000 BTU |
| Right Front Element Burner | 12000 BTU |
| COOKTOP | |
| Sealed Burners | Yes |
| Grate Style | Continuous |
| Grate Quantity | 3 |
| Grate Material | Cast Iron |
| Cooking Surface Type | Gas |
| Certifications and Approvals | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ADA Compliant | Yes |
| General Specifications | |
| Warranty - Parts | 1 Year |
| Warranty - Labor | 1 Year |
| Prop 65 Label | Yes |
| Product Weight | 63 lbs |
| Frigidaire Fit Promise | Yes |
