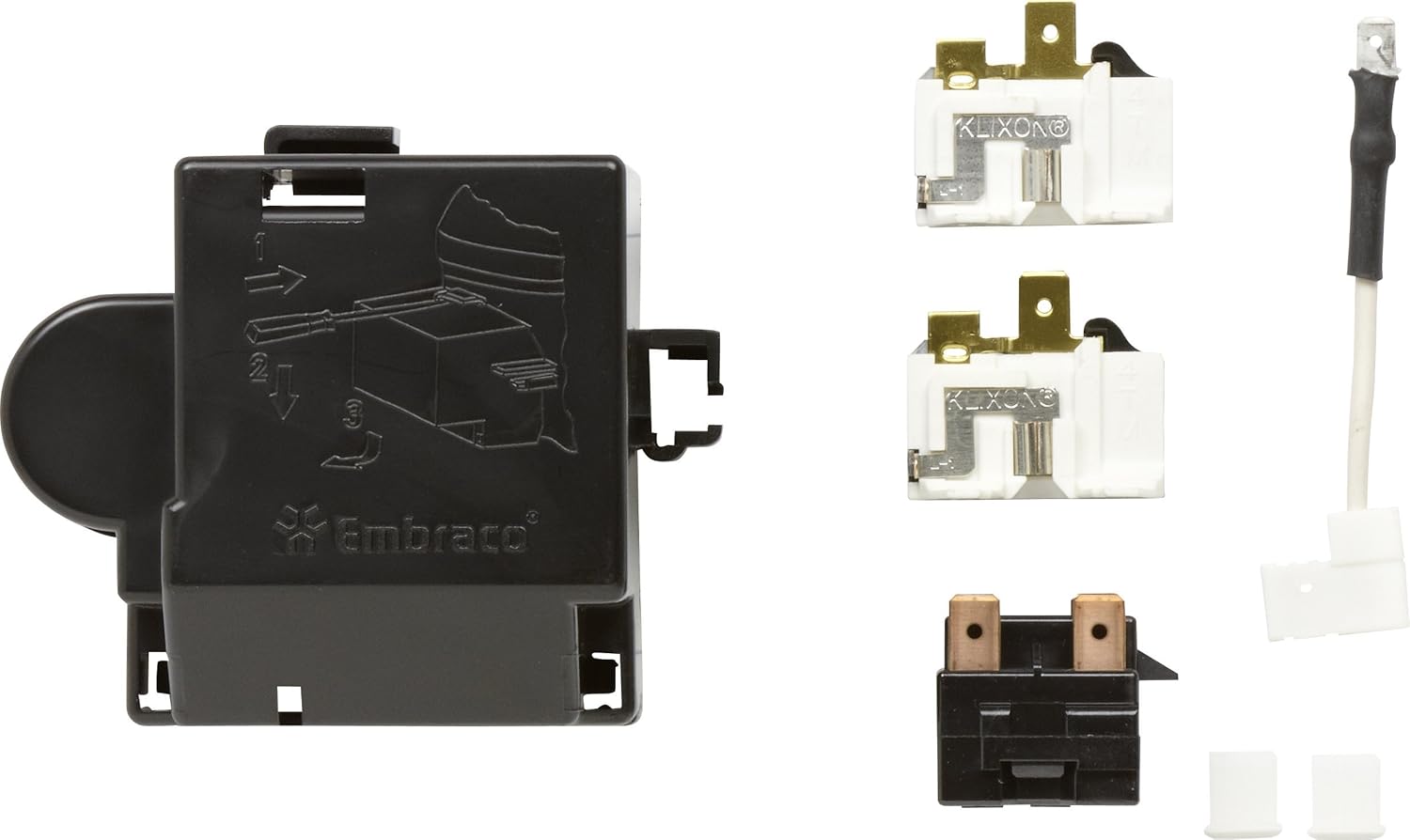

8201769 - Genuine OEM Whirlpool Refrigerator Compressor Start Device Kit

SKU : 8201769
$183.82
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

WP8201769 – Genuine OEM Whirlpool Refrigerator Compressor Start Device Kit

The 8201769 is a Genuine OEM electrical start assembly designed for Whirlpool refrigerators. This kit includes the start relay and overload protector (and in many versions, a protective cover), engineered to deliver the initial electrical boost required to start the refrigerator compressor.

This part is commonly used in Whirlpool, Maytag, KitchenAid, Amana, Kenmore, Jenn-Air, and other Whirlpool-family refrigerators and is available for fast, Canada-wide shipping through Appliance Kingdom. It is a critical repair component for refrigerators experiencing compressor start failures or no-cooling conditions.

Function & Importance of the Compressor Start Device

The compressor start device is responsible for initiating the refrigeration cycle. It provides a short electrical surge to help the compressor motor start, then safely disconnects once the motor is running.

In a Whirlpool refrigerator, this OEM kit ensures:

  • Reliable compressor startup sequence

  • Proper regulation of start and run windings

  • Protection against electrical overload or burnout

  • Stable cooling cycle operation

OEM-quality is essential here because incorrect electrical resistance or timing can prevent the compressor from starting or cause long-term compressor damage.

Common Symptoms of a Failing Start Device

A failing WP8201769 start device kit typically causes refrigerator performance issues such as:

  • Refrigerator not cooling or cooling intermittently

  • Clicking sounds from the compressor area

  • Compressor attempting to start but shutting off immediately

  • Warm refrigerator or freezer sections

  • Repeated start attempts without successful operation

  • Complete compressor failure to engage

In many cases, replacing the start device restores normal compressor operation if the compressor itself is still healthy.

Compatibility Guidance

This compressor start device kit is used in Whirlpool-family refrigerators, including select models from:

  • Whirlpool

  • Maytag

  • KitchenAid

  • Amana

  • Kenmore (Whirlpool-built units)

Always verify your refrigerator’s full model number before ordering, as compressor start kits are compressor-specific and not universally interchangeable.

For confirmation, Appliance Kingdom can help match the correct OEM part before purchase.

Replaces Part Numbers

Confirmed cross-references for WP8201769 include:

  • AP3961332

  • 2213106

  • 2213105

  • 2188842

  • 2188843

  • W10174592

  • AH1486705

  • EA1486705

  • PS1486705

Key Features & Benefits

  • Genuine OEM Whirlpool compressor start kit

  • Includes start relay and overload protector

  • Restores compressor startup performance

  • Protects compressor from electrical damage

  • Built to factory specifications for Whirlpool refrigerators

  • Ensures stable and efficient cooling operation

  • Trusted by appliance technicians and repair professionals

  • Ships across Canada from a reliable Canadian supplier

Installation Overview

Installing a compressor start device kit is typically a moderate-level repair and involves working near the compressor at the rear bottom of the refrigerator.

Basic steps include:

  • Disconnecting refrigerator power

  • Accessing rear compressor compartment

  • Removing old relay/overload assembly

  • Installing new start device kit onto compressor terminals

  • Reassembling protective cover and testing operation

Because this involves high-voltage electrical components, professional installation is recommended if you are not experienced with appliance electrical systems.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom supplies genuine OEM Whirlpool refrigerator parts across Canada, supporting homeowners, landlords, and appliance technicians with fast shipping and reliable product sourcing.

All parts are selected to meet Canadian appliance repair standards and ensure dependable long-term performance.

Buyer Confidence & Support

When you purchase the WP8201769 compressor start device kit, you get:

  • 100% Genuine OEM Whirlpool quality

  • Reliable compressor startup performance

  • Reduced risk of compressor failure due to electrical issues

  • Compatibility assistance before ordering

  • Canada-wide shipping and support
