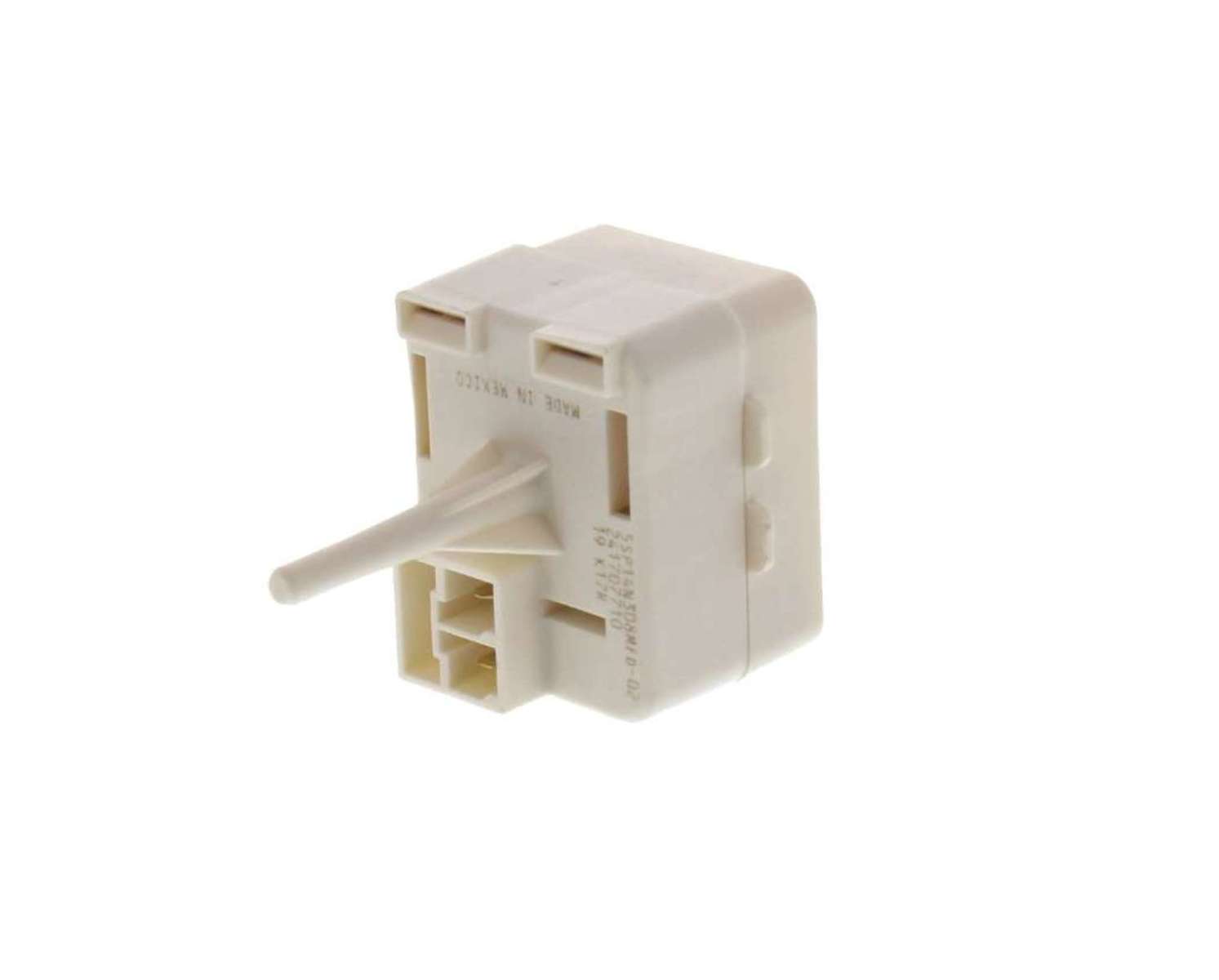

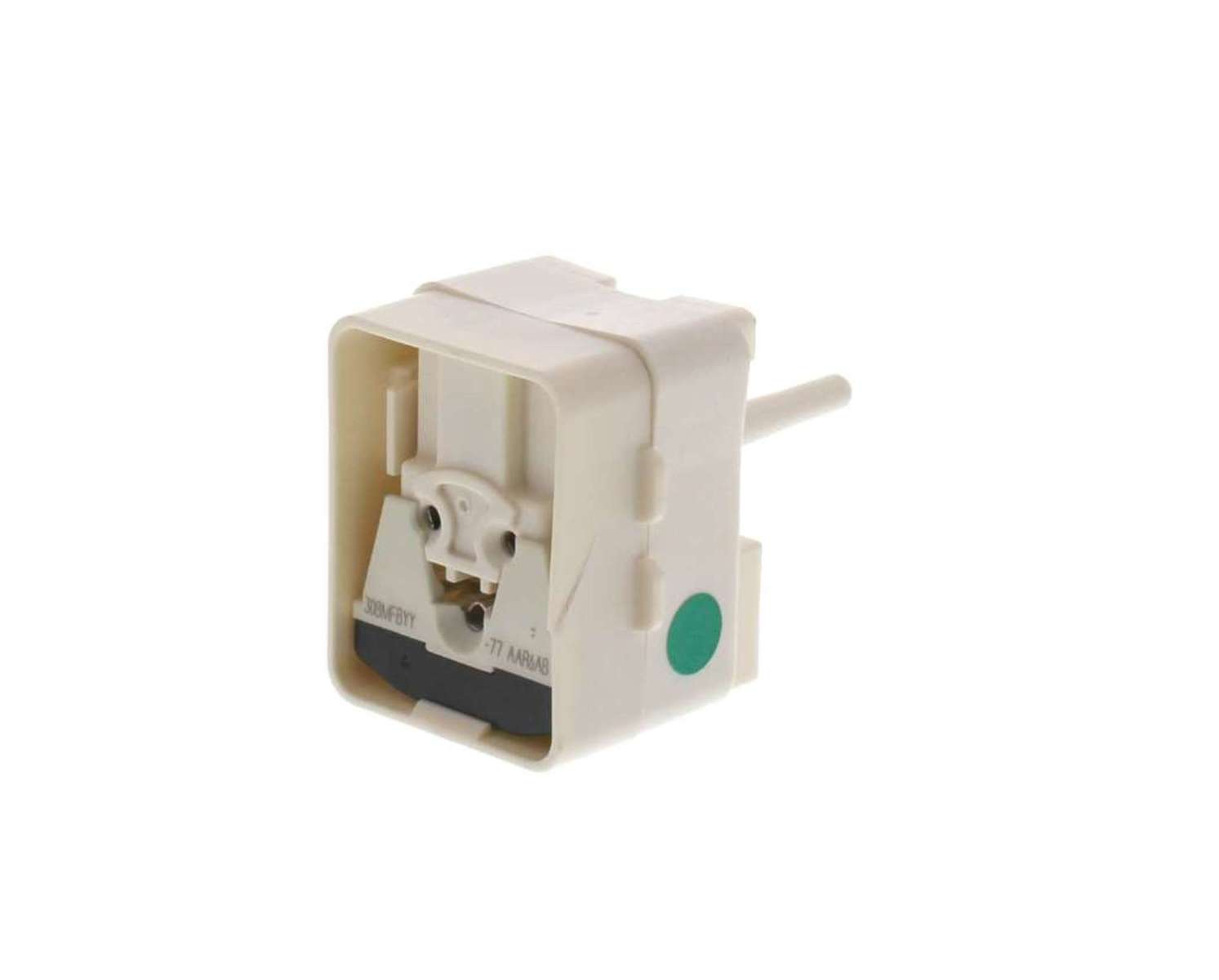

5304491584 - Genuine OEM Frigidaire Refrigerator Relay & Overload Kit

5304491584 – Genuine OEM Frigidaire Refrigerator Relay & Overload Kit

The 5304491584 is a Genuine OEM Frigidaire refrigerator compressor start relay and overload protection kit designed to restore proper compressor startup and cooling performance in compatible Frigidaire refrigeration systems.

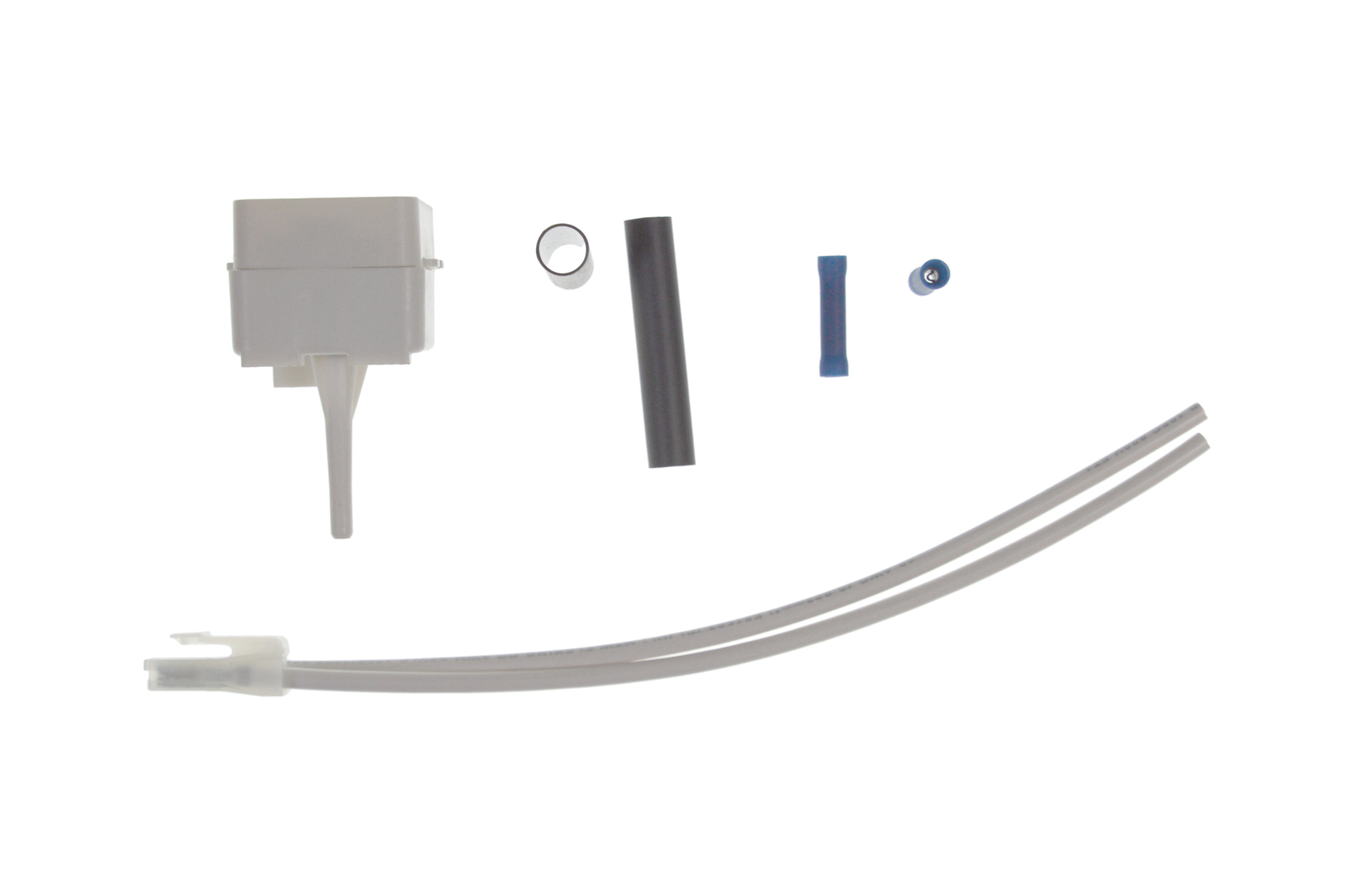

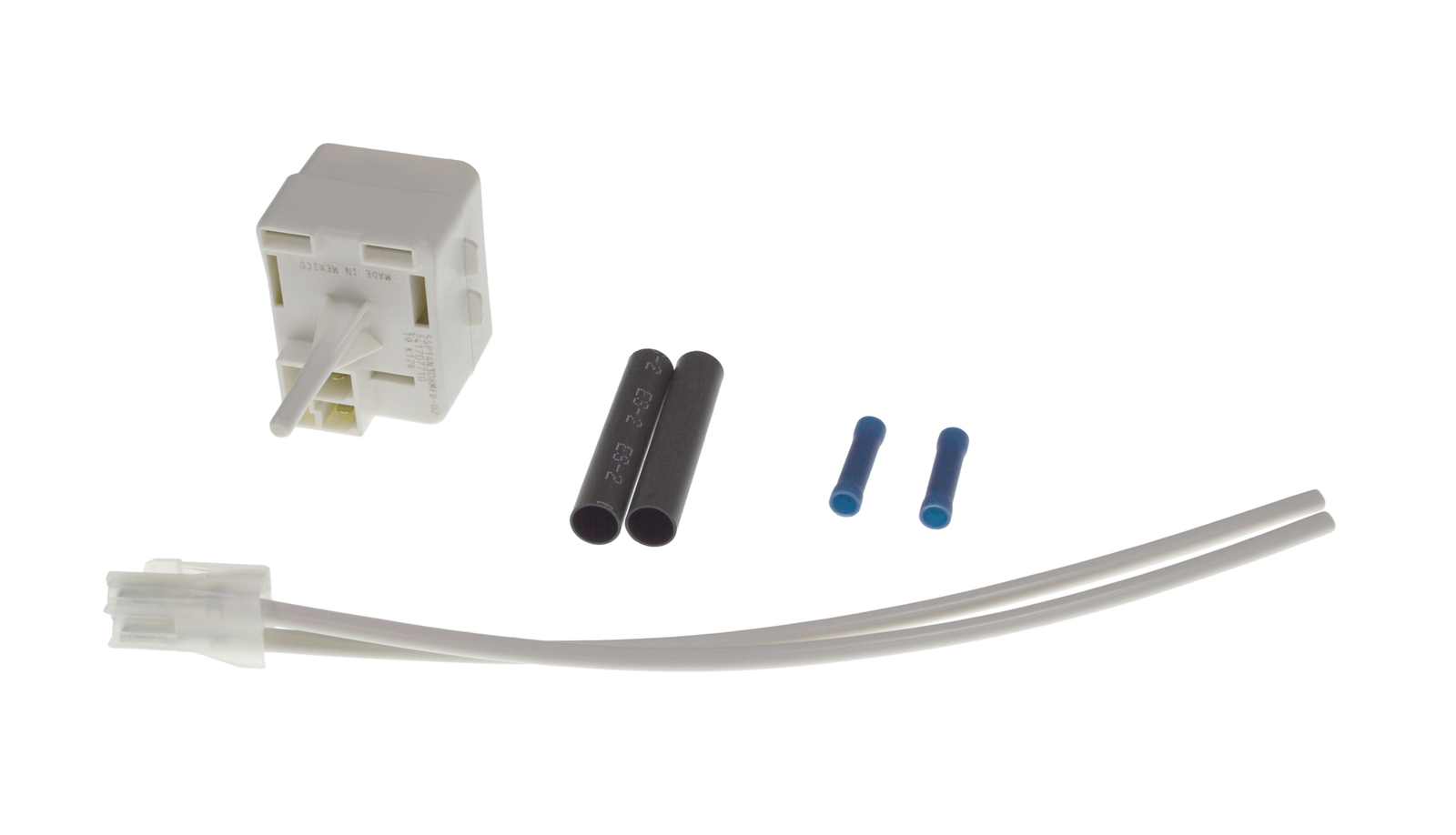

This OEM kit includes the compressor start relay, overload protector, wiring harness, and installation instructions. It is engineered to factory specifications for reliable compressor activation and thermal protection. If your refrigerator will not start, clicks repeatedly, runs warm, or the compressor struggles to engage, replacing the 5304491584 relay and overload kit often resolves these common compressor-starting failures. Verified through approved appliance parts networks including

Available from Appliance Kingdom with fast Canada-wide shipping for homeowners, landlords, and appliance repair technicians.

What Does the 5304491584 Relay & Overload Kit Do?

This component performs two critical compressor functions inside your refrigerator:

Start Relay Function:
Provides the electrical boost required to start the refrigerator compressor motor, then disengages once normal operation begins.

Overload Protector Function:
Monitors compressor heat and electrical current to prevent overheating or compressor damage by shutting off power when unsafe operating conditions occur.

Because the compressor is the heart of your refrigerator’s cooling system, precise OEM relay performance is essential for:

• Reliable compressor startup

• Consistent cooling operation

• Protection against overheating

• Improved energy efficiency

• Extended compressor lifespan

Using genuine OEM Frigidaire specifications ensures safe electrical operation and long-term system reliability.

Common Symptoms That Indicate Replacement

A failed relay or overload kit can prevent the compressor from operating correctly. Common symptoms include:

• Refrigerator not cooling properly

• Compressor clicks but does not start

• Refrigerator completely warm inside

• Compressor repeatedly attempts to start

• Clicking noises from rear compressor area

• Refrigerator powers on but cooling never begins

• Compressor overheats and shuts down

If your compressor itself tests functional, replacing the 5304491584 relay and overload kit often restores proper startup and cooling performance. This symptom profile is consistently documented by verified repair networks.

Compatibility Guidance

The 5304491584 relay and overload kit is designed for compatible Frigidaire refrigerator applications, including select units manufactured for associated brands such as:

• Frigidaire

• Electrolux

• Gibson

• Kenmore

• White-Westinghouse

• Kelvinator

• Tappan

Before ordering, verify your refrigerator’s full model number to ensure exact compatibility.

Refrigerator model numbers are typically located inside the fresh food compartment on the side wall or ceiling liner.

If you need assistance, the support team at Appliance Kingdom can help confirm fitment before purchase.

Replaces Part Numbers

Verified replacement and superseded part numbers include:

• 216649313

• 216649318

• AP5690408

• PS8689570

Confirmed through approved authoritative parts suppliers.

Key Features & Benefits

• Genuine OEM Frigidaire factory part

• Includes relay, overload protector, harness, and instructions

• Designed for precise compressor startup performance

• Protects against compressor overheating

• Meets original manufacturer electrical specifications

• Reliable fit for compatible refrigerator systems

• Suitable for DIY repairs and professional technicians

• Ships across Canada from a trusted Canadian appliance parts supplier

Installation Overview

Replacing the 5304491584 relay and overload kit is generally considered a moderate refrigerator repair.

Typical installation steps include:

• Disconnect refrigerator power

• Access rear compressor compartment

• Remove failed relay/overload assembly

• Connect new OEM relay kit and harness

• Reassemble access cover

• Restore power and verify compressor startup

Experienced DIY users with basic electrical repair knowledge may complete installation successfully.

Because this repair involves live electrical compressor circuitry, professional installation is recommended if you are unfamiliar with refrigerator electrical diagnostics.

Canada-Wide Availability & Trusted Canadian Supplier

Appliance Kingdom supplies genuine OEM appliance parts to customers across Canada.

Canadian homeowners, landlords, property managers, and appliance repair professionals trust Appliance Kingdom for:

• Genuine verified replacement parts

• Fast nationwide shipping

• Canadian-based appliance parts expertise

• Reliable compatibility assistance

Buyer Confidence & Support

When you purchase the 5304491584 Genuine OEM Frigidaire Refrigerator Relay & Overload Kit from Appliance Kingdom, you receive:

• Genuine OEM Frigidaire quality assurance

• Factory-fit performance confidence

• Safe compressor protection reliability

• Expert compatibility support

• Fast Canadian shipping
