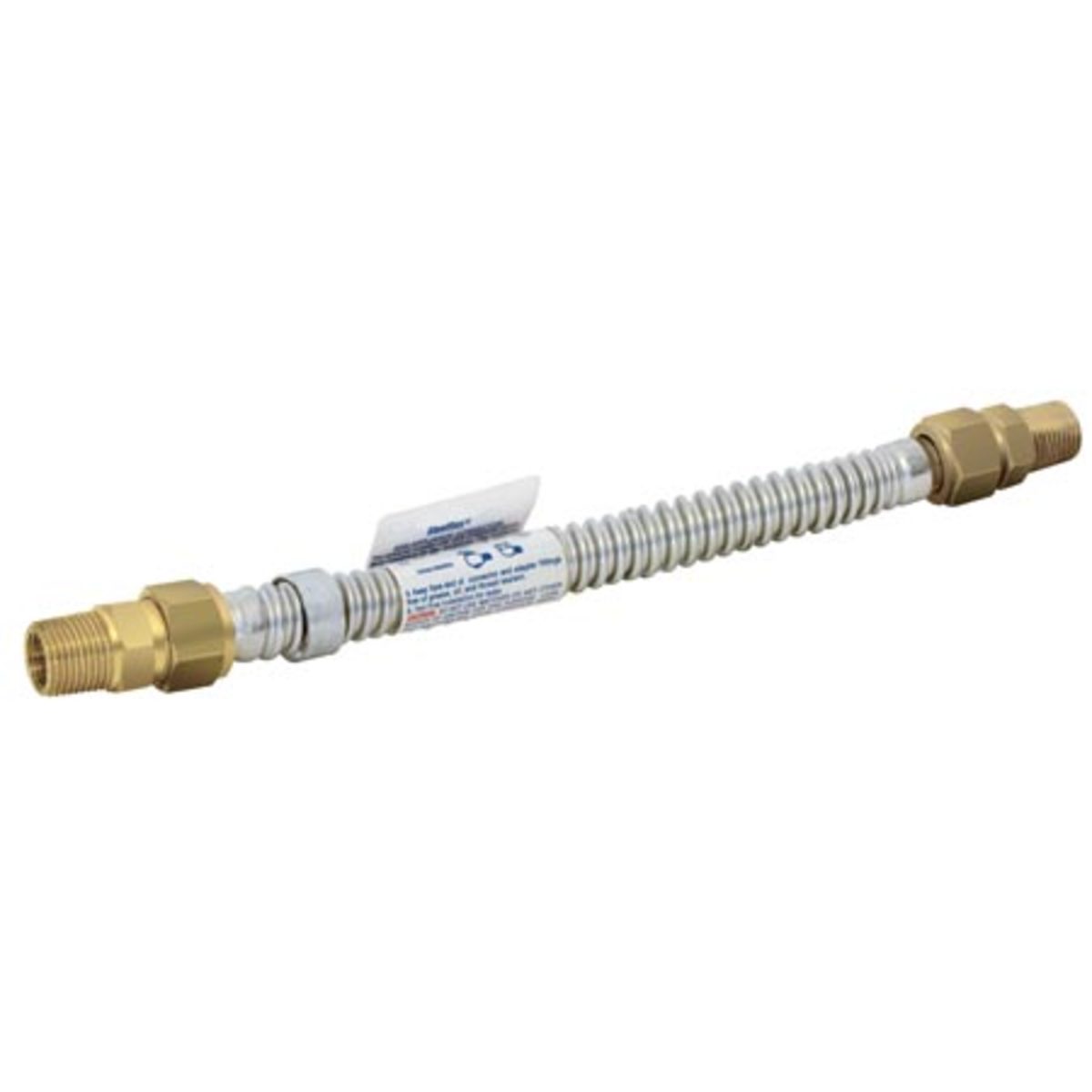

30SS545048 - Genuine OEM EZ-FLO CONN, 4FT SS FLEX 1/2M X 3

30SS545048 - Genuine OEM EZ-FLO CONN, 4FT SS FLEX 1/2M X 3

The 30SS545048 Genuine EZ-FLO Steel-Flex Stainless Steel Gas Connector is a 48-inch flexible gas connector designed for connecting compatible gas appliances to a gas supply shut-off valve. This EZ-FLO connector features a 5/8-inch outside diameter, 3/4-inch MIP × 1/2-inch MIP connection configuration, and an uncoated 304-series stainless-steel body with zinc-plated steel S45C fittings. EZ-FLO's manufacturer documentation confirms these specifications for part 30SS545048.

The connector is intended for compatible gas appliances and gas equipment, including applications such as gas ranges and other approved gas appliances. The manufacturer specifies the connector for natural gas and LP applications and identifies applicable CSA and ANSI certifications.

Available through Appliance Kingdom for customers across Canada, this 30SS545048 replacement gas connector is a practical choice when an existing connector is damaged, worn, corroded, or requires replacement during an appliance installation or service.

What Does the 30SS545048 Gas Connector Do?

The 30SS545048 provides a flexible connection between a compatible gas appliance and the building's gas supply connection or shut-off valve.

Its corrugated stainless-steel construction provides flexibility for appliance positioning while maintaining a durable gas connection. The connector uses 304-series stainless steel and zinc-plated steel S45C fittings according to EZ-FLO specifications.

The 48-inch length can provide additional installation flexibility compared with shorter connectors, provided the connector length, fitting configuration, appliance requirements, and local installation requirements are appropriate for the application.

Correct connector sizing is particularly important for gas applications. The connection type, length, gas type, pressure rating, certification, and appliance requirements should all be verified before installation.

Common Signs That a Gas Connector May Need Replacement

A gas connector should be inspected if you notice:

• Visible corrosion or deterioration

• Damage, kinking, crushing, or deformation

• A connector that has been improperly positioned or stressed

• Damaged or worn fittings

• A connector that does not match the required connection configuration

• Replacement required during appliance installation or service

• A gas odour around the appliance or connection

A gas odour should always be treated as a potential gas leak. Do not attempt to diagnose or repair an active gas leak yourself. Shut off the gas supply if it is safe to do so, leave the area if necessary, and contact a qualified gas professional or your local gas utility/emergency service.

Will Replacing This Gas Connector Fix My Problem?

If the existing connector is damaged, corroded, improperly sized, or otherwise unsuitable, replacing it with the correctly specified connector can resolve the connector-related issue.

However, 30SS545048 should not be used as a general replacement based only on appearance. Verify the required connection sizes, gas type, appliance requirements, and applicable installation requirements before ordering.

If you are replacing a connector because of a suspected gas leak, professional inspection and installation are strongly recommended.

Compatibility & Ordering Guidance

30SS545048 is a flexible stainless-steel gas connector with:

• Length: 48 inches / 4 feet

• Outside diameter: 5/8 inch

• Inlet connection: 3/4-inch MIP

• Outlet connection: 1/2-inch MIP

• Connector material: uncoated 304-series stainless steel

• Fitting material: zinc-plated steel S45C

• Intended gas applications: Natural Gas and LP

• Maximum listed gas rating: up to 106,000 BTU on the documented application

• Temperature range: -20°F to 150°F+

• Certification: CSA and applicable ANSI standards

Before ordering, confirm that your appliance and installation require a 48-inch connector with the 3/4-inch MIP × 1/2-inch MIP configuration.

Do not select a gas connector solely because the fittings appear similar. Gas connector dimensions and connection types can vary between appliances and installations.

Replaces Part Numbers

Reliable Parts, an approved authoritative source, lists the following replacement numbers for 30SS545048:

• 0428748

• 30-3141-48

• 428748

• SS48-1/2-3/4MM

• SS48-1/2-3/4MMB

Key Features & Benefits

• Genuine EZ-FLO Steel-Flex gas connector

• Part number: 30SS545048

• 48-inch / 4-foot length

• 5/8-inch outside diameter

• 3/4-inch MIP × 1/2-inch MIP connection configuration

• Uncoated 304-series stainless-steel construction

• Zinc-plated steel S45C fittings

• Flexible corrugated design for easier positioning

• Suitable for compatible Natural Gas and LP applications

• Corrosion-resistant stainless-steel construction

• Factory leak tested

• Certified to applicable CSA and ANSI standards

• Suitable for residential, property-management, and professional appliance-service applications

Installation Overview

Installation of a gas connector should be treated as a professional gas-appliance installation or repair.

Although the connector itself is designed for straightforward installation and does not require special tools according to the manufacturer, working with natural gas or LP gas carries significant safety risks.

A qualified gas technician should verify the connector specification, gas type, fittings, appliance requirements, connection integrity, and applicable Canadian installation requirements.

Never reuse a gas connector if the manufacturer or applicable installation requirements call for a new connector. Do not kink, stretch, crush, or excessively bend the connector during installation.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian appliance-parts supplier based in Edmonton, Alberta, serving homeowners, landlords, property managers, and professional appliance technicians across Canada.

The 30SS545048 EZ-FLO gas connector is available for Canadian customers requiring a correctly specified flexible stainless-steel gas connector. Appliance Kingdom provides Canada-wide shipping and support to help customers identify the appropriate replacement part before ordering.

For gas-related components, always verify the required specifications and applicable Canadian installation requirements before purchase and installation.

Buyer Confidence

The 30SS545048 is a documented EZ-FLO Steel-Flex connector with manufacturer-specified dimensions, materials, and connection configuration. EZ-FLO documentation identifies the connector as a 48-inch 5/8-inch OD stainless-steel gas connector with 3/4-inch MIP × 1/2-inch MIP fittings.

Reliable Parts also lists 30SS545048 as an EZ-FLO part and confirms the documented replacement part numbers.

If you are unsure whether this connector is correct for your appliance installation, provide the appliance make/model and the existing connector specifications so compatibility can be checked before purchase.
