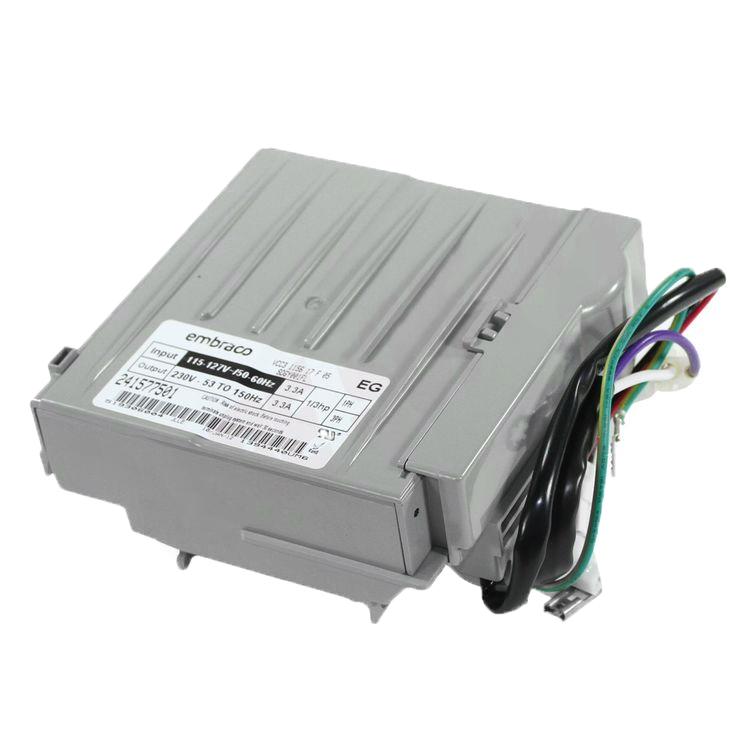

241577501 - Genuine OEM Frigidaire Refrigerator Invertor Board

SKU : 241577501
$357.26
New, Low Stock. Order Soon
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

241577501 – Genuine OEM Frigidaire Refrigerator Inverter Board

The 241577501 is a Genuine OEM compressor inverter control board designed for Frigidaire refrigerators. This electronic inverter board regulates compressor operation to ensure precise cooling performance and energy-efficient temperature control. It is compatible with select Frigidaire, Electrolux, Kenmore, Gibson, Kelvinator, and related refrigerator models. Available for fast, reliable shipping across Canada from Appliance Kingdom.

This inverter board is a critical refrigerator control component—when it fails, the compressor may not run correctly, leading to no cooling or inconsistent refrigeration performance. Replacing it with a genuine OEM part restores proper compressor modulation and system stability.

What Does the 241577501 Inverter Board Do?

The inverter board controls the refrigerator’s compressor speed by converting and regulating electrical power based on cooling demand. Instead of the compressor running at a single fixed speed, the inverter allows variable-speed operation for better efficiency and temperature precision.

Key functions include:

  • Regulating compressor speed for optimal cooling

  • Improving energy efficiency and reducing power consumption

  • Maintaining consistent internal refrigerator temperatures

  • Supporting advanced electronic cooling control systems

Because it directly manages compressor operation, OEM precision is essential. Incorrect voltage regulation or poor-quality boards can cause compressor failure or erratic cooling behaviour.

Common Symptoms of a Faulty Inverter Board

A failing inverter board often causes noticeable cooling and performance issues, such as:

  • Refrigerator running but not cooling

  • Compressor not starting or cycling irregularly

  • Warm fresh food or freezer compartments

  • Clicking or repeated start/stop compressor behaviour

  • Intermittent cooling performance

  • Complete loss of cooling even though lights and controls still work

If your refrigerator has power but is not cooling, the inverter board is one of the most common failure points in inverter-driven Frigidaire systems.

Compatibility Guidance

The WP12531601 inverter board is designed for select Frigidaire and Electrolux-based refrigerator platforms.

Before ordering:

  • Always verify your refrigerator’s full model number

  • Confirm inverter board part number match before replacement

  • Ensure your appliance uses an inverter-driven compressor system

If unsure, Appliance Kingdom can assist in confirming compatibility before purchase.

Replaces Part Numbers (Verified)

This OEM part is known to replace the following part numbers:

  • 7241577501

  • 241547501

  • AP3702972

  • PS977089

  • EA977089

  • AH977089

These cross-references are manufacturer-recognized equivalents used across Frigidaire/Electrolux service documentation and major appliance parts distributors.

Key Features & Benefits

  • Genuine OEM Frigidaire electronic inverter board

  • Precisely controls compressor speed and cooling output

  • Restores proper refrigerator cooling performance

  • Designed for long-term reliability and system protection

  • Manufactured to original factory specifications

  • Compatible with select Frigidaire/Electrolux refrigerator systems

  • Ideal for professional technicians and experienced DIY repairs

  • Ships across Canada from a trusted appliance parts supplier

Installation Overview

Replacing a refrigerator inverter board is considered an advanced repair.

Installation typically involves:

  • Disconnecting refrigerator power supply

  • Accessing compressor compartment (rear bottom section)

  • Removing and replacing inverter control board

  • Ensuring secure electrical connections before restart

Due to high-voltage electrical components and compressor sensitivity, professional installation is strongly recommended unless performed by a trained appliance technician.

Canada-Wide Availability & Supplier Trust

Appliance Kingdom supplies genuine OEM refrigerator control components across Canada, supporting homeowners, landlords, and appliance repair professionals.

Customers benefit from:

  • Fast Canada-wide shipping

  • OEM-verified appliance parts

  • Reliable technical compatibility support

  • Trusted Canadian parts distribution

Buyer Confidence & Support

When purchasing the 241577501 inverter board from Appliance Kingdom, you receive:

  • Genuine OEM Frigidaire quality assurance

  • Reliable compressor control restoration

  • Fitment verification support before ordering

  • Nationwide Canadian delivery

  • Trusted appliance repair supply expertise
