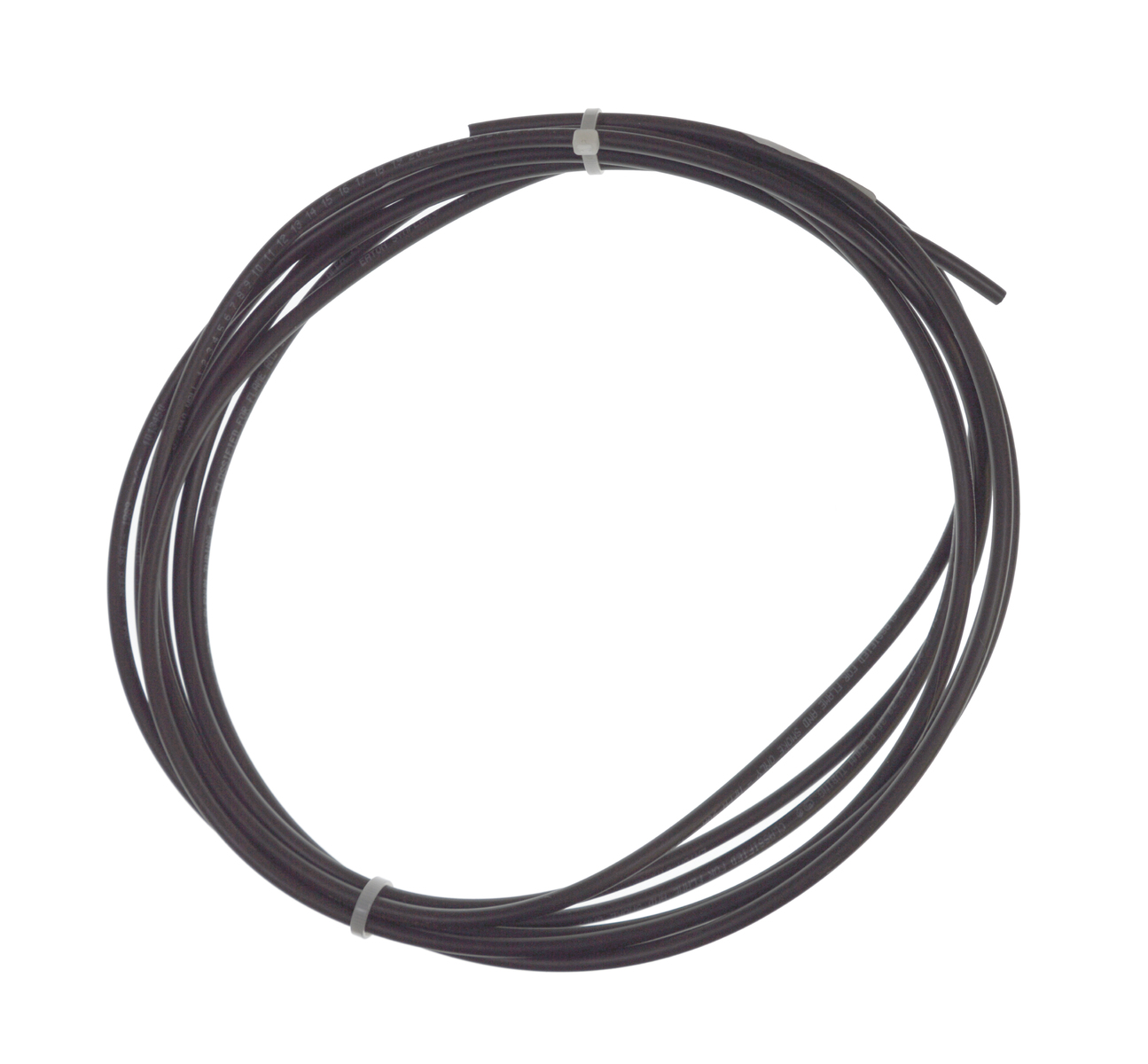

1219-13004 - Genuine OEM Johnson Controls 5/32" Pneumatic Tubing, Sold Per Foot

1219-13004 - Genuine OEM Johnson Controls 5/32" Pneumatic Tubing, Sold Per Foot

The 1219-13004 Genuine OEM Johnson Controls 5/32" Pneumatic Tubing is a black, single polyethylene pneumatic tube designed for use in pneumatic HVAC control systems. This Johnson Controls component has a 5/32-inch outside diameter and is sold by the foot, making it suitable for pneumatic control and instrumentation applications where correctly sized tubing is required. AMRE Supply lists 1219-13004 specifically as Johnson Controls 5/32" pneumatic tubing sold per foot.

Refrigerative Supply identifies the tubing as flame-retardant polyethylene tubing designed to control flame spread and smoke generation in pneumatic HVAC systems. It is manufactured by Johnson Controls Systems and is supplied in black.

Appliance Kingdom supplies appliance and HVAC-related replacement components to customers across Canada, with Canada-wide shipping available.

What Does 1219-13004 Pneumatic Tubing Do?

The 1219-13004 is pneumatic poly tubing used to carry air or pneumatic control signals within compatible HVAC control systems. Its 5/32-inch outside diameter provides the dimensional specification required for compatible pneumatic fittings and control components.

The tubing is made from polyethylene and is designed for pneumatic applications requiring a lightweight, flexible tube with flame-retardant properties. Its material and dimensional characteristics are important because pneumatic control systems depend on properly sized tubing to maintain reliable air transmission and secure connections.

Incorrect tubing size, damaged tubing, or degraded tubing can contribute to air leakage and unreliable pneumatic control-system operation.

Common Signs Pneumatic Tubing May Need Replacement

A pneumatic tube may require replacement when it is physically damaged, leaking, cracked, kinked, or otherwise unable to maintain the required pneumatic connection.

Possible symptoms of damaged or compromised pneumatic tubing include:

• Air leakage from the tubing or connections

• Loss of pneumatic pressure

• Unreliable pneumatic control signals

• HVAC control components not responding as expected

• Intermittent operation caused by an unstable pneumatic connection

• Visible cracking, abrasion, or physical deterioration

• Tubing that has become kinked or improperly routed

If a pneumatic control system is experiencing these symptoms, replacing damaged tubing can restore the pneumatic connection when the tubing itself is the source of the problem. However, pressure-control devices, fittings, valves, and other pneumatic components can produce similar symptoms, so the system should be properly diagnosed before replacement.

Will Replacing 1219-13004 Fix My Problem?

It will help resolve the problem when the existing pneumatic tubing is damaged, leaking, incorrectly sized, or otherwise preventing the pneumatic system from operating correctly.

Replacing tubing will not correct a fault originating from another component, such as a pneumatic controller, valve, fitting, or actuator. Inspect the complete pneumatic circuit and identify the source of the fault before ordering replacement tubing.

Compatibility & Ordering Guidance

1219-13004 is 5/32-inch pneumatic poly tubing intended for compatible pneumatic HVAC control applications. The tubing is identified by Johnson Controls and HVAC supply sources as pneumatic tubing for these systems.

Before ordering, verify that your existing system requires:

• 5/32-inch outside-diameter tubing

• Single pneumatic tubing rather than twin tubing

• Compatible pneumatic fittings and connections

• Tubing with the required operating-temperature and pressure characteristics

Do not confuse 1219-13004 with Johnson Controls 1219-130T4, which is a different 5/32-inch twin pneumatic tubing product. AMRE Supply lists these as separate products.

Technical Specifications

• Part Number: 1219-13004

• Brand: Johnson Controls

• Manufacturer: Johnson Controls Systems

• Product Type: Pneumatic Poly Tubing

• Tubing Style: Single tube

• Outside Diameter: 5/32 inch

• Inside Diameter: 3/32 inch

• Wall Thickness: 0.03 inch

• Material: Polyethylene

• Colour: Black

• Stripe: No stripe

• Minimum Operating Temperature: -50°F (-46°C)

• Maximum Operating Temperature: 140°F (60°C)

• Maximum Working Pressure: 100 PSI

• Minimum Bend Radius: 1/2 inch

• Tensile Strength: 1,900 PSI

These specifications are reported by Refrigerative Supply for Johnson Controls 1219-13004.

Key Features & Benefits

• Genuine OEM Johnson Controls component

• Part number 1219-13004

• 5/32-inch outside diameter

• Single pneumatic tubing construction

• Black polyethylene material

• Flame-retardant design

• Designed for compatible pneumatic HVAC control systems

• Flexible and lightweight construction

• Sold per foot

• Suitable for HVAC service and control-system repairs

• Appropriate for homeowners, landlords, facility operators, and professional technicians where the application requires this specific tubing

AMRE Supply confirms that 1219-13004 is sold per foot, while Refrigerative Supply specifies its polyethylene construction and pneumatic HVAC application.

Installation Overview

Replacing pneumatic tubing is generally a straightforward mechanical repair for an experienced HVAC or controls technician, provided the technician has identified the correct tubing size and compatible fittings.

Before replacing tubing, shut down and isolate the relevant pneumatic system according to the equipment manufacturer's service procedure. Remove the damaged section, route the replacement tubing correctly, and ensure connections are secure and free from leaks.

Because pneumatic HVAC control systems can be part of commercial or building-control equipment, professional installation is recommended for technicians who are unfamiliar with pneumatic control systems.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian appliance parts supplier serving customers across Canada.

The 1219-13004 is a Johnson Controls pneumatic tubing component used in HVAC pneumatic control applications. Customers can order replacement parts through Appliance Kingdom with Canada-wide shipping and support.

For commercial HVAC and pneumatic control repairs, verify the exact tubing size and system requirements before ordering.

Buyer Confidence

The 1219-13004 part number is specifically identified by established HVAC parts suppliers as Johnson Controls 5/32-inch pneumatic tubing. AMRE Supply lists it as a Johnson Controls product, while Refrigerative Supply identifies Johnson Controls Systems as the manufacturer and provides detailed dimensional and operating specifications.
