12002794 - Genuine OEM Whirlpool Refrigerator Relay & Overload Kit

12002794 – Genuine OEM Whirlpool Refrigerator Relay & Overload Kit

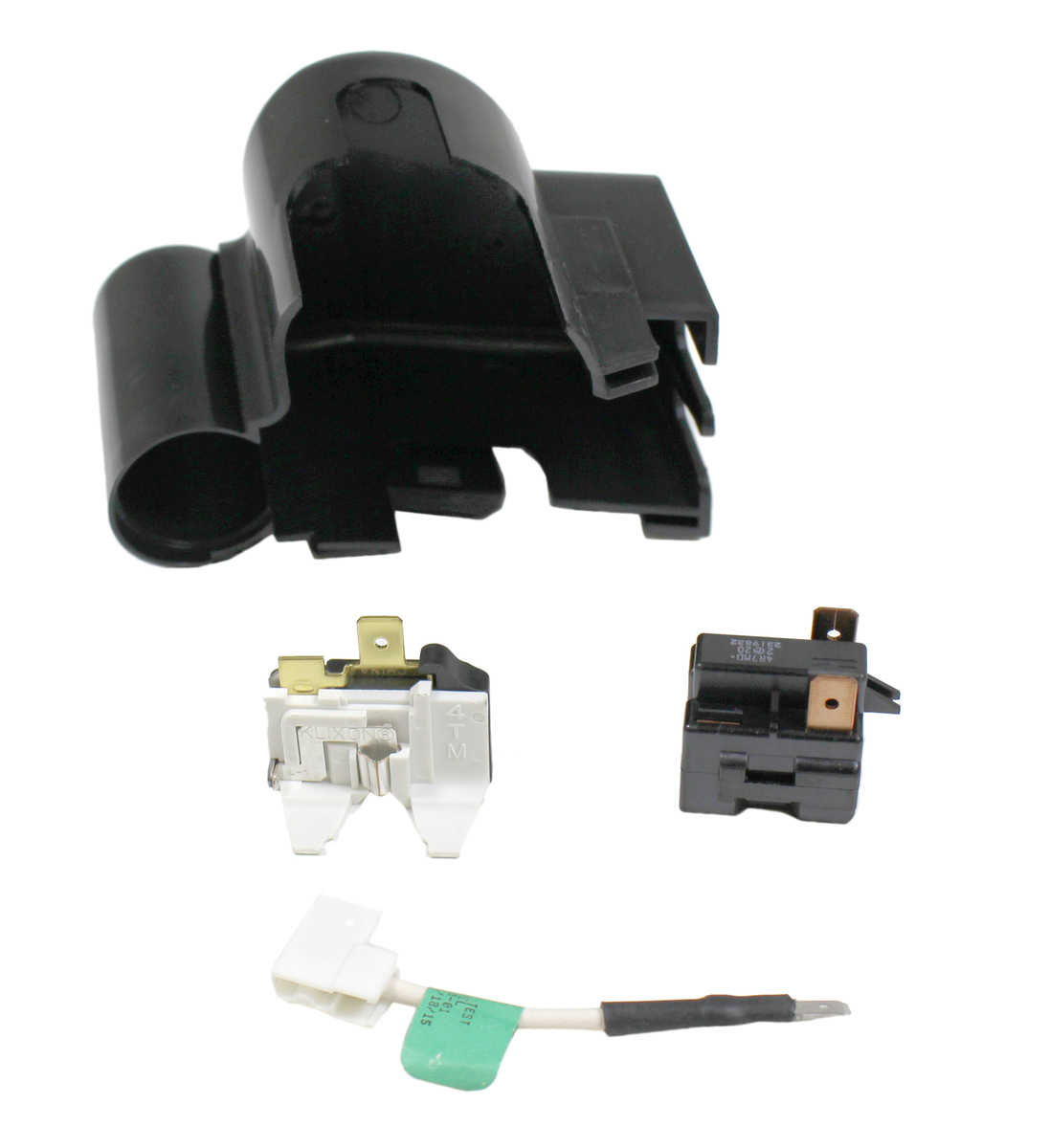

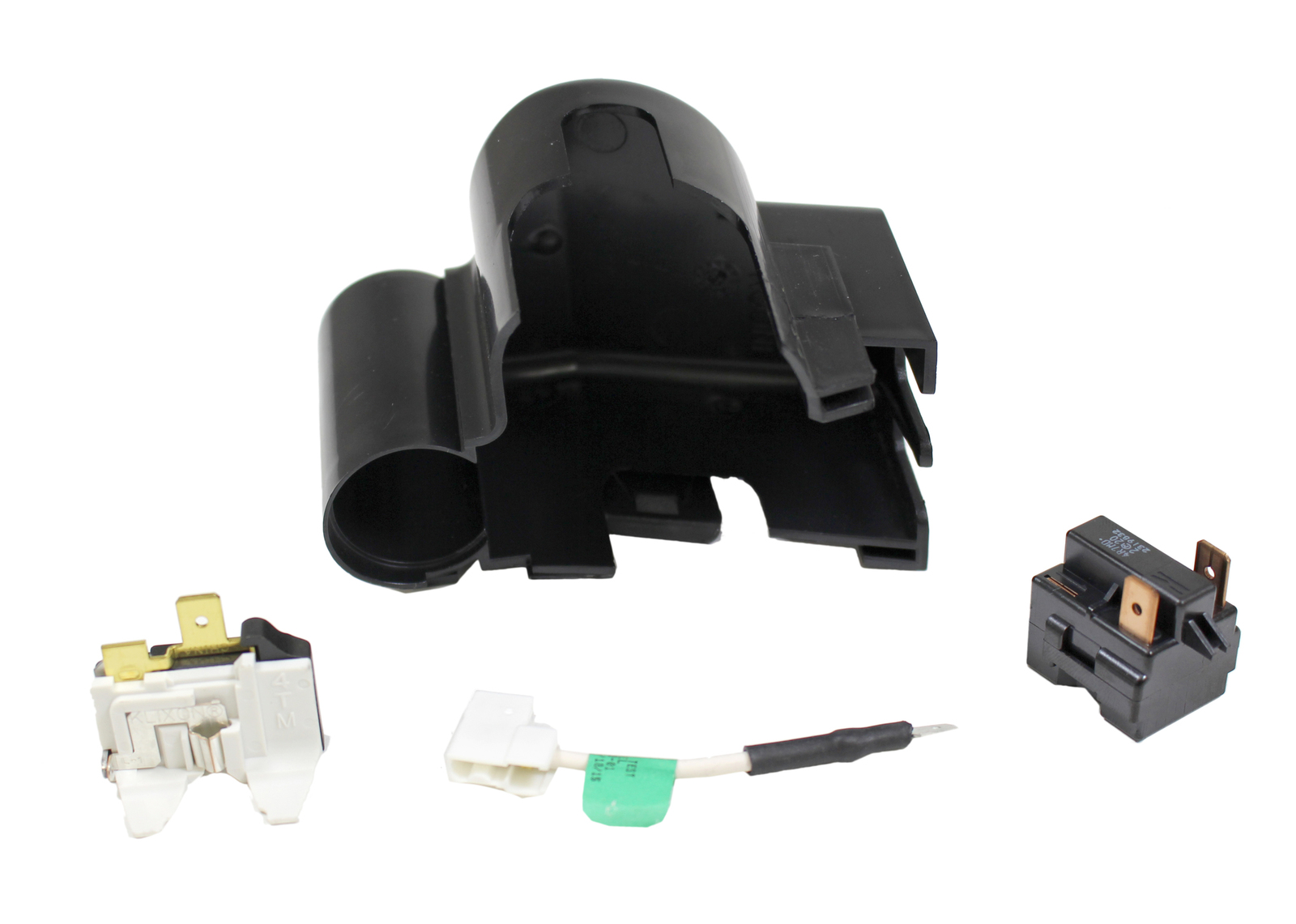

The 12002794 is a Genuine OEM Whirlpool refrigerator compressor start device kit designed to restore proper compressor start-up and cooling operation in compatible Whirlpool-built refrigerators. This factory-certified replacement kit includes the PTC start device, overload protector, electrical cover, jumper wire, and installation instructions for a complete compressor start-circuit repair solution.

Compatible with select Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Admiral, Magic Chef, Crosley, Inglis, Roper, Estate, and other Whirlpool-manufactured refrigerators, this OEM relay and overload kit is commonly used to resolve compressor start failures, clicking noises, and no-cooling issues. Available from Appliance Kingdom with fast Canada-wide shipping for homeowners, landlords, and appliance repair professionals.

What Does the 12002794 Relay & Overload Kit Do?

The relay and overload assembly is mounted directly to the refrigerator compressor and controls compressor start-up while protecting the sealed system from electrical overload conditions.

This kit performs two essential functions:

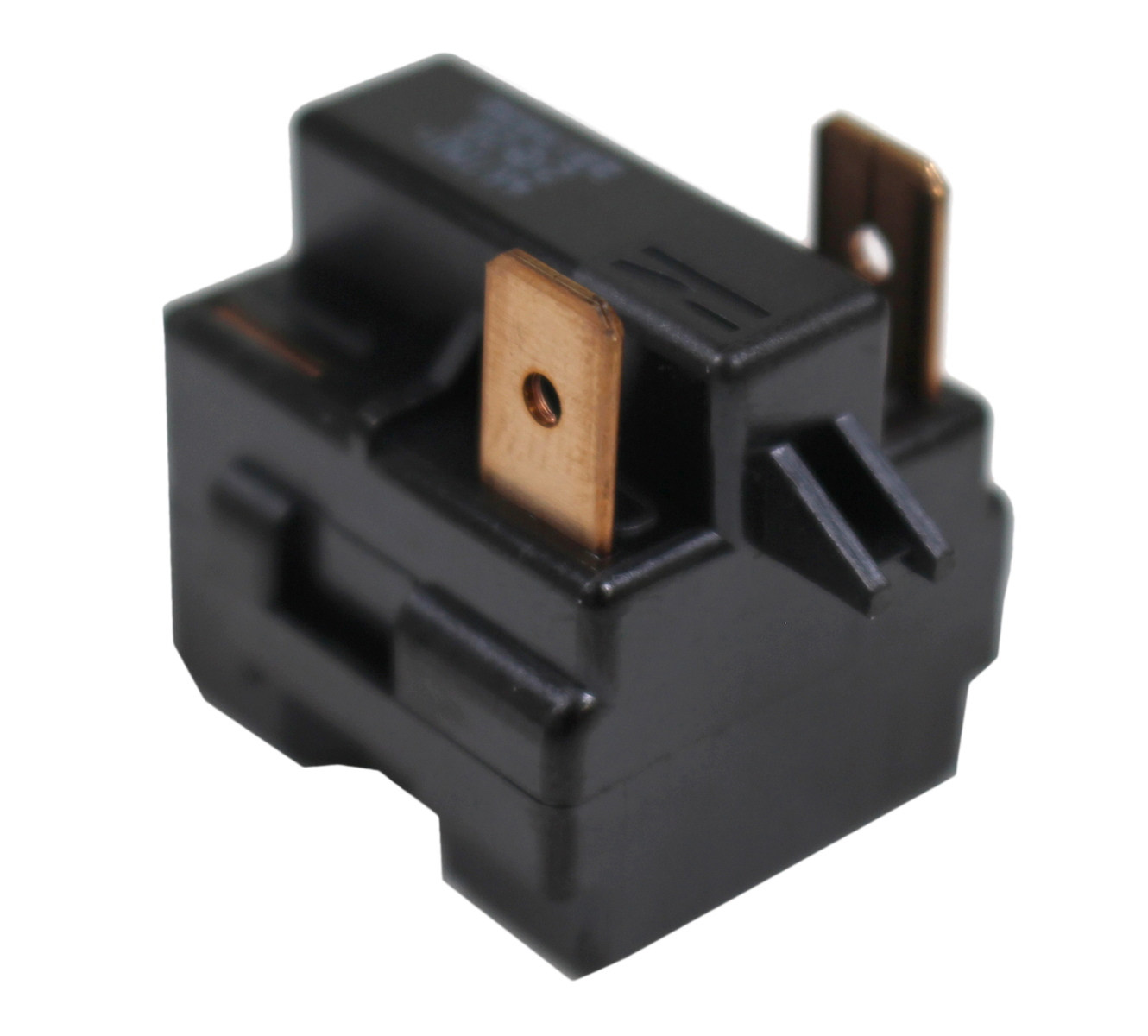

• Start Relay: Delivers power to initiate compressor operation

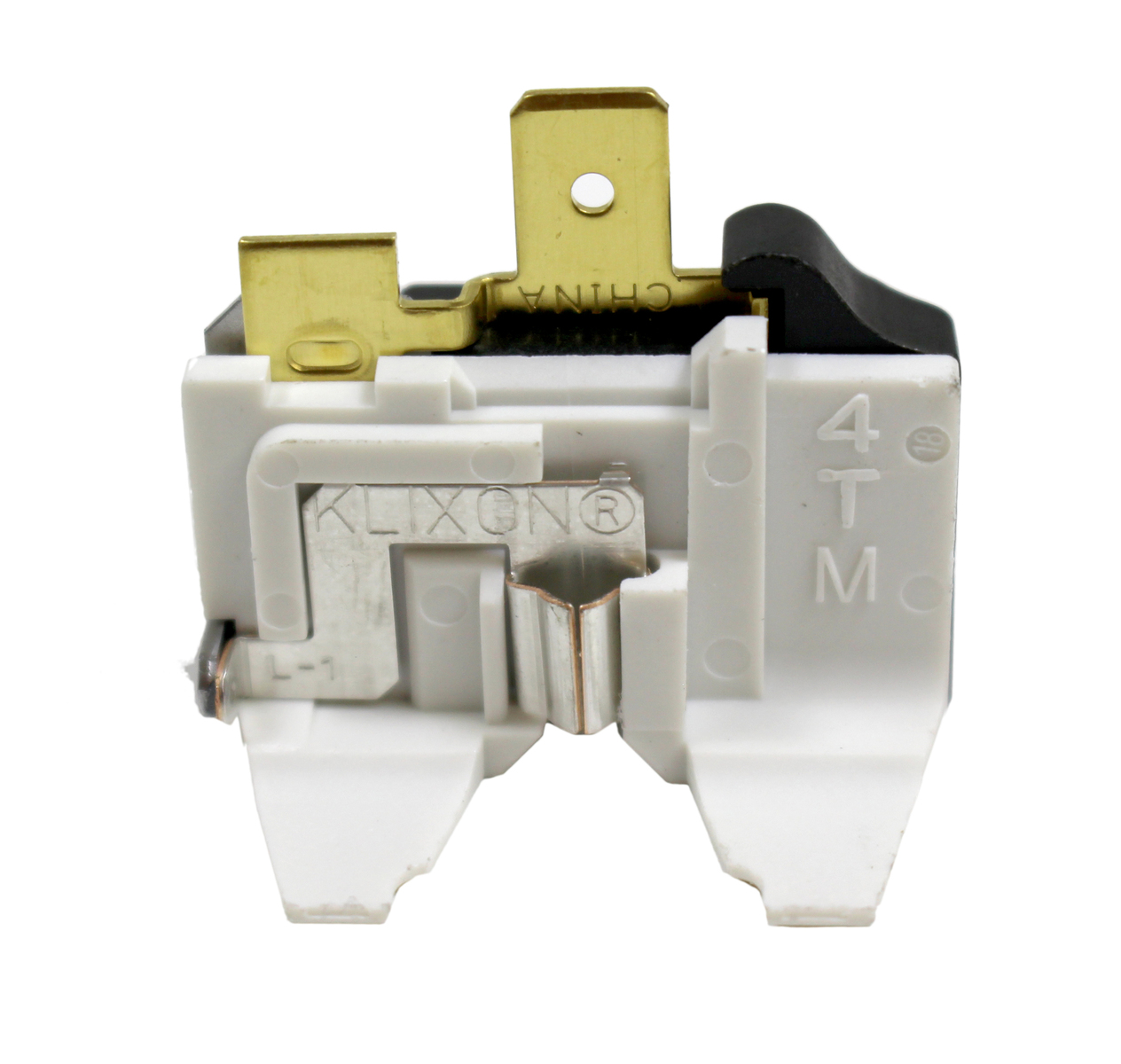

• Overload Protector: Prevents compressor damage from overheating or excessive current draw

Using a genuine OEM relay kit ensures:

• Correct compressor start timing

• Safe overload protection

• Reliable refrigeration performance

• Proper electrical specifications

• Reduced risk of compressor damage

Incorrect or generic replacements may cause improper compressor cycling, electrical stress, or premature compressor failure.

Common Symptoms Indicating Replacement

A failed relay or overload kit commonly causes refrigerator cooling failure. Signs often include:

• Refrigerator not cooling

• Freezer warming unexpectedly

• Clicking noises from the rear compressor area

• Compressor repeatedly trying to start and shutting off

• Refrigerator powers on but compressor will not run

• Intermittent cooling performance

• Compressor hums briefly then stops

Many Whirlpool refrigerator owners report that replacing the 12002794 kit restores normal compressor operation and resolves repeated click-and-shutoff problems.

If your refrigerator exhibits these symptoms and the compressor itself tests good, replacing this relay and overload kit often resolves the issue.

Compatibility Guidance

The 12002794 relay and overload kit is designed for Whirlpool-built refrigerators and compatible models across multiple Whirlpool-owned brands.

Before ordering, verify your refrigerator’s complete model number to ensure compatibility. Model numbers are typically found inside the fresh food compartment on the side wall or frame.

If you need fitment assistance, Appliance Kingdom can help confirm compatibility before purchase.

Replaces Part Numbers

Verified replacement and superseded part numbers include:

• 61006186

• 1378508

• AP4009662

• PS2004069

• EA2004069

Key Features & Benefits

• Genuine OEM Whirlpool factory-certified part

• Includes relay, overload protector, cover, jumper wire, and instructions

• Designed to restore compressor start performance

• Protects against electrical overload conditions

• Built to exact Whirlpool electrical specifications

• Helps extend compressor life

• Suitable for homeowners and professional appliance technicians

• Ships across Canada from a trusted Canadian supplier

Installation Overview

Replacing the relay and overload kit is generally considered a moderate refrigerator repair.

Typical installation steps include:

• Disconnect refrigerator power

• Access compressor area from rear lower panel

• Remove failed relay/overload assembly

• Install replacement relay kit

• Reconnect electrical harnesses

• Restore power and verify compressor start-up

Experienced DIY users with appliance repair knowledge can often complete installation using basic hand tools.

Because this repair involves electrical compressor components, professional installation is recommended if diagnosis is uncertain.

Canada-Wide Availability & Trusted Canadian Supplier

Appliance Kingdom supplies genuine OEM and premium appliance replacement parts to customers across Canada.

Canadian homeowners, landlords, and appliance repair professionals trust Appliance Kingdom for:

• Fast Canadian shipping

• Genuine OEM inventory

• Expert compatibility support

• Reliable nationwide service

Buyer Confidence & Support

When you purchase the 12002794 Genuine OEM Whirlpool Refrigerator Relay & Overload Kit from Appliance Kingdom, you receive:

• Genuine Whirlpool OEM quality assurance

• Factory-spec electrical performance

• Reliable compressor start protection

• Compatibility verification support

• Fast Canada-wide delivery
