12002784 - Genuine OEM Whirlpool Refrigerator Relay & Overload Kit

12002784 – Genuine OEM Whirlpool Refrigerator Relay & Overload Kit

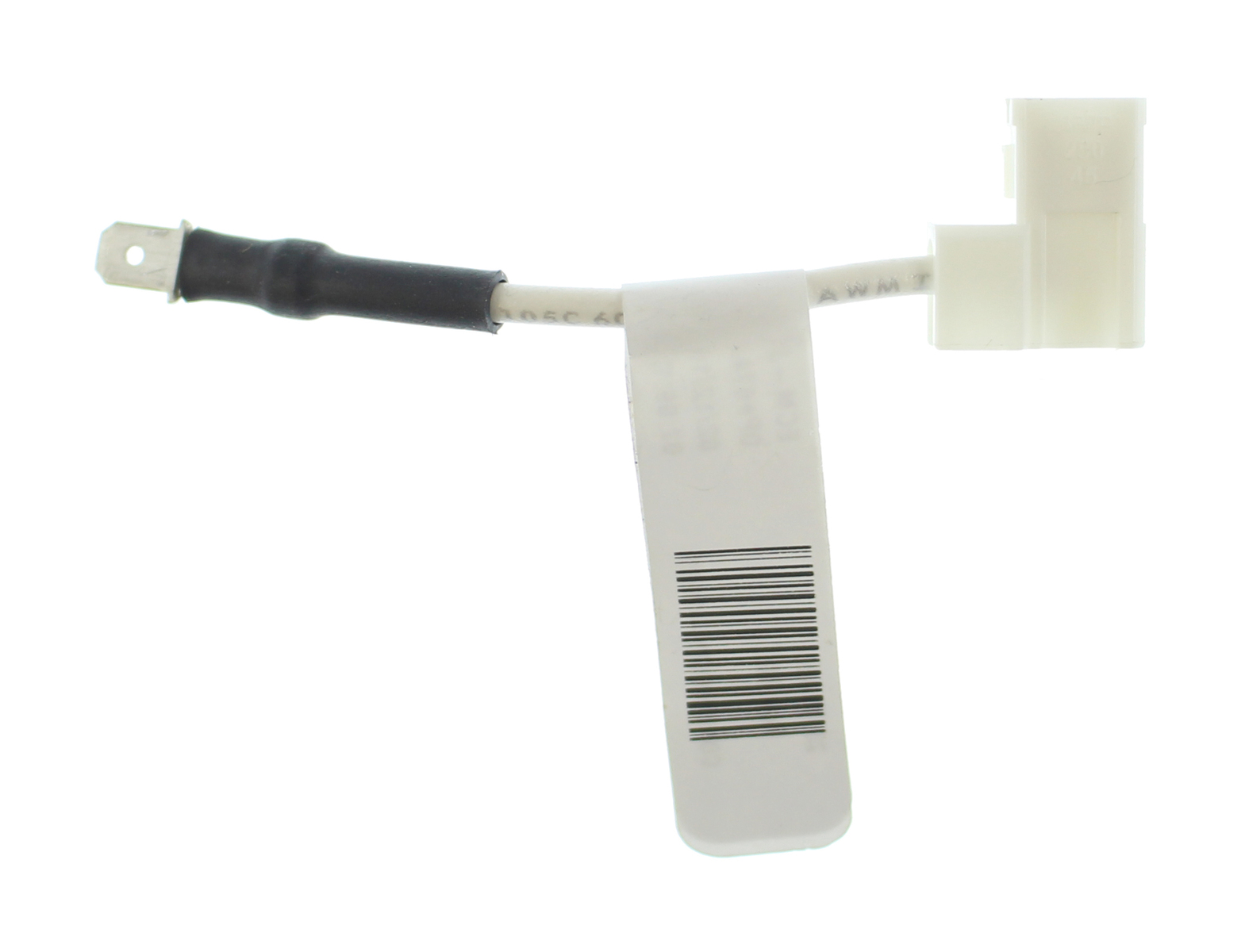

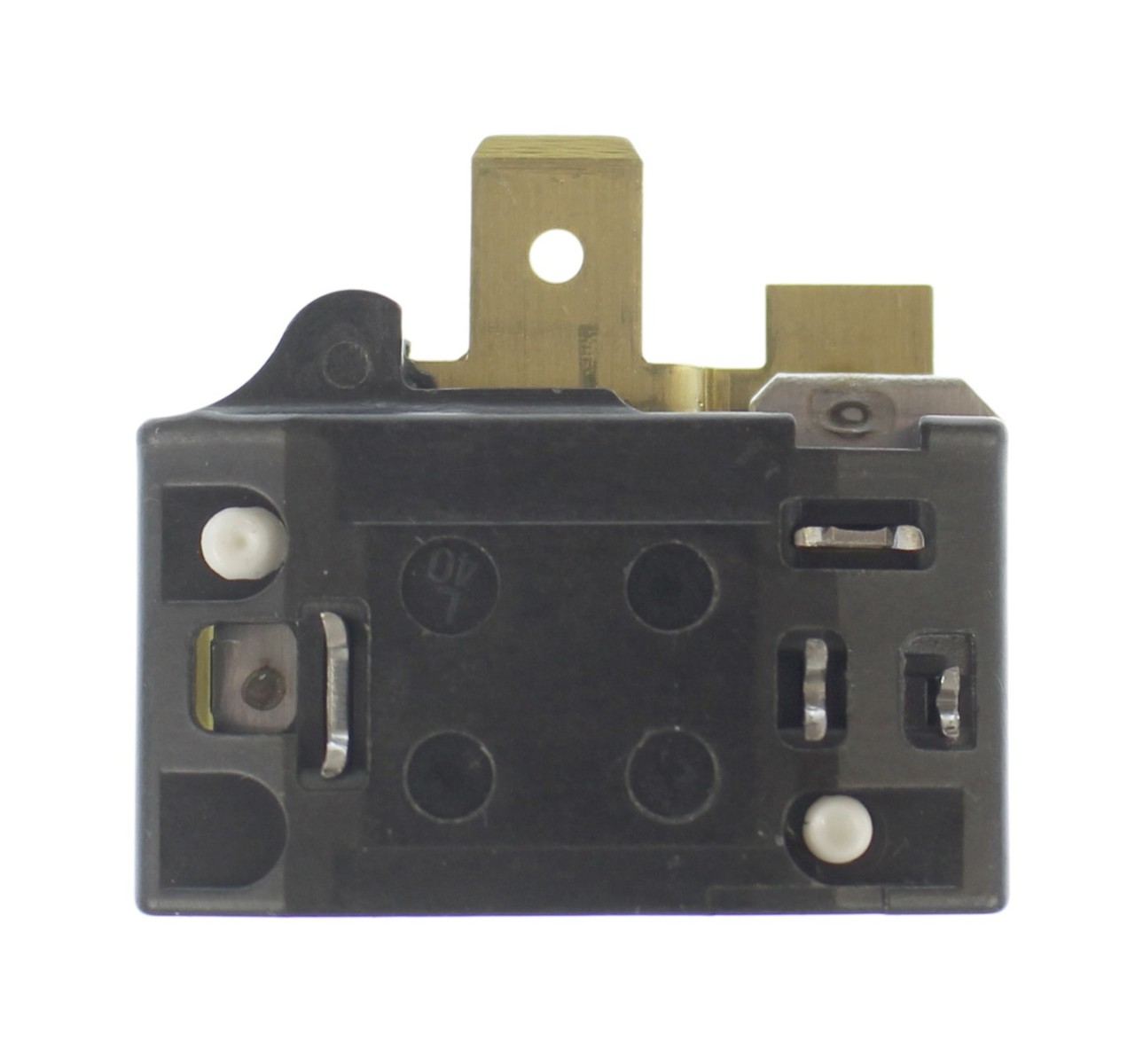

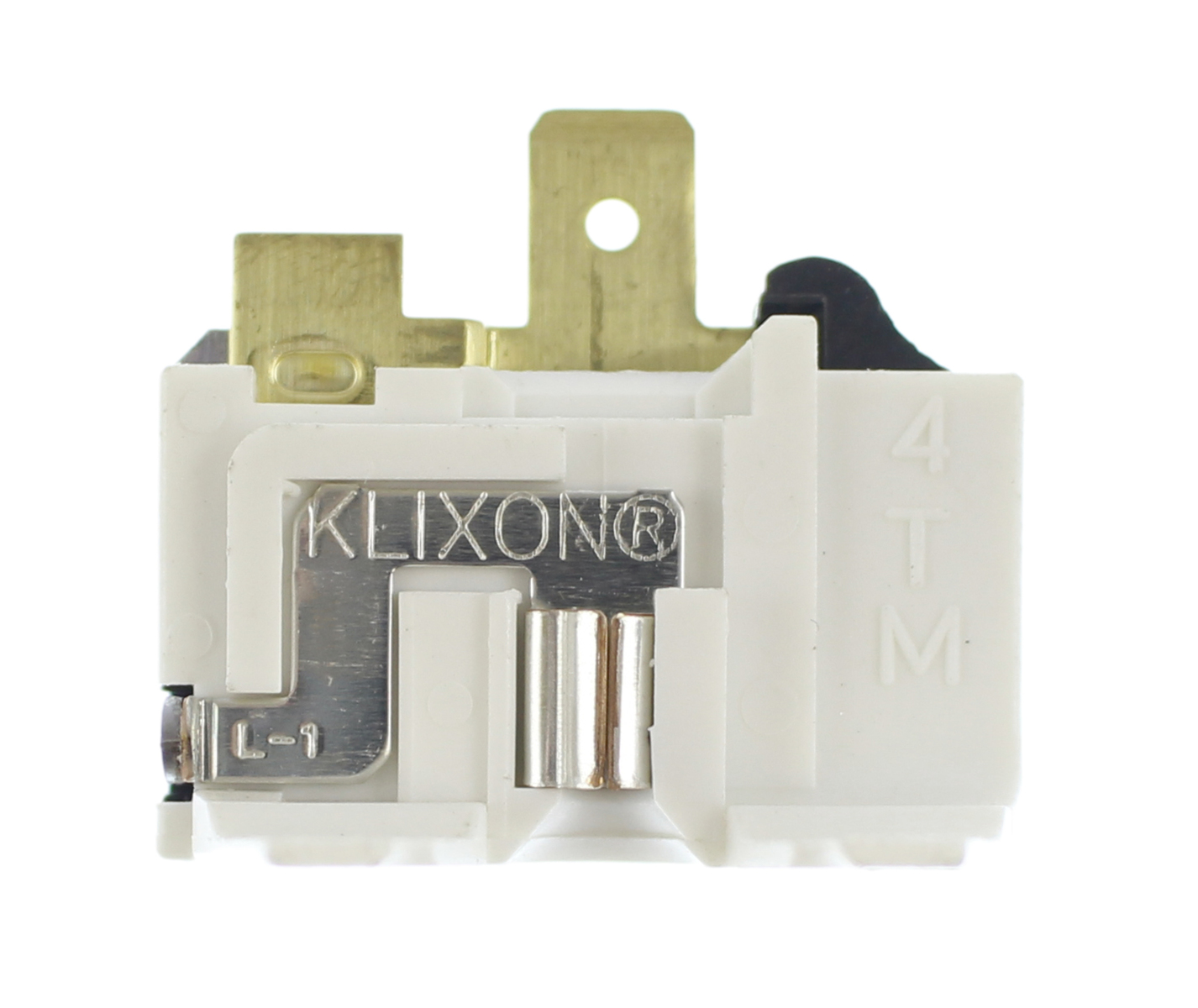

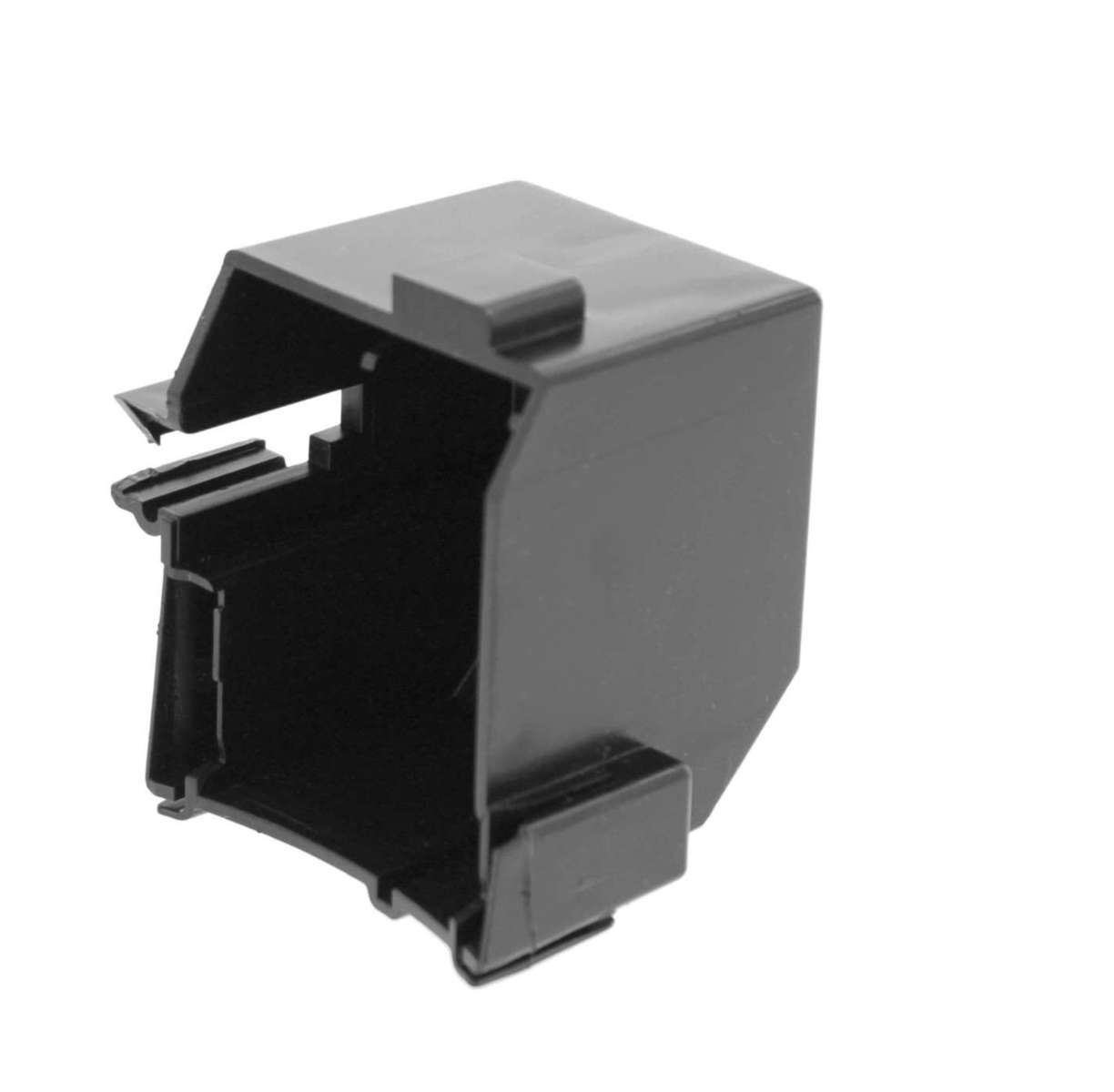

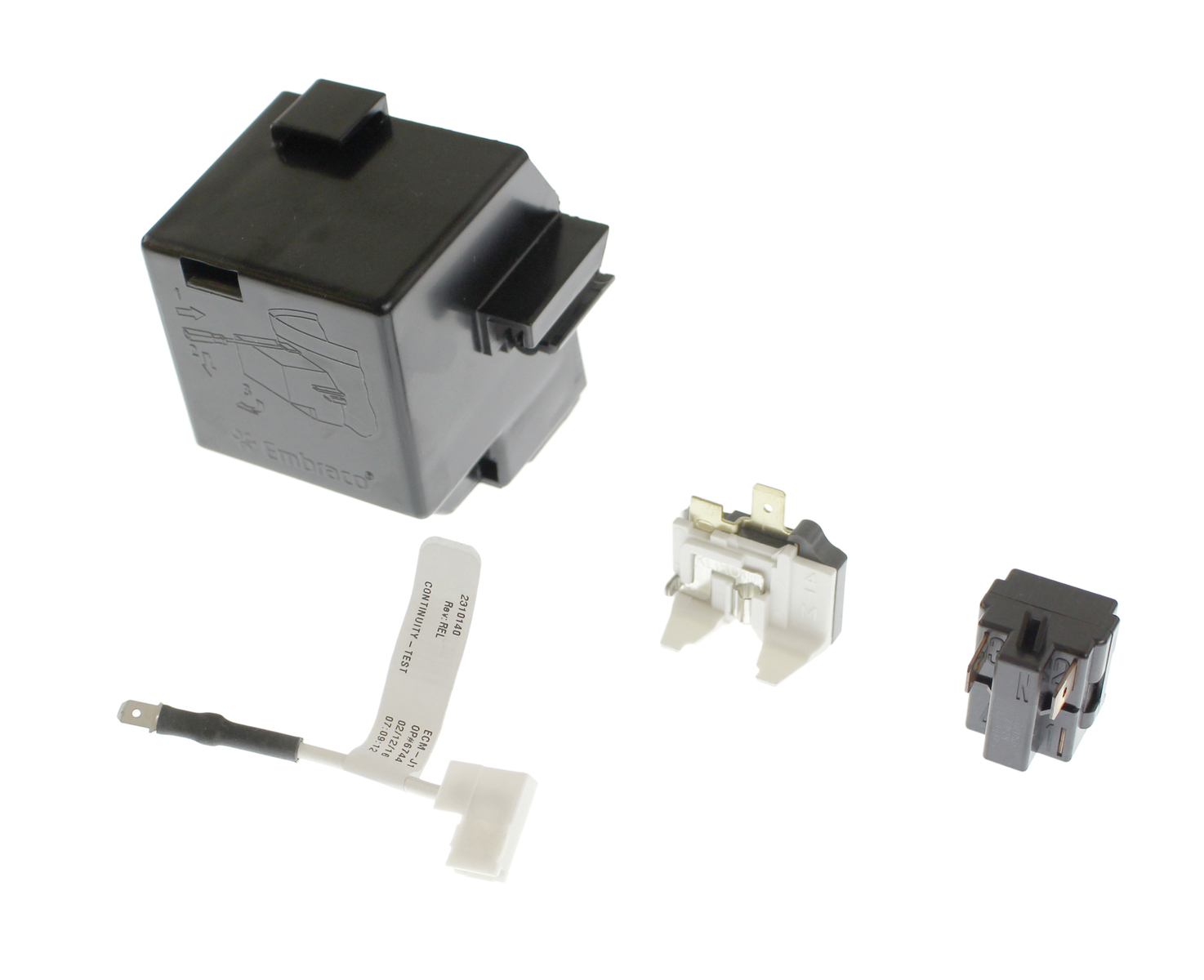

The 12002784 is a Genuine OEM Whirlpool refrigerator compressor start device assembly designed to help power and protect the compressor during start-up and operation. This kit mounts directly to the refrigerator compressor and includes both the start relay and overload protector, which work together to ensure reliable compressor activation and safeguard against overheating or electrical overload conditions. Verified by authoritative parts suppliers including

Designed for Whirlpool-manufactured refrigerators and compatible with select Whirlpool family brands including Maytag, KitchenAid, Jenn-Air, Amana, Crosley, Admiral, Roper, Estate, and certain Kenmore models, the 12002784 relay and overload kit is a common solution for refrigerators that fail to start, click repeatedly, or stop cooling properly. Available from Appliance Kingdom with fast Canada-wide shipping for homeowners, landlords, and appliance repair technicians.

What Does the 12002784 Relay & Overload Kit Do?

The relay and overload kit performs two essential compressor functions inside your refrigerator:

Start Relay:
Delivers the initial electrical boost required to start the refrigerator compressor.

Overload Protector:
Shuts off compressor power if excessive heat or electrical current is detected, helping prevent compressor damage.

This combination is critical because the compressor is the heart of your refrigerator’s cooling system. Without a properly functioning relay and overload protector, the compressor cannot start or operate safely.

Using a genuine OEM Whirlpool relay kit ensures:

• Proper compressor start-up performance

• Factory-correct electrical specifications

• Overheat and overload protection

• Long-term refrigerator cooling reliability

• Protection against compressor damage caused by faulty start components

Common Symptoms Indicating Replacement

A failing refrigerator relay and overload kit often causes noticeable cooling problems.

Common signs include:

• Refrigerator will not start

• Compressor clicks repeatedly but does not run

• Refrigerator compartment too warm

• Freezer not maintaining temperature

• Compressor attempts to start then shuts off

• Clicking or humming noises from rear compressor area

• Intermittent cooling failure

• Compressor overheating shutdowns

If your refrigerator shows these symptoms, replacing the 12002784 relay and overload kit commonly restores normal compressor operation and cooling performance. Repair data confirms this part frequently resolves “won’t start” and “too warm” conditions.

Compatibility Guidance

The 12002784 relay and overload kit is designed for Whirlpool-family refrigerators.

Before ordering, verify your appliance’s full model number, usually located inside the fresh food compartment on the interior side wall or frame.

If you need compatibility assistance, Appliance Kingdom’s support team can help confirm fitment before purchase.

Replaces Part Numbers

Verified replacement and superseded part numbers include:

• AP4009660

• 1194899

• 61005271

• 61005616

• PS2004059

• EA2004059

Key Features & Benefits

• Genuine OEM Whirlpool factory-certified component

• Includes compressor start relay and overload protector

• Designed for precise refrigerator compressor compatibility

• Helps restore reliable cooling performance

• Protects compressor from overheating and overload conditions

• Meets original manufacturer electrical specifications

• Built for long-term durability

• Suitable for homeowners and professional appliance technicians

• Ships across Canada from a trusted Canadian appliance parts supplier

Installation Overview

Replacing the 12002784 relay and overload kit is generally considered a moderate refrigerator repair.

Installation typically involves:

• Disconnecting refrigerator power

• Accessing the rear compressor compartment

• Removing the faulty relay and overload assembly

• Installing the replacement kit onto compressor terminals

• Reconnecting wiring connections securely

• Testing refrigerator compressor startup

Because this repair involves live electrical components and compressor terminals, professional installation is recommended unless you have appliance repair experience.
