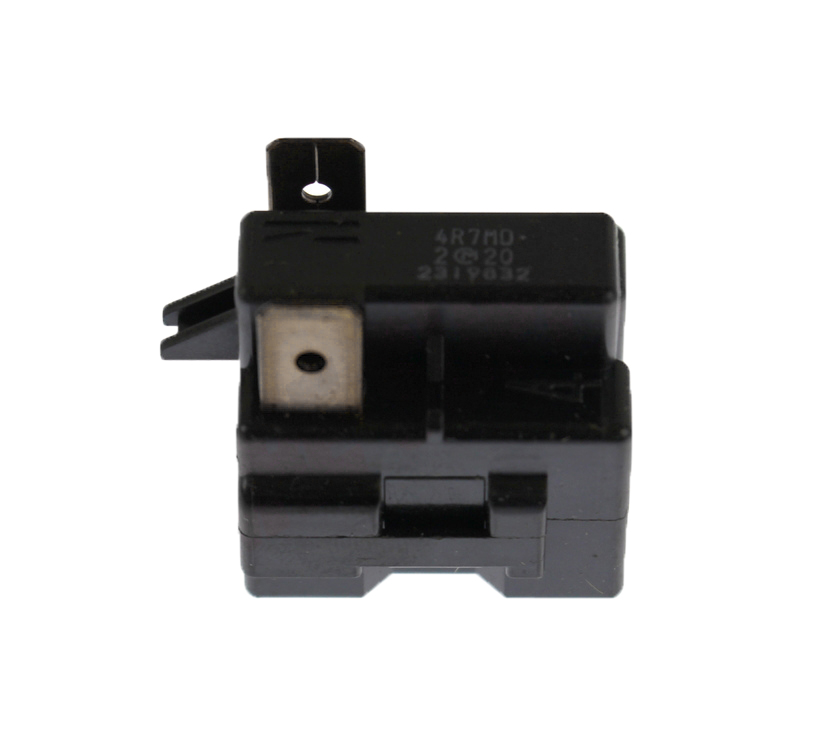

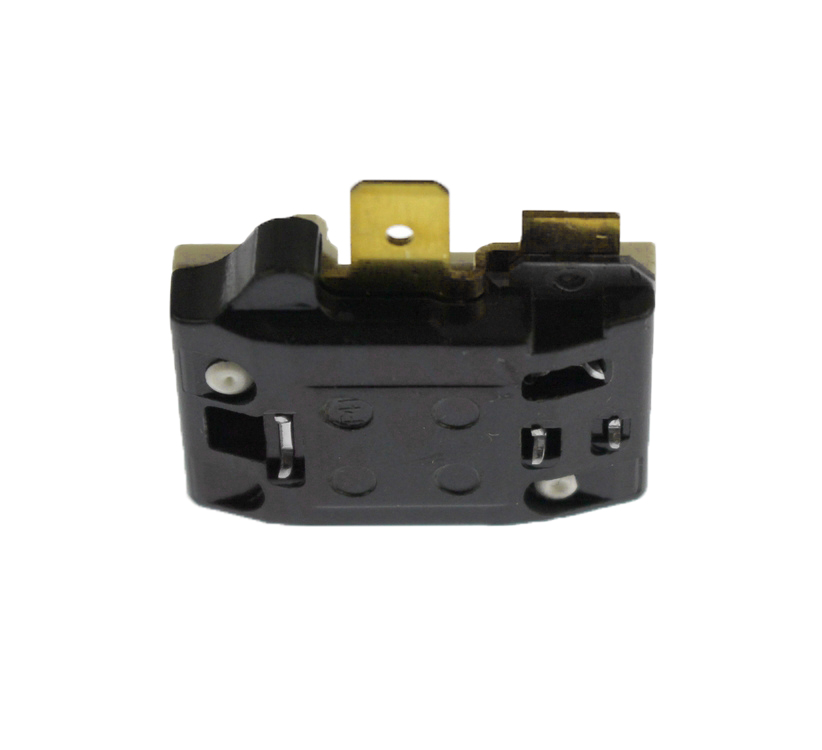

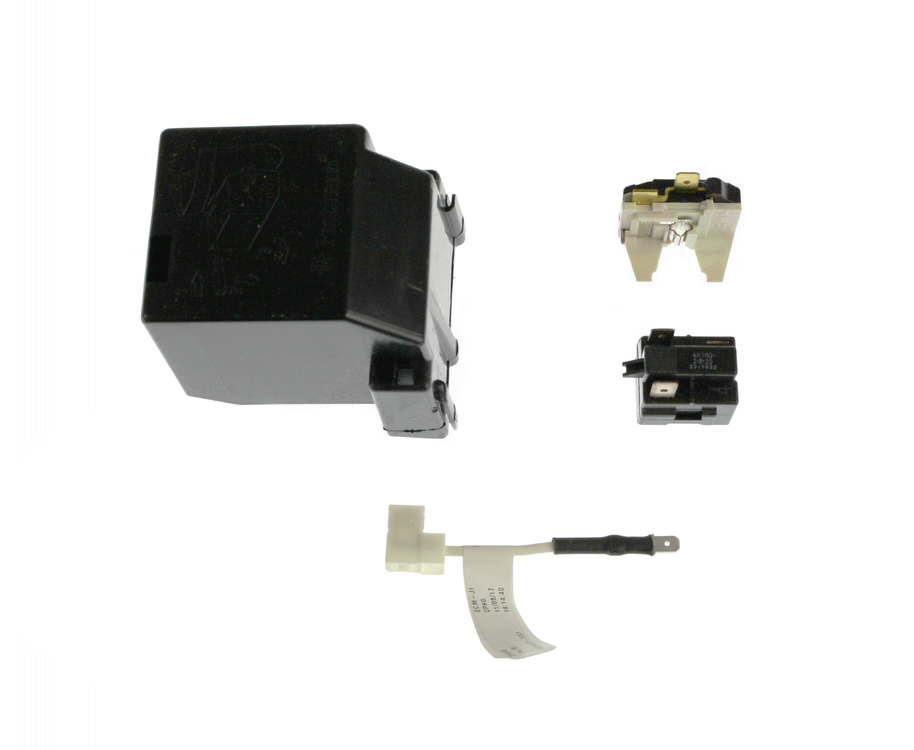

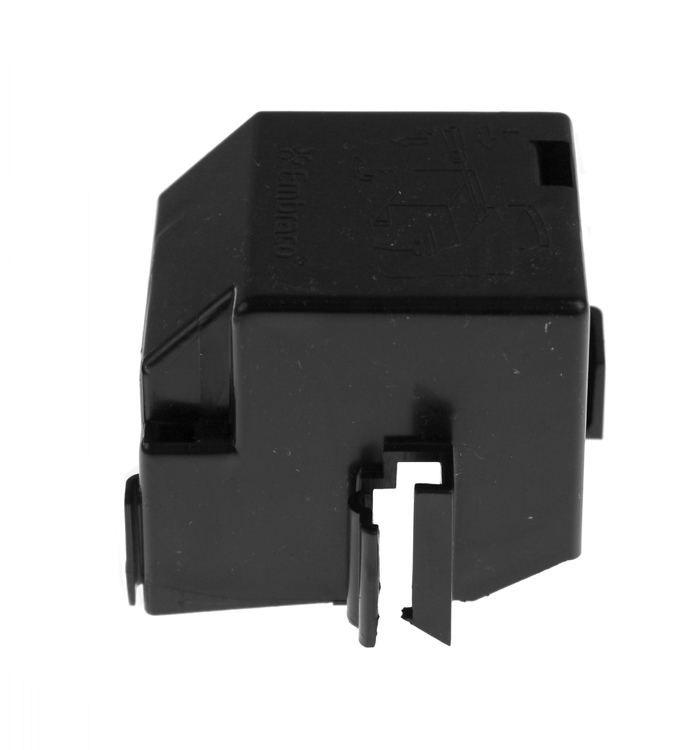

12002782 - Genuine OEM Whirlpool Refrigerator Compressor Start Device Kit

12002782 – Genuine OEM Whirlpool Refrigerator Compressor Start Device Kit

The 12002782 is a Genuine OEM Whirlpool refrigerator compressor start device and overload relay kit designed for select Whirlpool-built refrigerators. This critical electrical component helps initiate compressor startup and protects the compressor motor from overheating and electrical overload conditions.

Manufactured to original Whirlpool factory specifications, the 12002782 compressor start device kit ensures reliable compressor engagement and long-term cooling system protection. If your refrigerator is not cooling, makes repeated clicking noises, struggles to start, or cycles abnormally, replacing this start device kit commonly resolves compressor startup-related failures. Available from Appliance Kingdom with fast Canada-wide shipping for homeowners, landlords, and professional appliance repair technicians.

What Does the 12002782 Compressor Start Device Kit Do?

The compressor start device kit is mounted directly to the refrigerator compressor and performs two essential functions:

• Provides the electrical boost required to start the compressor motor

• Protects the compressor from overheating or excessive current draw via overload protection

The relay briefly powers the compressor start winding during startup, then disengages once the compressor reaches operating speed. The overload protector shuts down the compressor if unsafe temperature or amperage levels occur.

OEM-quality specifications matter because incorrect electrical characteristics can cause:

• Compressor startup failure

• Repeated short cycling

• Overheating

• Premature compressor wear

• Cooling system failure

Using a genuine Whirlpool replacement ensures safe operation and correct performance.

Common Symptoms Indicating Replacement

A failed compressor start device kit often causes noticeable refrigerator cooling issues, including:

• Refrigerator will not start

• Refrigerator or freezer not cooling properly

• Clicking sounds from the rear compressor area

• Compressor attempts to start but shuts off

• Intermittent cooling loss

• Compressor overheating

• Warm refrigerator compartment despite powered controls

Many appliance repair professionals identify repeated clicking with no compressor startup as a classic start relay failure symptom. If replacing the start device does not restore cooling, the compressor itself may require professional diagnosis. Community repair reports consistently note this as a first-line repair step before compressor replacement.

Compatibility Guidance

The 12002782 compressor start device kit is compatible with select Whirlpool-manufactured refrigerator models, including supported models across Whirlpool-built brands such as:

• Whirlpool

• Maytag

• KitchenAid

• Jenn-Air

• Amana

• Inglis

• Magic Chef

• Admiral

• Crosley

• Estate

• Roper

• Norge

Before ordering, always verify your refrigerator’s full model number to confirm compatibility.

Model numbers are typically located:

• Inside the refrigerator fresh food compartment

• On the interior side wall

• Near crisper drawers or shelving frames

If you need assistance, the support team at Appliance Kingdom can help confirm fitment before purchase.

Replaces Part Numbers

Verified superseded and replacement part numbers include:

• 61005518

• 1194680

• AP4009659

• PS2004057

• EA2004057

• AH2004057

Key Features & Benefits

• Genuine OEM Whirlpool factory-certified part

• Correct electrical specifications for safe compressor startup

• Integrated overload protection

• Designed for proper fit on compatible refrigerator compressors

• Helps restore normal cooling performance

• Protects compressor motor from thermal damage

• Built for long-term reliability

• Suitable for homeowners and professional appliance repair technicians

• Ships across Canada from a trusted Canadian appliance parts supplier

Installation Overview

Replacing the compressor start device kit is typically considered a moderate refrigerator repair.

Installation generally involves:

• Disconnecting power to the refrigerator

• Removing the rear lower access panel

• Disconnecting the failed start device from compressor terminals

• Installing the replacement relay and overload kit

• Reassembling and restoring power

Important: Whirlpool notes that updated wiring configurations may differ from original installations. Professional installation is strongly recommended if wiring differs or if electrical diagnosis is required.

Canada-Wide Availability & Trusted Canadian Supplier

Appliance Kingdom supplies genuine OEM appliance parts to customers across Canada.

Canadian homeowners, landlords, property managers, and appliance repair professionals trust Appliance Kingdom for:

• Genuine OEM quality assurance

• Fast Canadian shipping

• Expert compatibility support

• Reliable replacement appliance parts

Buyer Confidence & Support

When you purchase the 12002782 Genuine OEM Whirlpool Refrigerator Compressor Start Device Kit from Appliance Kingdom, you receive:

• Verified genuine Whirlpool OEM quality

• Trusted compressor-safe electrical performance

• Fitment support before ordering

• Fast nationwide Canadian shipping

• Professional appliance parts expertise
