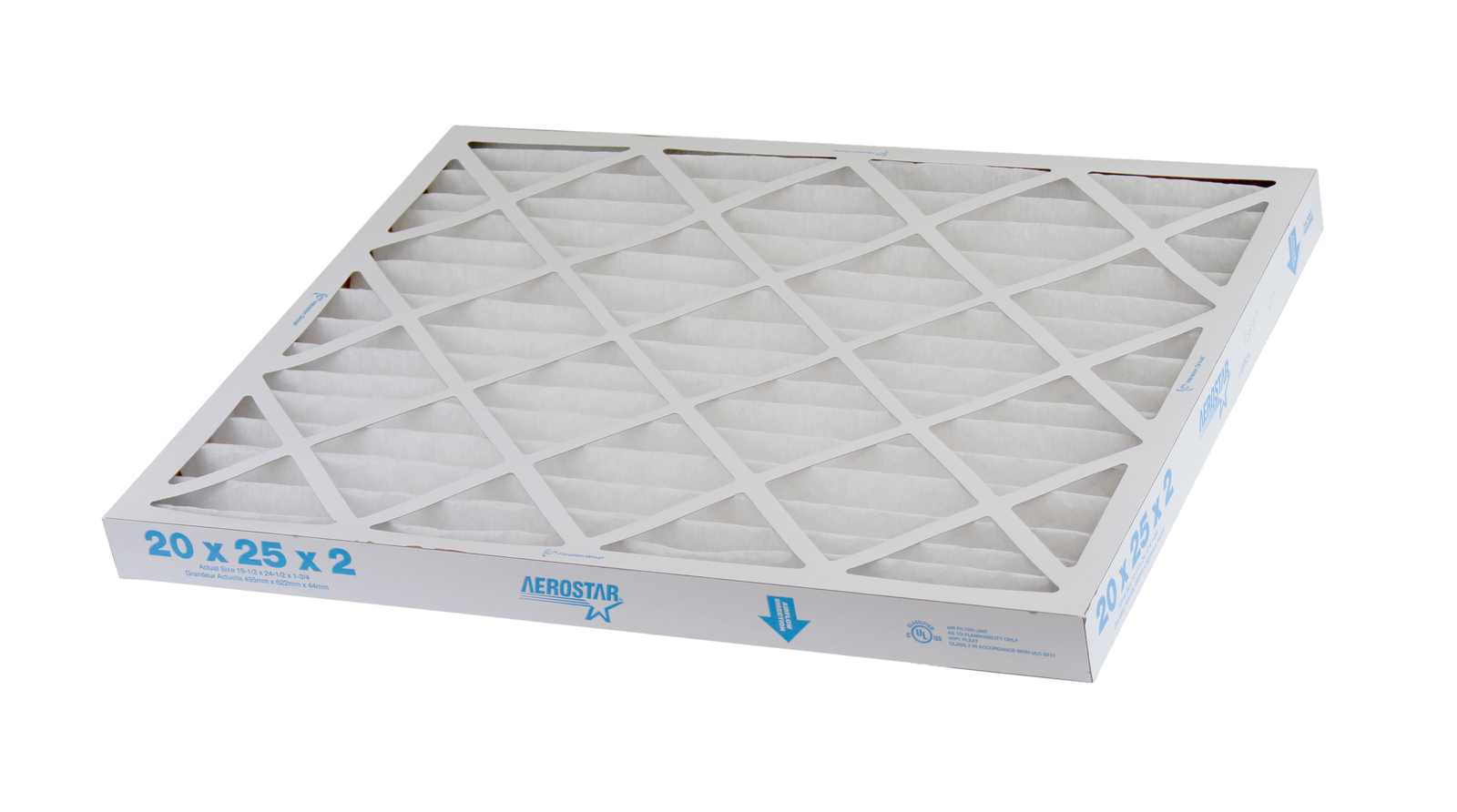

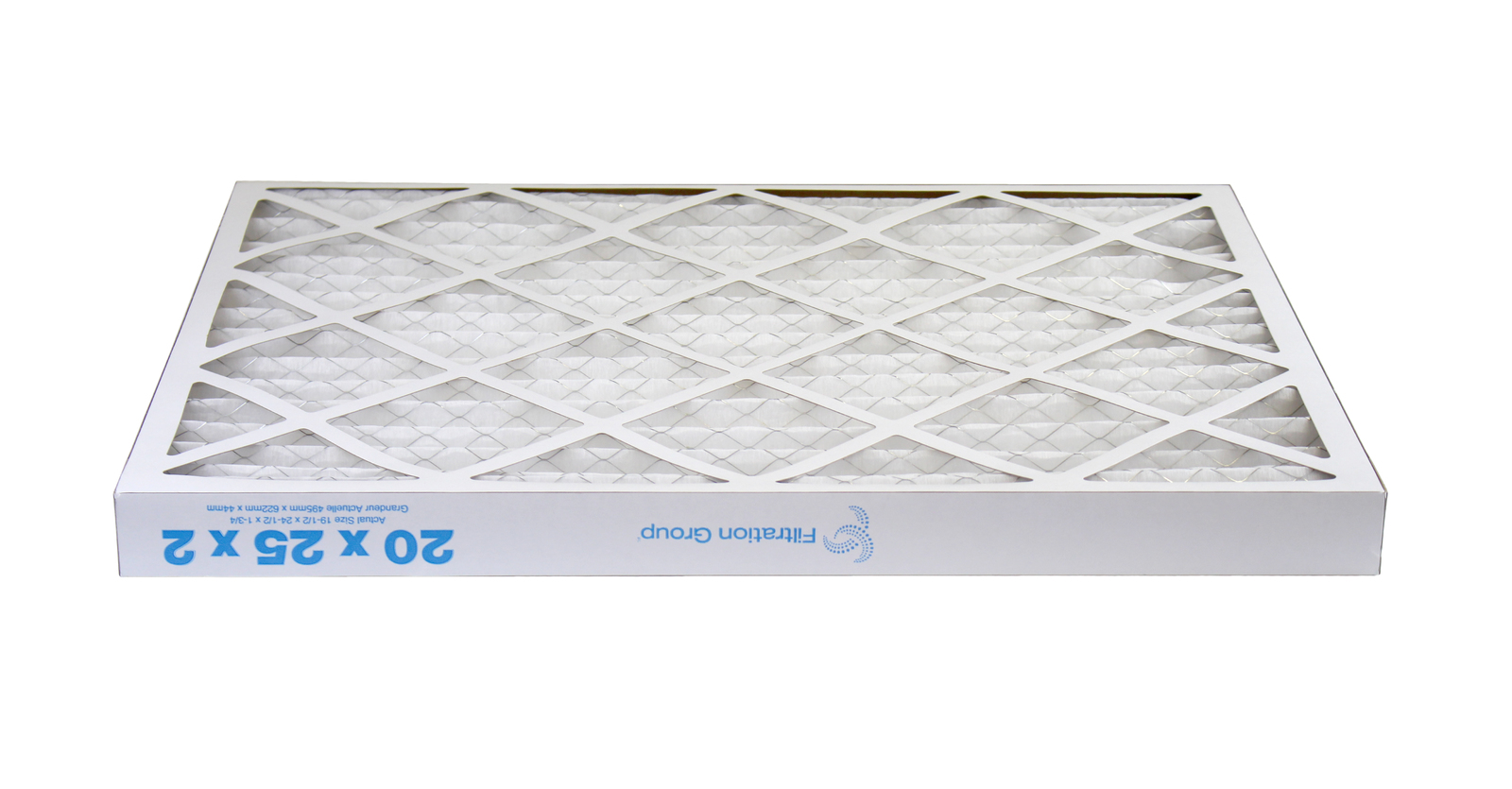

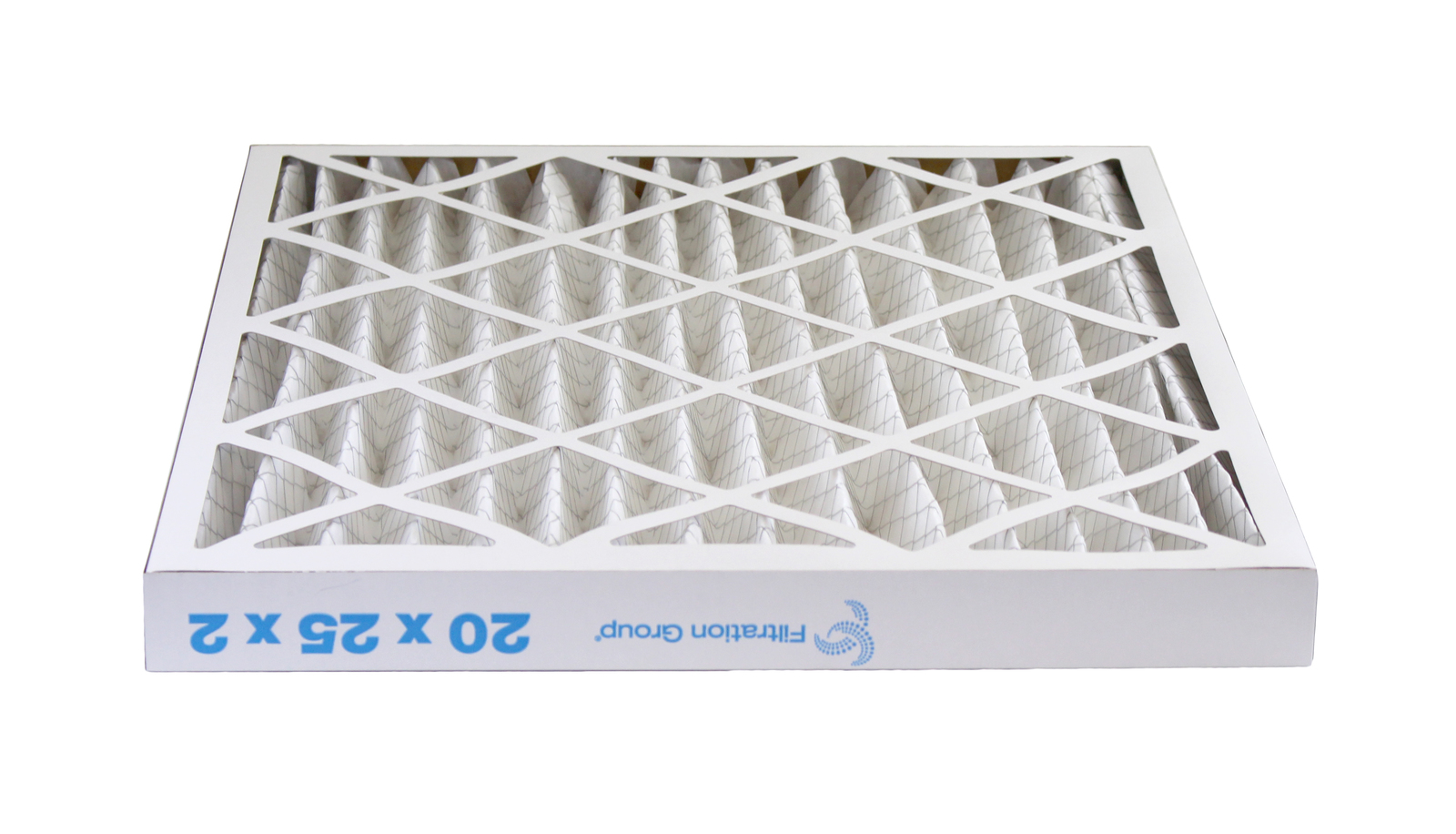

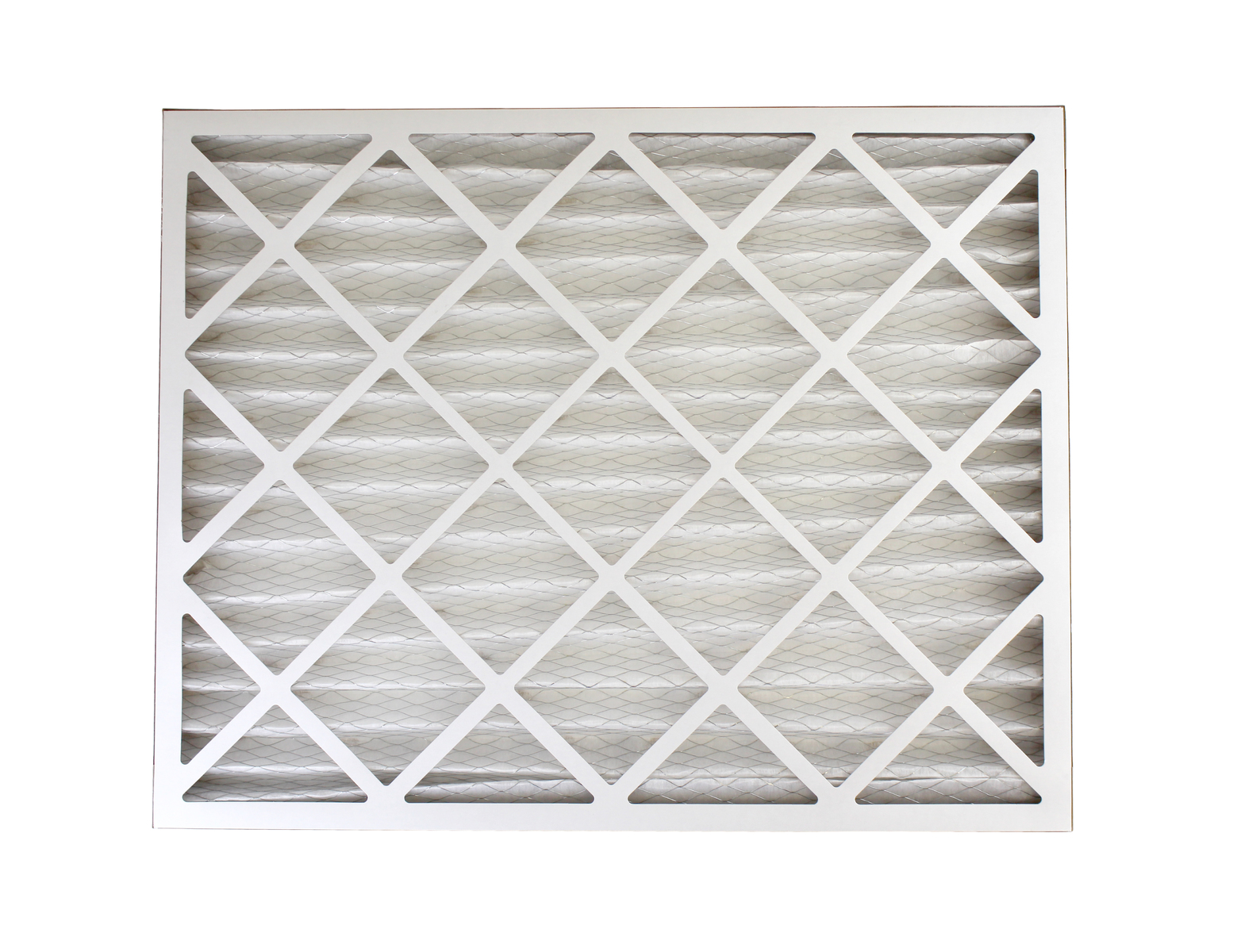

10390 - Genuine OEM FG IAQ Aerostar Series 400 Pleated Filter, 20" x 25" x 2", MERV 8, Standard Capacity

10390 - Genuine OEM FG IAQ Aerostar Series 400 Pleated Filter, 20" x 25" x 2", MERV 8, Standard Capacity

The 10390 Genuine OEM FG IAQ Aerostar Series 400 Pleated Filter is a MERV 8 air filter designed for commercial, industrial, and other HVAC applications requiring effective particle filtration with low airflow resistance. This standard-capacity filter has a nominal size of 20" x 25" x 2" and an actual size of approximately 19-1/2" x 24-1/2" x 1-3/4".

The Aerostar Series 400 uses synthetic filter media and a supporting metal grid designed to help maintain pleat uniformity and filter strength during installation and operation. Its MERV 8 filtration is designed to capture common airborne particles including dust, pollen, mould, and dander while maintaining airflow through the HVAC system.

Appliance Kingdom serves customers across Canada with HVAC and replacement components, making the 10390 a practical option for homeowners, property managers, facility operators, landlords, and HVAC professionals looking for a correctly sized MERV 8 pleated filter.

What Does the 10390 Air Filter Do?

The 10390 filter removes airborne particles from the air passing through an HVAC system. Its pleated media provides substantially more filtration surface area than a basic flat filter while helping maintain airflow through the system.

The Aerostar Series 400 is designed with filter media laminated to an expanded metal grid on the air-exiting side. The support structure helps prevent media fluttering and maintains consistent pleat formation during operation. The moisture-resistant frame is designed to resist warping, cracking, and distortion under normal operating conditions.

Proper filtration is important because accumulated dust and airborne debris can circulate through occupied spaces and collect on HVAC components. Maintaining the correct filter size and filtration rating can help protect HVAC equipment while supporting effective air filtration.

Common Signs Your HVAC Filter Needs Replacement

A dirty or loaded air filter can contribute to:

• Reduced airflow from HVAC supply registers

• Increased dust accumulation

• Reduced heating or cooling performance

• Longer HVAC operating times

• Increased airflow resistance

• Dust accumulation around vents or HVAC components

• Reduced overall HVAC efficiency

Regular filter inspection and replacement are important because a filter becomes increasingly restrictive as it collects airborne particles.

Will Replacing the 10390 Filter Fix My HVAC Problem?

If the existing filter is dirty, clogged, damaged, or excessively restrictive, replacing it with the correctly sized 10390 can restore the intended airflow through the filtration stage.

However, not every HVAC airflow or performance problem is caused by the filter. Issues involving the blower, ductwork, coils, thermostat, or other HVAC components require separate diagnosis.

Before replacing the filter, confirm that your system requires a nominal 20" x 25" x 2" filter and that MERV 8 is appropriate for the application.

Size & Compatibility Guidance

The 10390 has the following verified specifications:

• Nominal size: 20" x 25" x 2"

• Actual size: 19-1/2" x 24-1/2" x 1-3/4"

• MERV rating: 8

• Series: Aerostar 400

• Capacity: Standard

• Filter type: Pleated

• Filter media: Fiberglass

• Rated velocity: 300 FPM

• Airflow capability: 1,300 CFM at medium and 1,750 CFM at high

• Case quantity: 12

• Certification: UL 900 Class 2

Always verify the dimensions of your existing filter and the HVAC system's specified filter requirements before ordering. Nominal filter dimensions do not necessarily equal the filter's actual physical dimensions.

Key Features & Benefits

• Genuine OEM FG IAQ Aerostar Series 400 filter

• Part number: 10390

• Nominal 20" x 25" x 2" size

• MERV 8 filtration

• Standard-capacity configuration

• Pleated filter design

• Synthetic filtration media

• Expanded metal support grid

• Moisture-resistant die-cut frame

• Designed to maintain pleat uniformity during operation

• Helps capture dust, pollen, mould, dander, and other airborne irritants

• Designed for commercial and industrial HVAC applications

• Suitable for homeowners, landlords, property operators, and HVAC professionals

Installation Overview

Replacing a pleated HVAC air filter is generally a simple maintenance task and does not normally require specialist installation.

Before installation, switch off the HVAC system if required by the equipment manufacturer. Remove the existing filter, check the dimensions and airflow direction, and install the new filter according to the airflow arrow printed on the filter frame.

Do not force a filter into an incorrectly sized housing. If the filter does not fit correctly or the HVAC system has unusual airflow restrictions, consult an HVAC professional.

Recommended Applications

The Aerostar Series 400 filter is intended for applications requiring MERV 8 filtration and is suitable for many commercial and industrial environments. AMRE specifically identifies applications including commercial buildings, hotels, industrial filtration, airports, schools, universities, and HVAC systems where filtration is required to protect occupants and equipment from airborne particles.

Canada-Wide Availability & Appliance Kingdom Support

Appliance Kingdom is a Canadian supplier serving customers across Canada.

The 10390 FG IAQ Aerostar Series 400 Pleated Filter is available for Canadian customers looking for a 20" x 25" x 2" MERV 8 standard-capacity filter. The product is also listed by Canadian HVAC supplier AMRE Supply as an in-stock item.

Whether you are maintaining a commercial building, rental property, facility, or HVAC system, Appliance Kingdom can help you identify the correct replacement filter based on the required dimensions and specifications.

Buyer Confidence

The 10390 is a clearly specified Aerostar Series 400 filter with documented dimensions, MERV rating, capacity, filter construction, airflow characteristics, and certification. These specifications make it easier to compare the filter against your existing HVAC filter before ordering.

For the best fit confidence, compare both the nominal and actual dimensions of your existing filter with the specifications listed above.
